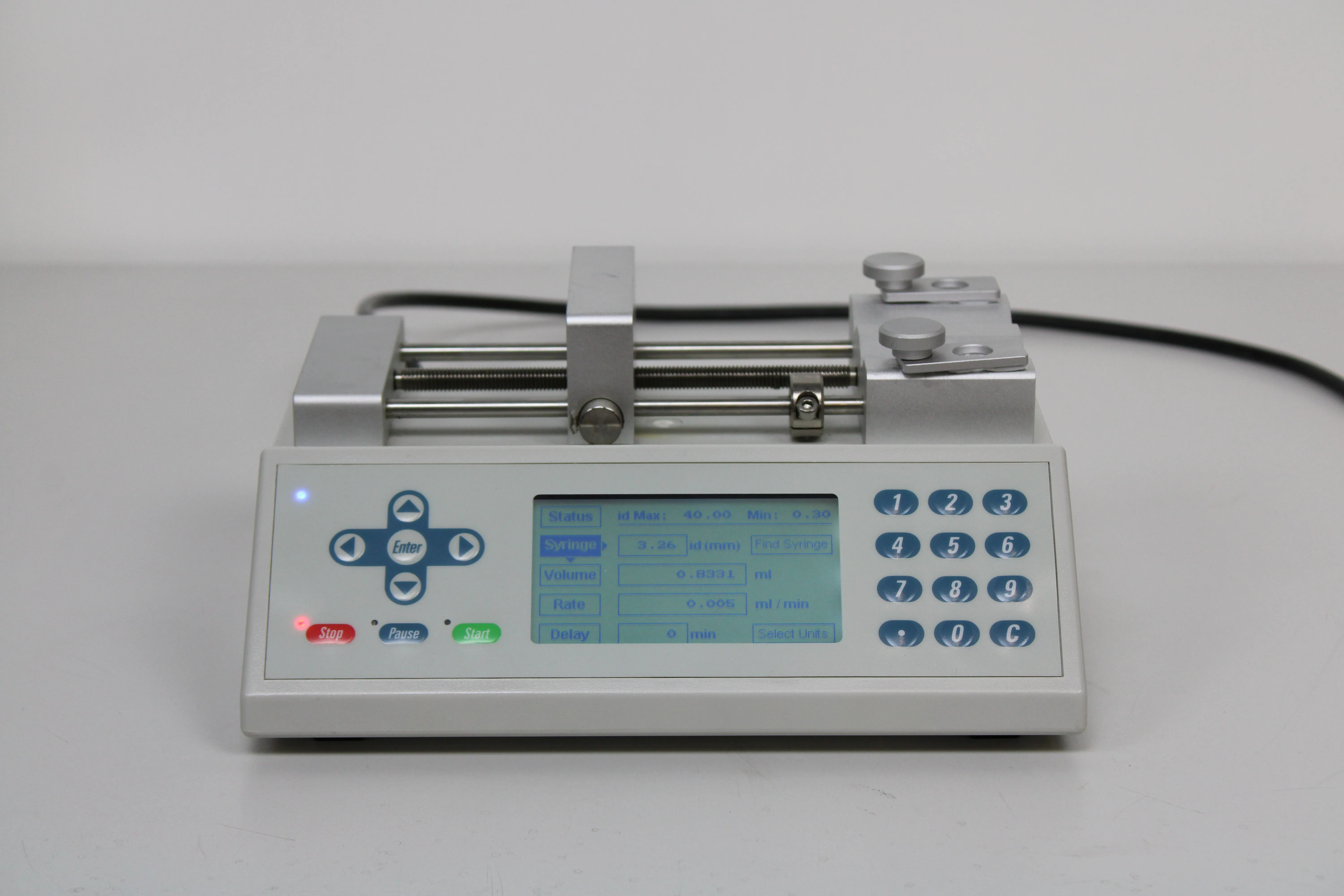

Chemyx Fusion 101 Syringe Pump

Product Information

The Chemyx Fusion 101 is a high-performance, low-cost syringe pump designed for use in synthetic chemistry, electro-spinning, drug infusion, and ESI microliter injections. This infusion-only syringe pump offers smooth, pulseless flow with high accuracy at low flow rates. The bright LCD and easy-to-use menu interface make it a very user-friendly syringe pump. The miniature computer in the system continually monitors operations and provides constant status updates. The pump is equipped with a D9 RS232 port that directly accepts ASCII commands. The Fusion 101 syringe pump is designed for precision dispensing and can infuse with an accuracy of less than 0.35%. It is suitable for use with plastic and glass syringes, with a capacity ranging from 0.5L to 60mL. The syringe pump's technical specifications include a display size of 4.3 inches, connectivity options with RS232 and USB-B ports, power requirements of 110/220 VAC, and an operating temperature range of 4C to 40C. The Chemyx Fusion 101 Syringe Pump is well-suited for research and laboratory applications, enabling greater precision and control in various dosing and dispensing activities.

• Smooth, pulseless flow for precision dispensing
• High accuracy at low flow rates
• Equipped with a D9 RS232 port for direct ASCII command input
• Bright LCD and easy-to-use menu interface
• Monitors operations and provides constant status updates

• Mode: Infuse Only
• Accuracy: < 0.35%
• Reproducibility: < 0.05%
• Syringe Size (Min/Max): 0.5L to 60mL
• Syringe Type: Plastic and Glass
• Minimum Flow Rate: 0.0001 L/min (with 0.5L syringe)
• Maximum Flow Rate: 90 mL/min (with 60mL syringe)
• Linear Force: 29lb (13.1kg)
• Display: 4.3 inch LCD Screen

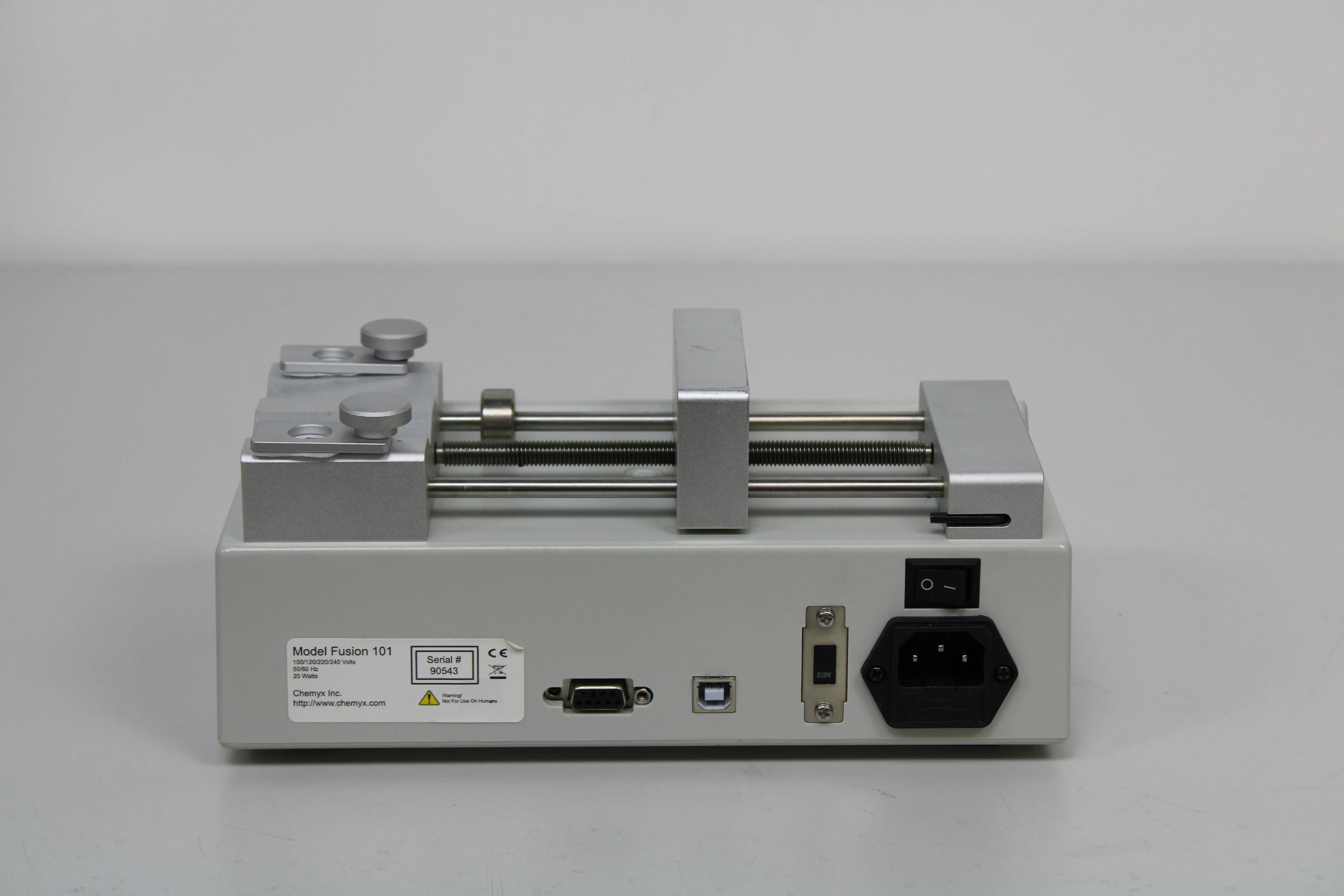

• Connectivity: RS232 and USB-B Ports
• System Dimensions: 9.5 x 6.8 x 4.4 inches (24 x 17 x 11 cm)
• Power: 110/220 VAC
• Weight: 7lbs (3kg)
• Motor Drive: 0.9 Stepper Motor with Micro-stepping
• Step Resolution: 0.198 m/step
• Operating Temperature: 4C to 40C (40F to 104F)

Metric: 3 kg
Imperial: 7 lbs

Metric: 24 cm x 17 cm x 11 cm
Imperial: 9.5 in x 6.8 in x 4.4 in
