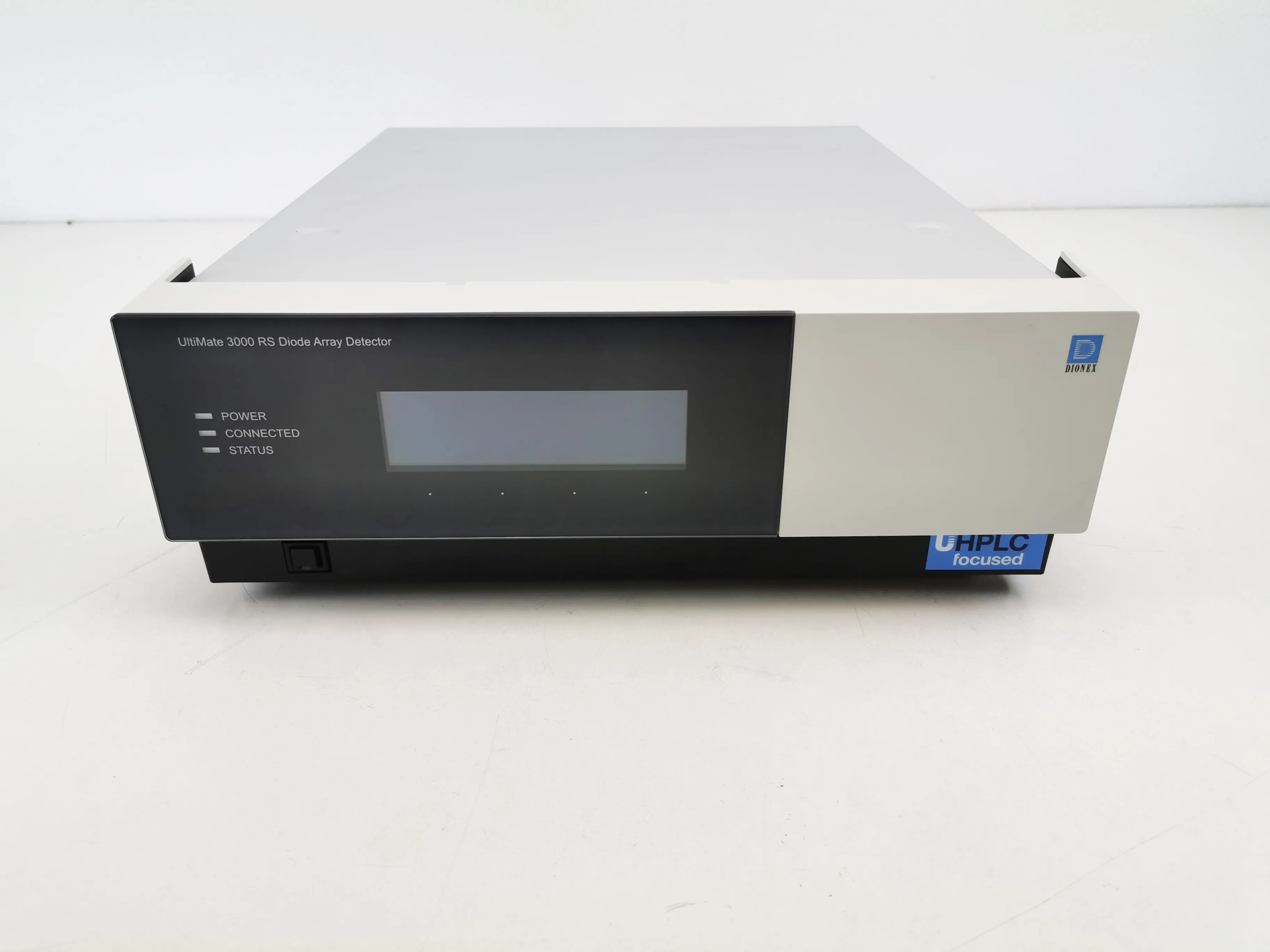

Dionex UltiMate 3000 Rapid Separation Diode Array Detector, DAD-3000RS

Product Information

As a quirky, intelligent laboratory scientist, I'm thrilled to introduce the Dionex UltiMate 3000 Rapid Separation Diode Array Detector, DAD-3000RS. This detector is perfect for capturing full spectral information from novel compounds in narrow, RS peaks. It's an ideal choice for method development laboratories looking for precision in conventional chromatography, as it offers a low noise and data collection rates of up to 200 Hz, allowing detection and characterization of extremely narrow peaks. Its stainless steel and Thermo Scientific PEEK flow cells make it ultra-flexible for standard and biocompatible applications. The detector is also equipped with ID chips to track lamp and cell parameters for audit trails. Notably, the detector is complemented by the Thermo Scientific Dionex UltiMate 3000 PCM-3000 pH and Conductivity Monitor, which accurately monitors gradient formation in salt- or pH-gradient-based ion-exchange chromatography, especially in biopharmaceutical analysis. The PCM-3000 supports all modes of chromatography and provides verification of the elution conditions, retention behavior of the sample, and the precision and repeatability of the instrumentation.

• Low noise and drift
• Data collection rates of up to 200 Hz
• Stainless steel and Thermo Scientific PEEK flow cells for flexibility

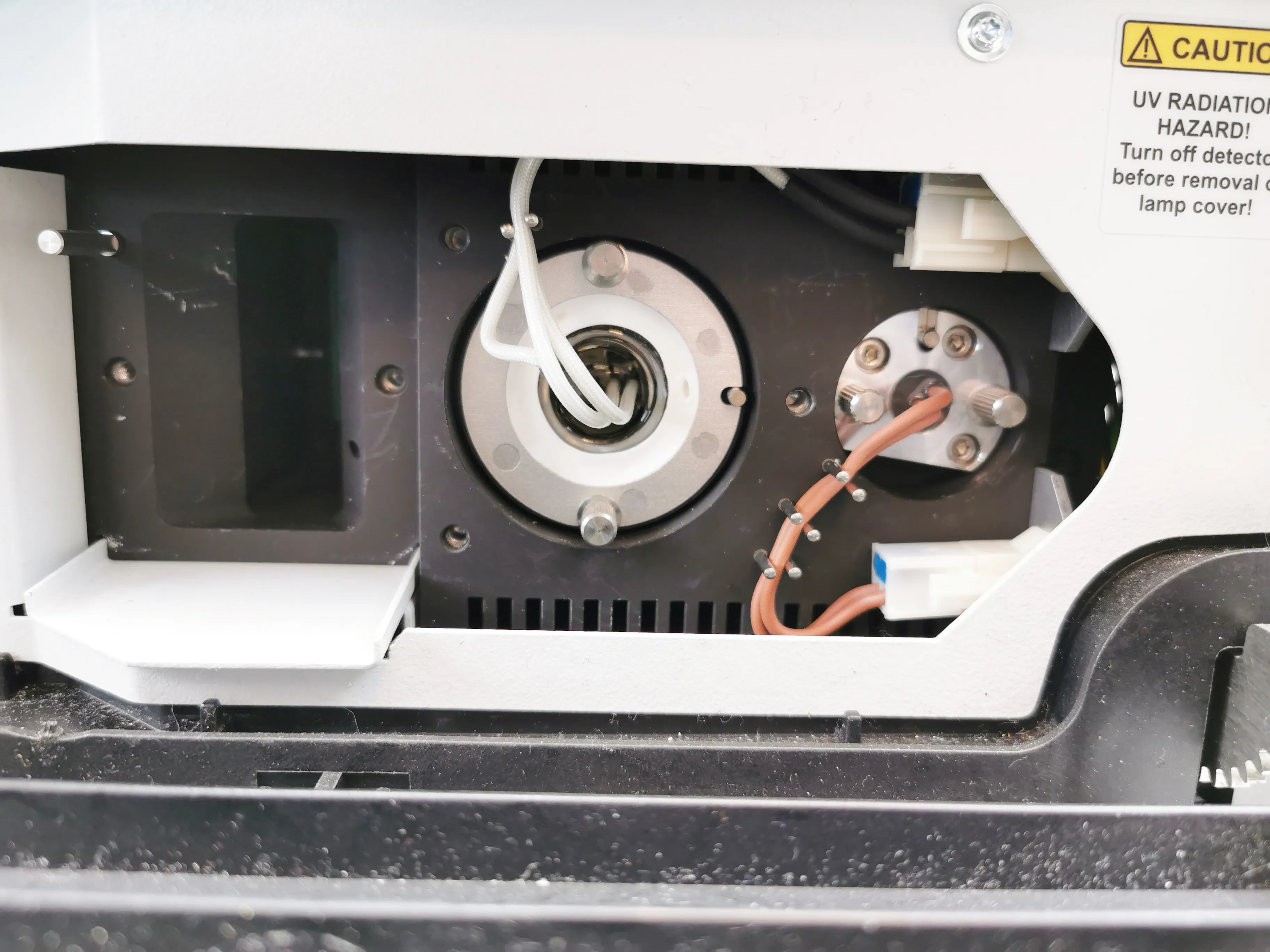

• Front access to prealigned cells and lamps

• Detection Mode: 8 Channels
• Detector Type: Single-Beam
• Data Collection Rate: 200 Hz
• GLP Features: Automatic Instrument Qualification (AutoQ), System Wellness and Qualification Monitoring with Chromeleon Software, Lamp and Cell ID Chips
• Drift: <1 mAU/hr
• Temperature Control: Yes
• Noise: <8 AU
• Flow Cell Volume: Variable
• Pixel Resolution: <1.0 nm
• Slit Width: Narrow or Wide Slit, Settable
• Wavelength Accuracy: 1.0 nm
• Wavelength Range: 190 to 800 nm
• Lamp: Deuterium Lamp, Tungsten Lamp
• Flow Cell: Various, Order Separately
• Linearity: <3%RSD
• Optical System: Single-Beam

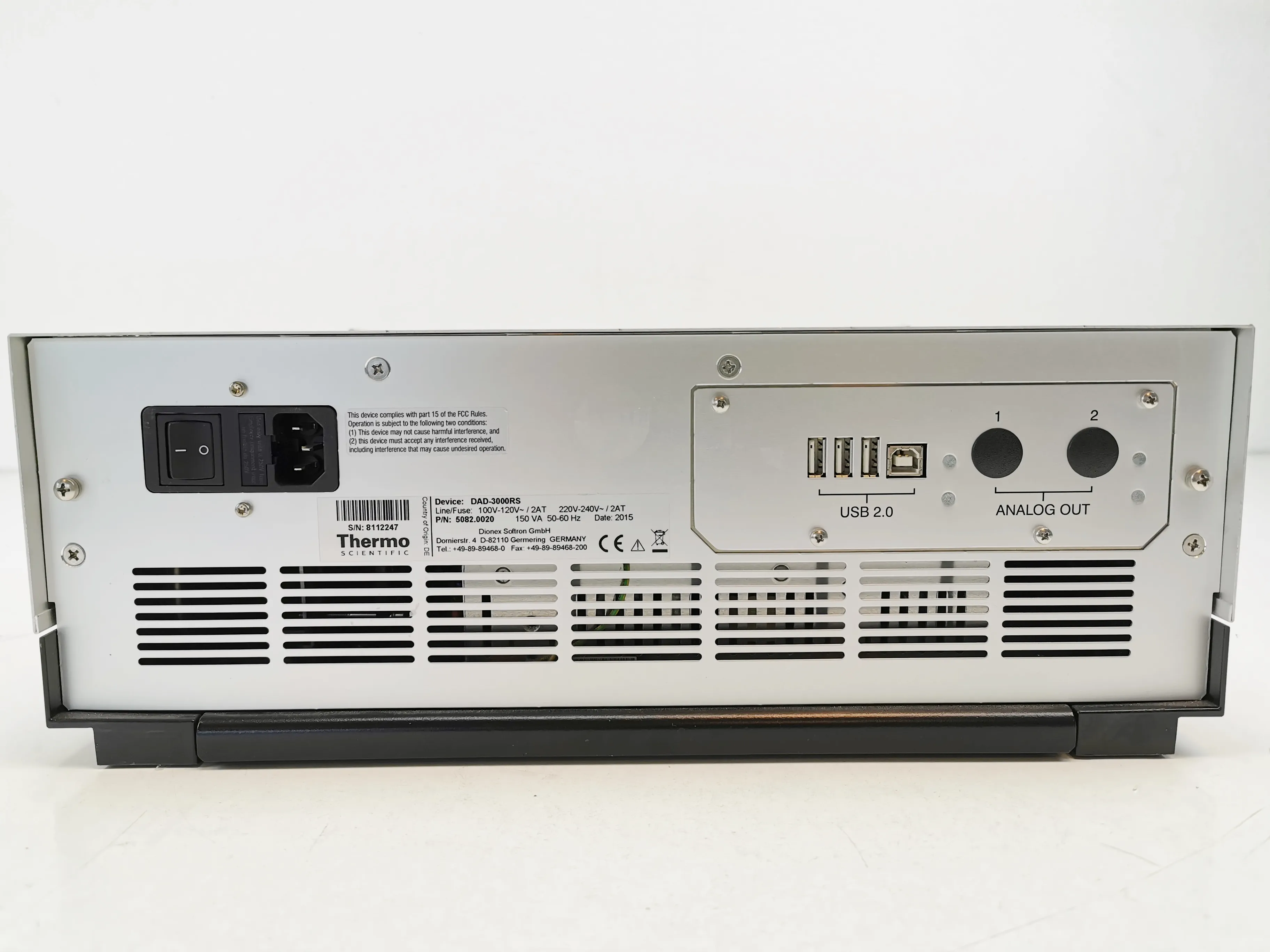

• PC Connection: USB
• Response: 2 Sec.
• Voltage: 85 to 260 V

Metric: 42 kg
Imperial: 92.59404 lbs

Metric: 20.078751 cm x 16.535442 cm x 6.299216 cm
Imperial: 7.91496062992 in x 6.51015826749 in x 2.48090617985 in

90272000

The harmonized code 90272000 corresponds to spectrophotometers, spectrometers and spectrographs using optical radiations (UV, visible, IR). This code aligns with the Dionex UltiMate 3000 Rapid Separation Diode Array Detector, DAD-3000RS as it accurately classifies the equipment based on its functionality and intended use.
