Ion Torrent 7467 Personal Genome PGM System

Product Information

Ion Torrent 7467 Personal Genome PGM System The Ion Personal Genome Machine (PGM) System combines semiconductor sequencing technology with natural biochemistry to directly translate chemical information into digital data, democratizing sequencing and making it accessible to your lab. This established system leverages the exponential improvements in the semiconductor industry (known as Moores Law) to provide scalability and flexibility for various applications. The Ion PGM System uses natural sequencing chemistry, which eliminates the need for expensive optics and reduces complex chemistries to measure natural DNA extension. The system leverages direct, real-time sequencing detection, providing sequencing results typically in 37 hours. Affordable sequencing for small genomes and targeted panels. Other sequencing technologies rely on optical systems as bridges between chemical and digital sequence information. These systems typically entail significant additional costs; the elimination of the optical system by the Ion PGM System reduces these costs. With its small benchtop footprint, weight of about 65 lbs (30 kg), low-cost sequencing reagents, and simple touchscreen user interface, the Ion PGM System brings next-generation sequencing to your lab. Coupled with the Torrent Suite Software, the Ion PGM System performs preliminary reference genome alignment and outputs data in BAM format for easy downstream analysis with optional third party analysis tools. It can also provide access to a web portal for data review and sharing. Ion power: PostLight sequencing produces bits from bases. The right tool to get results easily, reliably, and quickly. Since it detects nucleotide incorporation without the use of light, the Ion PGM System uses the simplest sequencing chemistry possible: natural nucleotides. There is no need for expensive and error-prone modified bases, enzymatic cascades, chemiluminescence, or fluorescence. Direct detection also means the incorporation of each nucleotide is recorded in seconds. As a result, the Ion PGM System runs finish within hours rather than days. Specifications: CPU:Dual 6-core 2.66 GHz CPUs, Capacity:1 chip per run, Chip Compatibility: Ion 314 Chip v2 BC, Ion 316 Chip v2 BC, Ion 318 Chip v2 BC, Current Limit:6.7 A (max), Data Output: BAM Files, FASTQ Files, SFF Files, VCF Files, Display Interface: Touchscreen User Interface, External Computer: Torrent Server, For Use With (Equipment): Ion PGM System, Frequency: 5060 Hz, High Throughput Compatibility: High Throughput-Compatible, Multiplexing, Instrument Memory: 48 GB RAM, Eight 2 TB Hard drives in RAID 5, Operating System: Ubuntu 10.04, Output: Ion 314 Chip v2: Up to 100 Mb, Ion 316 Chip v2: Up to 1 Gb, Ion 318 Chip v2: Up to 2 Gb, Product Line: Ion Torrent, Personal Genome Machine (PGM), Product Size: 1 instrument, Read Length: 35400 bases (average: 200 bases), ReadsRun: Ion 314 Chip v2: 400-500 thousand, Ion 316 Chip v2: 2-3 million, Ion 318 Chip v2: 4-5.5 million, Run Time: Ion 314 Chip v2: 2.3 to 3.7 hr, Ion 316 Chip v2: 3.0 to 4.9 hr, Ion 318 Chip v2: 4.4 to 7.3 hr, Sequencing Scale: 3 Mb to 2 Gb, Technique: Post-Light Ion Semiconductor Sequencing, Throughput: Up to 2 Gb per run, Voltage Limit: 100 V (min) to 240 V (max)

• Direct real-time sequencing detection
• Natural sequencing chemistry
• Scalability and flexibility
• Coupled with Torrent Suite Software

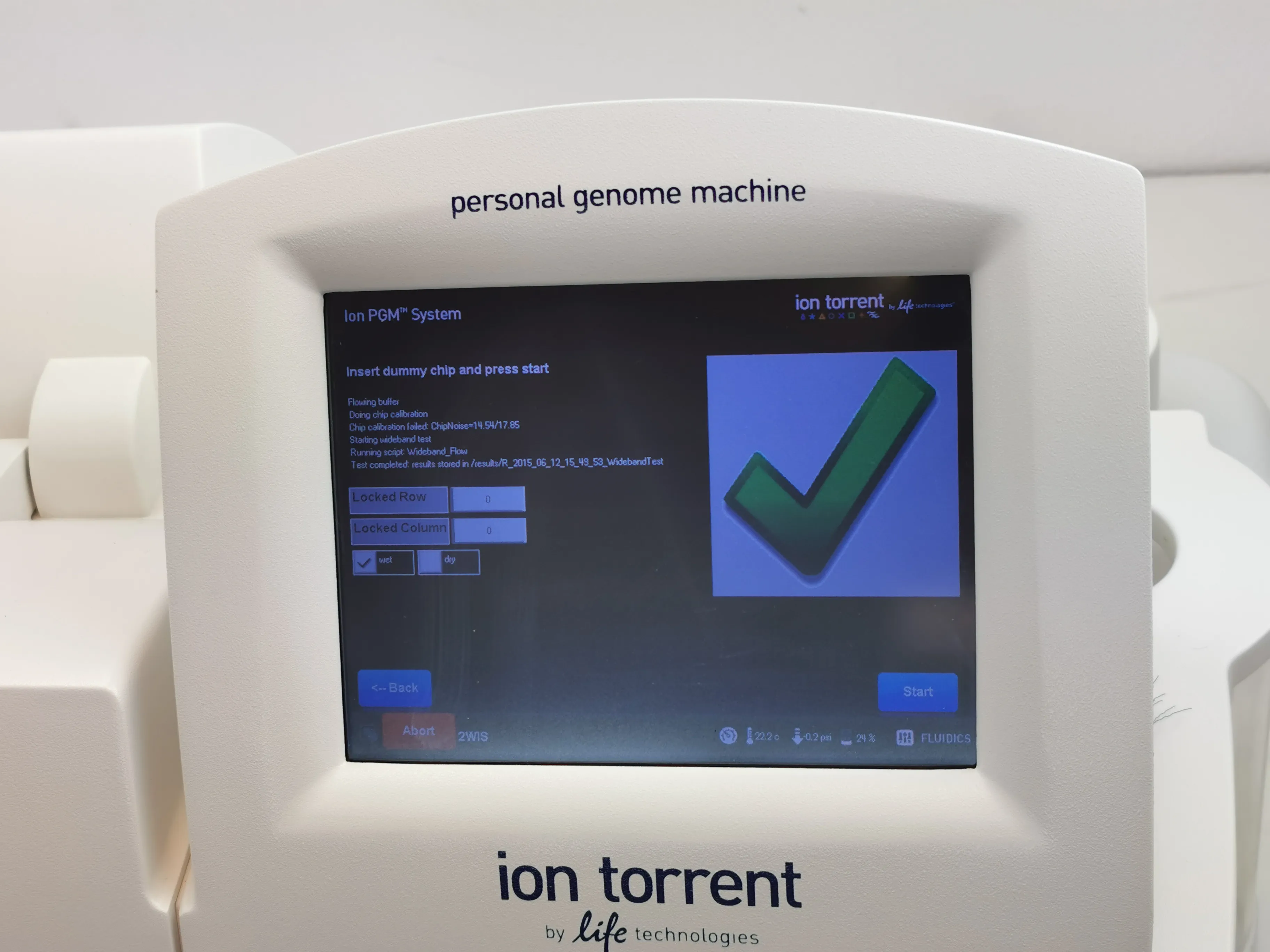

• Touchscreen User Interface
• High throughput compatibility

• CPU: Dual 6-core 2.66 GHz CPUs
• Capacity: 1 chip per run
• Chip Compatibility: Ion 314 Chip v2 BC, Ion 316 Chip v2 BC, Ion 318 Chip v2 BC
• Current Limit: 6.7 A (max)
• Data Output: BAM Files, FASTQ Files, SFF Files, VCF Files
• Display Interface: Touchscreen User Interface
• External Computer: Torrent Server
• For Use with Equipment: Ion PGM System
• Frequency: 50-60 Hz
• High Throughput Compatibility: High Throughput-Compatible, Multiplexing
• Instrument Memory: 48 GB RAM, Eight 2 TB Hard drives in RAID 5
• Operating System: Ubuntu 10.04
• Output: Ion 314 Chip v2: Up to 100 Mb, Ion 316 Chip v2: Up to 1 Gb, Ion 318 Chip v2: Up to 2 Gb
• Product Line: Ion Torrent, Personal Genome Machine (PGM)
• Product Size: 1 instrument
• Read Length: 35400 bases (average: 200 bases)
• ReadsRun: Ion 314 Chip v2: 400-500 thousand, Ion 316 Chip v2: 2-3 million, Ion 318 Chip v2: 4-5.5 million
• Run Time: Ion 314 Chip v2: 2.3 to 3.7 hr, Ion 316 Chip v2: 3.0 to 4.9 hr, Ion 318 Chip v2: 4.4 to 7.3 hr
• Sequencing Scale: 3 Mb to 2 Gb
• Technique: Post-Light Ion Semiconductor Sequencing
• Throughput: Up to 2 Gb per run
• Voltage Limit: 100 V (min) to 240 V (max)

Metric: 65 kg
Imperial: 143 lbs

Metric: 70 cm x 65 cm x 65 cm
Imperial: 27.56 in x 25.59 in x 25.59 in
