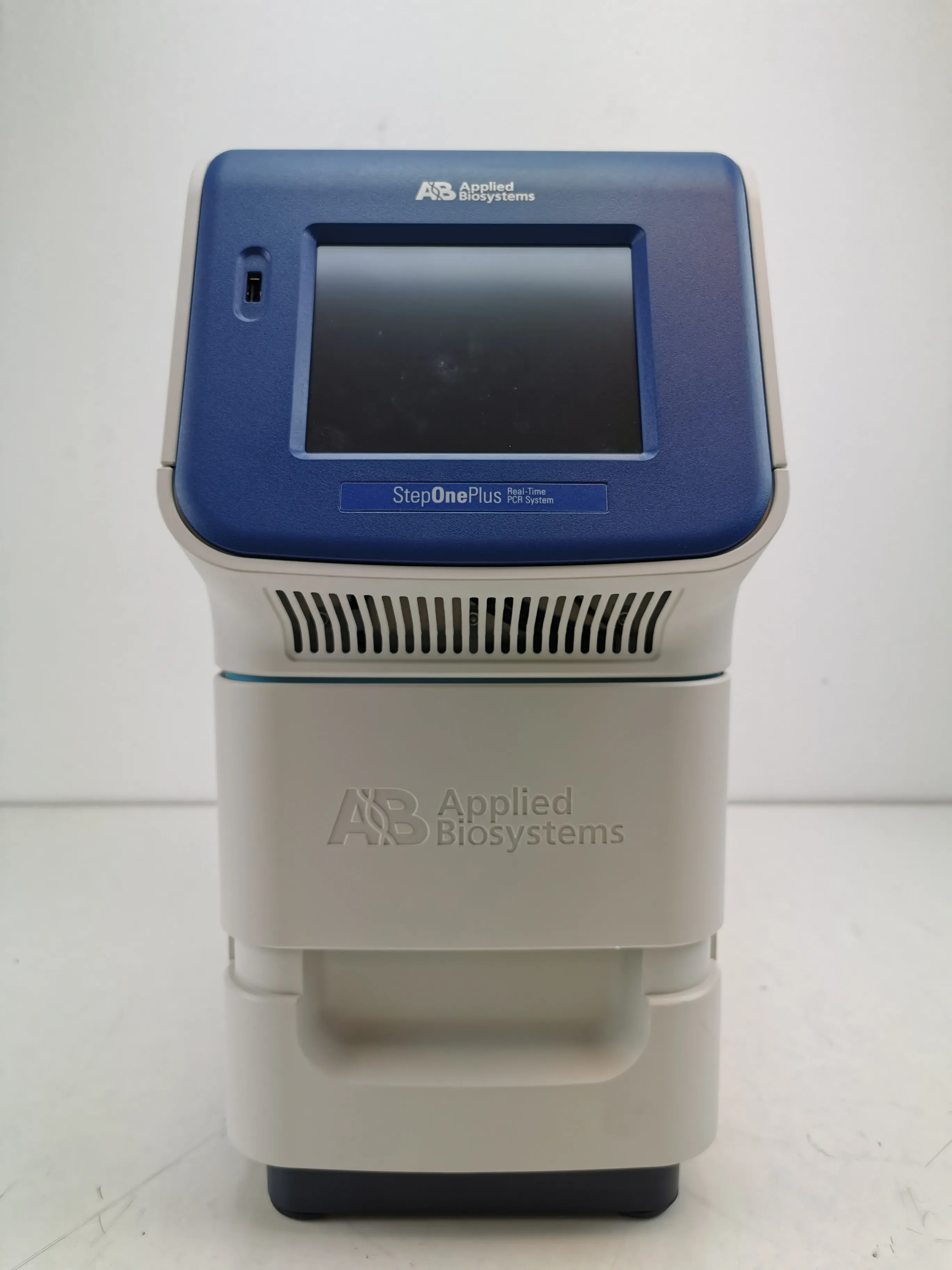

Applied Biosystems StepOne Plus Real-Time PCR System #4376592

Product Information

The Applied Biosystems StepOnePlus Real-Time PCR System #4376592 is a 96-well Real-Time PCR instrument designed for precise, quantitative results and is suitable for both first-time and experienced users. With robust LED based 4-color optical recording, this system caters to a variety of genomic research applications. It features specific capabilities such as a linear dynamic range greater than 9 log units, high throughput compatibility, and a sensitivity of 1 copy. The StepOnePlus Real-Time PCR System is a reliable, fast, and precise tool that fits perfectly in any genomics or molecular biology research laboratory setting.

• Specifically designed for precise, quantitative results
• Robust LED based 4-color optical recording
• Linear dynamic range greater than 9 log units
• High throughput compatibility
• Sensitivity of 1 copy
• Reliable, fast, and precise for genomics or molecular biology research

• Calibrated Dye: FAM, JOE, NED, ROX, SYBR Green I, TAMRA, VIC
• Capacity: 1 x 96-well plate, 12 x 8-tube strips, 96 x 0.1 ml tubes
• Detection Method: Primer-Probe Detection, SYBR
• Dynamic Range: Greater than 9 log units (detection)
• For Use With (Equipment): StepOnePlus
• Format: 0.1 ml tubes, 8-tube strips, 96-well plate
• Green Features: Sustainable packaging
• Thermal Cycling System: Peltier-Based System
• Peak Block Ramp Rate: 4.6C/sec
• Reaction Volume Range: 10-30 µl (Standard curve experiments: 40 µl in standard mode is validated)
• Run Time: <2 hrs run (Standard Mode), <40 min run (Fast Mode)
• Temperature Accuracy: 0.25°C (35 to 95°C) of display temperature
• Temperature Range: 4-100°C
• Temperature Uniformity: 0.25°C (35 to 95°C) of setpoint/display temperature
• Optics: 4 emission filters, Blue LED excitation source, photodiode
• Product Size: 1 instrument

Metric: 25 kg
Imperial: 55.1155 lbs

Metric: 18.897648 cm x 9.842525 cm x 20.078751 cm
Imperial: 7.444758822 in x 3.880679135 in x 7.913626014 in
