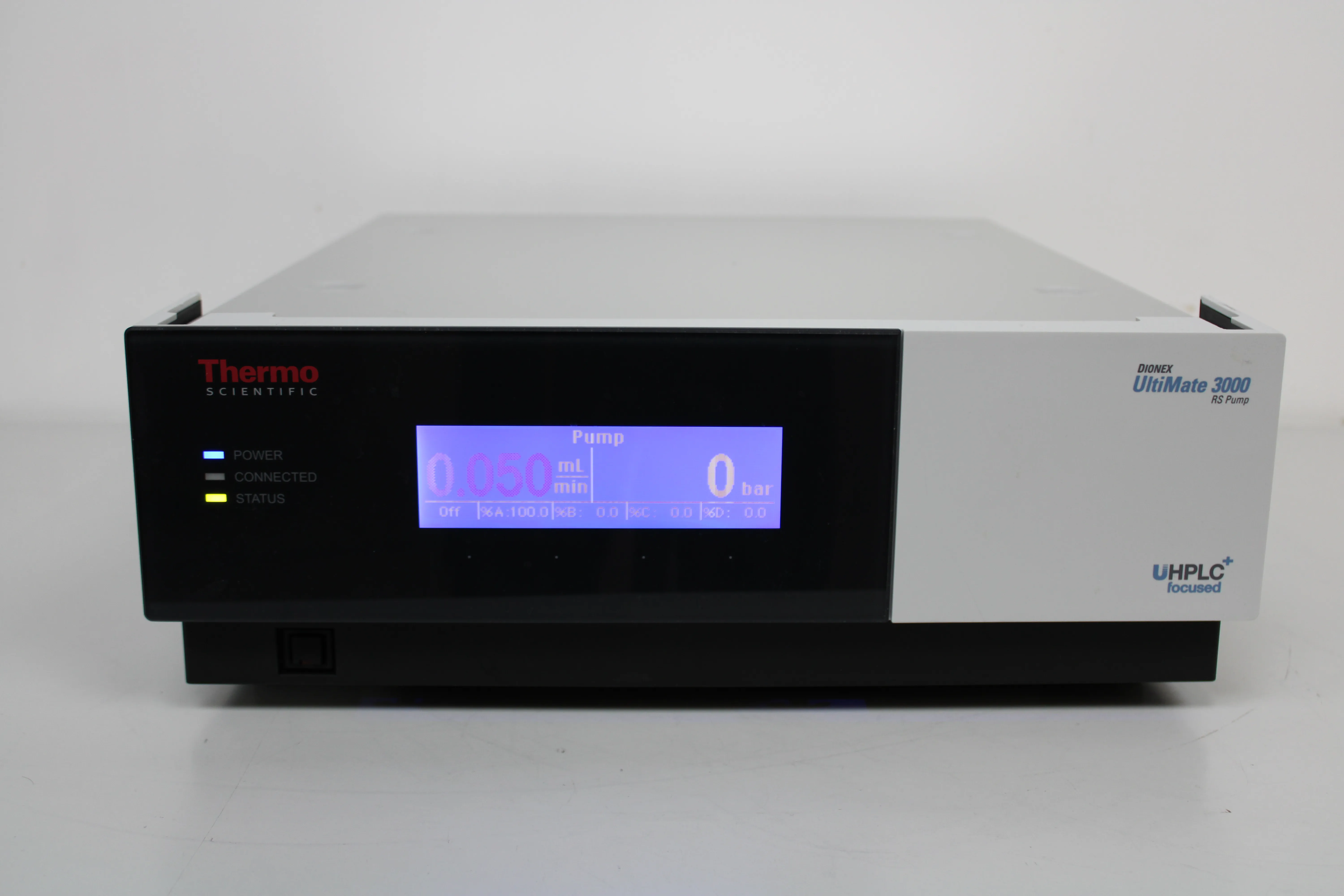

Dionex UltiMate 3000 LPG-3400RS Rapid Separation Quaternary Pump

Product Information

The Dionex UltiMate 3000 LPG-3400RS Rapid Separation Quaternary Pump is a reliable and versatile pump that supports ternary and quaternary gradients over an industry-leading flow-pressure footprint. It is capable of using up to four solvents at up to 15,000 psi, with a recommended flow rate range from 200L to 8.0mL/min. This powerful pump offers exceptional flexibility in solvent proportioning for UHPLC applications and is suitable for a wide range of research and routine applications, as well as method development. With features such as serial dual-piston operating principle, low-pressure gradient proportioning, wide operating flow rate range, and Thermo Scientific SmartFlow technology, this pump offers exceptional reliability, accuracy, and efficiency. Its adaptability makes it suitable for pharmaceutical, food and beverage, and environmental industries.

• Serial dual-piston operating principle
• Wide operating flow rate range from 200L to 8mL/min
• Support of operating pressures of up to 100MPa (15,000 psi/1000 bar)
• Thermo Scientific SmartFlow technology for automatic compensating
• Reliable vacuum degassing with an internal four-channel micromembrane degasser

• Flow Accuracy: 0.1%
• Flow Precision: <0.05% RSD or <0.01 min SD, whichever is greater
• Gradient Formation: Low-Pressure Proportioning
• Max. Flow Rate: 8 mL/min
• Pressure Range: 2 to 103.4 MPa up to 5 mL/min; 2 to 80 MPa up to 8 mL/min
• Emission Sound Pressure Level: <70 dB(A) in 1-m-distance
• For Use With (Equipment): 15-Pin D-Sub Connector for Solvent Rack/Degasser Connection
• Gradient Delay Volume: 325-1840 L (Depending on the SpinFlow mixer configuration) - Default: 690 L

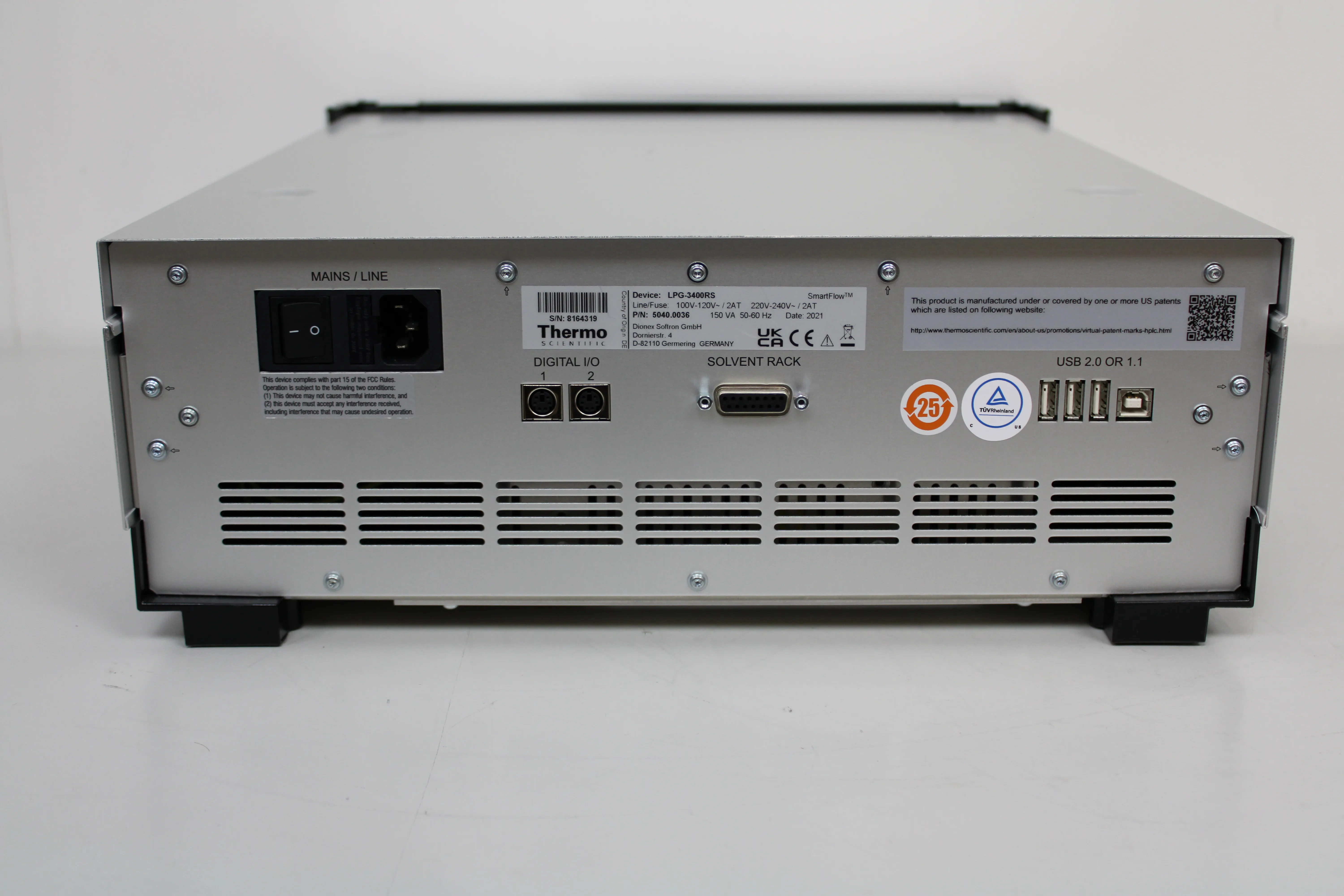

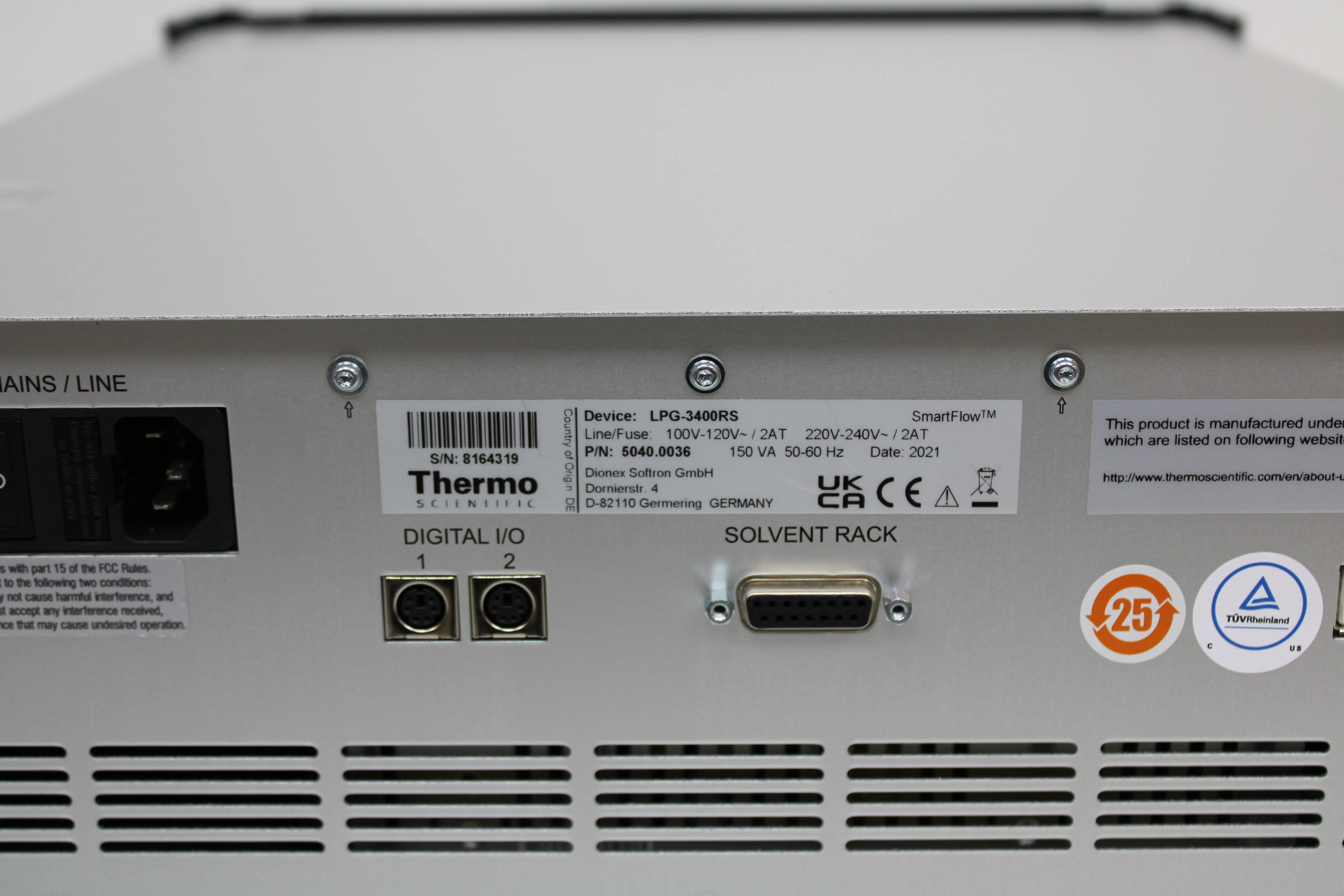

• I/O Interfaces: 2 digital inputs, 2 relay outputs
• Min. Flow Rate: 0.001 mL/min. (Recommended: 0.1 mL/min.)
• No. of Eluent Lines: 4
• Operating Principle: Serial dual-piston
• PC Connection: USB for PC connection, USB hub with 3 sockets integrated
• Pressure Ripple: Typically: <0.2 MPa or <1% whichever is greater
• Proportioning Accuracy: 0.5% (full scale)
• Proportioning Precision: <0.15% SD
• Solvent Degassing: Built-in, 4 channels

Metric: 18.0 kg
Imperial: 39.7 lbs

Metric: 50 cm x 40 cm x 15 cm
Imperial: 19.7 in x 15.8 in x 5.9 in

841381

841381 - Pumps for liquids, whether or not fitted with a measuring device; liquid elevators
