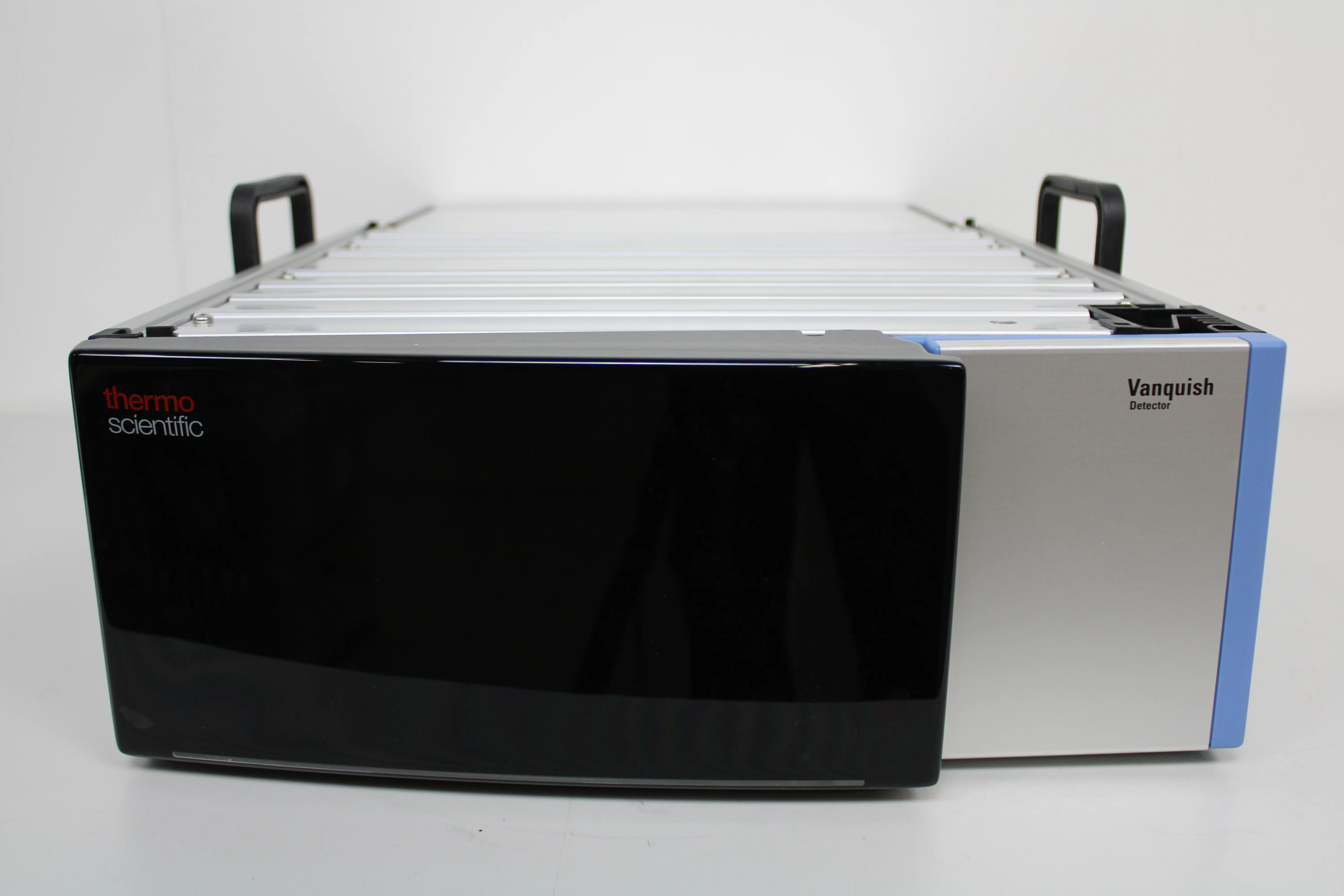

Thermo Scientific Vanquish Detector

Product Information

The Thermo Scientific Vanquish Detector offers reliability and flexibility, with a wide portfolio of flow cells to meet various application needs. This diode array detector features excellent linearity, low detection limits, and optimized noise performance, supporting a wide dynamic range. With a spectral range of 190-800 nm and a data acquisition of up to 250 Hz, this versatile detector allows for ultrafast separations with high retention time and peak area precision. Its dispersion-optimized, robust flow cells make it suitable for a wide range of setups, including LC-MS applications and other hyphenated techniques. The Thermo Scientific Vanquish Detector is designed to deliver exceptional performance, reliability, and ease of use, complemented by the company's fingertight fittings and dedicated solutions for exceptional LC-MS performance. The unit provides a large linearity range for detecting trace analytes next to main compounds, with very low baseline noise, making it a crucial piece of equipment for laboratories involved in high-performance liquid chromatography.

• Spectral range of 190-800 nm
• Data acquisition of up to 250 Hz

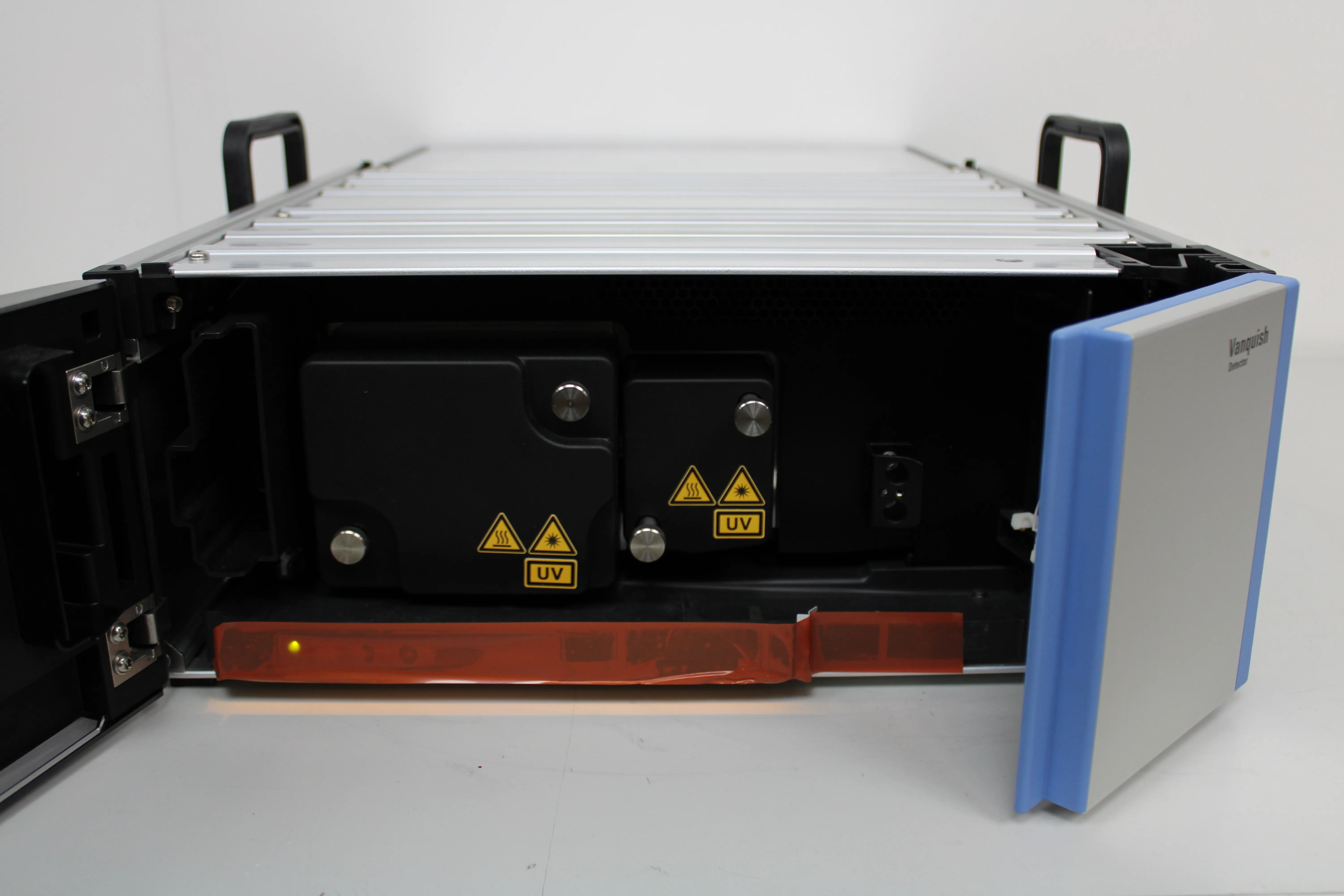

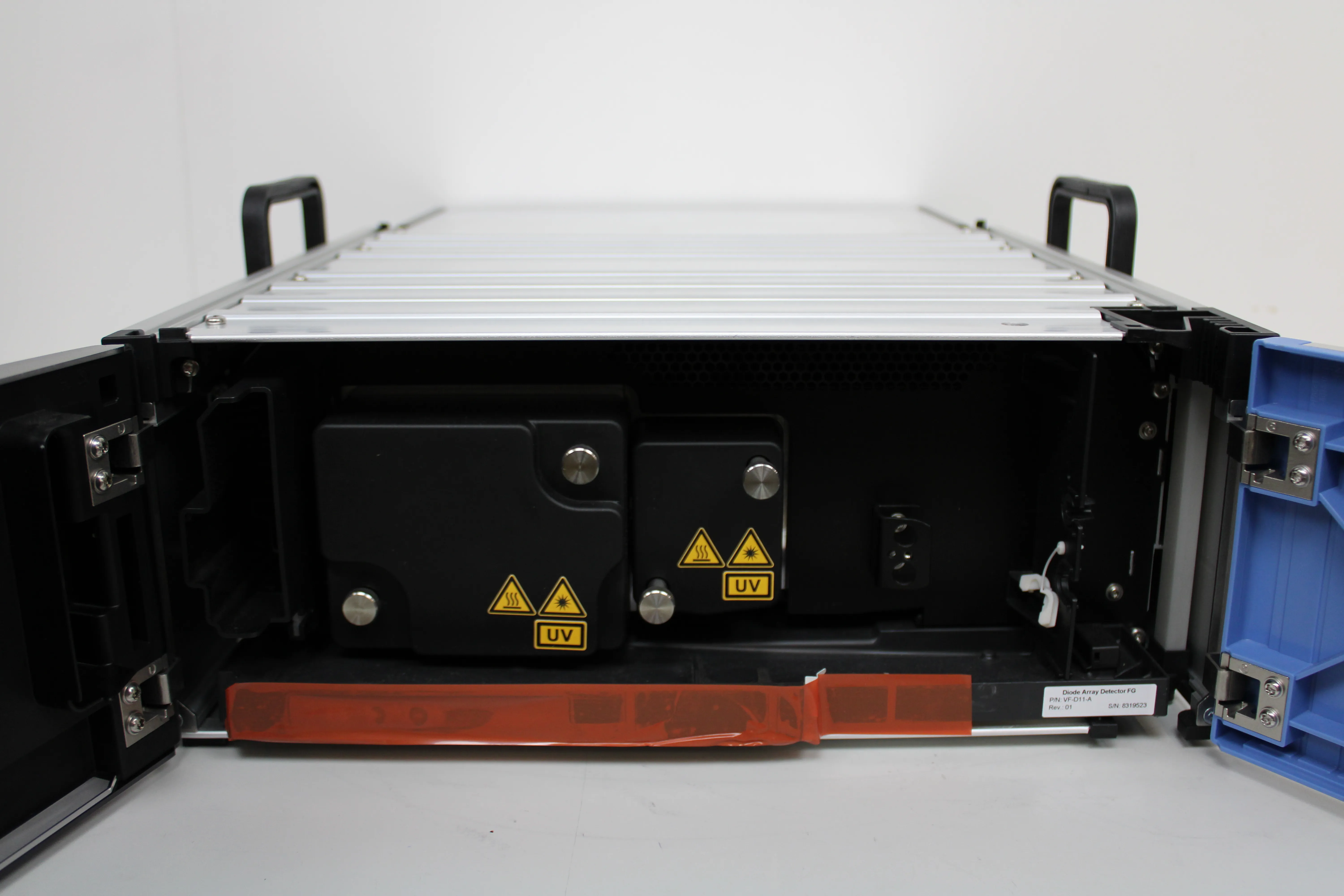

• Dispersion-optimized, robust flow cells
• Large linearity range for detecting trace analytes
• Low baseline noise

• Optical Design: Single-beam, reverse-optics design with concave holographic grating, achromatic optics, 1024 element photodiode array
• Maximum Data Collection Rate: 250 Hz (including 3D acquisition) (under Thermo Scientific Chromeleon CDS 7.2.8 control or higher)
• Wavelength Range: 190-800 nm
• Noise: <6 AU at 254 nm (standard flow cell, bandwidth: 4 nm, slit width: wide, time constant: 2 s)
• Drift: <1 mAU/hour at 254 nm
• Linearity: <5% at 2.2 AU (typically <5% at 2.7 AU)
• Flow Cells: 5 options, see ordering information for details
• Wavelength Accuracy: 1 nm
• Wavelength Repeatability: 0.1 nm

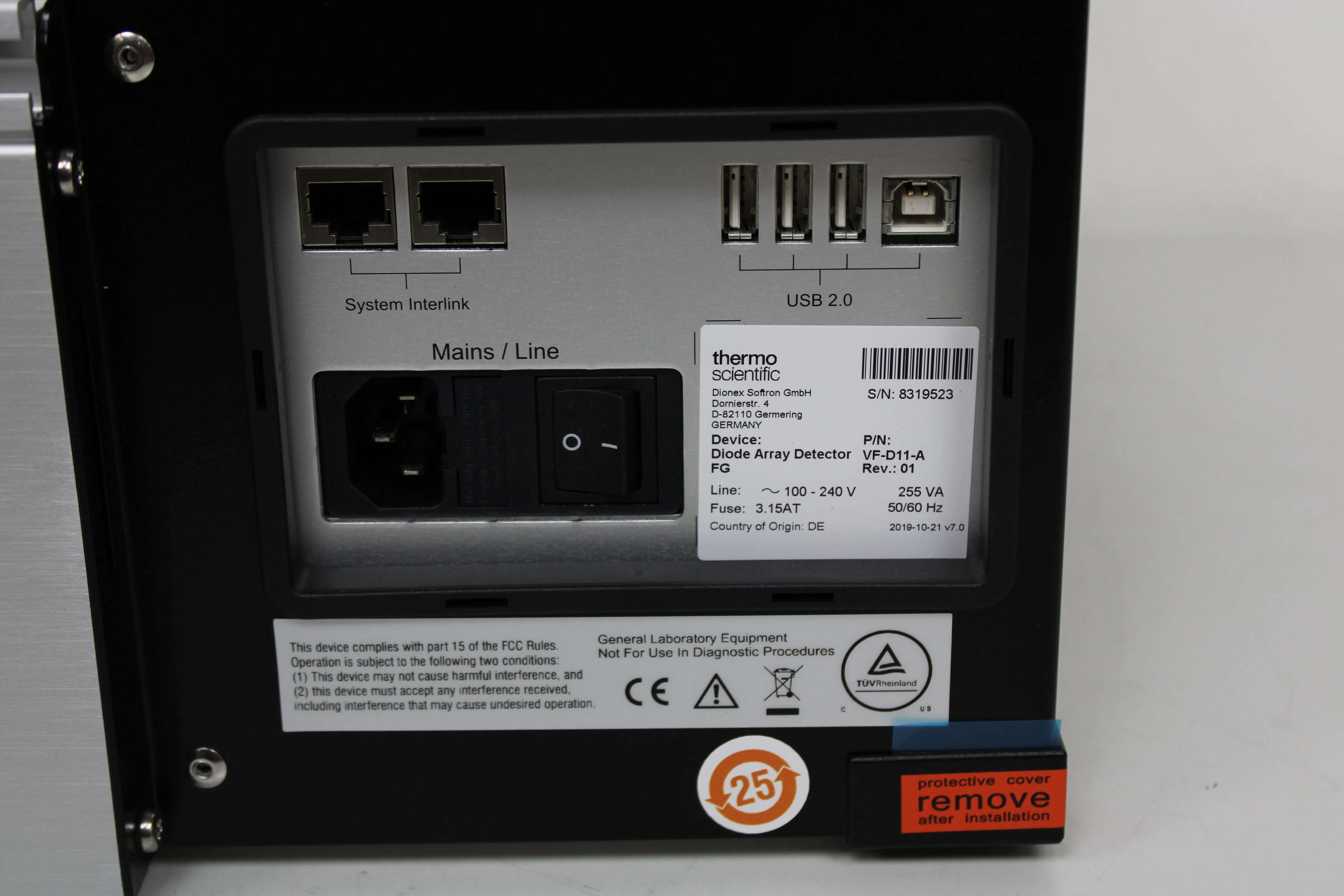

• PC Connection: USB 2.0; 3-port HUB to connect additional Vanquish modules
• Environmental Conditions: Operation: 5-35°C, 20-80% RH (non-condensing), max. 2000 m above sea level; Storage: -4-45°C, max. 60% RH (non-condensing)
• Power Requirements: 100-240 VAC, 50/60 Hz, max. 245 W/255 VA

Metric: 38 kg
Imperial: 83.775 lbs

Metric: 79 cm x 60 cm x 38 cm
Imperial: 31.102 in x 23.622 in x 14.9606 in

9027300000

This code is used to classify diode-array spectrometers for visible and ultraviolet light, and it fits the description of the Thermo Scientific Vanquish Detector.
