Dionex UltiMate 3000 LPG 3400RS Rapid Separation Q As-is, CLEARANCE!
- Make Dionex
- Hertz 50Hz/60Hz
- Model UltiMate 3000 LPG 3400RS Rapid Separation Quaternary Pump
- Serial 8029655
- Weight 15
- Voltage 120V/220V
- Working Working
- Includes Power Cord
- Warranty AS-IS
- Dimensions 67×59×46 in
- Shipping Type Freight
- Item Condition Pre-owned
- Manufacturing Date 2010

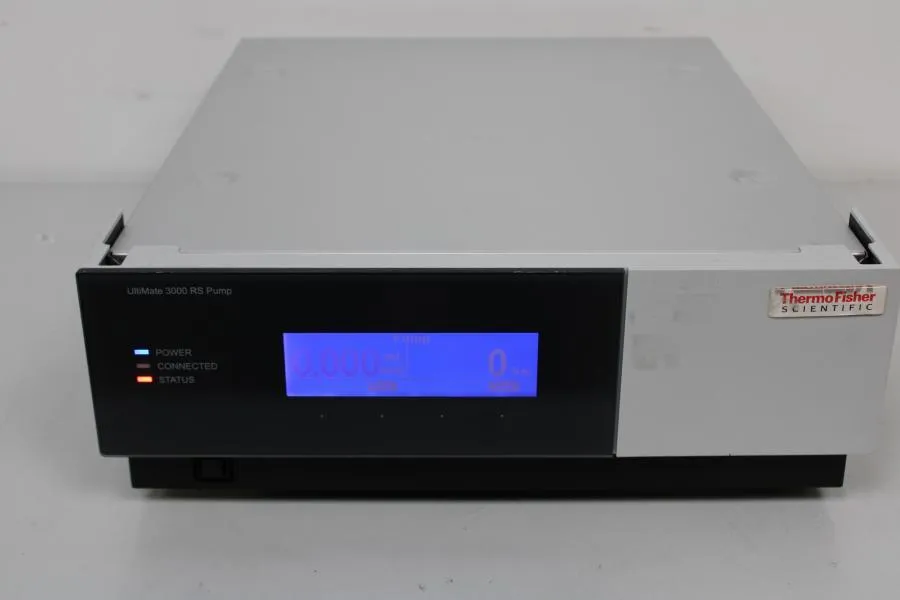

UltiMate™ LPG-3400RS Rapid Separation Quaternary Pump
For the highest degree of flexibility with solvent proportioning in UHPLC or conventional LC, the Thermo Scientific™ Dionex™ UltiMate™ LPG-3400RS Rapid Separation Quaternary Pump supports ternary and quaternary gradients over an industry-leading flow-pressure footprint. It supports the use of up to four solvents at up to 15,000 psi (100 MPa) and a recommended flow rate range from 200µL to 8.0mL/min. with excellent flow stability. This pump adapts easily to multiple fast routine applications or method development in the pharmaceutical, food and beverage and environmental industries.
Recommended Use
The LPG-3400RS provides the highest degree of flexibility in solvent proportioning for UHPLC applications. This pump is recommended for a wide range of research and routine applications, and for method development.
Simple Method Transfer
UltiMate 3000 Standard (SD) and RS pumps and system configurations provide similar gradient delay and extra-column volumes. This simplifies the method transfer between method development labs commonly using UHPLC pumps and QC and production labs with their standard LC pump configurations.
Features
- Serial dual-piston operating principle, low-pressure gradient proportioning
- Wide operating flow rate range from 200µL to 8mL/min. with high flow rate accuracy
- Support of operating pressures of up to 100MPa (15,000 psi/1000 bar)
- Thermo Scientific™ SmartFlow™ technology to automatically compensate for compressibility; no manual solvent setting needed
- Large selection of Thermo Scientific™ SpinFlow™ mixing volumes perfectly balance gradient delay volume with mixing efficiency
- Reliable vacuum degassing with an internal four-channel micromembrane degasser

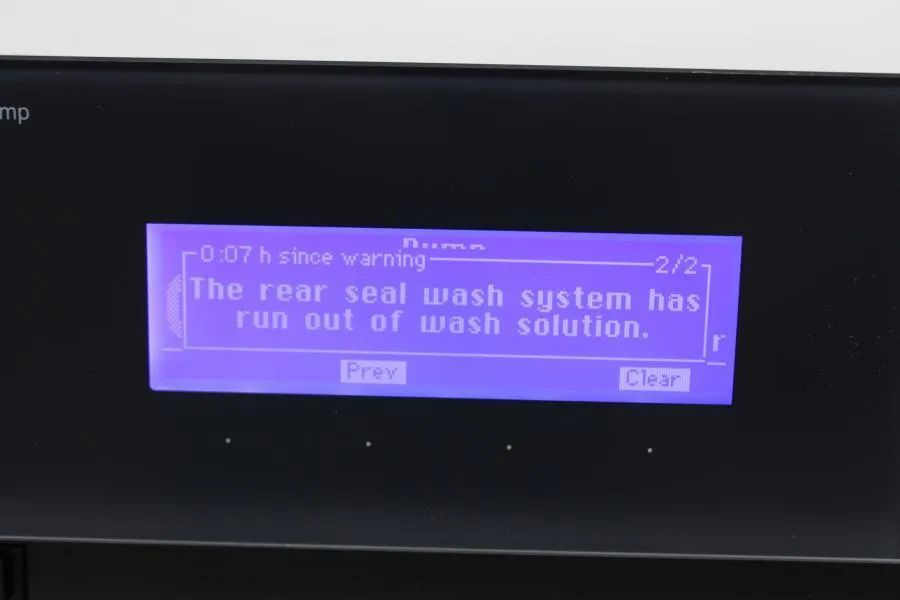

- Active rear-seal wash to maximize seal lifetime and instrument uptime
Specifications
| Flow Accuracy | ±0.1% |
| Flow Precision | <0.05% RSD or <0.01 min SD, whichever is greater |
| Gradient Formation | Low-Pressure Proportioning |
| Max. Flow Rate | 8 mL/min. |
| Pressure Range | 2 to 103.4 MPa up to 5 mL/min; 2 to 80 MPa up to 8 mL/min |
| Type | Serial Dual-Piston Quaternary Rapid Separation Pump |
| Emission Sound Pressure Level | <70 dB(A) in 1-m-distance |
| For Use With (Equipment) | 15-Pin D-Sub Connector for Solvent Rack/Degasser Connection |
| Gradient Delay Volume | 325-1840 µL (Depending on the SpinFlow mixer configuration)Default: 690 µL |
| I/O Interfaces | 2 digital inputs, 2 relay outputs |
| Min. Flow Rate | 0.001 mL/min. (Recommended: 0.1 mL/min.) |
| No. of Eluent Lines | 4 |
| Operating Principle | Serial dual-piston |
| PC Connection | USB for PC connection, USB hub with 3 sockets integrated |
| Pressure Ripple | Typically: <0.2 MPa or <1% whichever is greater |
| Proportioning Accuracy | ±0.5% (full scale) |
| Proportioning Precision | <0.15% SD |
| Solvent Degassing | Built-in, 4 channels |
