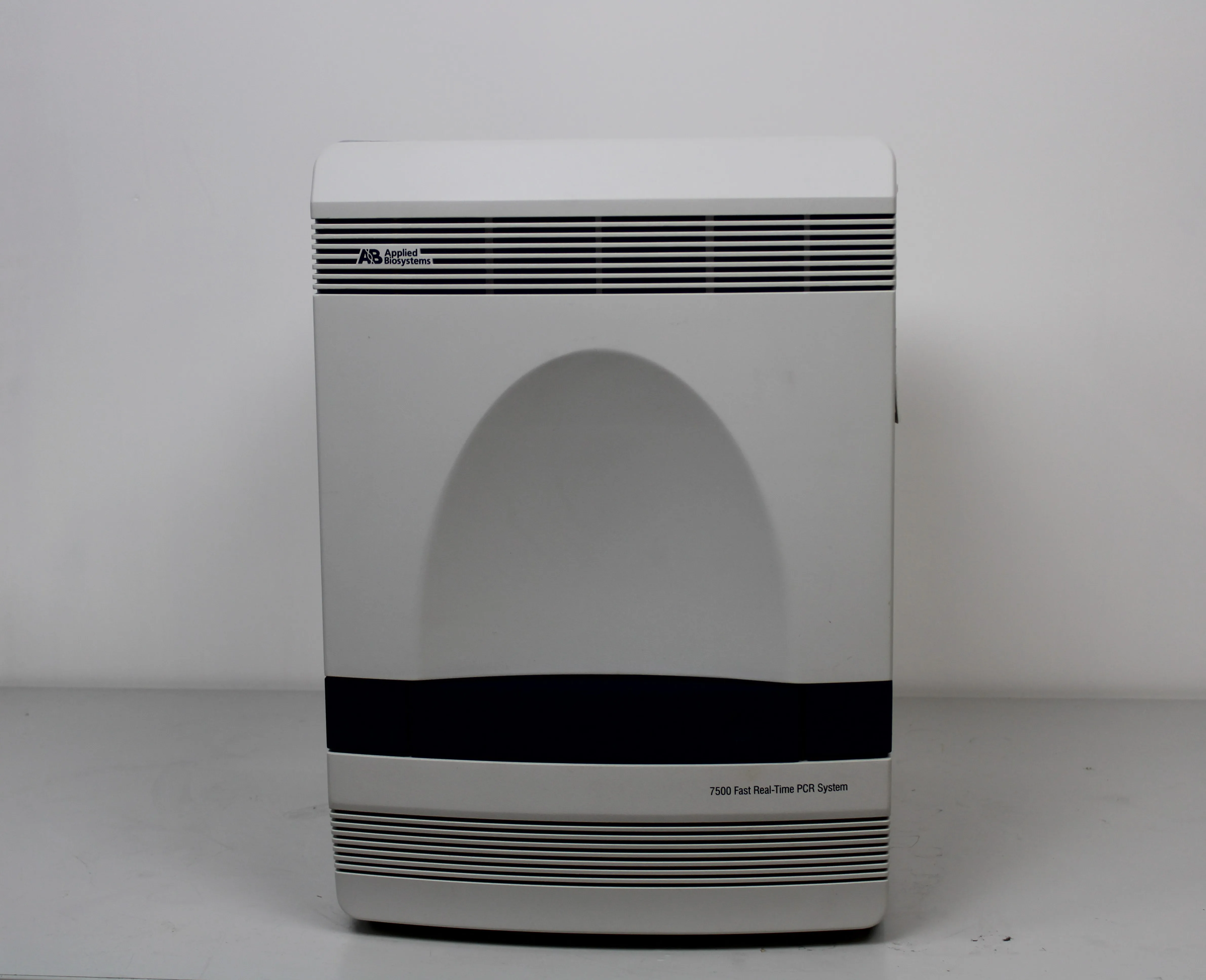

Applied Biosystems 7500 Fast Real-Time PCR System

Product Information

The Applied Biosystems 7500 Fast Real-Time PCR Unit offers maximum performance in the minimum time. Fully optimized for Fast cycling, the 7500 Fast delivers high-quality results in as little as 30 minutes. Specially designed Fast block ensures thermal uniformity at top speeds. Faster ramp rates enable rapid results without compromising extension times or assay quality. Fast optical plates ensure excellent precision in 10-30 ul reaction volumes. Use TaqMan Fast Universal PCR Master Mix to run multiple Fast assays on one plate. Finish more runs per day with the excellent performance equivalent to that offered by the 7500 System. Manufacture Specification Dynamic Range: 9 logs of linear dynamic range. For Use With (Equipment): 7500 Fast System. Format: 8-well strips, 96-well plate. Optics: CCD Camera, Five excitation and five emission filters, Halogen light source. Passive Reference Dye: Other Passive Reference Dye, ROX (Pre-mixed), ROX (Separate Tube). Peak Block Ramp Rate: 5.5Csec. Precision: Distinguish between 5,000 - 10,000 genome equivalents (two-fold copy number difference) with 99.7% confidence. Product Size: 1 system. Reaction Speed: Fast, Standard. Reaction Volume Range: 10-30 µl. Run Time: <2 hrs (Standard), 36 min (Fast). Sample Ramp Rate: Fast mode: 3.5Csec, Standard mode: 1.6Csec. Sensitivity: Down to 1 copy of human RNAse P gene. Temperature Accuracy: 0.5C. Temperature Range (Metric): 4.0-99.9C. Temperature Uniformity: 1C. Thermal Cycling System: Peltier-Based System. Throughput: 4 to 5 96-well plates per day.

• Thermal block for uniformity at high speeds
• Fast ramp rates for rapid results without compromising quality
• Fast optical plates for precise 10-30 µl reaction volumes
• Compatible with TaqMan Fast Universal PCR Master Mix
• Can finish more runs equivalent to the 7500 System
• High sensitivity - down to 1 copy of human RNAse P gene
• Temperature range: 4.0-99.9C with 0.5C accuracy

• Dynamic Range: 9 logs of linear dynamic range
• For Use With (Equipment): 7500 Fast System
• Format: 8-well strips, 96-well plate
• Optics: CCD Camera, Five excitation and five emission filters, Halogen light source
• Passive Reference Dye: Other Passive Reference Dye, ROX (Pre-mixed), ROX (Separate Tube)
• Peak Block Ramp Rate: 5.5Csec
• Reaction Speed: Fast, Standard
• Reaction Volume Range: 10-30 µl
• Run Time: <2 hrs (Standard), 36 min (Fast)
• Sample Ramp Rate: Fast mode: 3.5Csec, Standard mode: 1.6Csec
• Sensitivity: Down to 1 copy of human RNAse P gene
• Temperature Accuracy: 0.5C
• Temperature Range (Metric): 4.0-99.9C
• Temperature Uniformity: 1C
• Thermal Cycling System: Peltier-Based System
• Throughput: 4 to 5 96-well plates per day

Metric: 34.97 kg
Imperial: 77.1617 lbs

Metric: 18.897648 cm x 13.779535 cm x 19.68505 cm
Imperial: 7.4489979532 in x 5.429113037 in x 7.750999622 in
