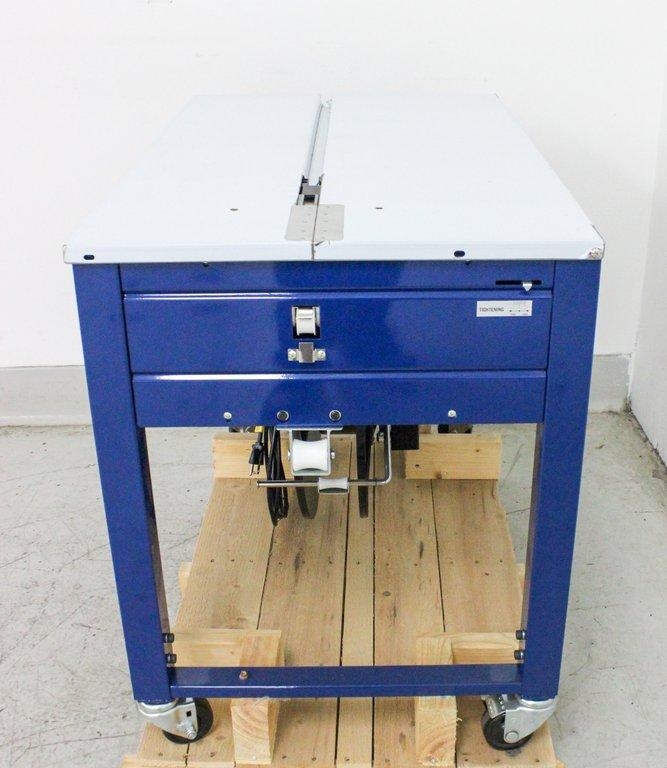

Polychem PC102 Semi Automatic Strapping Machine Adjustable Table 60Hz
Polychem
Details
-
CategoryMiscellaneous
-
Dimension24.0in x 37.0in x 35.0in
-

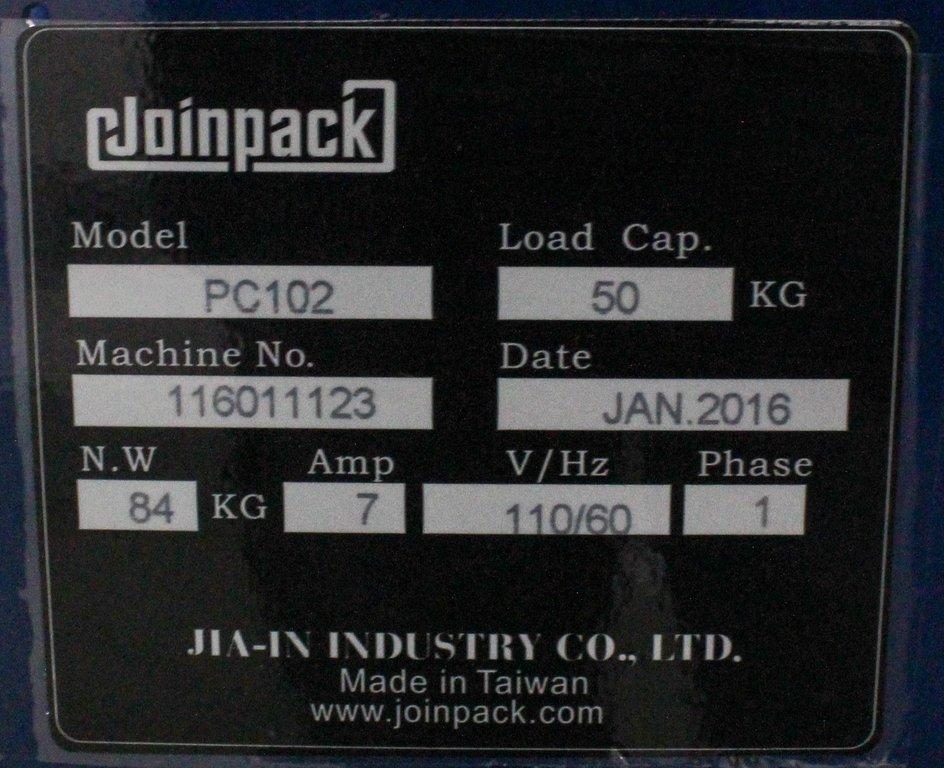

Serial116011123
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 60Hz US
Description

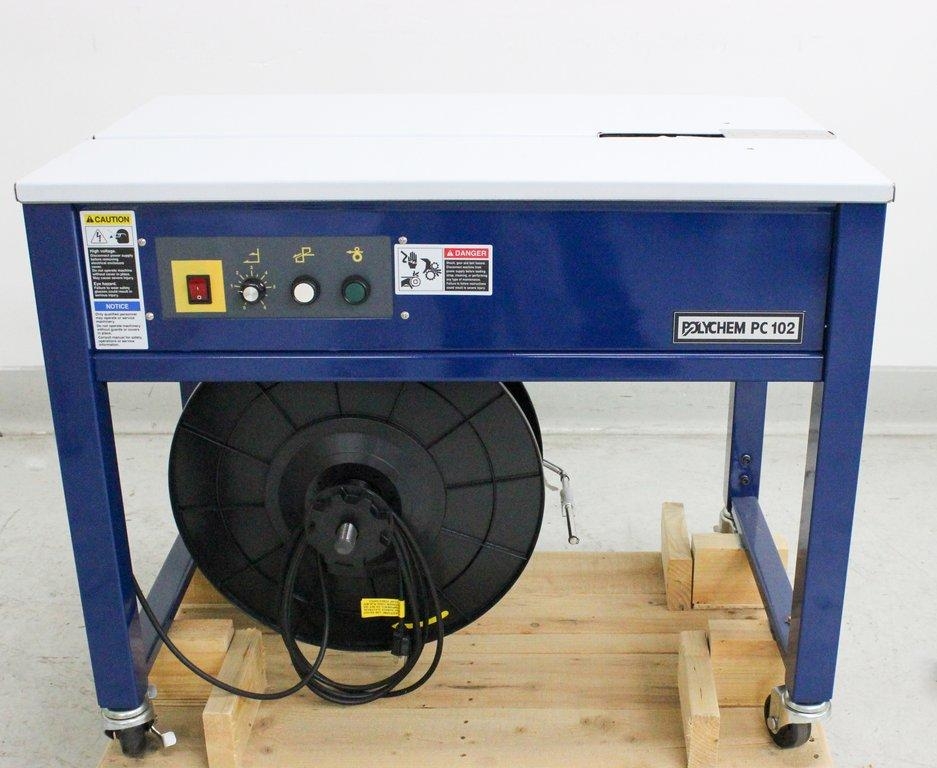

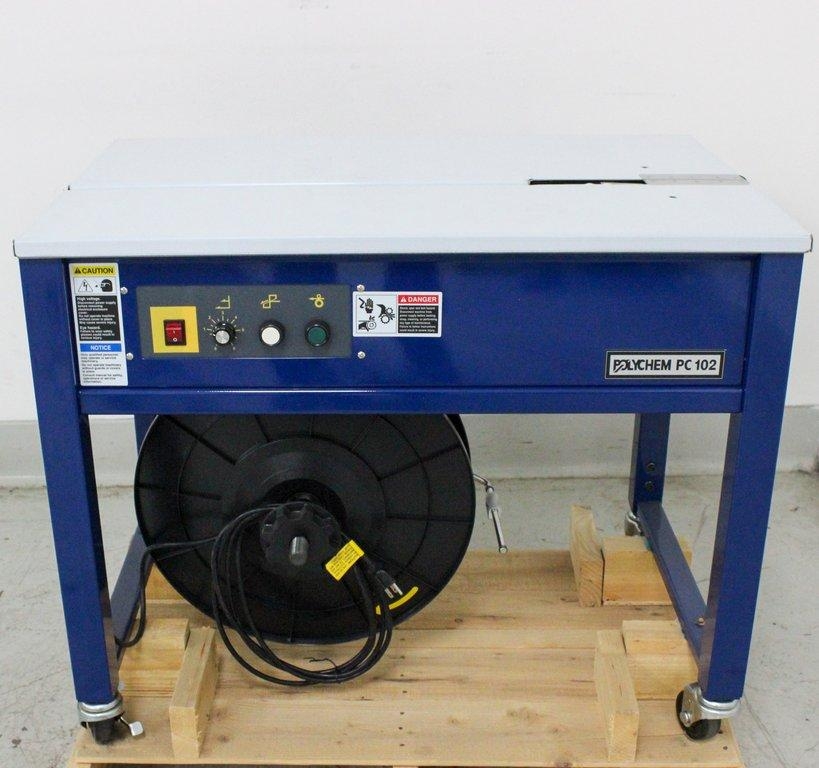

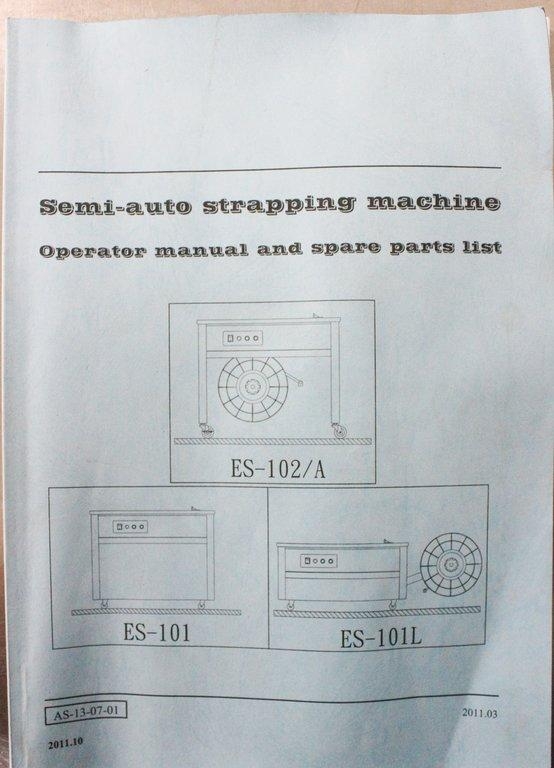

Introducing the Polychem PC102, a semi-automatic strapping machine designed for efficiency in low to moderate shipping room applications. This new unit features an open cabinet design with adjustable legs for variable table height, making it ideal for varied work settings. Equipped with a CE safety standard design, safety switch, and reliable PC board electric control, the PC102 offers both safety and dependability. To ensure ease of movement and stable placement, it is fitted with rigid casters with brakes. It uses economical polypropylene strapping with adjustable reel core sizes for different diameters. Achieve strapping speeds of 2.5 seconds per strap with tension adjustable between 30 to 90 lbs. Includes a power cord and user manual. The machine operates on a power rating of 0.57KW using a 120V, 60Hz power supply.
Key Features
- Open cabinet design with adjustable height
- CE safety standard design with safety switch

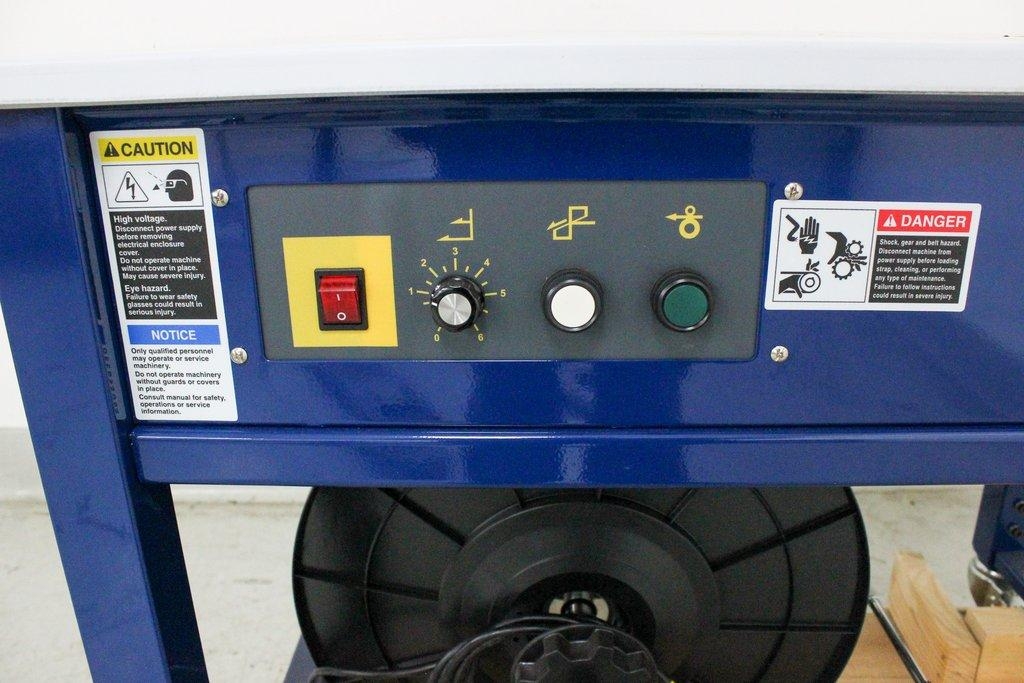

- Reliable P.C. board electric control
- Rigid caster with brake for mobility

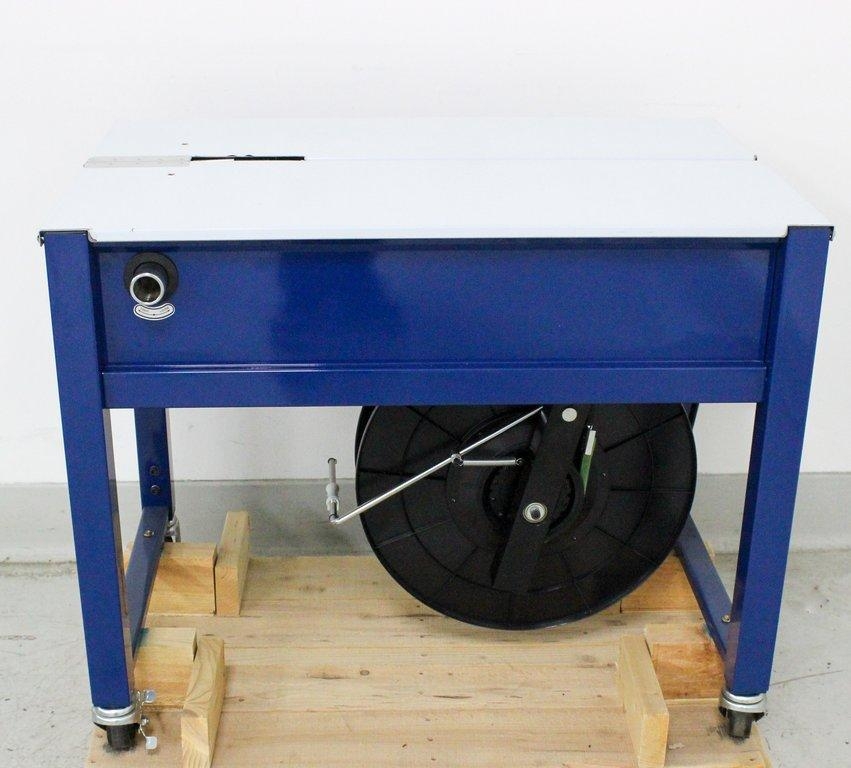

- Core size adjustable reel for 8", 9", & 11" diameters
- Strapping speed of 2.5 sec/strap (60Hz)
Specifications
- Strapping Speed: 2.5 seconds per strap (60Hz)
- Tension: 30-90 lbs.
- Sealing Method: Heating element
- Strap Sizes: 1/4", 3/8", 1/2", 5/8" polypropylene; Metric: 6, 9, 12, 15.5 mm
- Power: AC 110V, 60Hz, 1PH
- Power Consumption: 0.57KW
- Table Height: Adjustable from 29 3/4" to 38 1/4"
- Machine Weight: 185 lbs.
- Reel Outside Diameter: 19"
Weight
Imperial: 222.0 Pounds
Metric: 100.7 Kilograms
Shipping Dimensions
Imperial: 28.8 lb x 44.4 lb x 42.0 lb
Metric: 73.15 cm x 112.78 cm x 106.68 cm
Harmonized Code
842240
Harmonized Code Details
HS Code 842240 - Strapping, sealing and wrapping machines. The description aligns well with the functionality of the Polychem PC102 as a strapping machine designed for packaging.
