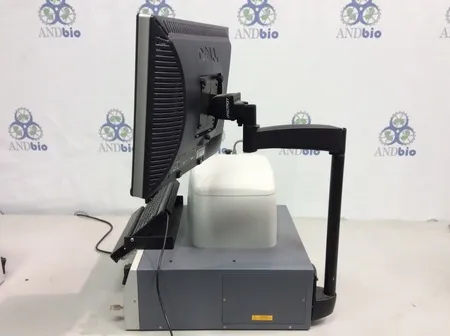

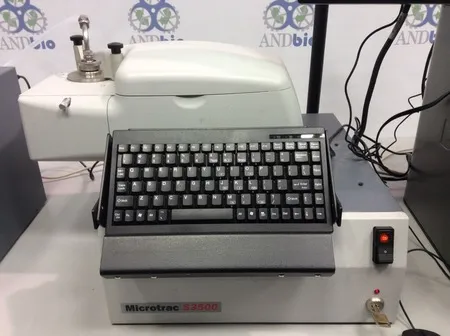

Microtrac S3500 & Sample Delivery System with computer/software - Used

Product Information

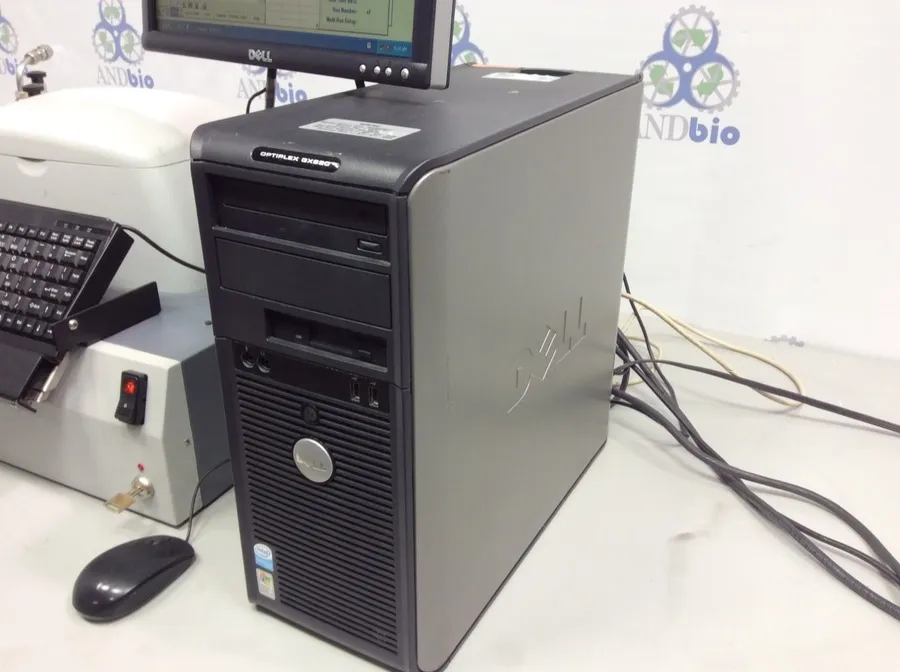

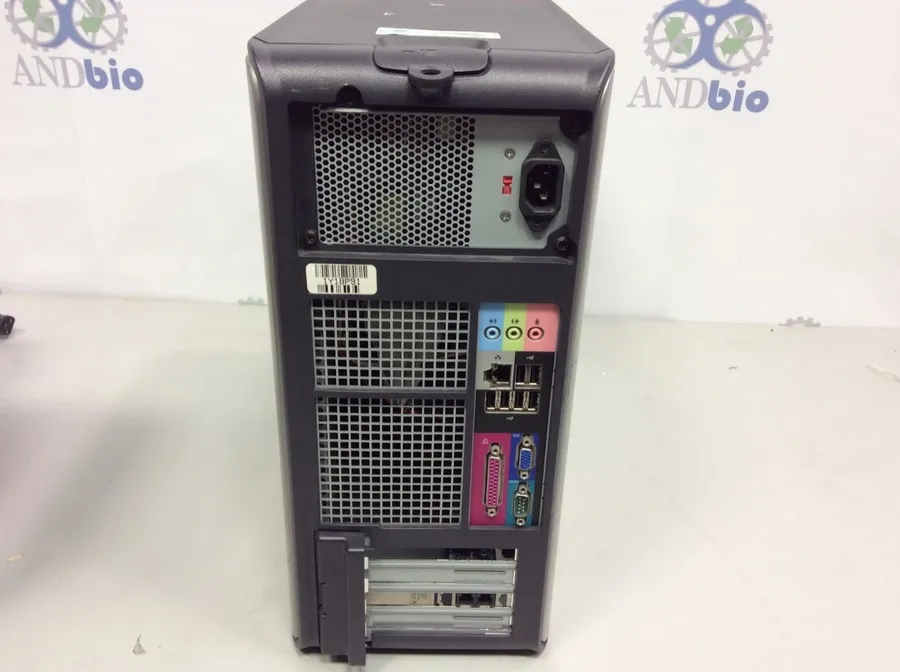

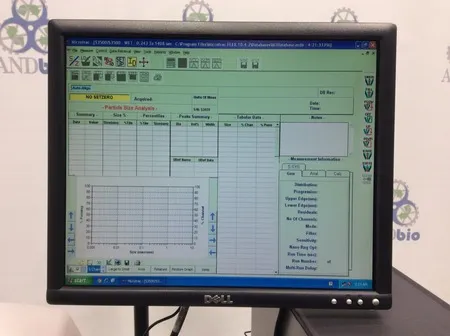

"Microtrac S3500 & Sample Delivery System with computer/software. This unit is in working condition and will be tested before it ships. Everything that is included for this unit is in the pictures posted. The Microtrac S3500 is the first particle size analyzer that uses three precisely placed red laser diodes to accurately characterize particles like never before. The patented Tri-Laser System provides accurate, reliable and repeatable particle size analysis for a diverse range of applications. The S3500 measures particle size from 0.02 to 2800 microns. Condition: This instrument is in good working order and was removed from working environment. Unit has great condition. Testing we performed: Passes all basic functionality tests. Communicates with software/PC. System consists of: Computer with software Item(s) as shown All cable(s) as shown Power cord Specifications: Measuring Range: 0.02 to 2800 Microns Precision: Spherical Glass Beads D50 = 642 micron, Precision as CV = 0.7% Spherical Glass Beads D50 = 56 micron, Precision as CV = 1.0% Spherical Latex Beads D50 = 0.4 micron, Precision as CV = 0.6% Lasers: Wavelength 780nm Power: 3mW nominal Detection System: Two fixed photo-electric detectors with logarithmically spaced segments placed at correct angles for optimal scattered light detection. 0.02 to 163 degrees using 151 detector segments. Data Handling: Volume, Number and Area distributions as well as percentile and other summary data. Data is stored in ODBC format in encrypted Microsoft Access Databases to ensure compatibility with external statistical software applications. Typical Analysis Time: 10 to 30 seconds Electrical: AC input: 90 132 VAC, 47 - 63 Hz, single phase 200 to 265 VAC, 47 63 Hz, single phase. Please do not hesitate to contact us if you have any questions. The Microtrac S3500 with Tri-laser Technology Increases Accuracy, Range, and Repeatability. The Microtrac?S3500 employs the patented Tri-laser technology to provide accurate, reliable particle size information. Even in the submicron range, measurements are made without typical sample-to-sample variation evident in many other systems. By increasing the number of light sources, the unique Tri-laser technology makes more effective use of photo-detection devices, while maintaining maximum stability and alignment of the optical system. Microtrac S3500 complies with or exceeds ISO 13320-1 Particle Size Analysis- Laser Diffraction Methods. Alignment - Auto-alignment not routinely required Accuracy - Mie scattering calculations for spherical particles and proprietary modified Mie calculations for nonspherical particles. Only Microtrac offers this enhanced accuracy for non-spherical particles - the majority of realworld materials. Please do not hesitate to contact us if you have any questions."

• Analyzer with Tri-laser Technology
• Measuring Range: 0.02 to 2800 Microns
• Enhanced Accuracy for Non-spherical Particles
• Data Integrity Ensured using FDA 21 CFR Part 11 Compliant Security Features
• Three Precisely Placed Red Laser Diodes
• Patented Tri-laser Technology
• Tested, in Good Working Order

• Measuring Range: 0.02 to 2800 Microns
• Precision: Spherical Glass Beads D50 = 642 micron, Precision as CV = 0.7%
• Spherical Glass Beads D50 = 56 micron, Precision as CV = 1.0%
• Spherical Latex Beads D50 = 0.4 micron, Precision as CV = 0.6%
• Lasers: Wavelength 780nm
• Detection System: Two fixed photo-electric detectors with logarithmically spaced segments placed at correct angles for optimal scattered light detection. 0.02 to 163 degrees using 151 detector segments
• Typical Analysis Time: 10 to 30 seconds
• Electrical: AC input: 90-132 VAC, 47-63 Hz, single phase; 200-265 VAC, 47-63 Hz, single phase

Metric: 180 kg
Imperial: 396.83 lbs

Metric: 34 cm x 34 cm x 34 cm
Imperial: 13.39 in x 13.39 in x 13.39 in

902780

Under this category, equipment for the measurement of solid particles, including dispersions and emulsions is classified. The Microtrac S3500 is a particle size analyzer that is used to measure particles from 0.02 to 2800 microns and applies Tri-laser technology to provide highly accurate and repeatable results.
