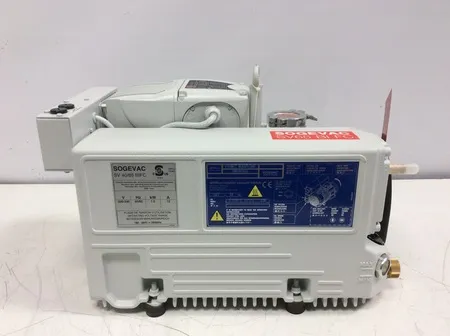

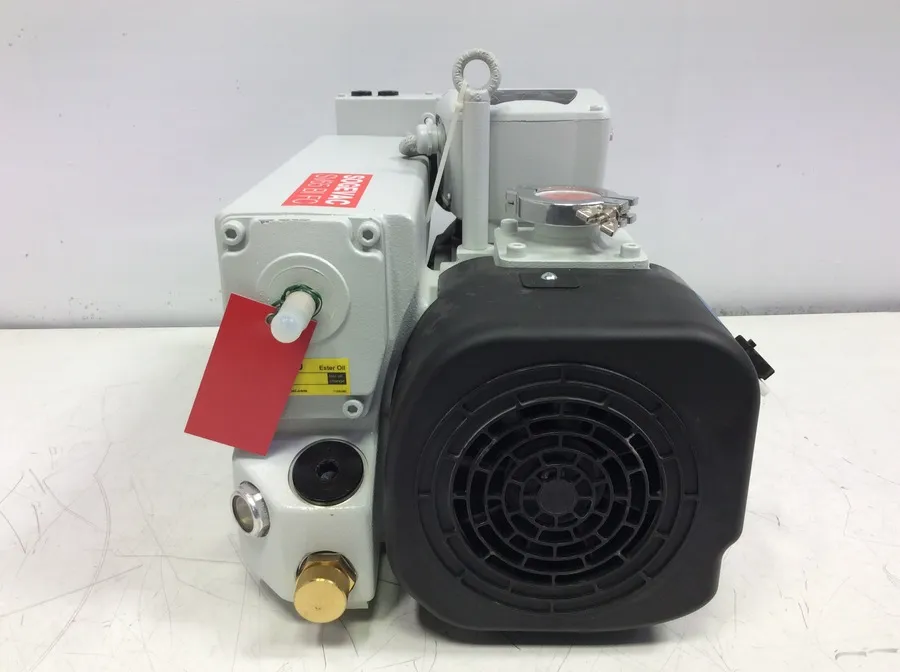

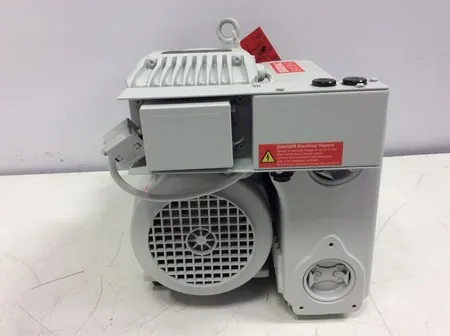

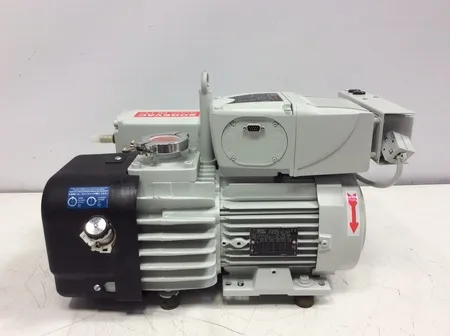

Sogevac SV65 BI FC Vacuum Pump

Product Information

Sogevac SV65 BI FC Vacuum Pump is a robust, reliable, and space-saving equipment, designed to deliver continuous operation from atmospheric pressure to ultimate pressure. This Single Stage Oil Sealed Rotary Vane Vacuum Pump features a pumping speed of 34.7 / 41.8 cfm and an ultimate pressure of less than 0.5 mbar. It operates at a mains connection of 200-240V, 1-ph, 12A, 50/60 Hz with an inlet connection of KF-40. Manufacturers have integrated all lubrication circuits as well as the gas ballast system into the pump's major components, leading to improved product reliability, durability, and prolonged maintenance intervals. This vacuum pump offers a range of applications such as vacuum packaging, central vacuum systems, freeze-drying, and more.

• Continuous operation from atmospheric pressure to ultimate pressure
• Low noise level
• Integrated exhaust filter, better than 99.9% efficient
• Compact design
• High water vapor tolerance

• Pumping speed (50/60 Hz): 34.7 / 41.8 cfm
• Ultimate pressure: < 0.5 mbar

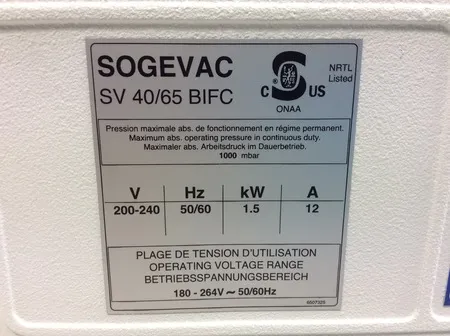

• Mains connection: 200-240V, 1-ph, 12A, 50/60 Hz
• Inlet connection: KF-40
• Oil capacity: 2 liters
• Integrated exhaust filter efficiency: >99.9%

Metric: 54.43 kg
Imperial: 120 lbs

Metric: 31 cm x 19 cm x 20 cm
Imperial: 12.2 in x 7.5 in x 7.9 in

8414200000

The harmonized code 8414200000 is for Vacuum pumps, including entraining pumps for producing mixtures of liquid & gas; with an ultimate vacuum not exceeding 0.5 Torr.
