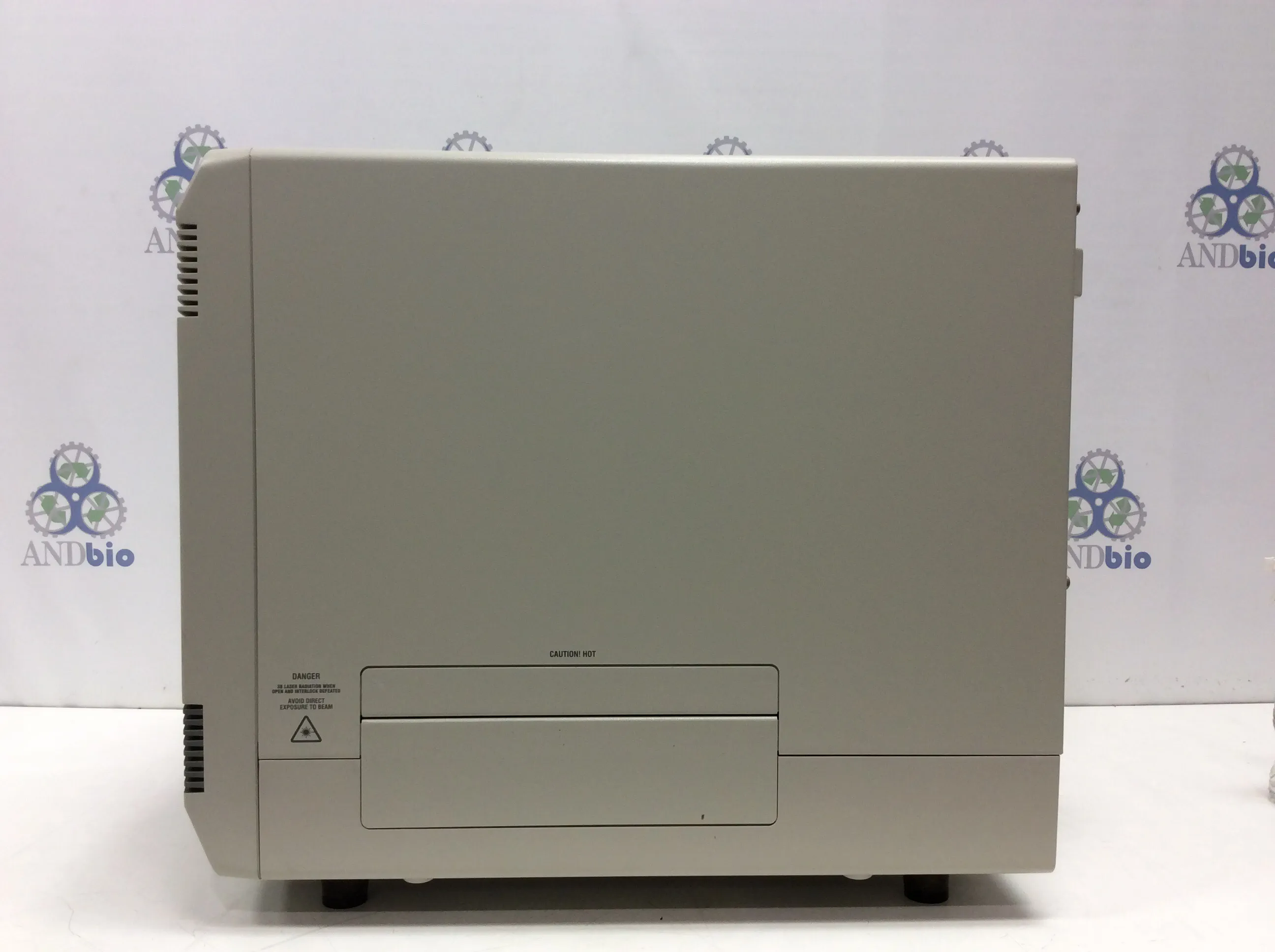

Used Applied Biosystems 7900HT Fast Real-Time PCR System; 96-Well Block

Product Information

Applied Biosystems 7900HT Fast Real-Time PCR System is a high-performance, real-time quantitative PCR system offering 96- and 384-well plate compatibility. It combines the TaqMan Low Density Array, robotic loading, and Fast real-time PCR capabilities. Powered for basic functionality testing, this versatile system is integral to gene expression analysis, pathogen detection, and SNP genotyping assays.

• 96- and 384-well plate compatibility
• Automated robotic plate loading
• Fast real-time PCR capability
• Continuous wavelength detection for use of multiple fluorophores
• High throughput compatibility
• Up to 9 logs of linear dynamic range
• Capability for hands-free plate loading and unloading

• Block Format: Interchangeable
• Calibrated Dye: FAM, JOE, NED, ROX, SYBR Green I, TAMRA, TET, VIC
• Capacity: Up to 84 x 384-well plates with optional automation accessory
• Detection Method: Primer-Probe Detection, SYBR
• Dimensions: 72 cm (W) x 84 cm (D) x 64 cm (H) (with drawer open)
• Dynamic Range: Up to 9 logs of linear dynamic range
• High Throughput Compatibility: High Throughput-Compatible, Multiplexing
• Optics: Extended-life 488 nm argon-ion laser excitation source
• Reaction Speed: Fast mode: 3.0C/sec, Standard mode: 1.6C/sec
• Run Time: <2 hrs (384-well in standard mode), 52 minutes (384-well in fast mode)
• Sensitivity: Down to 10 copies
• Temperature Range: 4-100°C
• Weight: 114 kg (250 lbs) with automation accessory, 82 kg (180 lbs) without automation accessory

Metric: 114 kg
Imperial: 250 lbs

Metric: 84 cm x 72 cm x 64 cm
Imperial: 33.07 in x 28.35 in x 25.2 in

902780

This code is used for instruments for physical or chemical analysis, such as polarimeters, refractometers, spectrometers, and gas or smoke analysis apparatus.
