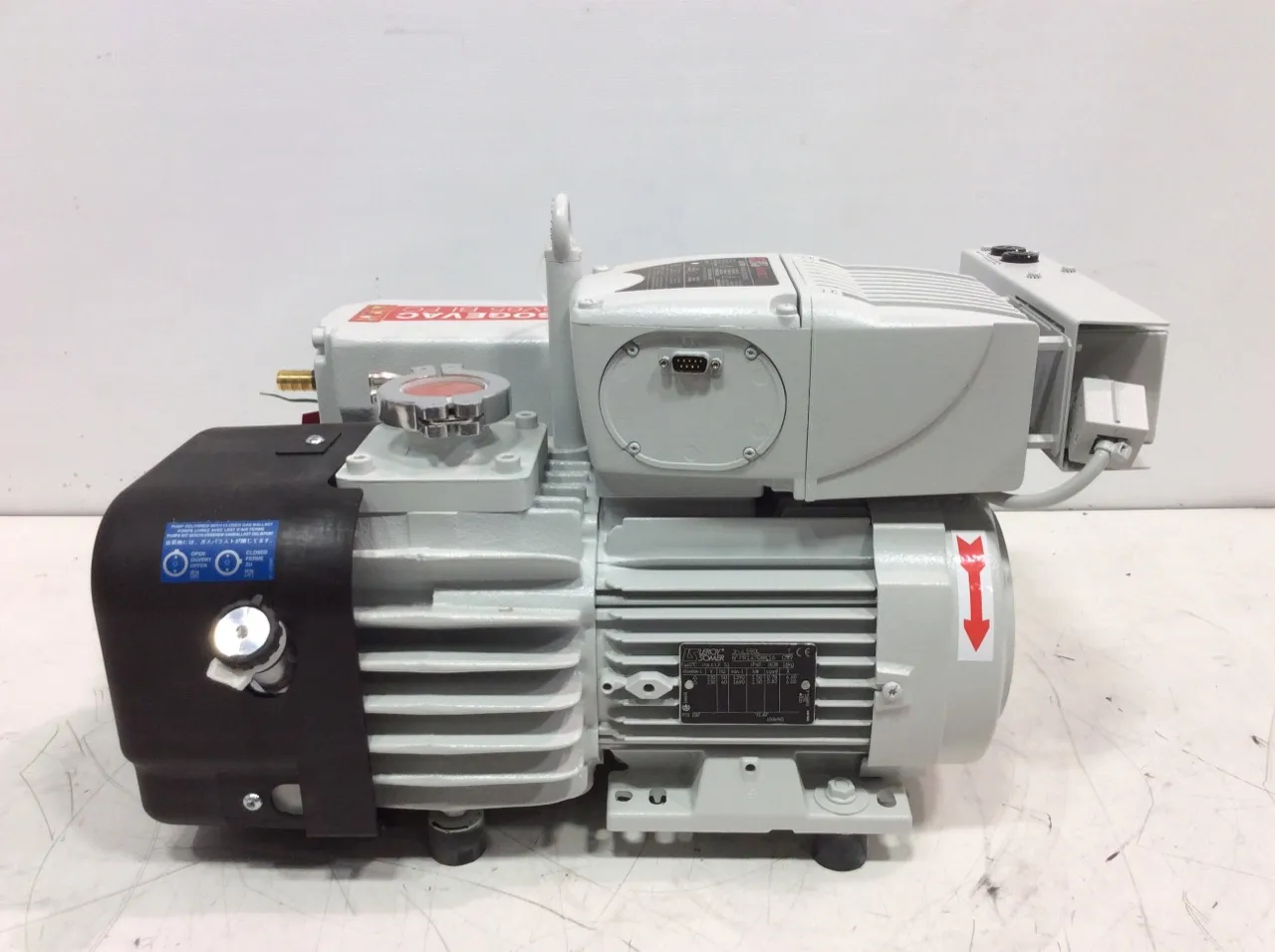

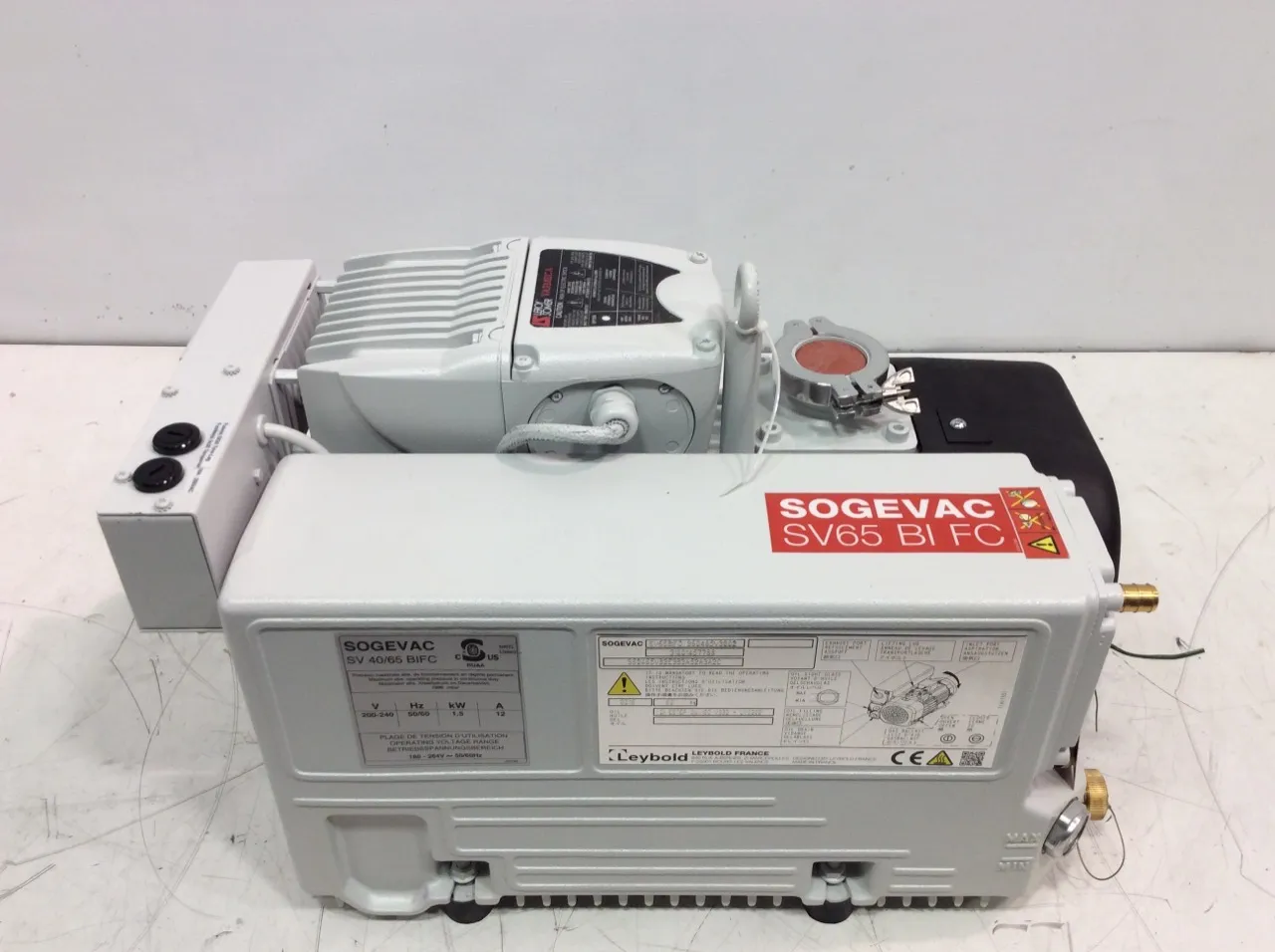

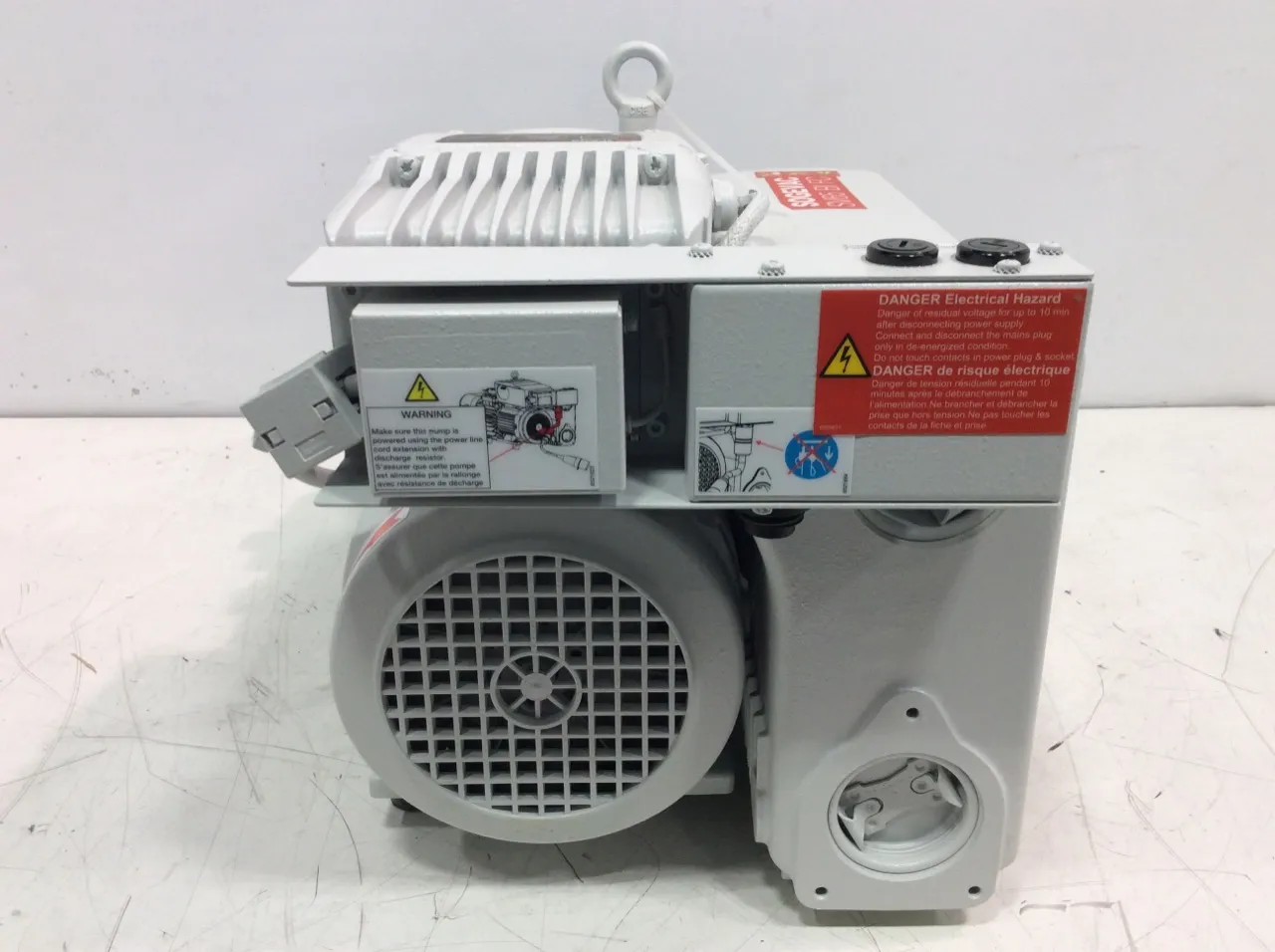

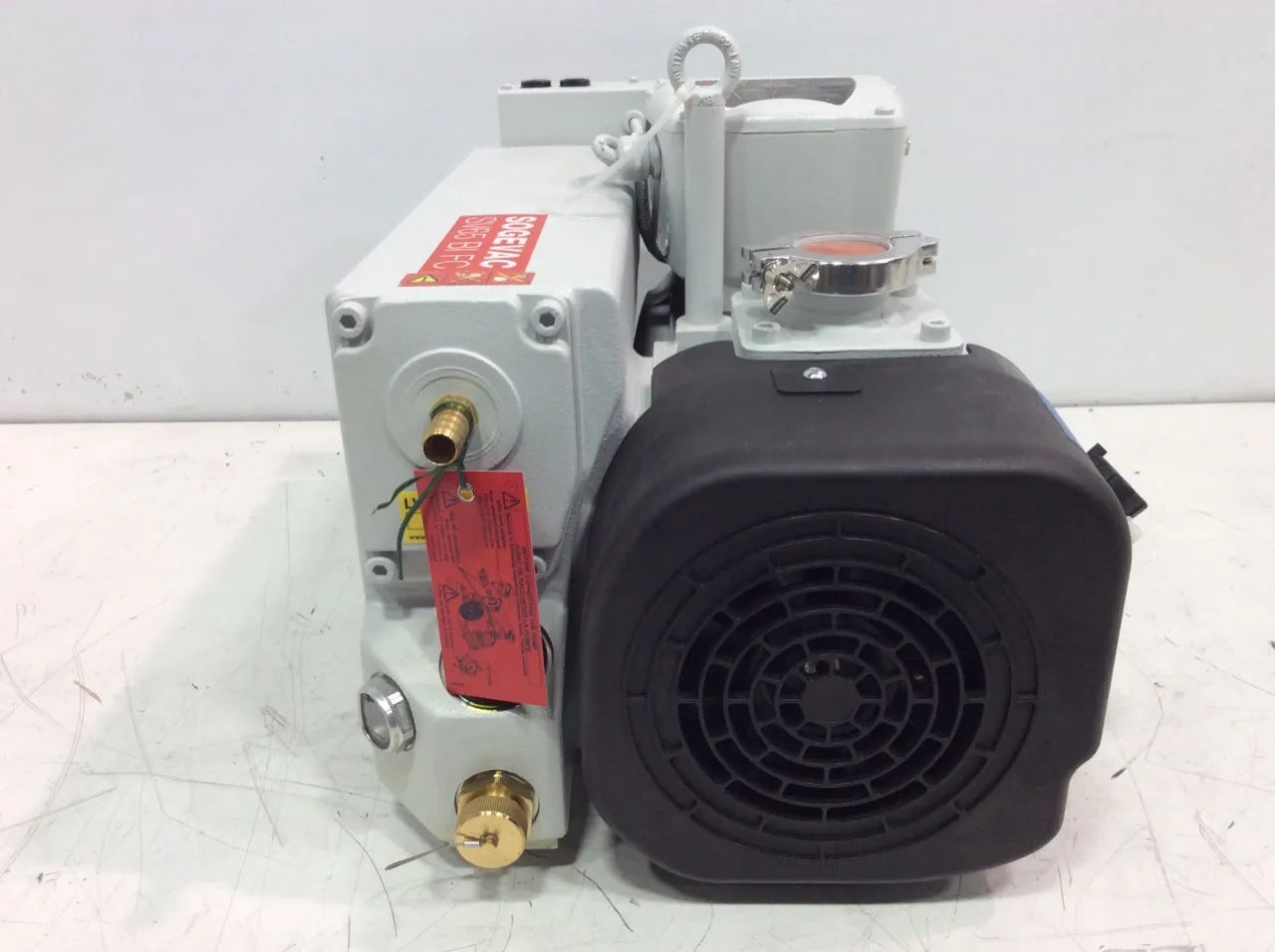

Sogevac SV65 BI FC Single Stage Oil Sealed Rotary Vane Vacuum Pump 1.1 Torr

Product Information

Greetings to fellow innovators in research and industry. Here we have a remarkable Sogevac SV65 BI FC single-stage oil-sealed rotary vane vacuum pump. It operates at an impressive 1.1 Torr and offers a pumping speed of 34.7 / 41.8 cfm at 50/60 Hz. This used unit is in full working condition with minor cosmetic wear from standard use. The pump comes with everything pictured and will be tested prior to shipping. The pump's applications span various vital processes, including vacuum packaging, processing, degassing, drying, freeze drying, impregnation, leak testing, laser applications, handling, and lifting. The innovative SOGEVAC SV65B pumps are designed for space-saving with minimal design constraints, offering unmatched adaptability. The unit is characterized by low noise, reduced vibrations, and efficient air cooling. The integrated exhaust filter maintains exhaust gas free of oil mists while the system has low space requirements and is rugged and maintenance-friendly. This Sogevac pump has a compact design and is suitable for use in various applications. It offers a high water vapor tolerance and a wide range of accessories for tackling differing problems. Due to shipping regulations, the vacuum pump will be shipped without pump oil, and we have an option to include a quart of vacuum pump oil with your order for an additional charge.

• Pumping speed (50/60 Hz): 34.7 / 41.8 cfm
• Ultimate Pressure: < 0.5 mbar

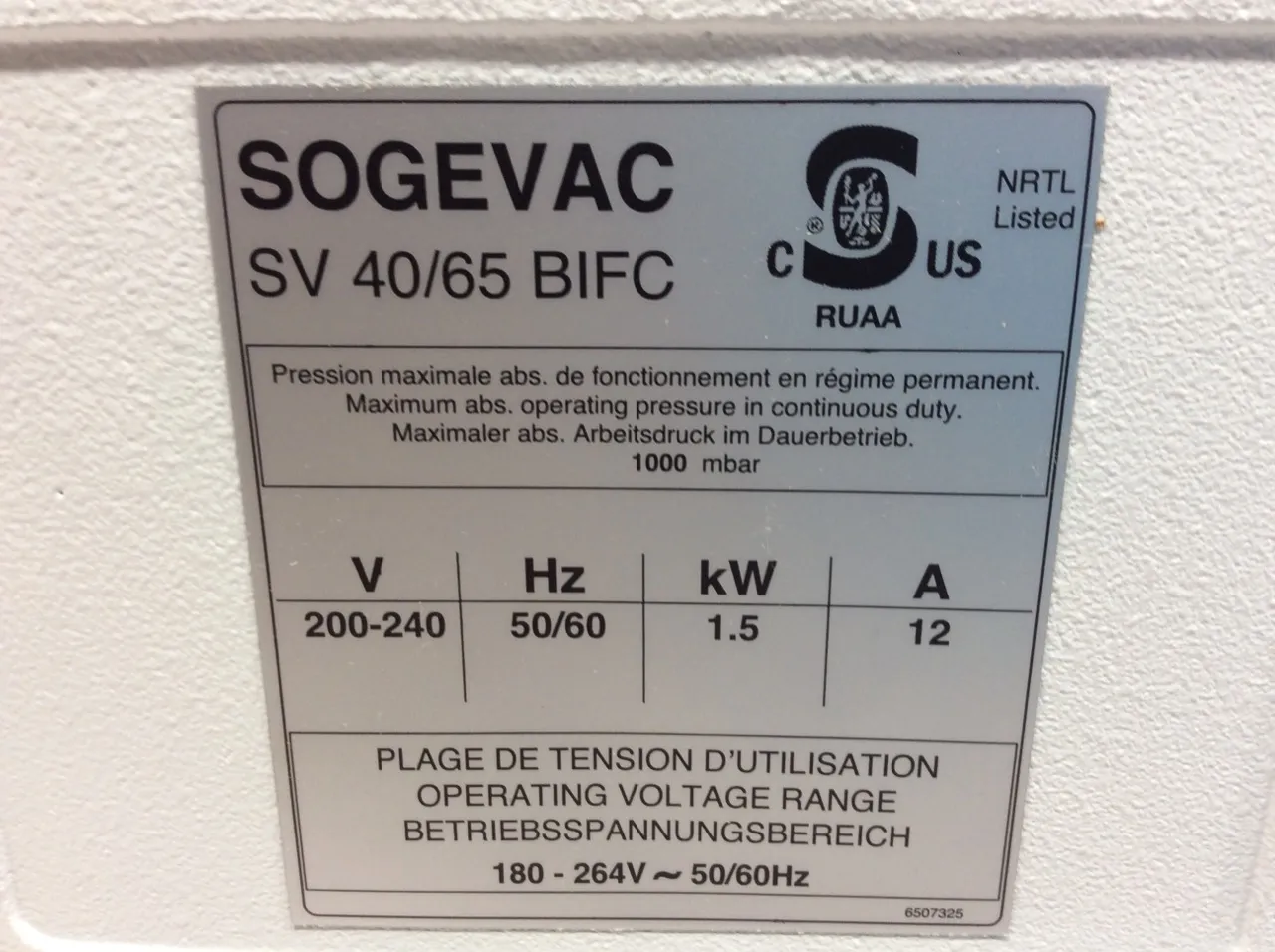

• Mains connection: 200-240V, 1-ph, 12A, 50/60 Hz
• Inlet connection: KF-40
• Continuous operation from atmospheric pressure to ultimate pressure
• No oil loss owing to the integrated oil return line
• Exhaust gas free of oil mists
• Efficient air cooling (standard)
• Compact design, low noise, and low vibrations
• High water vapor tolerance

• Pumping speed (50/60 Hz): 34.7 / 41.8 cfm
• Ultimate pressure: < 0.5 mbar
• Mains connection: 200-240V, 1-ph, 12A, 50/60 Hz
• Inlet connection: KF-40
• Oil capacity: 2 liters
• Voltage: 200-240V
• Phase: 1-ph
• Frequency: 50/60 Hz

Metric: None kg
Imperial: 286.6 lbs

Metric: 30.48 cm x 20.32 cm x 60.96 cm
Imperial: 12 in x 8 in x 24 in

841410

This harmonized code covers vacuum pumps, specifically those in which a gas is drawn through a nozzle and discharged through a diffuser at a higher pressure. This perfectly describes the Sogevac SV65 BI FC vacuum pump.
