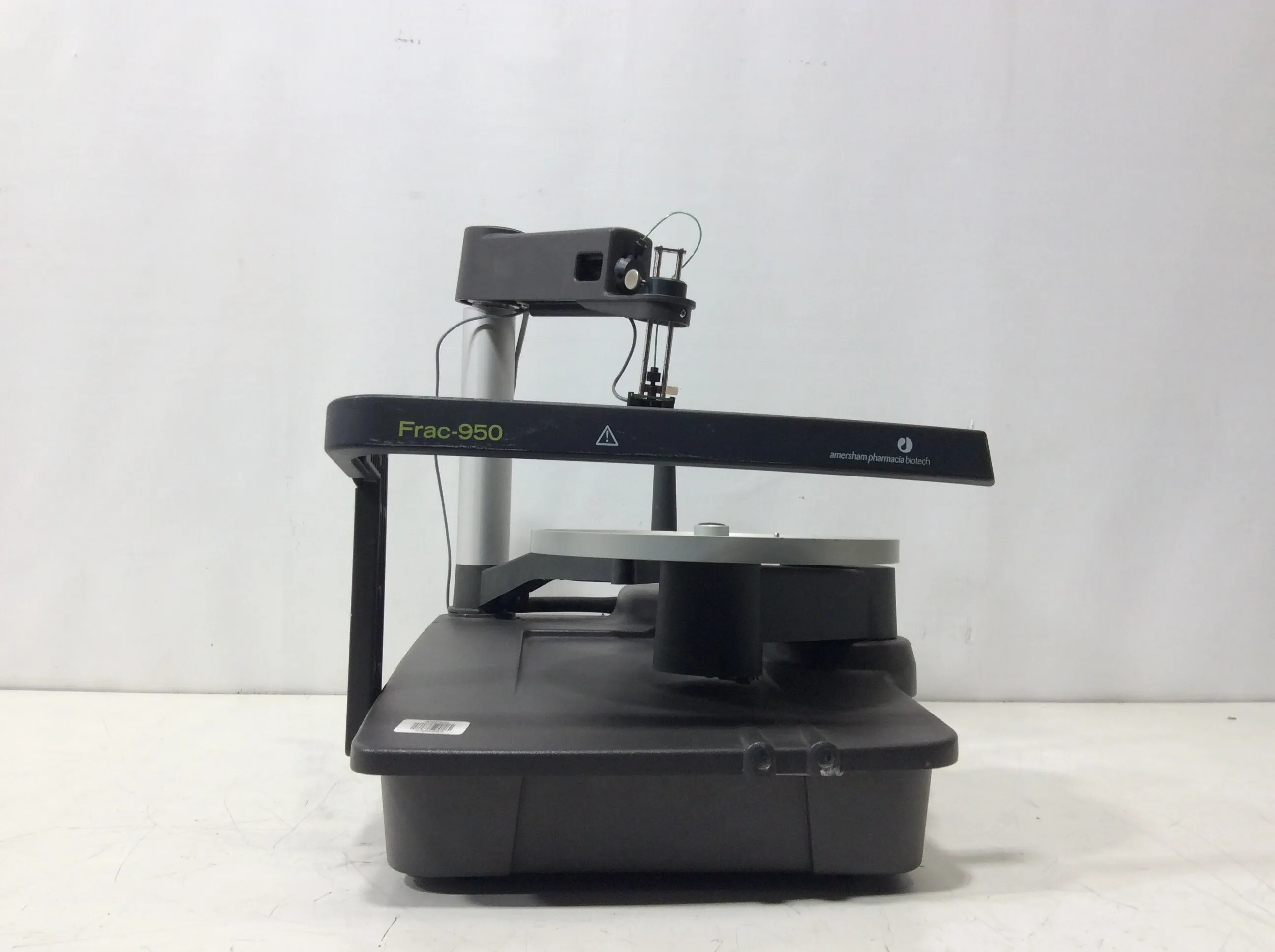

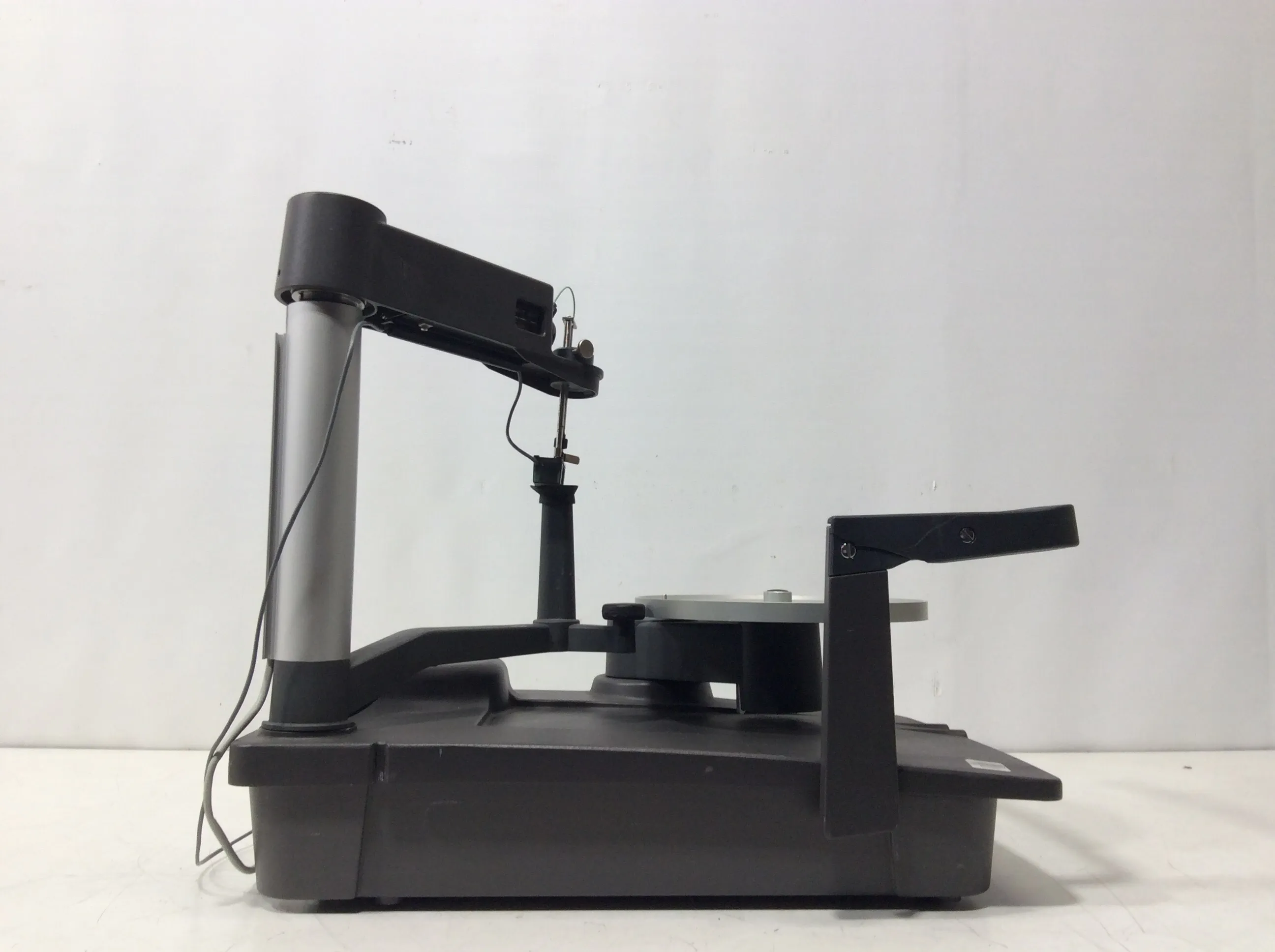

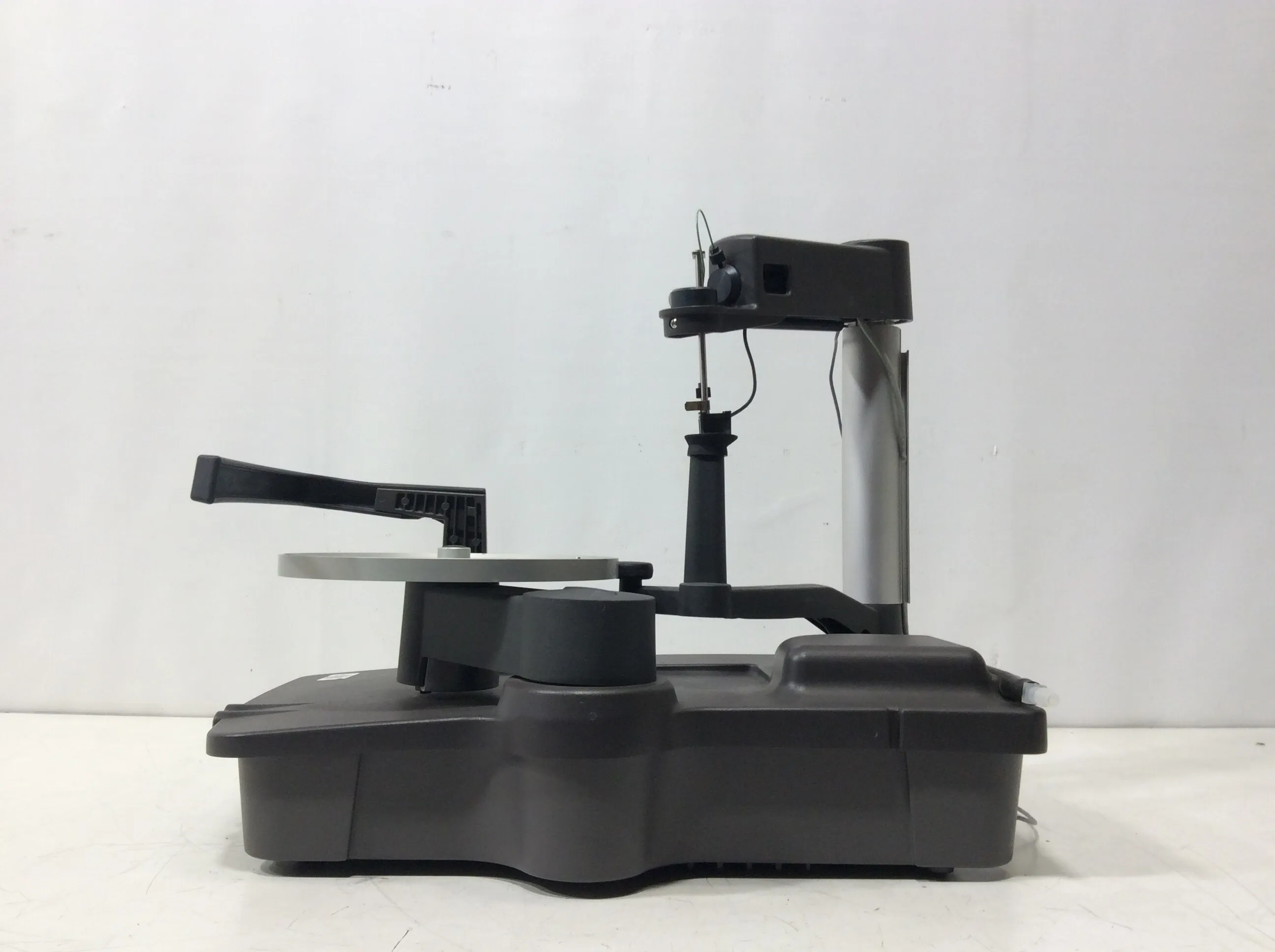

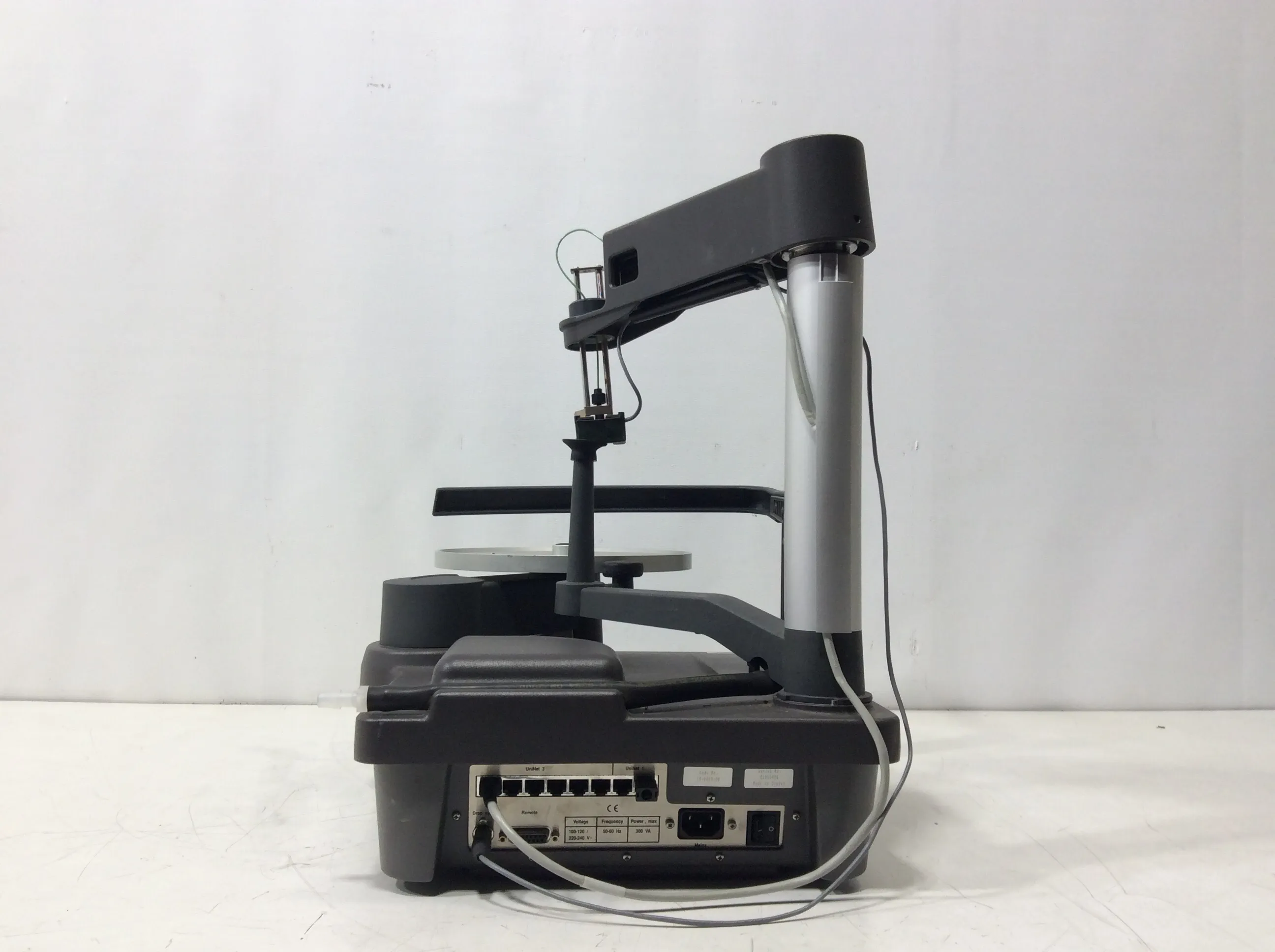

Amersham Pharmacia Biotech Frac-950 Fraction Collector

Product Information

Amersham Pharmacia Biotech Frac-950 Fraction Collector is a dynamic and versatile tool created by a Amersham Biosciences, an innovative leader in the life science industry. Designed to facilitate liquid chromatography as part of a KTAdesign chromatography system, this equipment possesses the unique ability to set the fractionation base to time or volume. This Fraction Collector can be used in standard operational mode or prep mode, depending on the application, offering flexibility and precision. The Frac-950 is an automatic fraction collector for use as part of KTAdesign systems. With comprehensive features like rack capacity, flow rate, operating temperature, and power consumption, the Frac-950 offers reliability and robust performance. The device's automatic fraction collector functionality and versatile capabilities make it a versatile and indispensable tool for scientific laboratories. This Frac-950 Fraction Collector is an invaluable asset, enabling accurate and efficient collection of liquid chromatography fractions. It is an essential equipment for laboratories focusing on liquid chromatography applications. For more product information, visit https://cdn.gelifesciences.com/dmm3bwsv3/AssetStream.aspx?mediaformatid=10061&destinationid=10016&assetid=14495

• Automatic fraction collector for use as part of KTAdesign systems
• Rack capacity for various tube sizes and quantities
• Flow rate range from 0.001 to 100 ml/min
• Wide operating temperature range for varied chromatography applications
• Compatible with different rack designs for enhanced flexibility and performance

• Capacity: Rack A: 120 tubes (18 mm), 8 tubes (30 mm)
• Depth: 550 mm
• Flow Rate: 0.001-100 ml/min
• Operating Temp Max: 40C
• Operating Temp Min: 4C
• pH Stability Long Term: 1-13
• pH Stability Short Term: 114
• Power Consumption: 300 VA
• Relative Humidity: 20%-95% (non-condensing)
• Time Mode: 0.1 - 99999.99 min
• Voltage: 100 - 240 V
• Volume Mode: 0.1 - 99999.99 ml
• Max Weight: 16.5 kg
• Wetted Materials: Polyetheretherketone (PEEK), Ultra high molecular weight polyethylene (UHMW-PE), Glass, Elgiloy HT

Metric: 16.5 kg
Imperial: 36.37 lbs

Metric: 22 cm x 16 cm x 20 cm
Imperial: 8.66 in x 6.3 in x 7.87 in

90272011

90272011: Chromatographs and electrophoresis instruments, whether or not combined with measuring, recording or viewing apparatus; liquid chromatographs - Other chromatography instruments for laboratory use
