Edmund Optics Prism RA HT 30MM VIS Stock No 47-932

Product Information

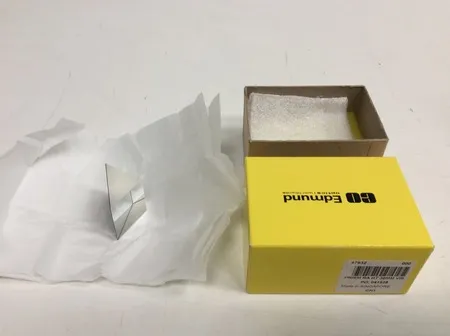

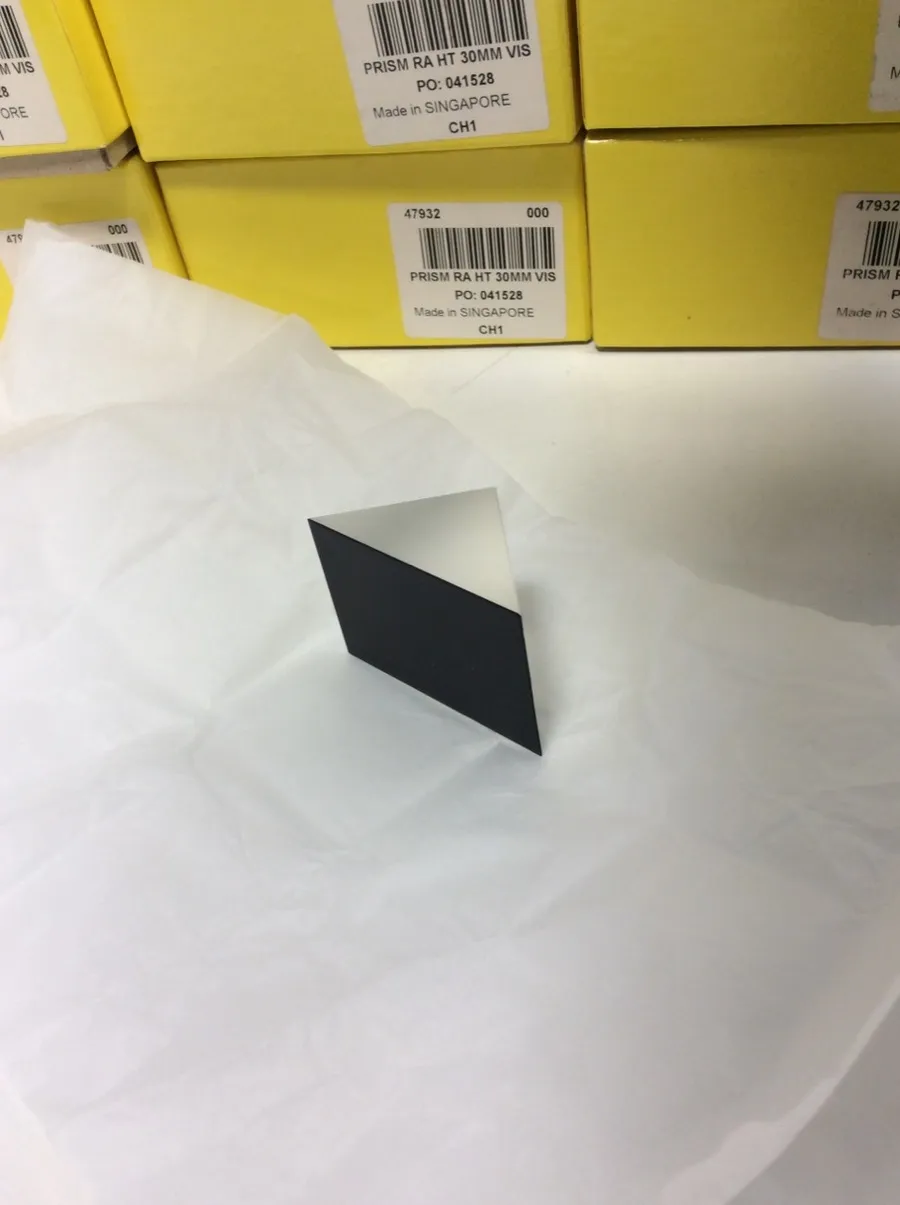

The Edmund Optics Prism RA HT VIS is a high-tolerance right-angle prism with a length of 30mm. This versatile equipment is widely used in scientific and industrial applications, offering exceptional surface quality, an angle tolerance of 15 arcsec, and a protective bevel for added durability. The RoHS compliant prism has a wavelength range of 425-675nm, making it suitable for a wide range of optical experiments and research. Manufactured with N-BK7 substrate and VIS 0 & Aluminized coating, this prism passes function tests and is in 'New other (see details)' condition, enabling confidence in its use. Retails new for $140.00.

• Right-angle prism with a length of 30mm
• Surface quality of 40-20
• Wavelength range of 425-675nm
• N-BK7 substrate with VIS 0 & Aluminized coating
• Angle tolerance of 15 arcsec

• Length of Hypotenuse (mm): 42.4
• Length of Legs (mm): 30.0
• Dimensional Tolerance (mm): +0/-0.1
• Bevel: Protective bevel as needed
• Coating Specification: Hypotenuse: Ravg>85% @ 400 - 700nm, Legs: Ravg0.4% @ 425 - 675nm
• Typical Energy Density Limit: Hypotenuse: 0.3 J/cm2@ 532nm & 1064nm, 10ns, Legs: 5 J/cm2@ 532nm, 10ns
• Type: Right Angle Prism
• Ray Deviation: 90
• Image Orientation: Left-Handed

Metric: 0.907 kg
Imperial: 2.000 lb

Metric: 6 cm x 6 cm x 6 cm
Imperial: 2.36 in x 2.36 in x 2.36 in

9001900000

Optical elements, not mounted, nesoi
