Applied Biosystems StepOne Real-Time PCR System 48-well

Product Information

As a quirky scientist intrigued by genomic research, I couldn't help but admire the Applied Biosystems StepOne Real-Time PCR System - a 48-well, low-throughput PCR instrument capable of delivering precise, quantitative results for various genomic research applications. This robust LED-based 3-color optical recording system is designed to drive advancements in genomics, offering unmatched sensitivity (down to 1 copy) and an impressive dynamic range spanning over 9 log units. Not to mention its energy-efficient design, sustainable packaging, and unparalleled reaction speed - standard or fast, the choice is yours. It's no wonder why this system is cherished by both novice and seasoned researchers. Let the quirky scientist in me tell you one more fun fact - the thermal cycling system is Peltier-based, offering incredible uniformity in reaction volumes ranging from 10-30 μl, with robust temperature accuracy. From fluorescent dye detection to large dynamic ranges, the StepOne PCR System takes genomics to the next level. Don't blame me for getting chatty about it - it's just that fascinating!

• LED-based 3-color optical recording
• Linear dynamic range greater than 9 log units
• Energy-efficient and sustainable packaging
• Precise temperature control and uniformity
• Peltier-based thermal cycling system

• Format: 0.1 ml tubes, 48-well plate
• Optics: LED, photodiode, 3 emission filters
• Weight: 23.6 kg (52 lbs.)

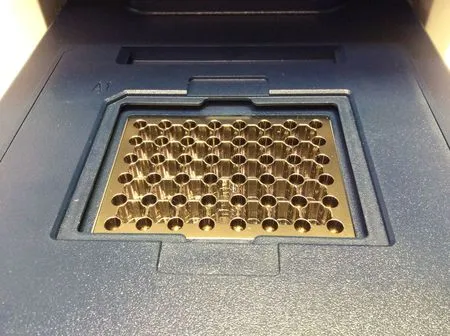

• Capacity: 1 x 48-well plate, 48 x 0.1 ml tubes
• Dimensions: 24.6 cm/9.7 in.(W) x 42.7 cm/16.8 in.(D) x 51.2 cm/20.2 in.(H)
• Sensitivity: 1 copy
• Dynamic Range: Linear Dynamic Range greater than 9 log units (detection)
• Calibrated Dye: VIC, ROX, JOE, FAM, SYBR Green I
• Reaction Speed: Standard, Fast
• Detection Method: Primer-Probe Detection, SYBR
• Sample Ramp Rate: Standard mode: 1.6Csec, Fast mode: 2.2Csec
• Peak Block Ramp Rate: 4.6Csec
• Temperature Accuracy: 0.25C (35 to 95C) of display temperature
• Passive Reference Dye: ROX (Separate Tube), ROX (Pre-mixed), No ROX
• Reaction Volume Range: 10-30 l (Standard curve experiments: 40 l in standard mode is validated)
• Temperature Uniformity: 0.25C (35 to 95C) of setpoint/display temperature
• Thermal Cycling System: Peltier-Based System

Metric: 23.6 kg
Imperial: 52 lbs

Metric: 24.6 cm x 42.7 cm x 51.2 cm
Imperial: 9.7 in x 16.8 in x 20.2 in

903180

The harmonized code 903180 is used for instruments and apparatus for measuring or checking the flow, level, pressure or other variables of liquids or gases. This code is fitting as the Real-Time PCR system measures and checks variables in genetic material with precision.
