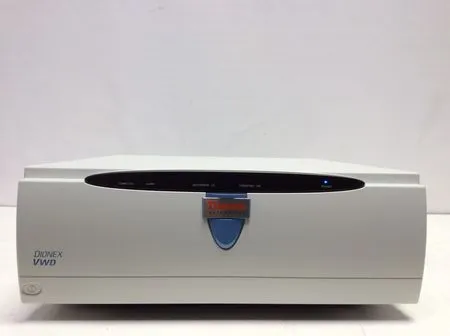

Thermo Fisher Dionex ICS-Series VWD Variable Wavelength Detector

Product Information

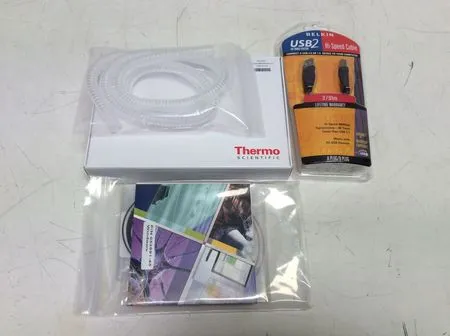

This used Thermo Fisher Dionex ICS-Series VWD Variable Wavelength Detector is in great working condition and includes everything pictured. The unit will be tested before shipping. With outstanding sensitivity, this detector is ideal for routine ion chromatography applications using the dual-lamp Thermo Scientific Dionex ICS-Series VWD Variable Wavelength Detector. This equipment lets you work free from worry of metal contamination with available all Thermo Scientific PEEK flow cells. The detector type is a variable wavelength detector, single channel, with a data collection rate of up to 10Hz and analog outputs of absorbance, 20-bit resolution, 0-1V and 0-10V. The flow cell volume is 11L, providing a wavelength accuracy of 1nm in the range of 190 to 900nm. The lamp is a simultaneous Tungsten and Deuterium system, and the flow cell is PEEK with a 11L volume and 10mm path length (analytical); 2.5L, 7mm path length (semimicro). This detector has PC Connection via USB and excellent thermal stability with low backpressure from the integrated flow cell heat exchanger. The flow cell also allows for easy verification of wavelength accuracy with a built-in holmium oxide filter. The unit has excellent resolution that yields high linearity and a lamp lifetime monitor to prevent downtime. This item can be easily installed and data collected via USB, with data collection rates of up to 100Hz and a broad wavelength range of 190 to 900nm. All of this is compatible with the Thermo Scientific Dionex Chromeleon Chromatography Data System software.

• Variable wavelength detector, single channel
• Dual-lamp Thermo Scientific Dionex ICS-Series VWD
• Dual-lamp system with simultaneous Tungsten and Deuterium
• PEEK flow cells
• PC Connection via USB
• Broad wavelength range of 190 to 900nm
• Compatible with Thermo Scientific Dionex Chromeleon Chromatography Data System software

• Detector Type: Variable wavelength detector, single channel
• Data Collection Rate: Up to 10Hz
• Analog Outputs: Two - absorbance, 20-bit resolution, 0-1V and 0-10V
• Drift: Low
• Noise Level: Low
• Flow Cell Volume: 11L
• Wavelength Accuracy: 1nm
• Wavelength Range: 190 to 900nm
• Lamp: Simultaneous Tungsten and Deuterium
• Flow Cell: PEEK, 11L volume, 10mm path length (analytical); 2.5L, 7mm path length (semimicro)
• PC Connection: USB
• Height: 15.2cm (Metric), 6.0 in. (English)
• Width: 44.4cm (Metric), 17.5 in. (English)
• Voltage: 85 to 265VAC, 47/63Hz

Metric: 20.4117 kg
Imperial: 45.0 lbs

Metric: 30 cm x 24 cm x 20 cm
Imperial: 11.81 in x 9.45 in x 7.87 in
