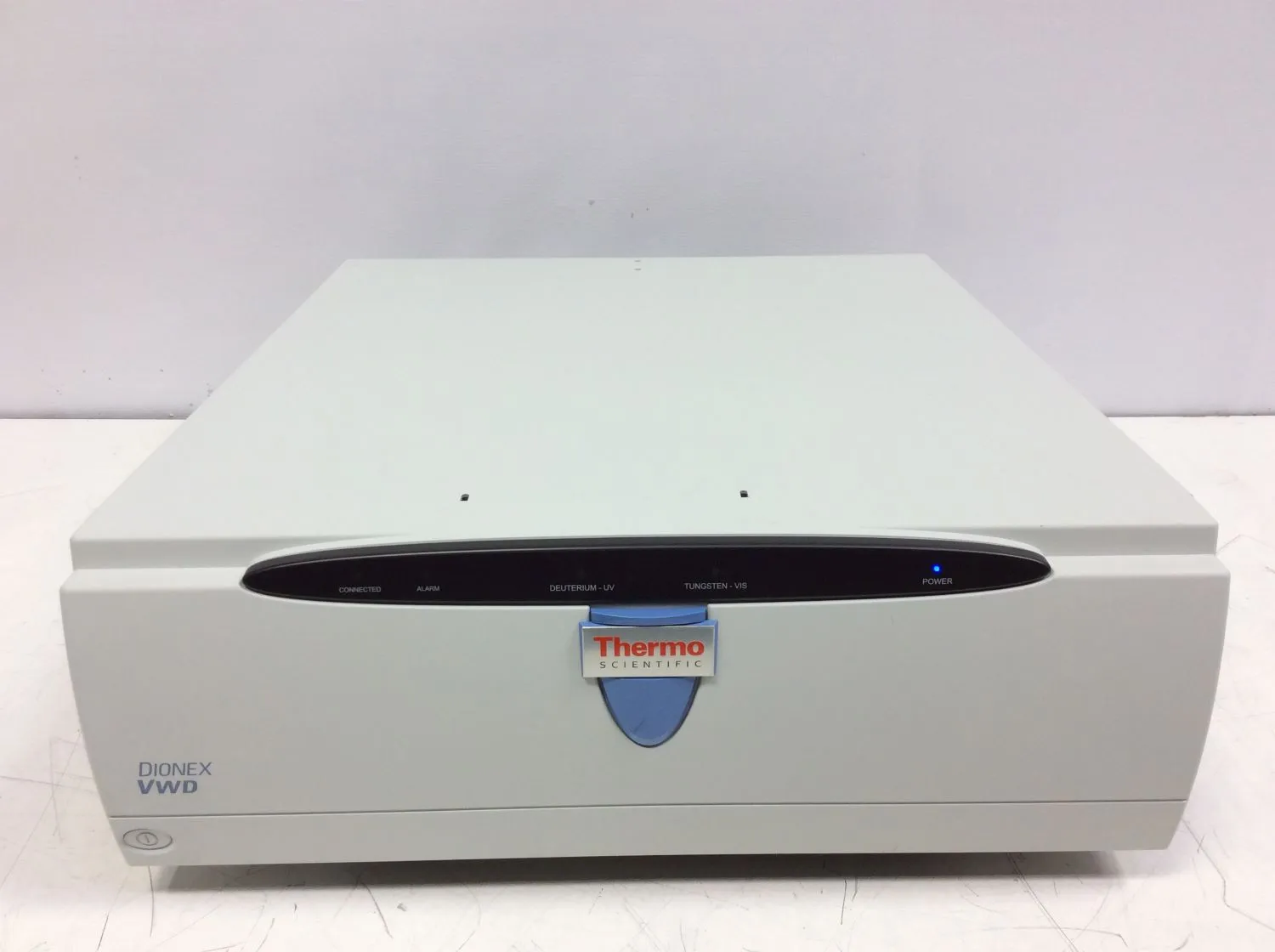

Thermo Scientific Dionex ICS-Series VWD Variable Wavelength Detector

Product Information

The Thermo Scientific Dionex ICS-Series VWD Variable Wavelength Detector is a reliable asset with outstanding sensitivity catered for routine ion chromatography applications. This dual-lamp detector allows for worry-free usage by eliminating concerns of metal contamination, complemented by the availability of all Thermo Scientific PEEK flow cells. This piece boasts a robust drift rate of less than 0.1mAU/hr and an impressively low noise level of less than 2.5 AU at 254nm, ensuring precise outcomes. The broad wavelength range of 190-900nm, data collection rates of up to 100Hz, and a lamp lifetime monitor to prevent downtime demonstrate its excellence in meeting varied chromatography requirements. This detector is an economic high performer perfect for routine chromatography and promises reliable, flexible applications. The easy verification of wavelength accuracy through its built-in holmium oxide filter, PC connection via USB for straightforward data collection, and powerful, user-friendly control via the Thermo Scientific Dionex Chromeleon Chromatography Data System software make this device a seamless addition to any laboratory setting.

• Simultaneous Tungsten and Deuterium Lamp
• Drift rate <0.1mAU/hr
• Low noise level <2.5 AU at 254nm
• Flow Cell Volume of 11L
• Wavelength Range 190-900nm
• Data Collection Rate of up to 100Hz
• Lamp lifetime monitor to prevent downtime

• Detector Type: Variable wavelength detector, single channel
• Analog Outputs: Two - absorbance, 20-bit resolution, 0-1V and 0-10V
• Wavelength Accuracy: 1nm
• Lamp: Simultaneous Tungsten and Deuterium
• PC Connection: USB
• Wavelength Bandwidth: 6nm at 254nm
• Linearity: up to 2.5AU
• Flow Cell: PEEK, 11L volume, 10mm path length (analytical); 2.5L, 7mm path length (semimicro)
• Dimensions (Metric): Height 15.2cm, Width 44.4cm
• Dimensions (Imperial): Height 6.0 in, Width 17.5 in
• Electrical Requirements: 85 to 265VAC 47/63Hz

Metric: 20.4117 kg
Imperial: 45.0 lbs

Metric: 30.0 cm x 24.0 cm x 15.2 cm
Imperial: 11.81 in x 9.45 in x 6.0 in

9027300000

9027.30.00.00 - Liquid crystal devices not constituting articles provided for more specifically in other headings; lasers other than laser diodes; other optical appliances and instruments, not specified or included elsewhere in this chapter.
