Peak Scientific Genius 1022 Nitrogen Gas Generator

Product Information

I'd like to introduce you to the Peak Scientific Genius 1022 Nitrogen Gas Generator. Produced by Peak Scientific, this unit is tailored to work seamlessly with Thermo Scientific and Shimadzu LC/MS instruments, catering to high-pressure Nitrogen demands up to 116 psi. Exceptional testing and research have ensured that this generator is the optimal Nitrogen source for your LC/MS procedures. Not only does it perform independently, but it's a smart system, indicating required service dutifully. Its quiet operation is facilitated by an insulated compressor compartment, and mobility is guaranteed with its caster wheels. Economical, safe, and easy to install, this gas generator stands out as the most cost-effective option on the market, providing a steady and always available gas supply. Experience the convenience and high performance of this Nitrogen Gas Generator today!

• Generates Nitrogen with no need for an external compressor

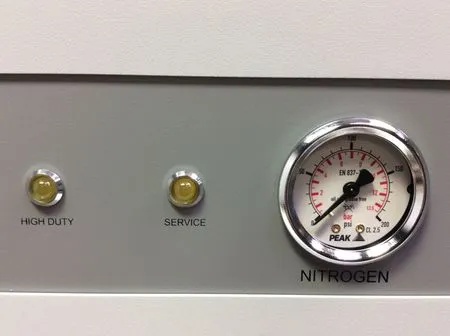

• Intelligent system with high service indication for maintenance planning

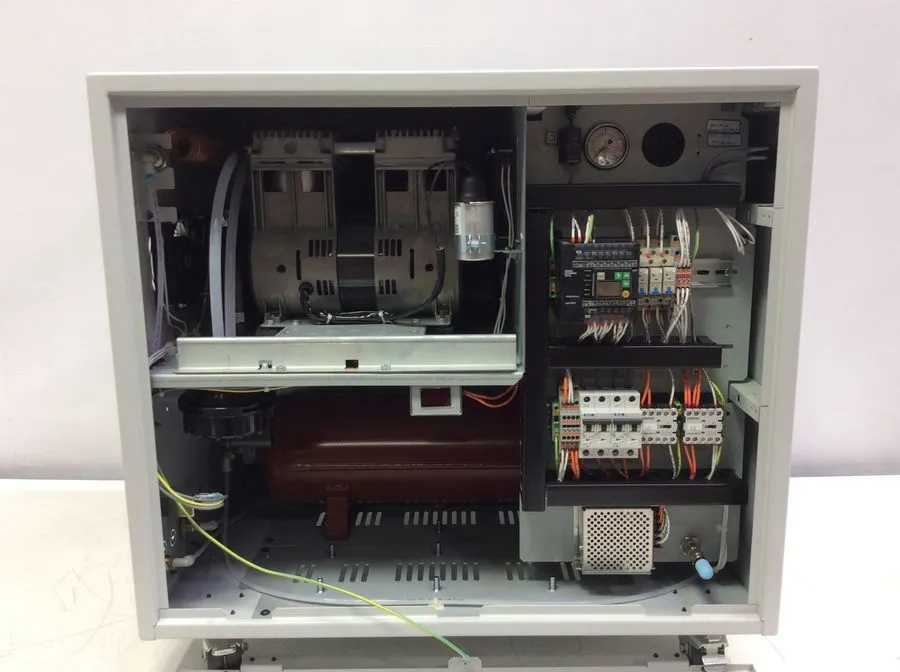

• Quiet operation with an insulated compressor compartment
• Mobile design with caster wheels for easy maneuvering
• Economical, cost-effective, and easy to install
• Perfect option for LC/MS applications requiring high Nitrogen supply pressure up to 116 psi

• Gas Type: Nitrogen
• Gas Flow: 32L/min
• Outlet Pressure: 116psi
• Voltage: 230 ± 10% VAC
• Frequency: 50/60Hz
• Current: 7 amps
• Size (HxWxD) mm: 713 x 600 x 750
• Size (HxWxD) Inches: 28.1 x 23.6 x 29.5
• Generator Weight: 104.5 kg / 230lbs
• Noise Level: 54 dBA
• Nitrogen Output: 32 L/min @ 8 bar / 1.13 CFM @ 116 psi
• Min/ Max Operating Temperature: 5°C - 35°C / 41°F - 95°F
• Max Relative Humidity: 80% Non-Condensing
• Max Altitude: 2000 Metres
• Particles Gas Outlets: 1x 1/4 BSP
• Phthalates: None
• Suspended Liquids: None
• Noise Level: 54 dB(A) @ 1m
• Electrical Requirements: 230v 50/60Hz 7.0A
• Power Consumption: 1610 watts
• Dimensions: W 60 x D 75 x H 71.2 cm / W 23.6 x D 29.5 x H 28 in
• Weight: 95 kg / 209 lbs

Metric: 104.5 kg
Imperial: 230 lbs

Metric: 60 cm x 75 cm x 71.2 cm
Imperial: 23.6 in x 29.5 in x 28 in
