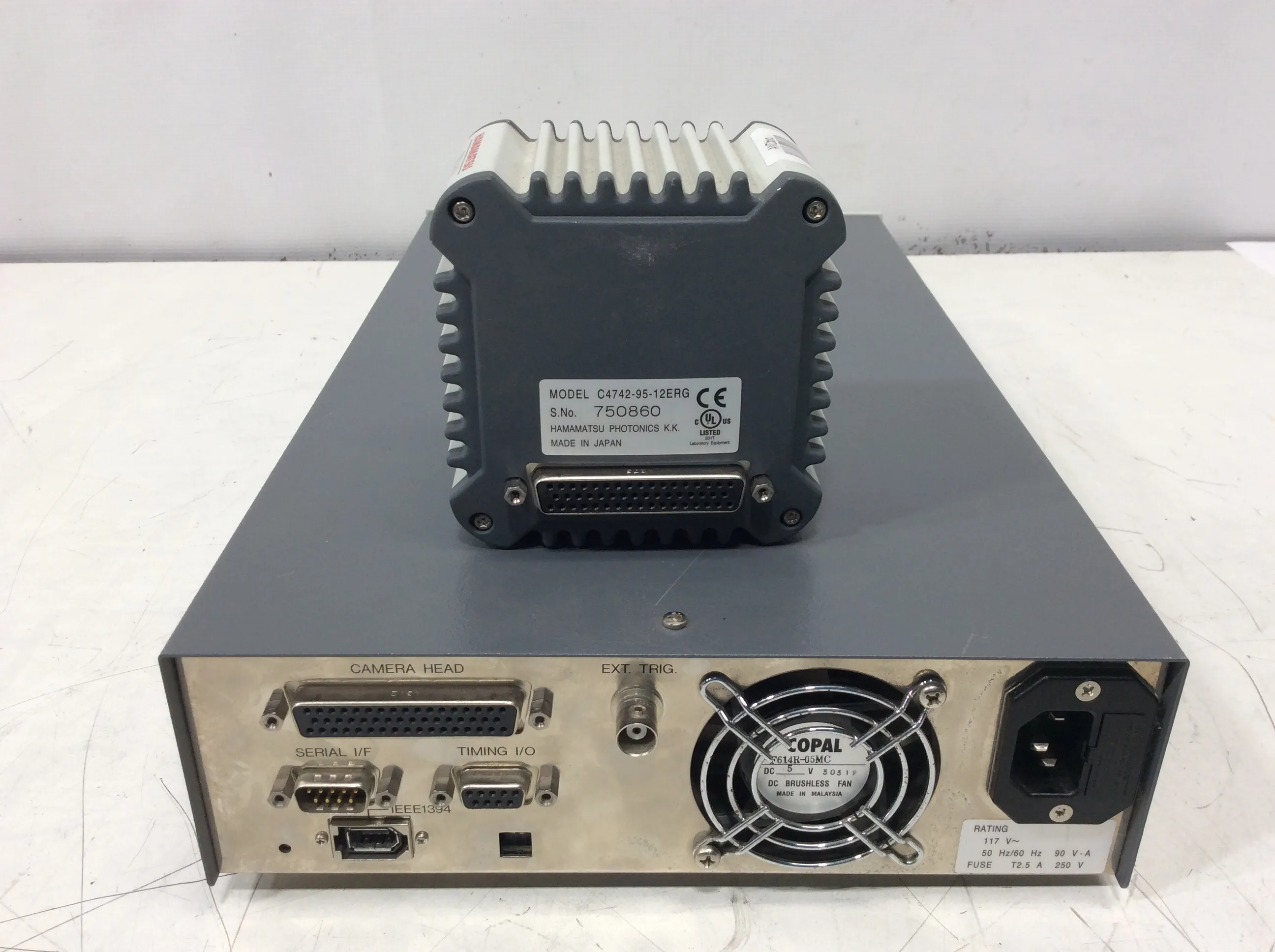

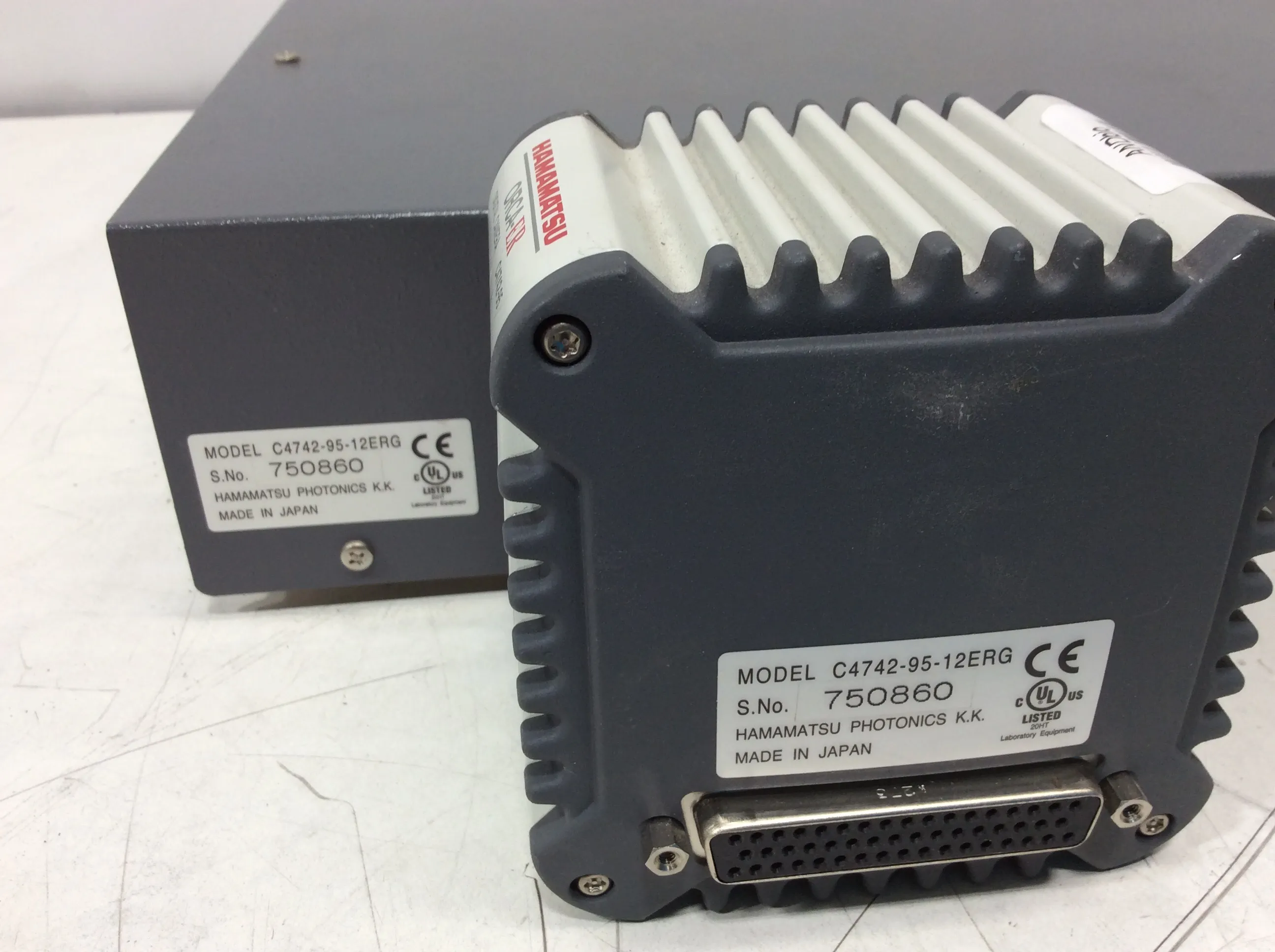

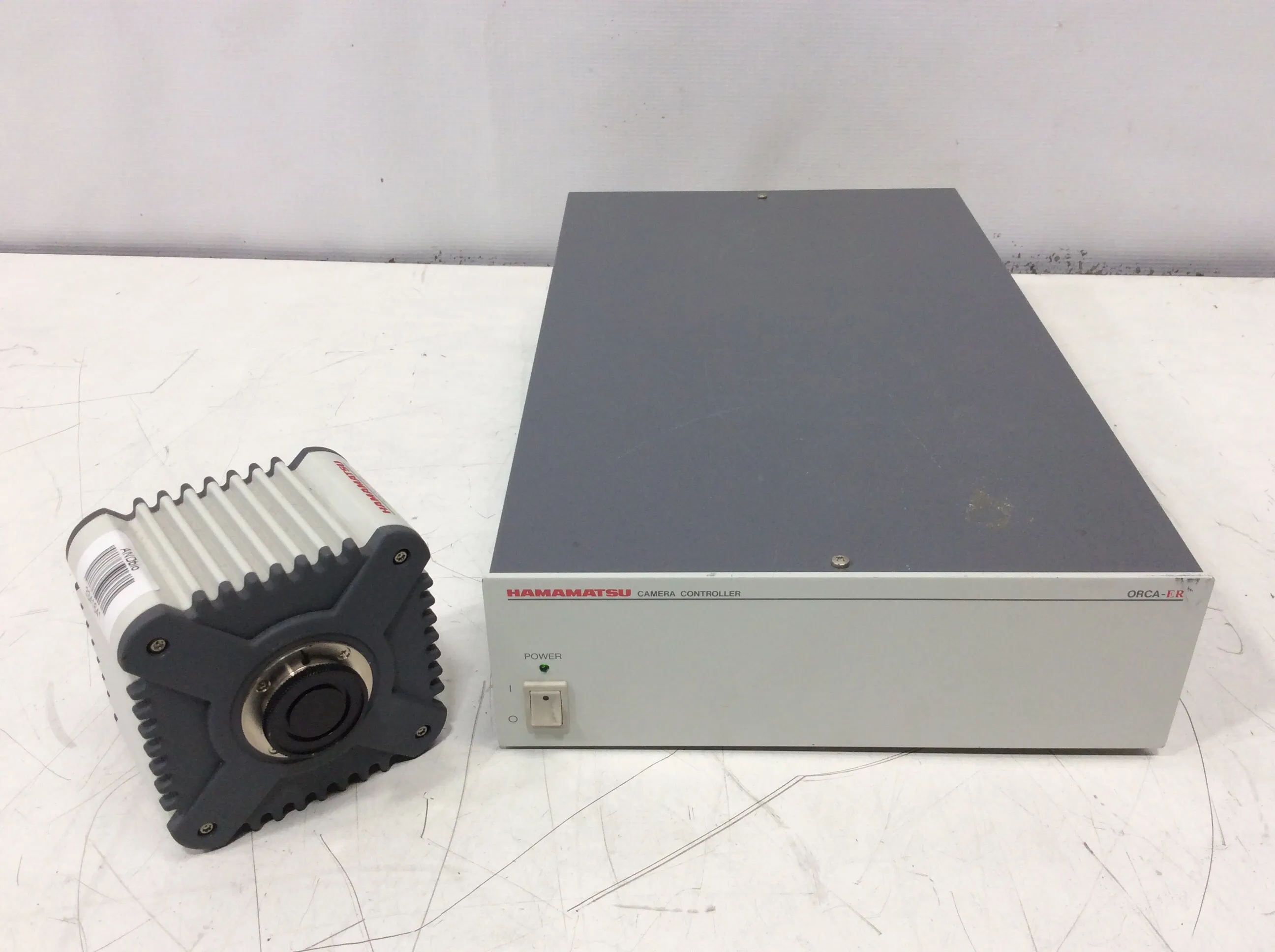

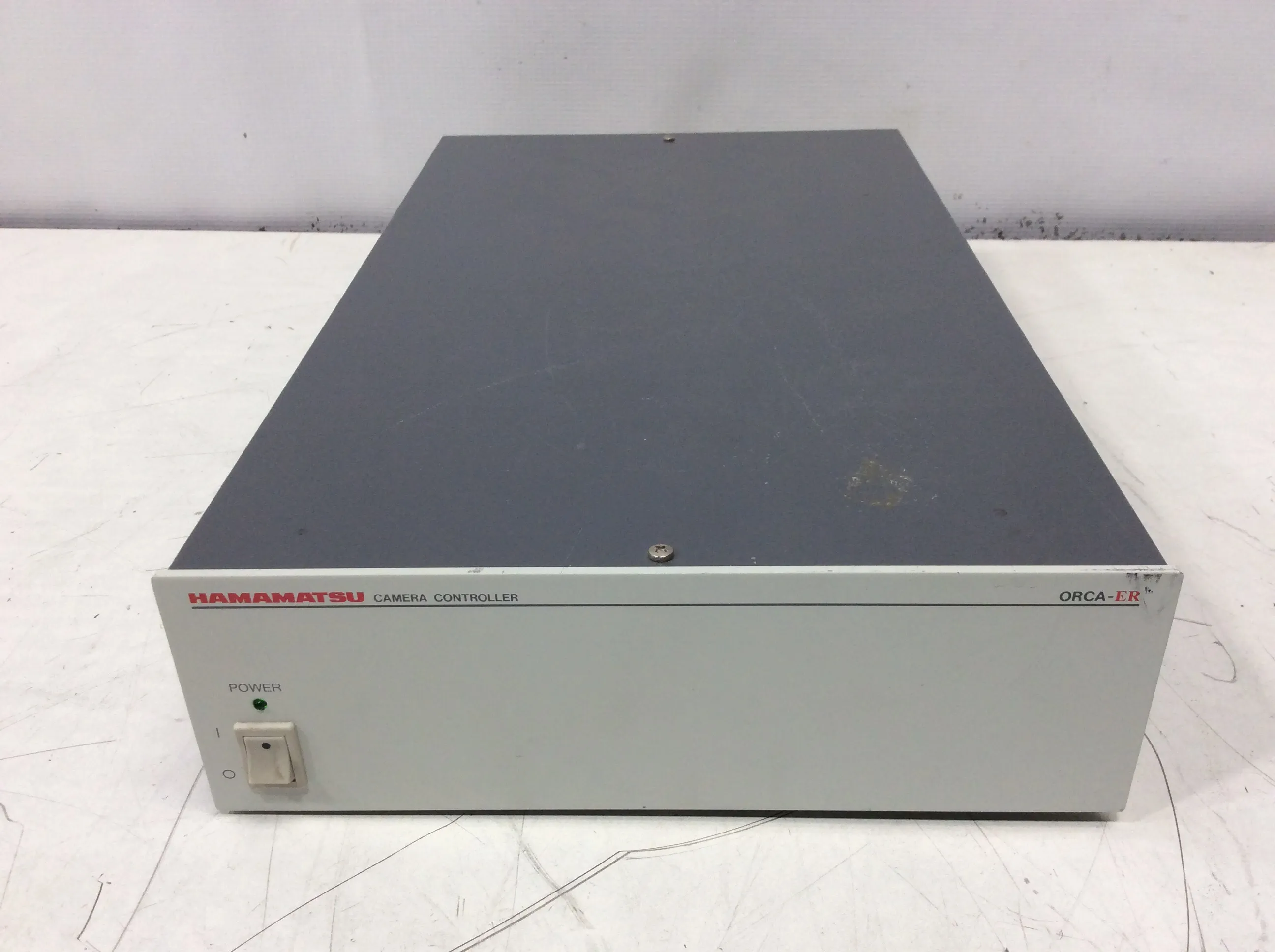

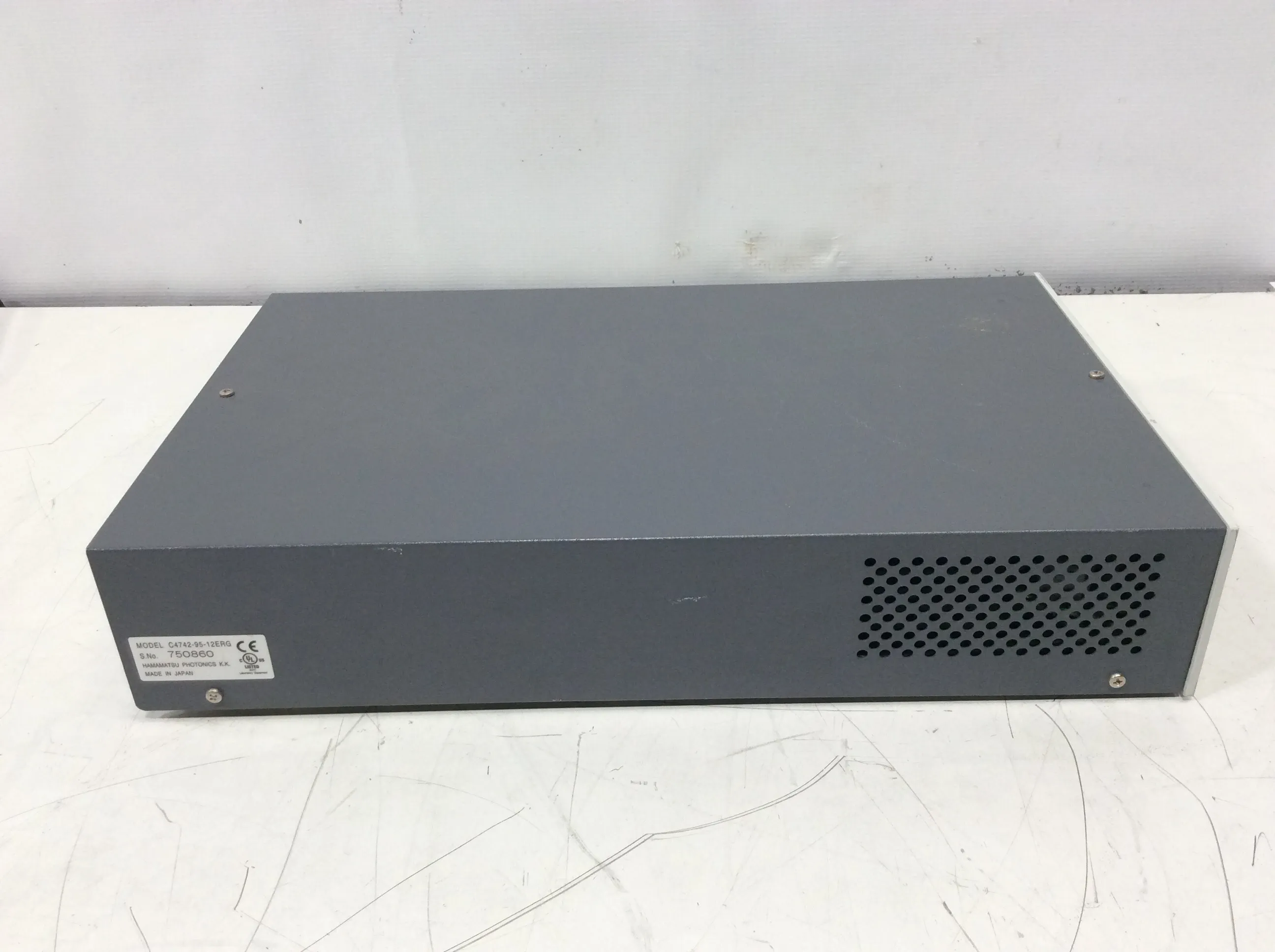

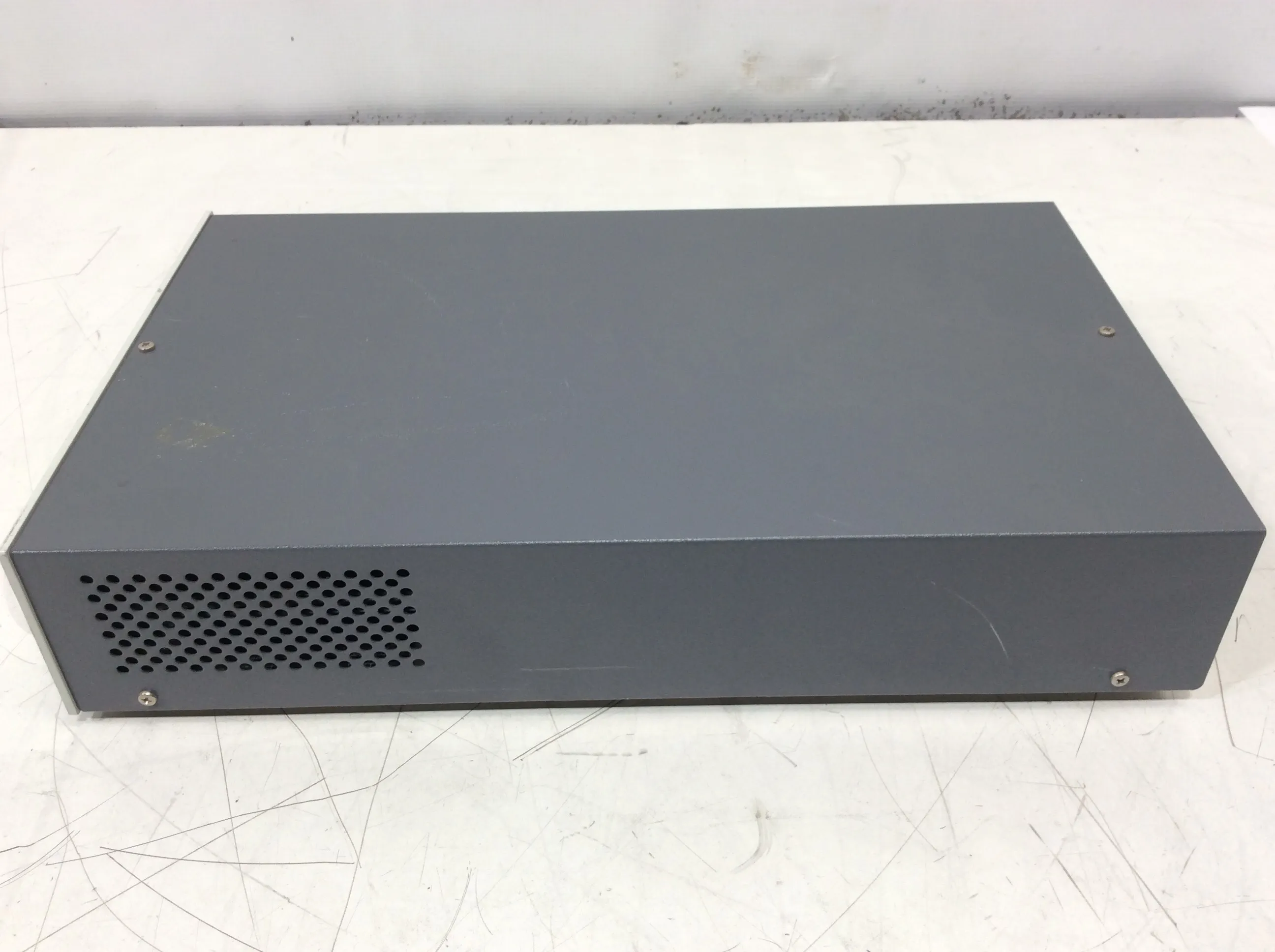

Hamamatsu Orca-ER Digital Camera & Controller C4742-95-12ERG

Product Information

Ladies and gentlemen, may I present the Hamamatsu Orca-ER digital camera and controller, complete with the specially designed ER-150 chip, providing the highest VIS-IR QE available for a progressive-scan CCD based digital camera. The ER series of this imaginative piece of tech provides a substantial 20% greater QE compared to the commonplace ICX-085 chip found in most other progressive-scan cameras. With its improved readout electronics and hermetically sealed vacuum technology, the ER camera offers superior signal to noise low imaging capability at frame rates greater than 8fps. The C4742-95-12ERG model offers IEEE-1394 IIDC compliant digital output and control, while the C4742-95-12ER model boasts RS-422 digital output and RS-232 control. In terms of adventurous applications, the ER series paves the way for some extraordinary and rather impressive imaging resolutions and dynamic ranges, fully equipped for the demands of low light performance and offering electronic shuttering capabilities. Join me in exploring the fantastic performance and unparalleled capabilities of this technology. Now, I shall dive into the finer technical details!

• High VIS-IR QE due to ER-150 chip
• Superior signal to noise low imaging
• Captivating 1344 x 1024 active pixel resolution
• Excellent 12-bit A/D with 2,250:1 dynamic range
• Fantastic stock sub-array and full resolution frame rates
• 70% peak QE, superior VIS-IR low light performance
• Ideal for exploratory micro-imagery

• Imaging Device: Interlace readout interline CCD solid imaging element
• Effective No.of Pixels: 4000 (H) 2624 (V)
• Cell Size: 5.9 m 5.9 m (square format)
• Effective Area: 23.6 mm 15.5 mm (1.8-inch size)
• Frame Rate: Interlace readout: 1.7 Hz; 22 binning readout: 3.4 Hz; 44 binning readout: 6.4 Hz; Outline readout: 8.9 Hz
• Readout Noise (r.m.s.): 20 electrons (typ.) *1
• A/D Converter: 12 bit
• Dynamic Range*: 2,250 : 1
• Cooling Method: Electronic and natural air cooling
• Lens Mount: F-mount
• Amp gain conversion factor *2: 3.2 electrons/ADcounts (13 300 electrons)
• Contrast Variable Range: 1 to approx. 10 times
• Input Power Supply: AC 100 V, AC 117 V, AC 220 V to AC 230 V, AC 230 V to AC 240 V
• Frequency: 50 Hz / 60 Hz
• Power Comsumption: Approx. 90VA
• Ambient Storage/Operating Temperature: -10 C to +50C / 0 C to +40C
• Ambient Storage/Operating Humidity: 70% max. (no condensation)

Metric: 13.6078 kg
Imperial: 30 lbs

Metric: 22.86 cm x 22.86 cm x 22.86 cm
Imperial: 9 in x 9 in x 9 in
