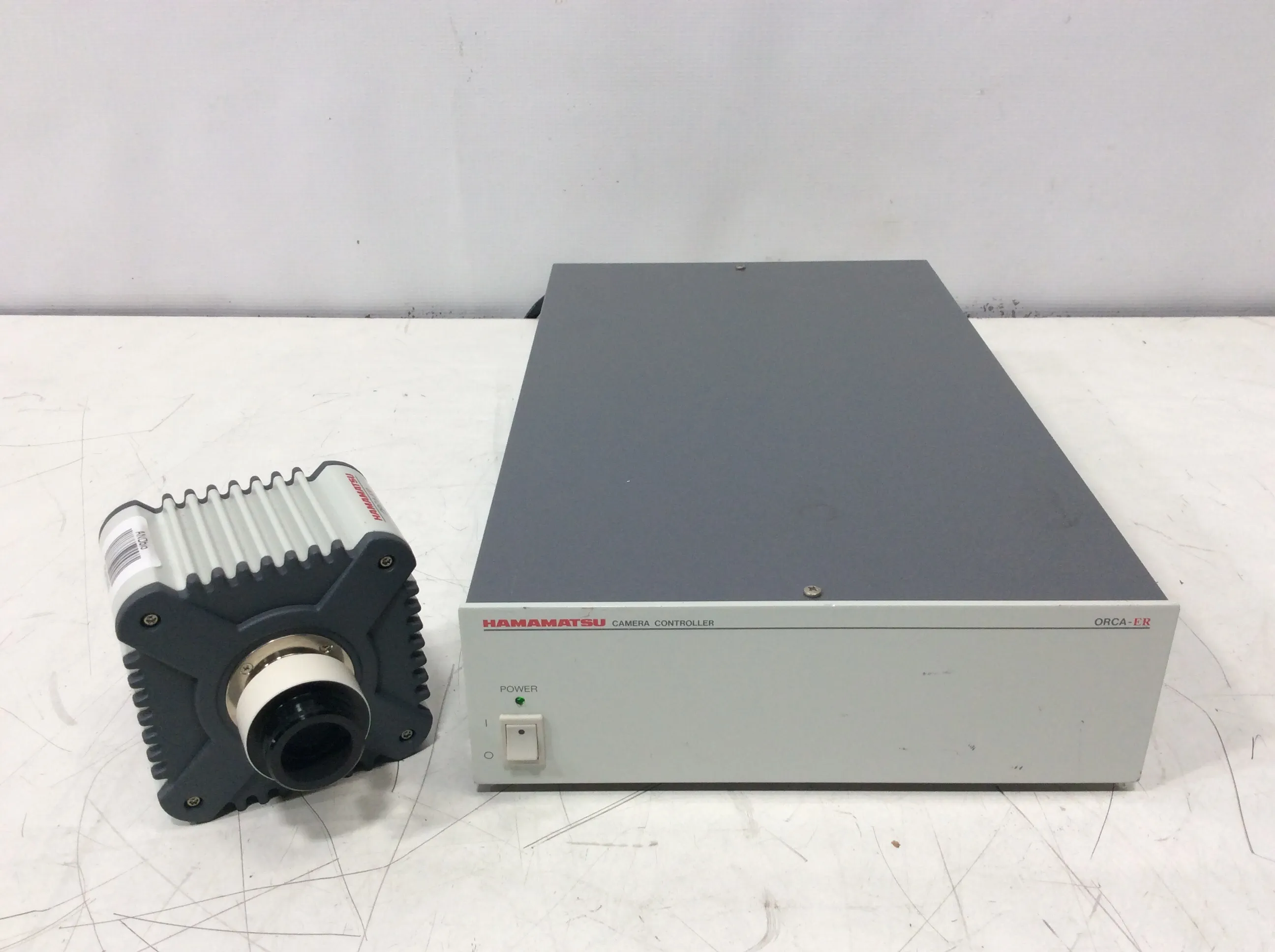

Hamamatsu ORCA-ER Digital Camera C4742-95 & Controller
- Make Hamamastu
- Hertz Does Not Apply

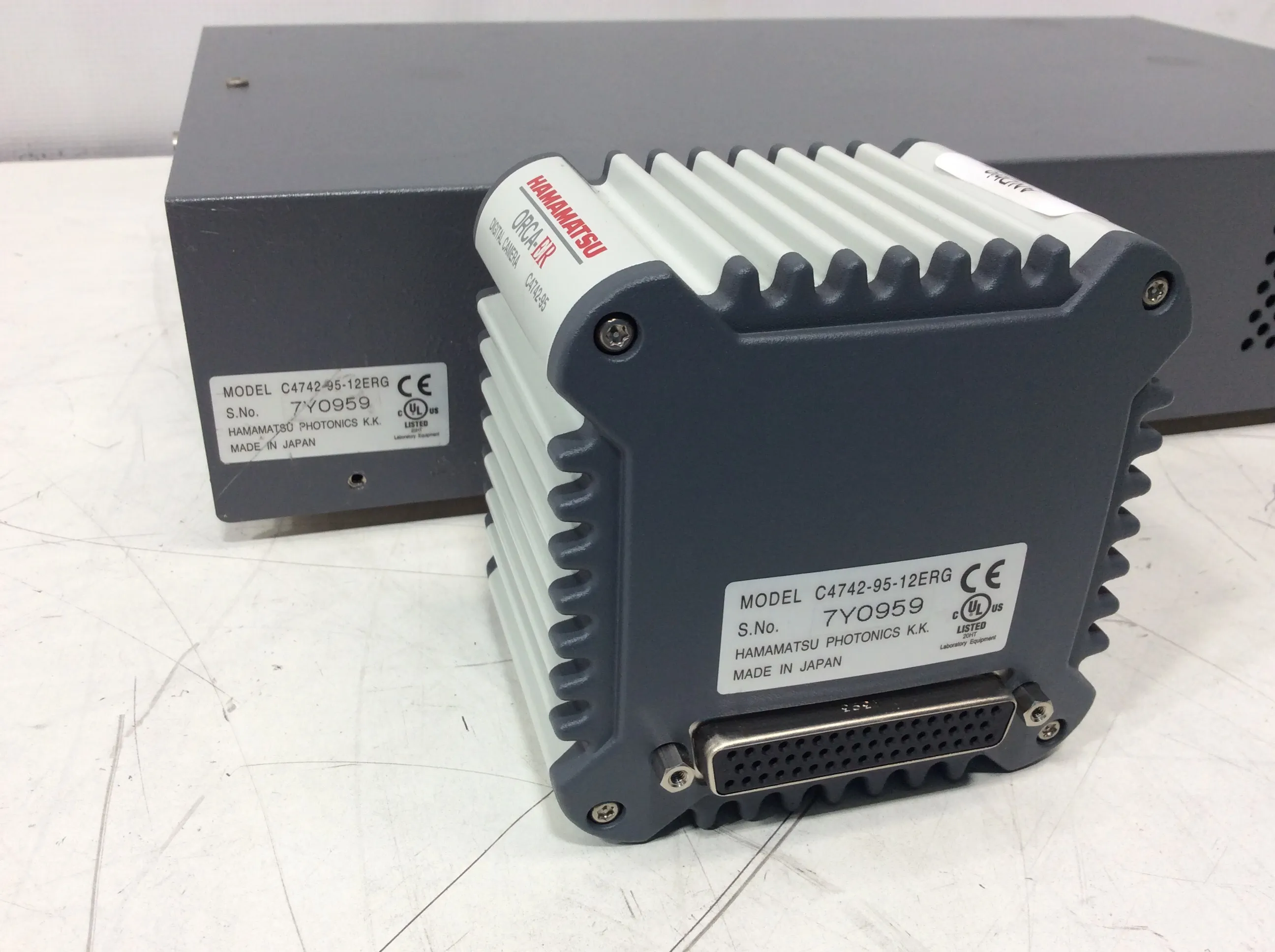

- Model ORCA-ER Digital Camera C4742-95 & Controller
- Serial 7Y0959
- Weight 30.0 Lb
- Voltage Does Not Apply
- Includes Power cord included |
- Warranty 30-Day Warranty, 100% Parts and Labor
- Dimensions 18.0in x 18.0in x 18.0in
- Shipping Type FedEx Ground
- Item Condition Excellent
- Manufacturing Date Does Not Apply
Product Information
The Hamamatsu ORCA-ER Digital Camera C4742-95 & Controller is a black and white CCD digital camera that utilizes an advanced progressive scan interline CCD chip with high sensitivity in the VIS-NIR (visible near-infrared) region. This camera offers substantially better noise characteristics at high frame rates. The hermetic vacuum-sealed head is Peltier cooled and capable of reaching -20C, thus reducing dark noise and minimizing thermal drift. These features make this camera an ideal choice for demanding scientific and industrial applications. It is a great choice for both high and low level imaging applications.
Key Features- Hermetic Vacuum Sealed Head
- High Resolution of 1.37 Million Pixels
- Exposure Time up to 10 Seconds
- Progressive Scan Interline CCD Chip with No Mechanical Shutter
- Binning Function
- Imaging Device: Progressive scan interline CCD with micro-lens
- Effective No. of Pixels: 1344 (H) 1024 (V)
- Cell Size: 6.45μm x 6.45μm (square format)
- Effective Area: 8.67 mm x 6.60mm (2/3-inch format)
- Pixel Clock Rate: 14.75 MHz/pixel
- Frame Rate: 8.8 frame/sec; 2 x 2 binning: 16 frame/sec; 4 x 4 binning: 27 frame/sec; 8 x 8 binning: 41 frame/sec
- Readout Noise (r.m.s.): 8 electrons
- Full Well Capacity: 18,000 electrons
- Dynamic Range*: 2,250:1
- Cooling Method: Forced air peltier cooling, with hermetic vacuum sealing
- Cooling Temperature: -30°C at 20°C ambient temperature
- Dark Current: 0.03 electron/pixel/sec
- A/D Converter: 12 bit
- Exposure Time: 10 sec to 4,200 sec
- Sub Array: Yes
- Contrast Enhancement: Analog Gain (10 times max.) and Offset function

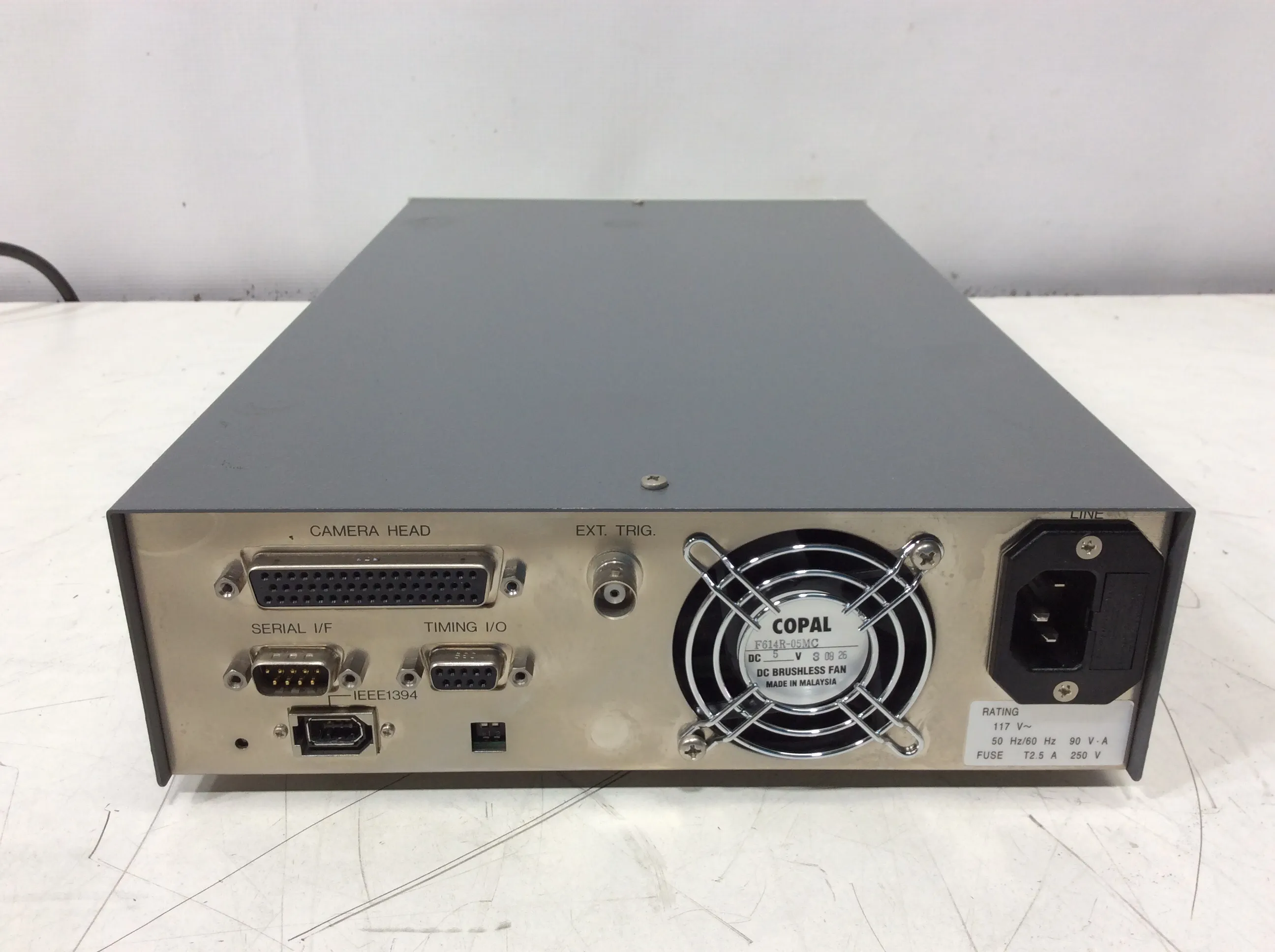

- External Trigger: Yes
- Lens Mount: C-mount
- Interface: IEEE1394-1995
- External Control: 1394-Based Digital Camera Specification Ver.1.30
- Line Voltage: 100V/117V/220V/240V AC, 50/60Hz
- Power Consumption: Approx. 90VA
Metric: 13.60 kg
Imperial: 30.00 lbs
Metric: 45.72 cm x 45.72 cm x 45.72 cm
Imperial: 18 in x 18 in x 18 in
8525803000
Harmonized Code Details8525803000 - Other cameras for non-artistic uses
