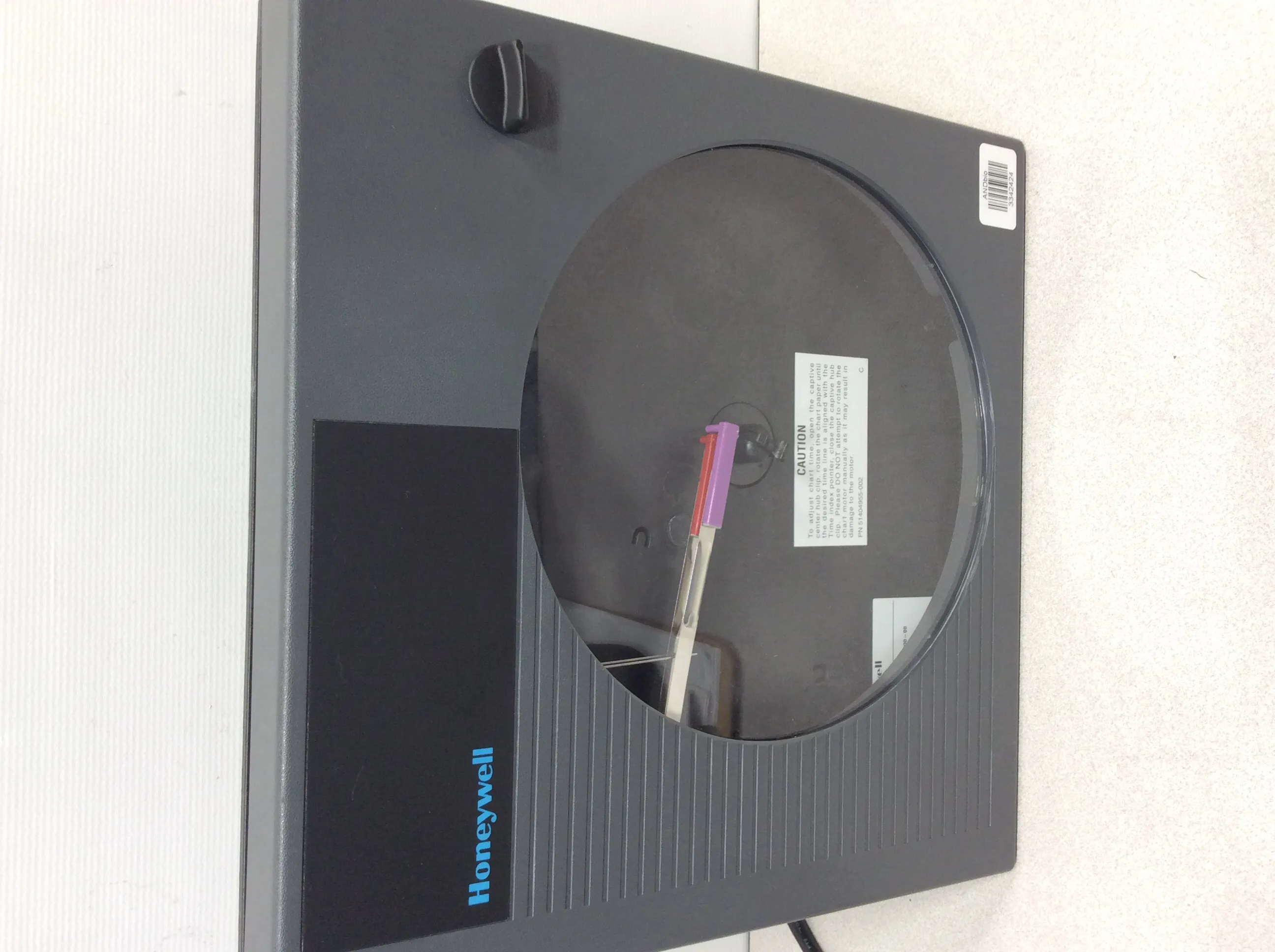

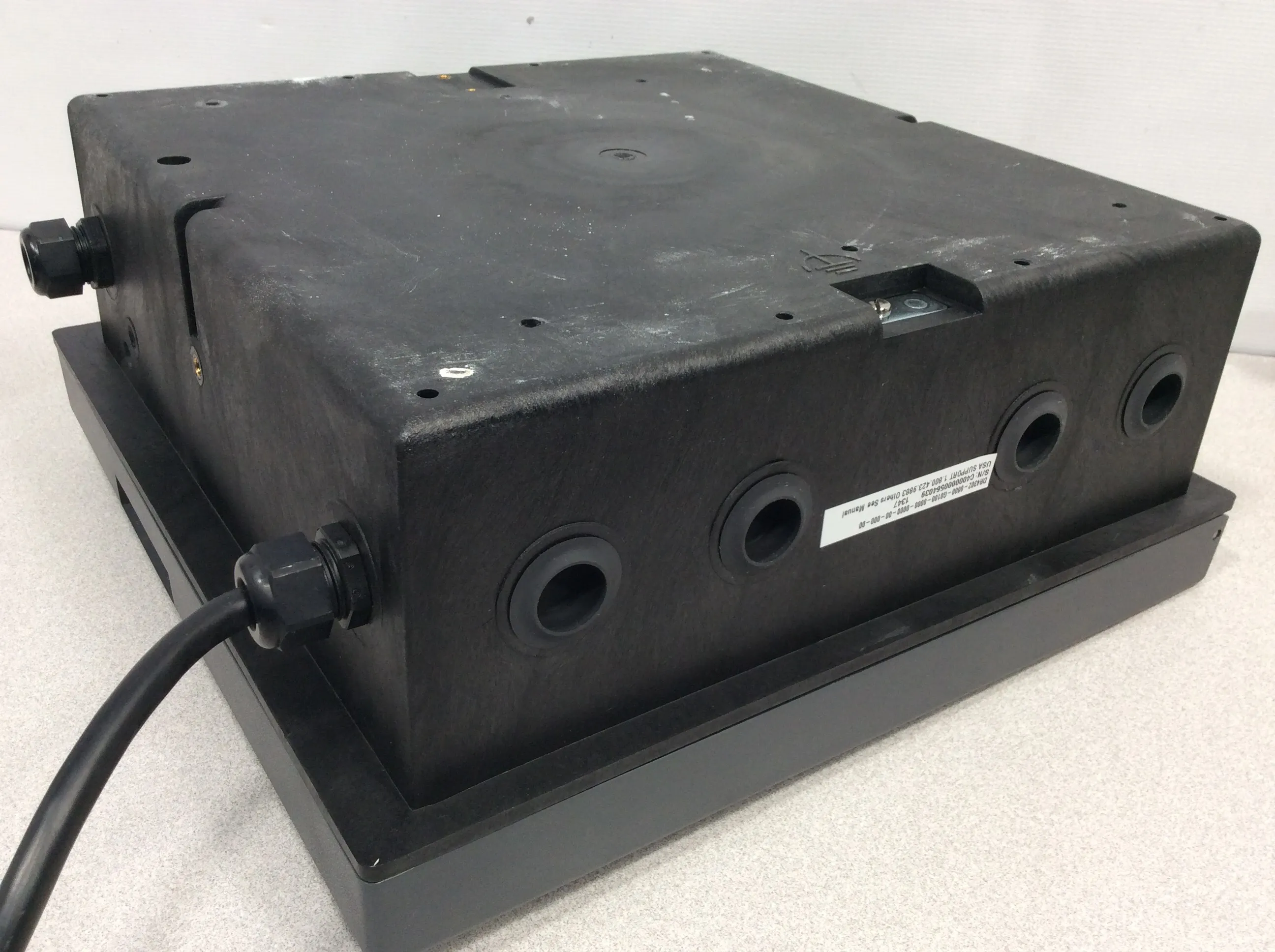

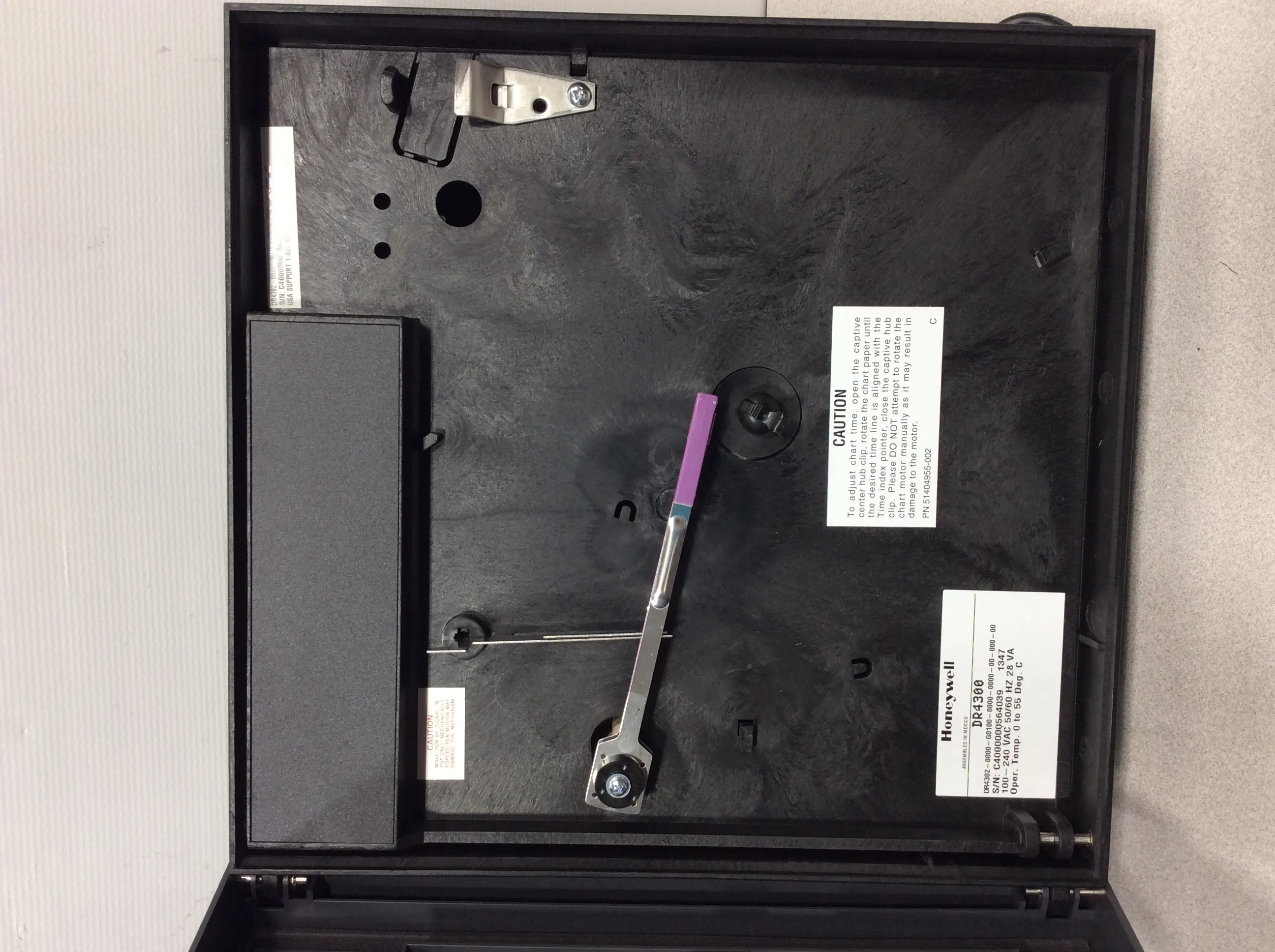

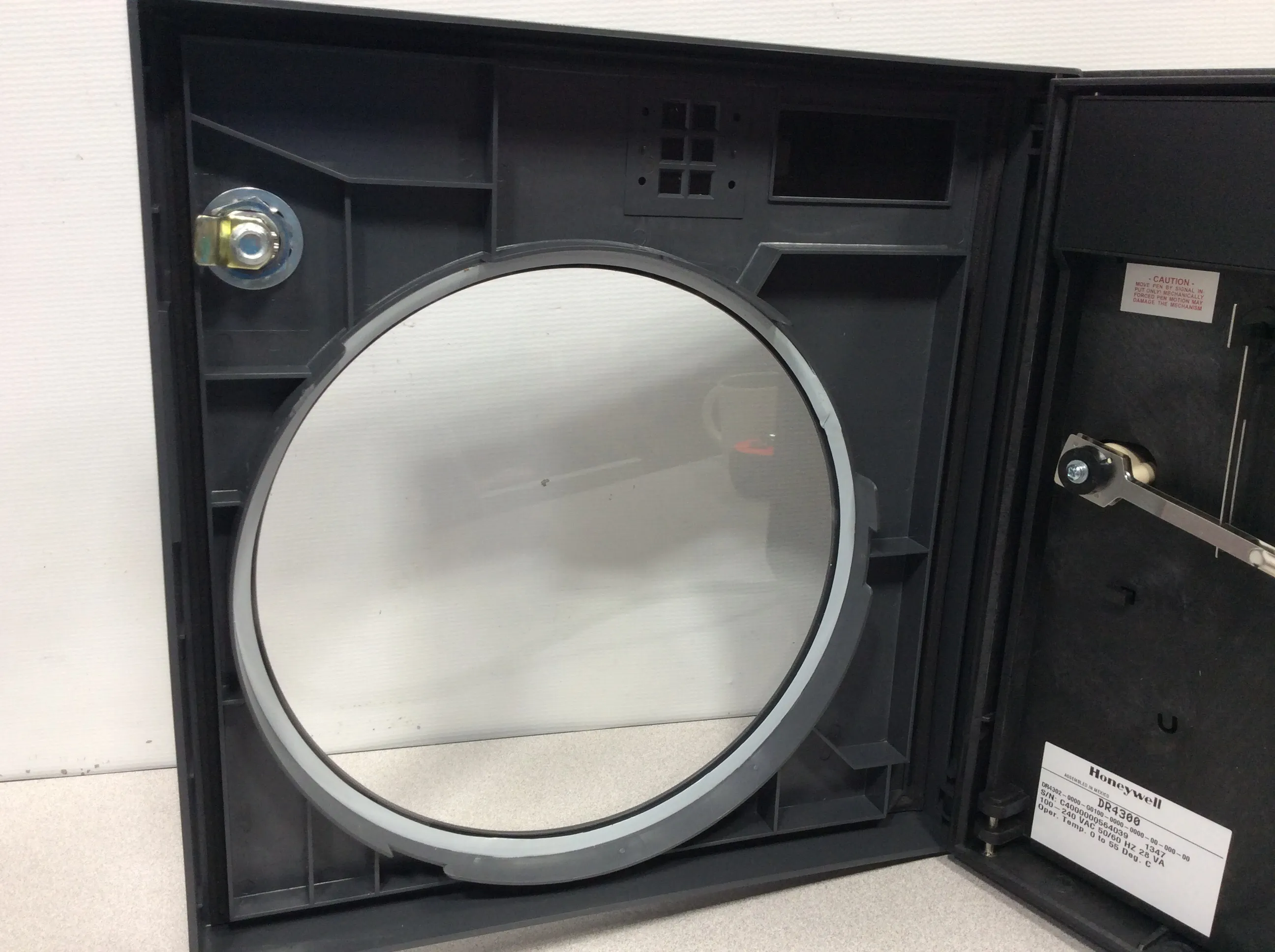

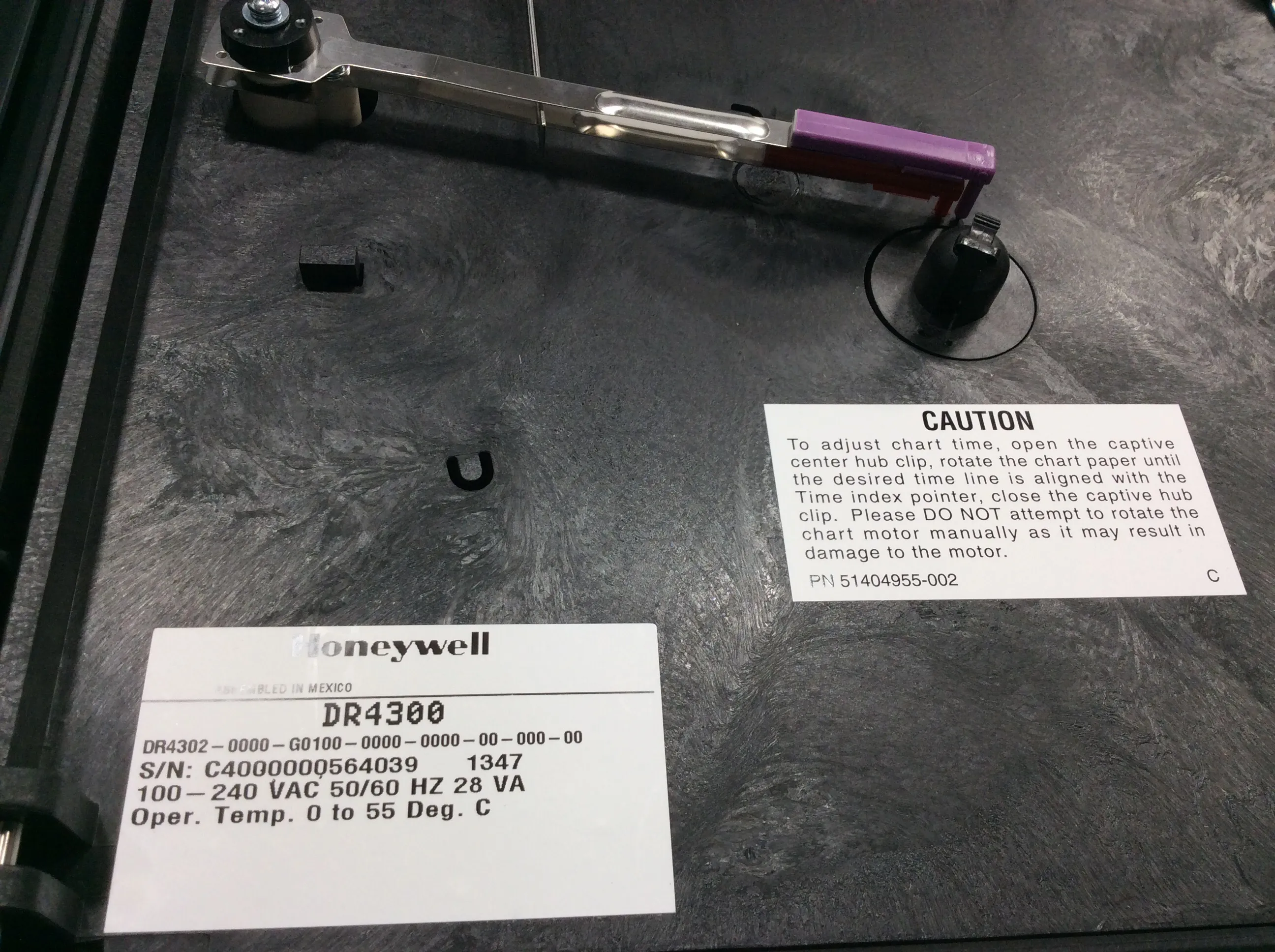

Honeywell DR4300 Circular Chart Recorder

Product Information

The Honeywell DR4300 Circular Chart Recorder is a microprocessor-based recorder suitable to meet a wide range of industry requirements. The Truline pen provides a convenient method to document a process while minimizing maintenance hassles. The recorder uses single or dual pens or a hot-stylus type pen to produce the chart image, making it easy to operate even by inexperienced operators. A single circular chart requirement eliminates the need to purchase multiple circular charts for each application, ensuring cost savings to the user. The chart recorders come with NEMA 3 or NEMA 4 front face protection, making them suitable for tough production environments.

• Digital display and easy-to-use operator interface
• Integral PID controller and RS-485 Modbus communications
• Single circular chart requirement for cost savings

• Ambient Temperature: 32 to 131F (0 to 55C)
• Relative Humidity: 5 to 90% RH at 40C (104F)
• Vibration; Frequency | Acceleration: 0 to 200 Hz / 0.2g
• Mechanical Shock Acceleration | Duration: 5g / 30 ms
• Power: 102 to 132 Vac 50/60 Hz | 204 to 264 Vac 50/60 Hz
• Power Consumption: 20 watts maximum
• Digital Indication Accuracy: 1 digit
• Minimum Input Span: Range is fully configurable with span limitation of the operating range selected.
• Input Impedance: 4-20 mA dc: 250 ohms |0-10 Vdc: 200K ohms | All others: 10 Megohms
• Source Impedance: RTD: 100 ohms per lead maximum
• Span Step Response Time: 6 seconds maximum with no filtering
• Sampling Rate: Each input sampled 3 times a second
• For additional product information, please visit the following website: https://www.usabluebook.com/images/pdf/370203.pdf

Metric: 5.44 kg
Imperial: 12 lbs

Metric: 43.18 cm x 45.72 cm x 22.86 cm
Imperial: 17 in x 18 in x 9 in

902580

The harmonized code 902580 is used for Recorders for measuring or checking electrical quantities
