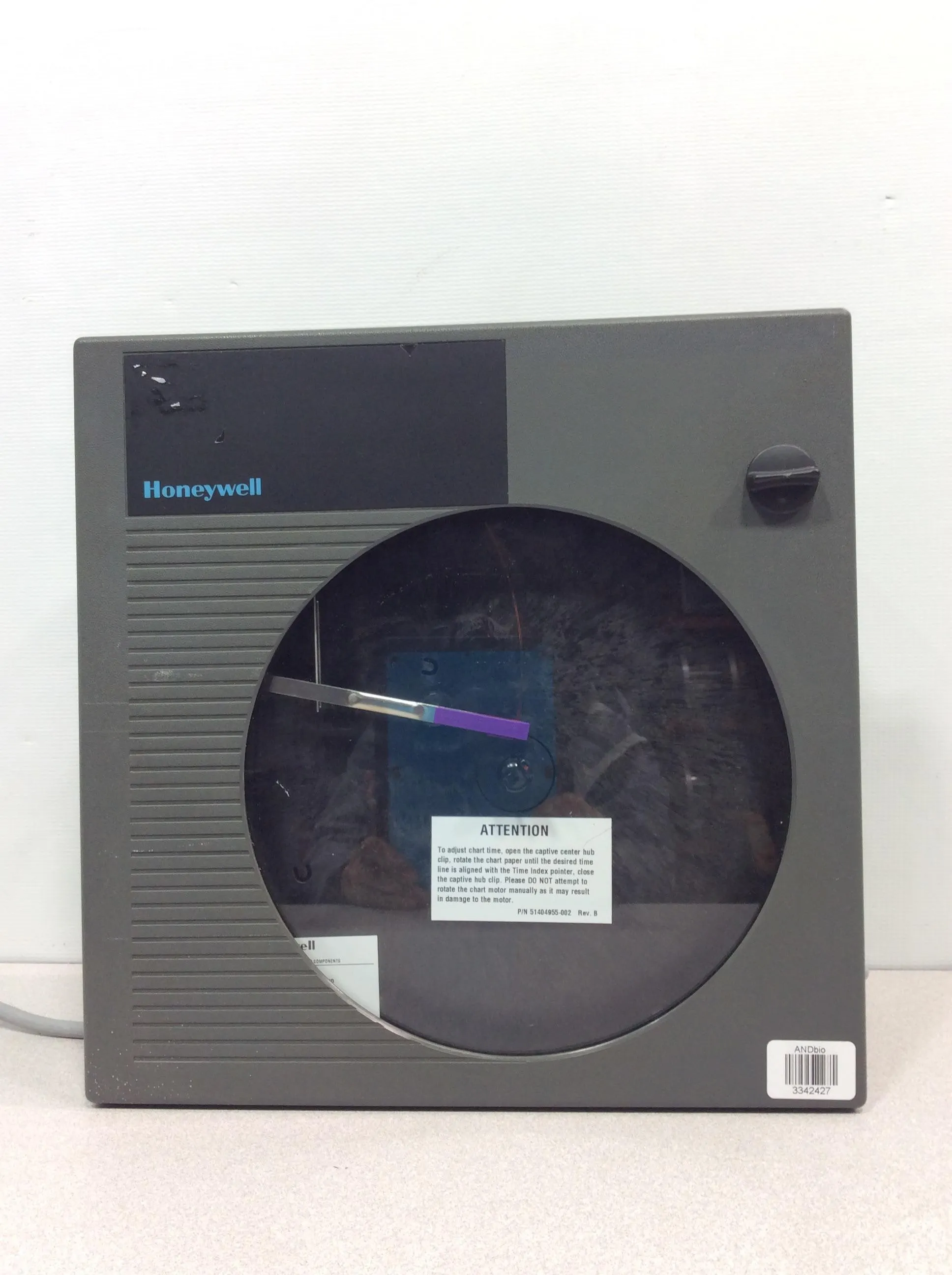

Honeywell DR4300 Circular Chart Recorder Industrial Recorder System, Used, Excellent Condition

Product Information

The Honeywell DR4300 Circular Chart Recorder is a microprocessor-based recorder that meets a variety of industry requirements. With its digital display and intuitive operator interface, it is suitable for applications such as flow and HTST dairy processes. It eliminates the need for individual circular charts, saving costs through reduced stocking. The recorder is in great condition with minor cosmetic wear from normal use.

• Microprocessor-based digital recorder
• Integral PID controller and Truline pen
• RS-485 Modbus communications
• Easy-to-use operator interface
• NEMA 3 or NEMA 4 front face protection
• Cost-saving single circular chart requirement

• Ambient Temperature: 32 to 131F (0 to 55C)
• Relative Humidity: 5 to 90% RH at 40C (104F)
• Vibration; Frequency | Acceleration: 0 to 200 Hz / 0.2g
• Power: 102 to 132 Vac 50/60 Hz | 204 to 264 Vac 50/60 Hz
• Power Consumption: 20 watts maximum
• Digital Indication Accuracy: 1 digit
• Minimum Input Span: Range is fully configurable with span limitation of the operating range selected.
• Input Impedance: 4-20 mA dc: 250 ohms |0-10 Vdc: 200K ohms | All others: 10 Megohms
• Span Step Response Time: 6 seconds maximum with no filtering
• Sampling Rate: Each input sampled 3 times a second
• Input Filter: Software: Single pole low pass section with selectable time constants (off to 120 seconds).
• Digital Displays: Vacuum fluorescent, alphanumeric. A six digit display dedicated to the process variable. Alternate information displayed during configuration mode. An eight digit display shows key selected operating parameters. Also provides guidance during configuration.
• Indicators: Channel PV display (CHN 1 or 2) | Alarm status (ALM 1, 2) | Controller Output (OUT 1, 2) | Remote Setpoint (RSP) | Temperature unit (F or C) or Engineering Units | Controllers mode (A or MAN)
• Deviation Bargraph: 21 segment, color coded deviation bargraph
• Controller Modes of Operation: Manual Operation | Automatic with local setpoint | Automatic with remote setpoint

Metric: 5 kg
Imperial: 12 lbs

Metric: 17 cm x 17 cm x 9 cm
Imperial: 6.69 in x 6.69 in x 3.54 in
