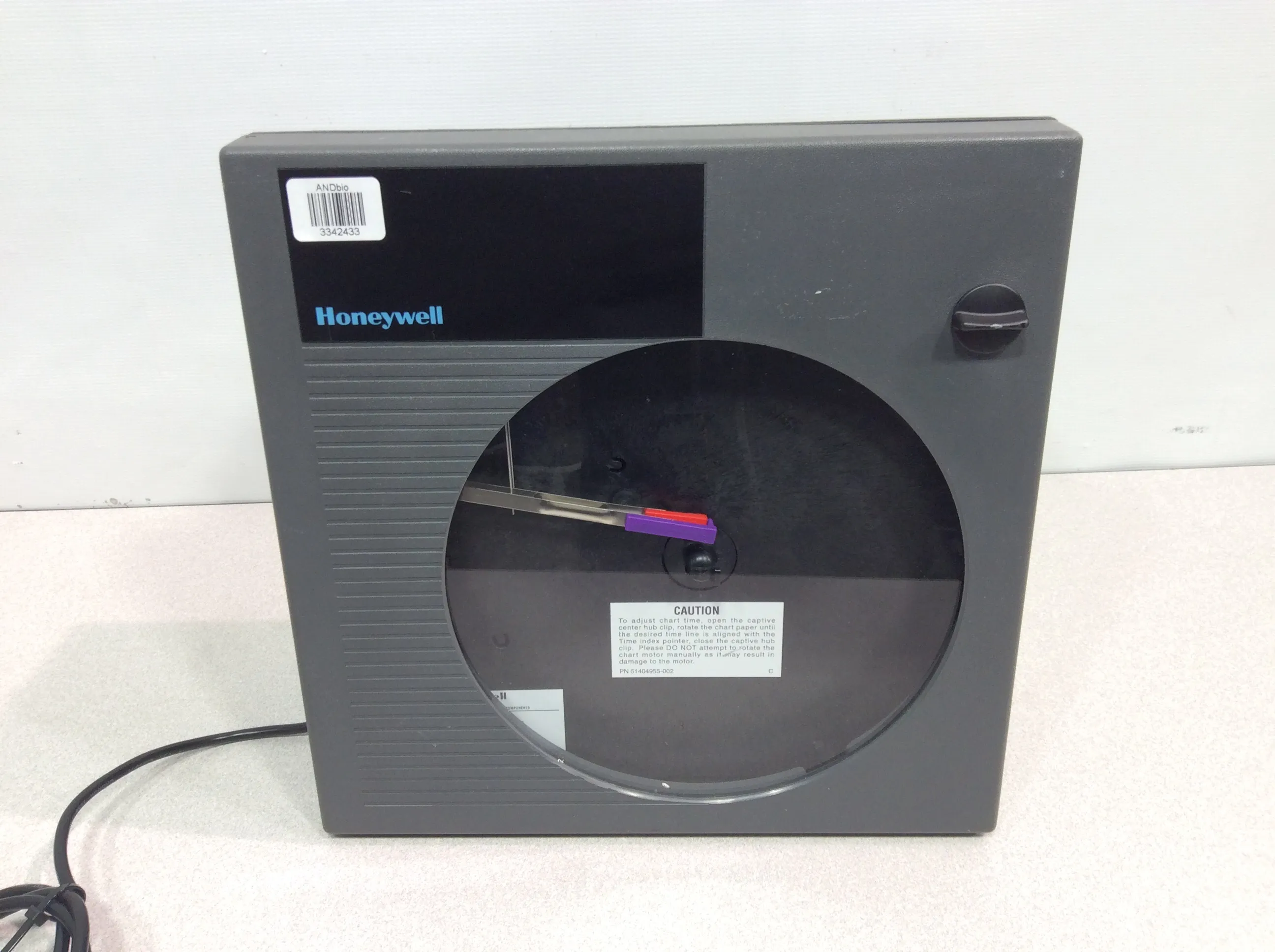

Honeywell DR4300 Circular Chart Recorder

Product Information

Here is a Honeywell DR4300 Circular Chart Recorder for sale. This instrument has been tested by our in-house service technician and is ready for use. The DR4500 circular chart recorder is a microprocessor-based recorder suitable to meet a wide range of industry requirements. It comes with a digital display and easy-to-use operator interface, and is available in many models to cater to the specific needs of different applications such as flow and HTST dairy processes. The Truline pen provides a convenient method to document a process while minimizing maintenance hassles. An integral PID controller and RS-485 Modbus communications ensure user empowerment. This accurate and easily configurable recorder is designed to work in tough industrial situations. Honeywell Truline circular chart recorders accept directly connected process signals which allow them to process data and create the chart under actual environmental conditions, eliminating the risk of temperature and humidity expansion of the paper and enhancing its accuracy. The chart recorders use single or dual pens or a hot-stylus type pen to produce the chart image. The simple design of these chart recorders makes them easy to operate even by inexperienced Operators, and the modular construction makes them easy to maintain, modify, and service. The bright, digital display and a dedicated configuration keypad bring further convenience to the user. These chart recorders come with NEMA 3 or NEMA 4 front face protection, making them suitable for tough production environments. The DR4500 circular chart recorder eliminates the need to purchase individual circular charts for each application with its single circular chart requirement, thereby enabling cost savings to the user through reduced stocking of multiple circular charts.

• Microprocessor-Based Recorder
• Digital Display and Easy-to-Use Operator Interface
• Models Available for Different Applications
• Truline Pen for Convenient Documentation
• Integral PID Controller and RS-485 Modbus Communications
• Accepts Directly Connected Process Signals
• Uses Single or Dual Pens or Hot-Stylus Pen
• Bright, Digital Display and Dedicated Configuration Keypad
• NEMA 3 or NEMA 4 Front Face Protection
• Eliminates Need for Individual Circular Charts

• Ambient Temperature: 32 to 131F (0 to 55C)
• Relative Humidity: 5 to 90% RH at 40C (104F)
• Vibration Frequency | Acceleration: 0 to 200 Hz / 0.2g
• Mechanical Shock Acceleration | Duration: 5g / 30 ms
• Power: 102 to 132 Vac 50/60 Hz | 204 to 264 Vac 50/60 Hz
• Power Consumption: 20 watts maximum
• Digital Indication Accuracy: 1 digit
• Minimum Input Span: Range is fully configurable with span limitation of the operating range selected.
• Input Impedance: 4-20 mA dc: 250 ohms | 0-10 Vdc: 200K ohms | All others: 10 Megohms
• Source Impedance: RTD: 100 ohms per lead maximum
• Span Step Response Time: 6 seconds maximum with no filtering
• Sampling Rate: Each input sampled 3 times a second
• Input Filter: Software: Single pole low pass section with selectable time constants (off to 120 seconds).
• Digital Displays: Vacuum fluorescent, alphanumeric. A six-digit display dedicated to the process variable.
• Indicators: Channel PV display | Alarm status | Controller Output | Remote Setpoint | Temperature unit | Controllers mode
• Deviation Bargraph: 21 segment, color-coded deviation bargraph
• Controller Modes of Operation: Manual Operation | Automatic with local setpoint | Automatic with remote setpoint

Metric: 4.53592 kg
Imperial: 10.0 lbs

Metric: 14.0 cm x 14.0 cm x 6.0 cm
Imperial: 5.51 in x 5.51 in x 2.36 in
