Honeywell DR4300 Circular Chart Recorder DR4500 Printer

Product Information

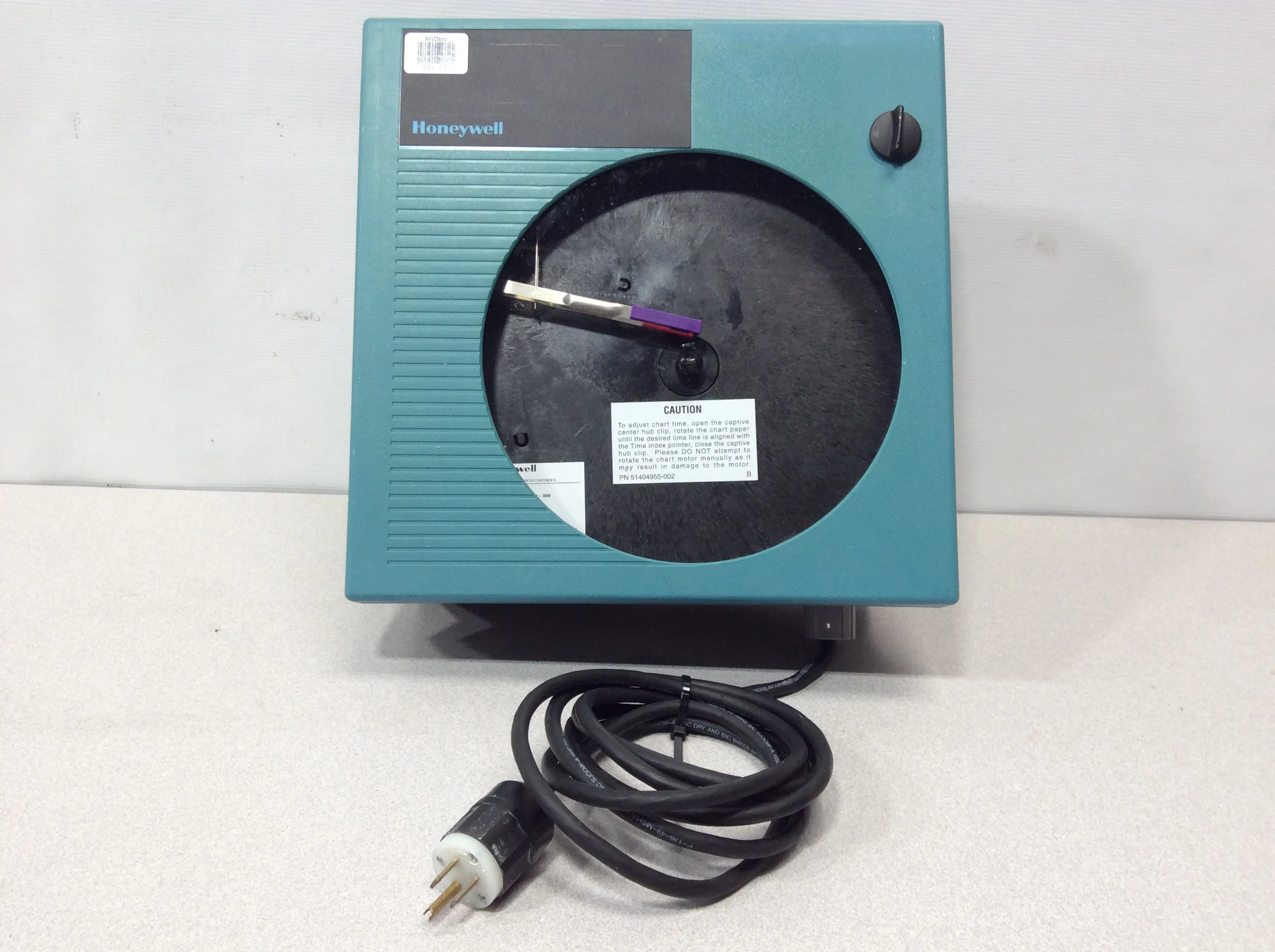

The Honeywell DR4300 Circular Chart Recorder is a microprocessor-based recorder designed to meet a wide range of industry requirements. This accurate and easily configurable recorder is suitable for flow and HTST dairy processes. The Truline pen and integral PID controller ensure user empowerment and convenience. The recorder uses digital display, RS-485 Modbus communications and NEMA 3 or NEMA 4 front face protection in tough industrial situations. The recorder eliminates the need to purchase individual circular charts for each application, thereby enabling cost savings to the user through reduced stocking. This unit is in great condition and has been removed from a working environment. The system consists of items as shown and includes a power cord.

• Microprocessor-based recorder with a digital display

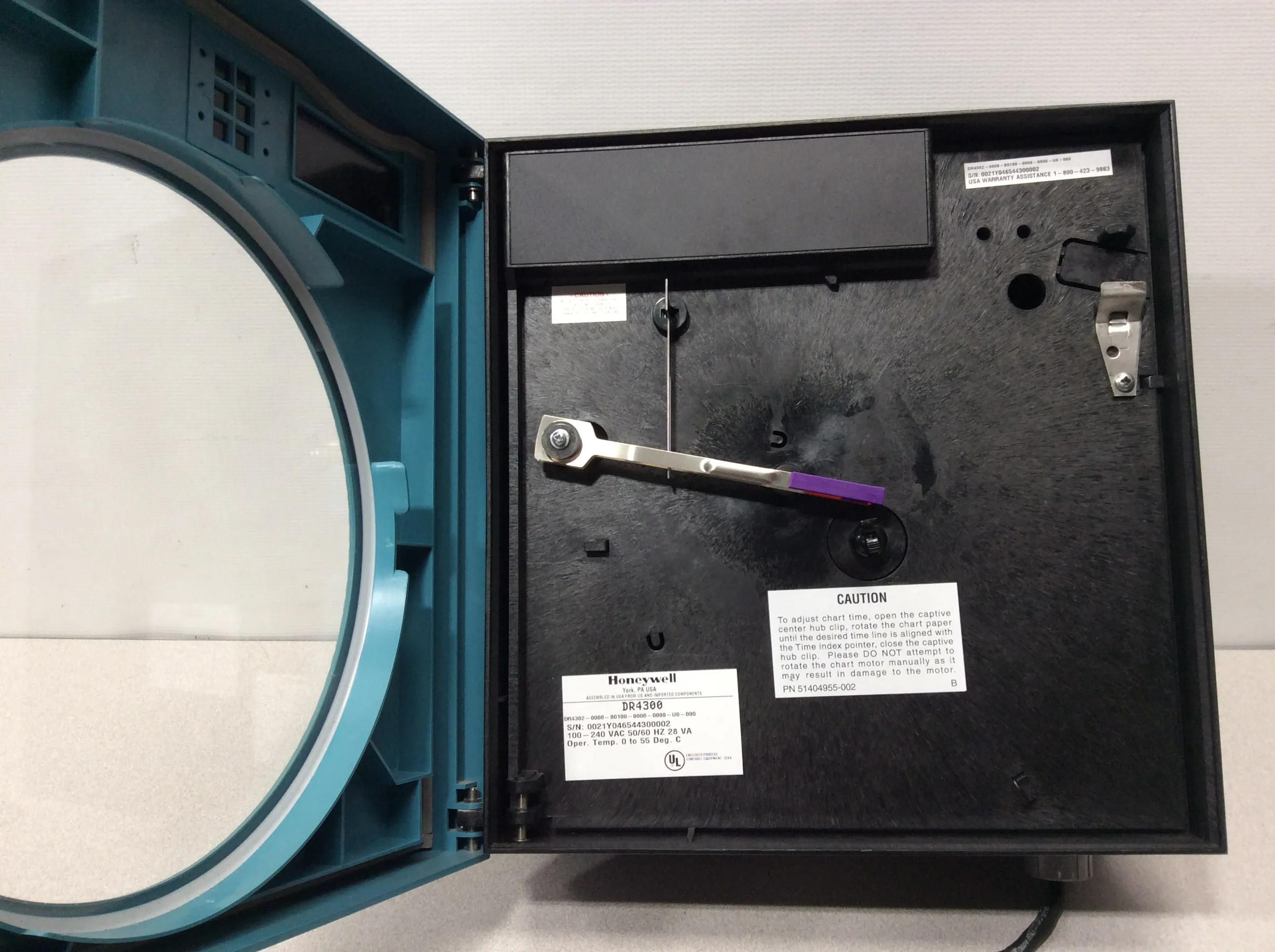

• Truline pen and integral PID controller for user empowerment
• RS-485 Modbus communications for data processing
• NEMA 3 or NEMA 4 front face protection for tough industrial environments
• Eliminates the need for individual circular charts, allowing cost savings

• Ambient Temperature: 32 to 131F (0 to 55C)
• Relative Humidity: 5 to 90% RH
• Vibration Frequency/Acceleration: 0 to 200 Hz / 0.2g

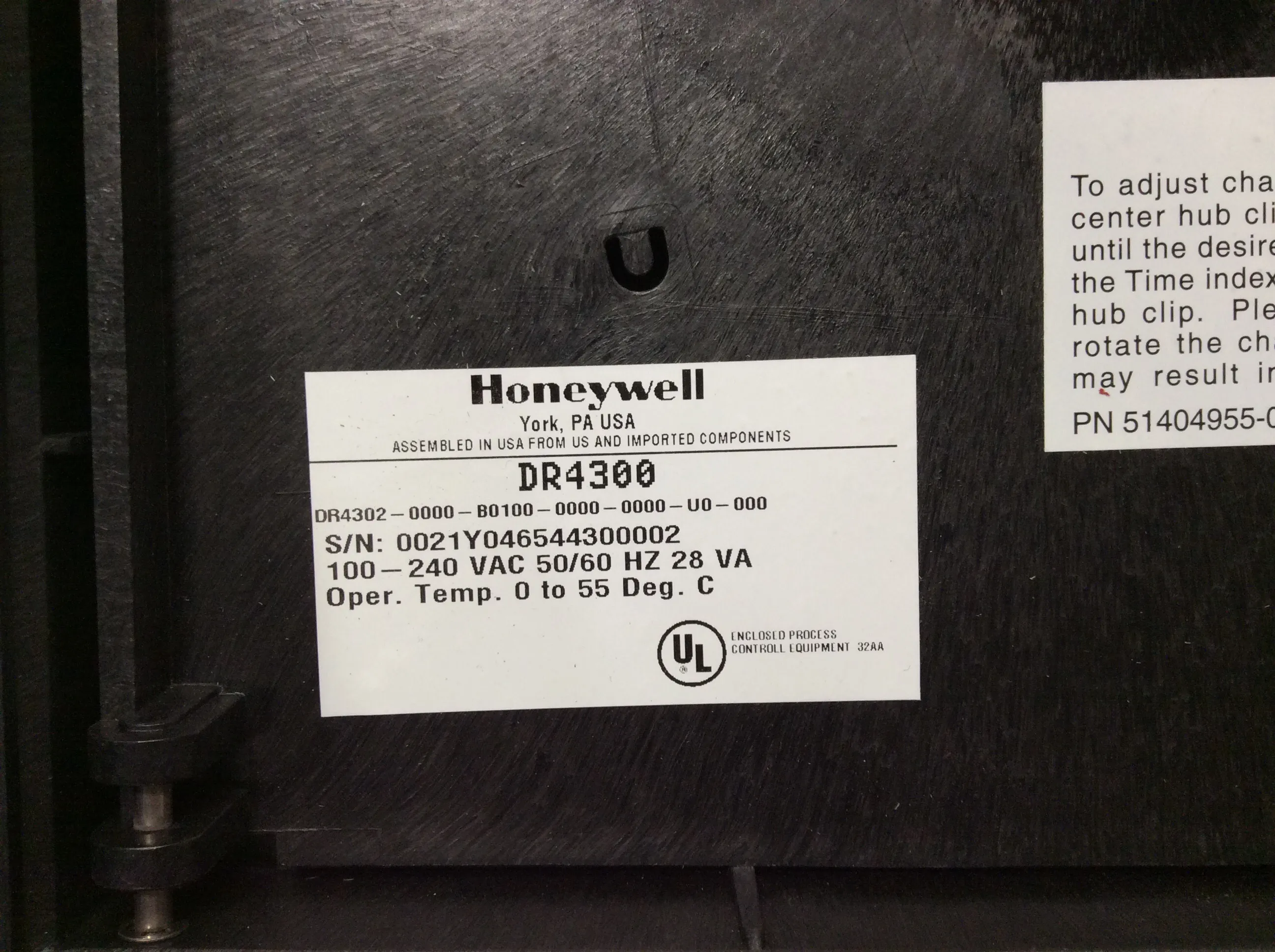

• Power: 102 to 132 Vac 50/60 Hz / 204 to 264 Vac 50/60 Hz
• Power Consumption: 20 watts maximum
• Digital Indication Accuracy: 1 digit
• Minimum Input Span: Range configurable with span limitation
• Input Impedance: 4-20 mA dc- 250 ohms / 0-10 Vdc- 200K ohms / All others- 10 Megohms
• Span Step Response Time: 6 seconds maximum
• Sampling Rate: 3 times a second
• Digital Displays: Vacuum fluorescent, alphanumeric

Metric: 4.54 kg
Imperial: 10.0 lbs

Metric: 40.64 cm x 40.64 cm x 25.4 cm
Imperial: 16.0 in x 16.0 in x 10.0 in

902580

The chosen harmonized code 902580 is for hydrometers and similar floating instruments, thermometers, pyrometers, barometers, hygrometers, psychrometers or any other recording or not recording with integrated display. This code is relevant due to the nature of the circular chart recorder's functions and displays.
