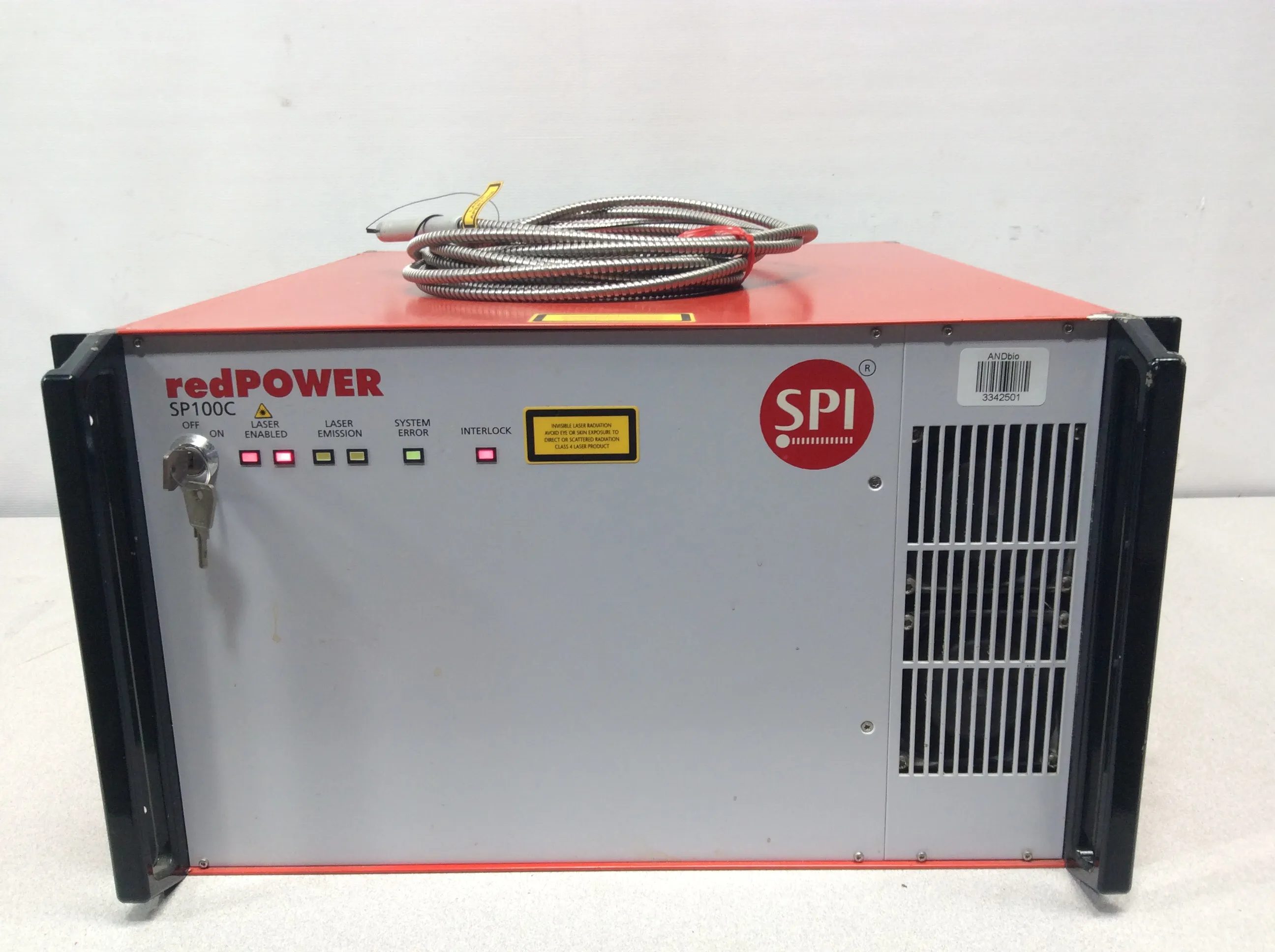

Used SPI Redpower SP100C 100W Fiber Laser - Class 2

Product Information

Here is a SPI Redpower SP100C 100W Fiber Laser for sale. A leading edge advantage, with improved line speeds, finer machining capabilities, reduced downtime and lower cost of ownership. The design includes thermal management, low noise, output stability and system-to-system repeatability. Back reflection tolerance for cutting or welding reflective metals, dynamic pulse shape control, full comms / analog I-O control options, highly engineered beam quality and pulse shape equalisation (PSE). Built for a maintenance-free life. Materials such as Aluminium, Brass, Copper, Mild steel, Multi-layer metal composites, Reflective metals, Stainless steel, and Ceramics. This instrument is in good working condition, removed from a working environment, with minor cosmetic wear from normal use. It has passed all initializing self tests and includes a power cord.

• 100W Fiber Laser
• Back reflection tolerance for cutting or welding reflective metals
• Dynamic pulse shape control
• Maintenance-free design
• Major compatible materials
• Good working condition
• Passes all initializing self tests
• Includes power cord

• Wavelength: 1090 nm
• Nominal power: 100W
• Mode of operation: CW or Modulated
• Pulse frequency: 1-18 kHz
• Pulse duration: 1-0.01 ms
• Beam diameter (1/e): 5.0 ± 0.5 mm
• Full angle divergence: <0.4 mrad
• Beam Quality: TEM00 (M <1.1), BPP 0.38 (mm.mrad)
• Beam expander: 0.32x
• Focal length: 50 mm
• Beam diameter at the focal spot I: 48 m
• Voltage: 120V/220V
• Hertz: 50Hz/60Hz
• Warehouse Location: REUZEit West Coast US - R
• 30-Day Warranty, 100% Parts and Labor

Metric: 95 kg
Imperial: 209 lbs

Metric: 23 cm x 19 cm x 11 cm
Imperial: 9.06 in x 7.48 in x 4.33 in

9013200070

The harmonized code 9013200070 is used for lasers, other than laser diodes, of a kind used for the processing of materials by laser beam. This code is accurate based on the type and intended use of the laser module.
