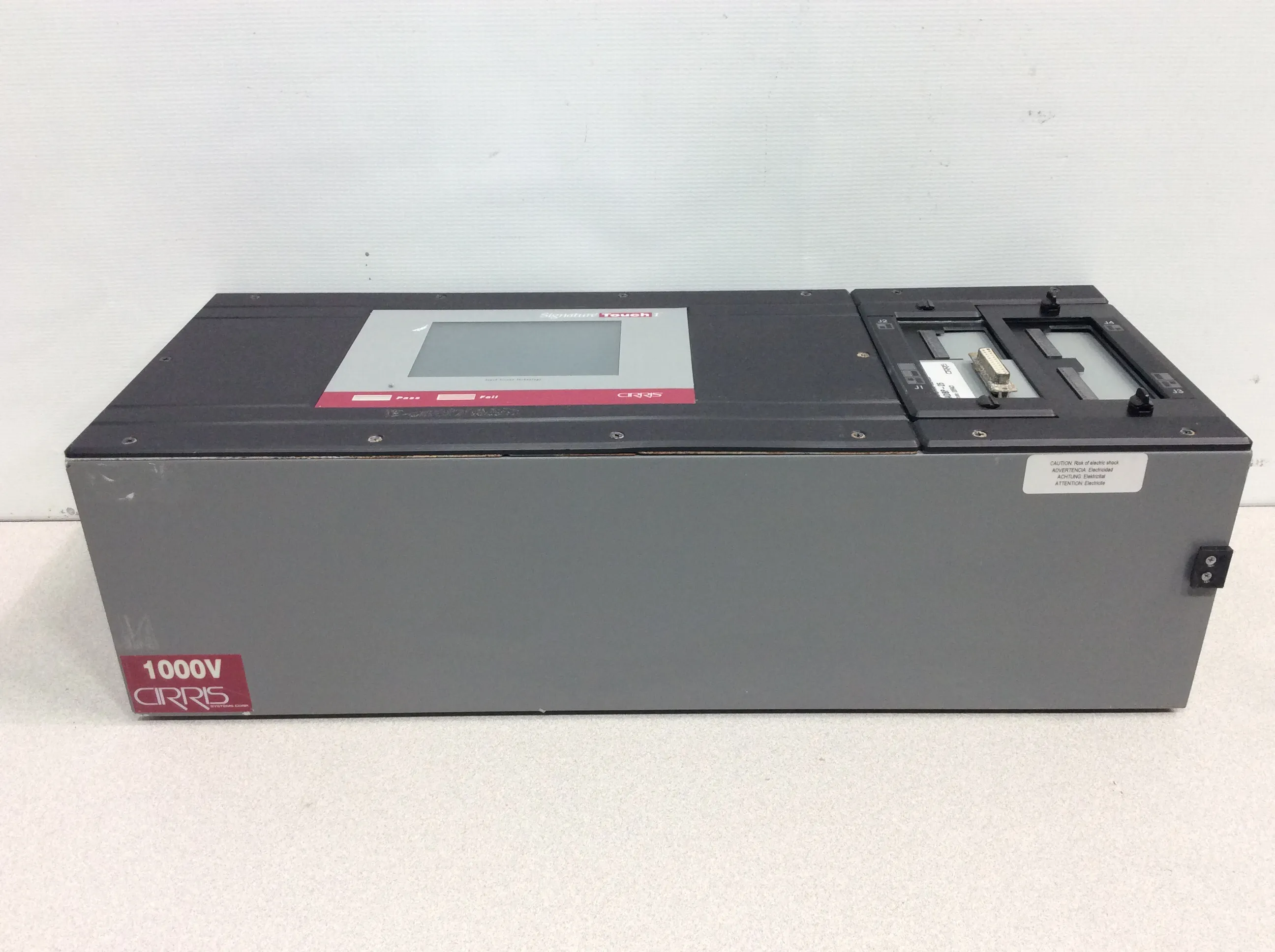

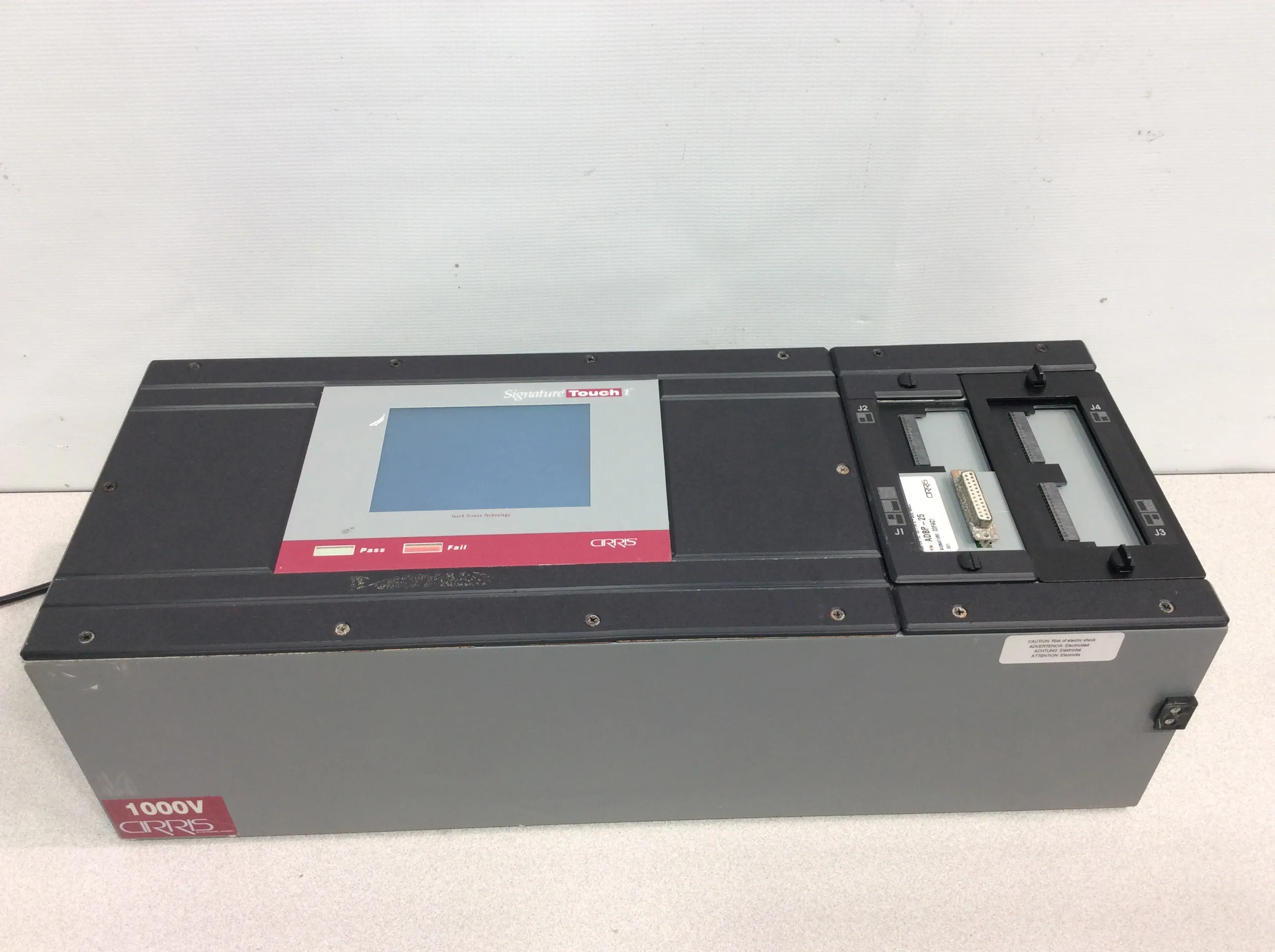

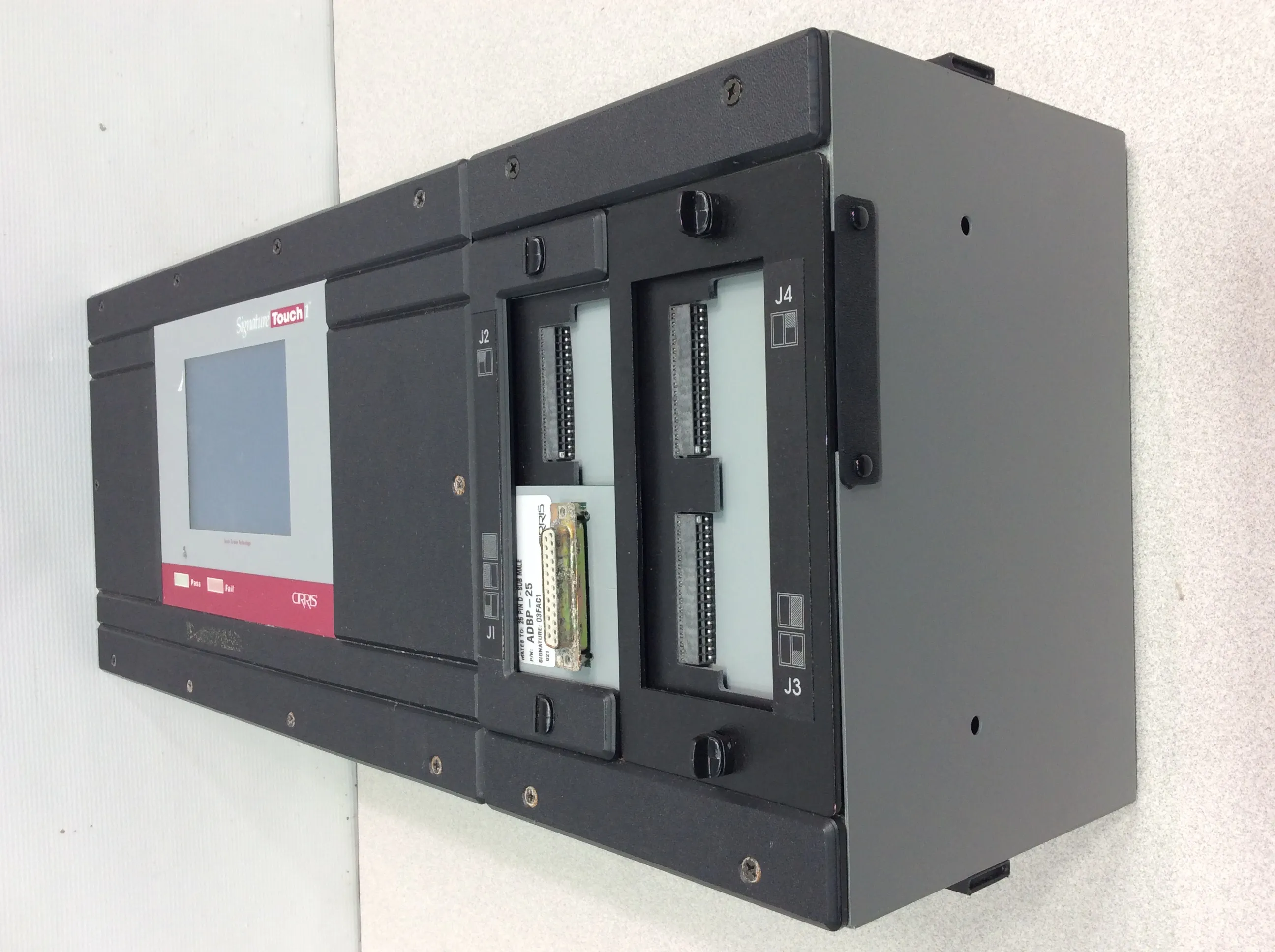

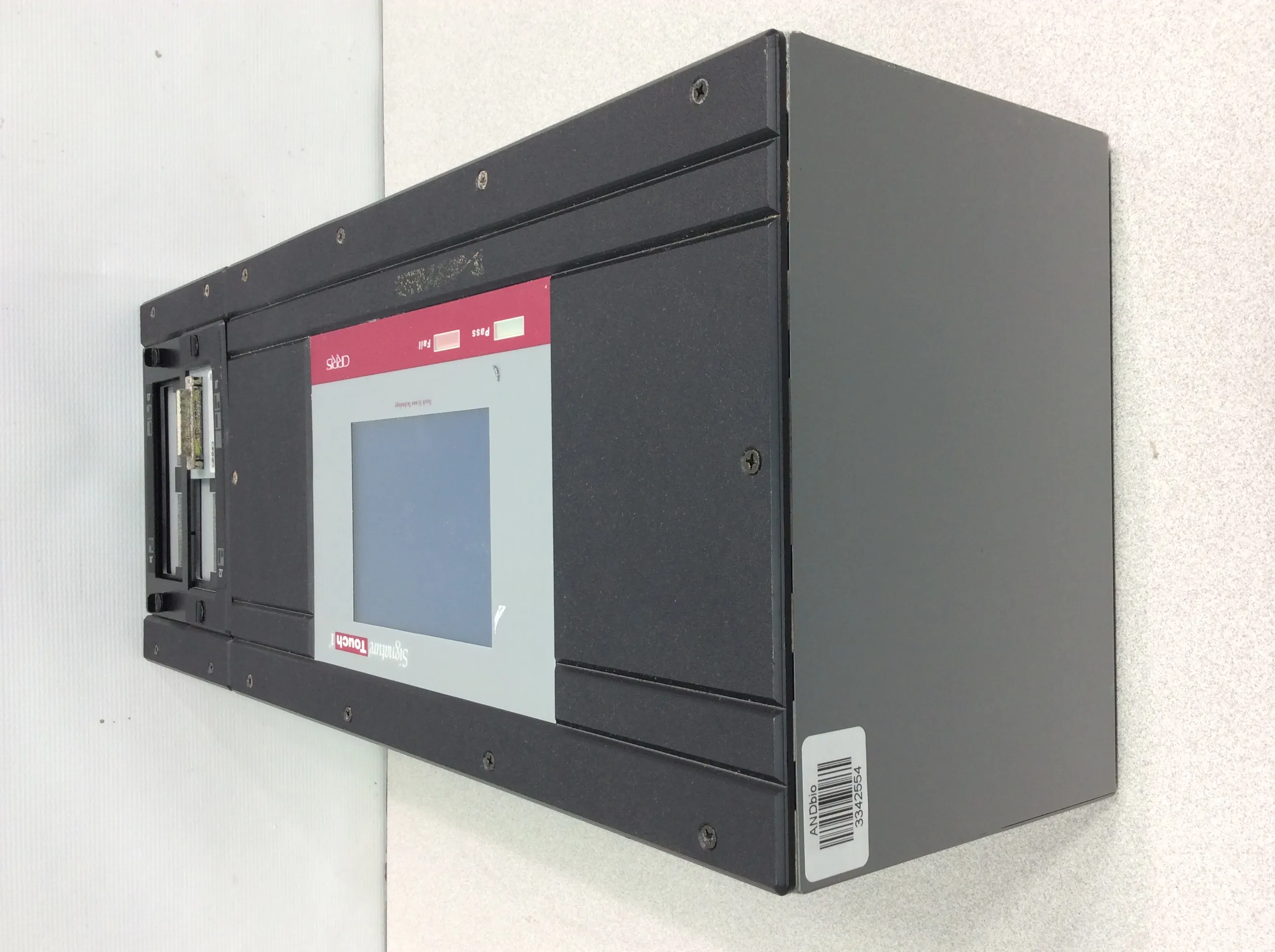

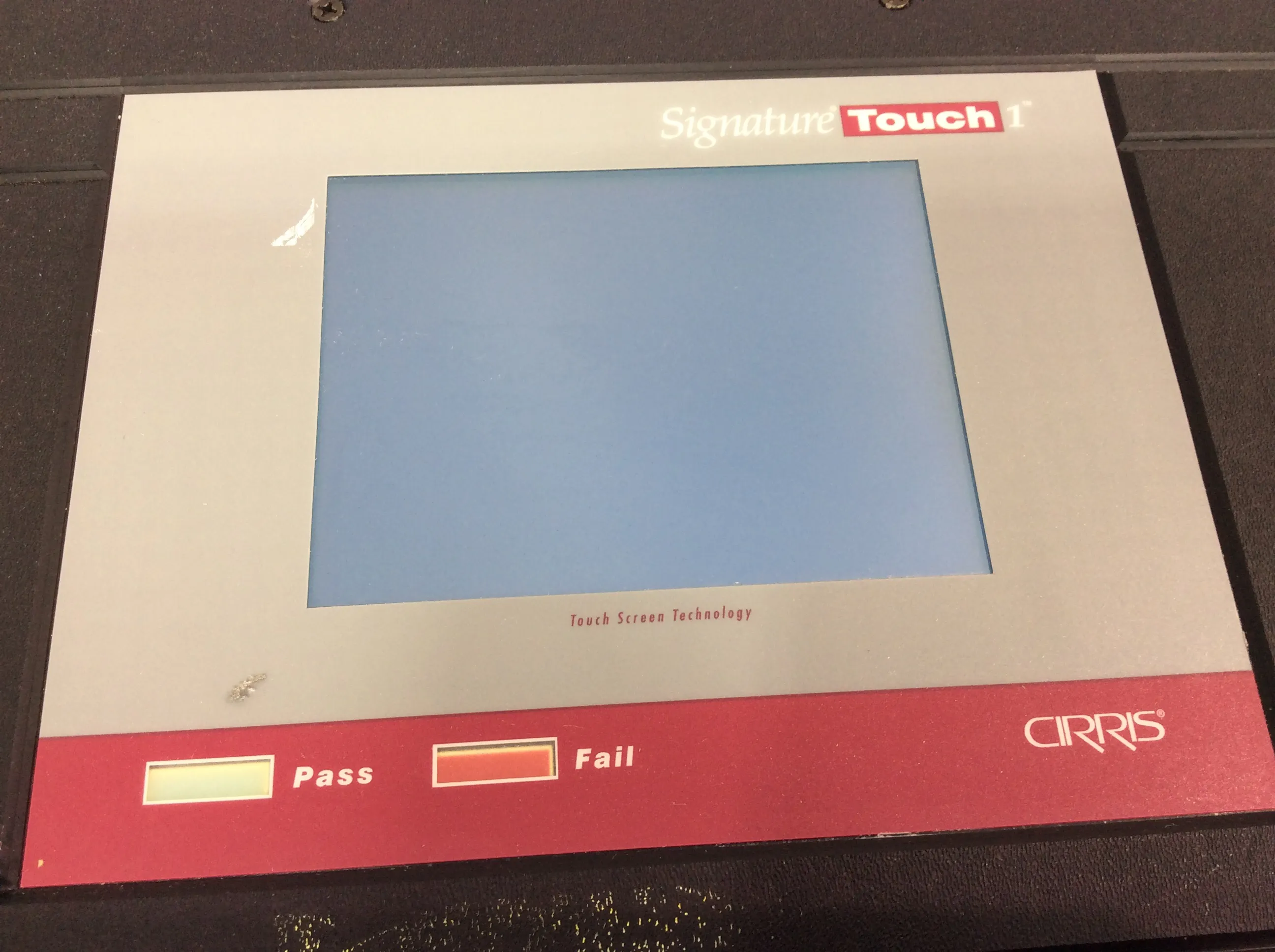

Cirris Signature Touch 1 High Voltage Benchtop Tester

Product Information

Here is a Cirris Signature Touch 1 High Voltage Benchtop Tester for sale. This instrument has been tested by our in-house service technician and is ready for use. The Cirris Signature Touch 1 High Voltage Benchtop Tester is a versatile instrument typically used for detailed electrical testing in laboratory environments. With a wide range of testing points, test voltage, current, hipot options, and resistance capabilities, this benchtop tester offers exceptional flexibility and accuracy. It can be applied to various components including resistors, diodes, capacitors, twisted pairs, and custom parts. The equipment is in good working order and comes with a power cord. It was removed from a working environment, presenting only minor cosmetic wear from normal use. The benchtop tester has passed all initializing self and basic functionality tests.

• 128 - 1024 test points with a maximum test voltage of 5VDC and a maximum test current of 6mA
• DC hipot options ranging from 50-1000V to 50-2000V, with AC optional from 50-1000V
• Resistance ranges from .1-100K ohm for connection resistance, .1-1M ohm for component resistance, and 5M-1000M ohm for HV insulation resistance
• Capable of performing 4-wire resistance tests and offers unlimited wirelist memory capability
• Optimized contamination and environmental stability through standard adapter labeling or custom 30 characters labeling with testing adapter compatibility

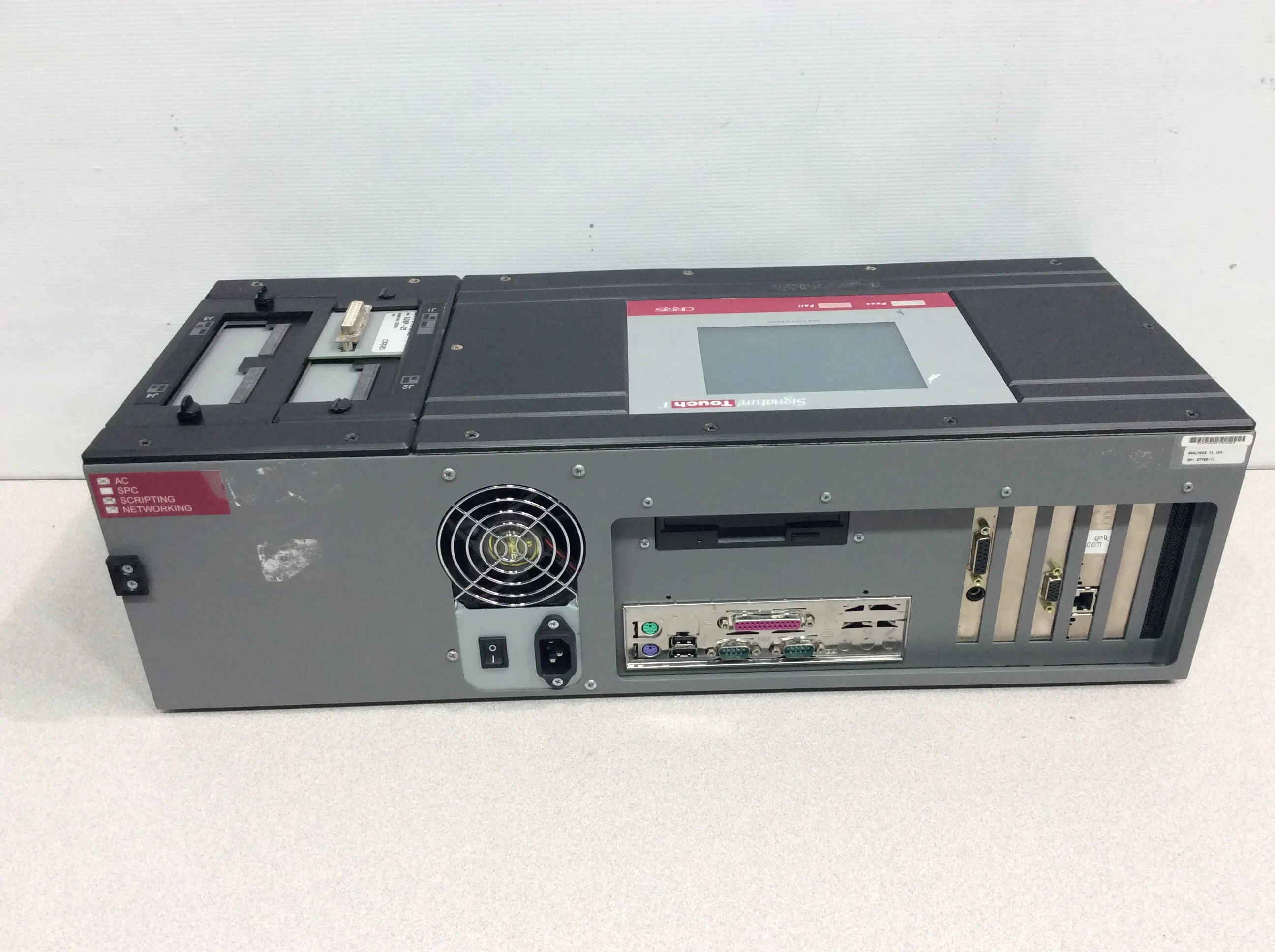

• Comes with power cord and passed all initializing self and basic functionality tests

• Test Points: 128 - 1024 (2000VDC: 128 - 512)
• Test Voltage: 0-5VDC max
• Test Current: 6mA max
• Hipot: DC 50-1000VDC, 50-1500VDC, 50-2000VDC; AC (optional) 50-1000VAC
• Connection Resistance Range: .1-100K ohm
• Component Resistance Range: .1-1M ohm
• HV Insulation Resistance Range: 5M-1000M ohm
• 4-Wire Resistance Test: Yes
• Wirelist Memory Capability: Unlimited

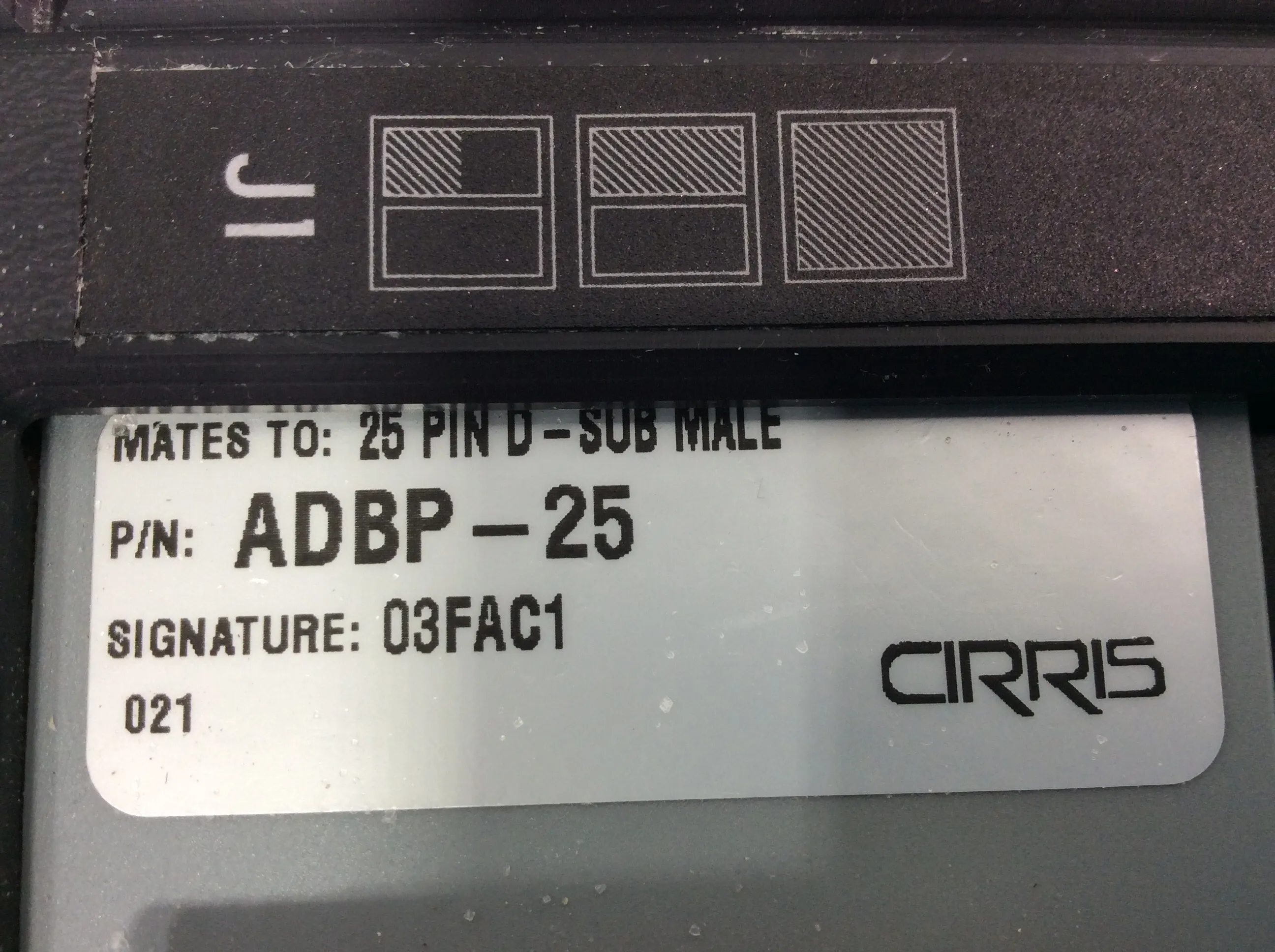

• Point Labeling: Standard Adapter Labeling or Custom 30 Characters

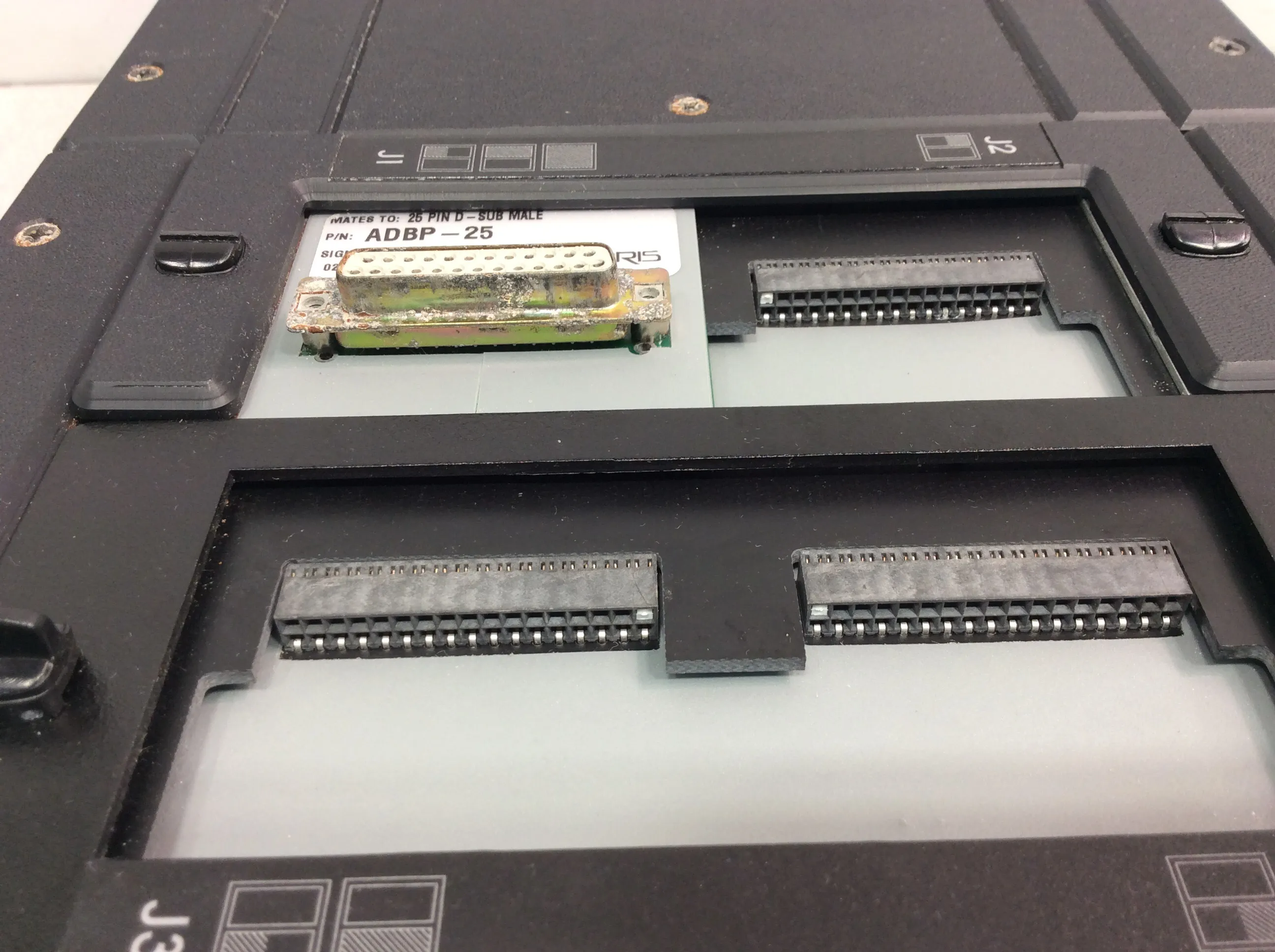

• Adapters: All
• Weight: 25 kg (approx)
• Dimensions: 23 x 9 x 7 cm (approx)

Metric: 25 kg
Imperial: 55 lbs

Metric: 23 cm x 9 cm x 7 cm
Imperial: 9.06 in x 3.54 in x 2.76 in

9030330080

The Cirris Signature Touch 1 High Voltage Benchtop Tester falls under the category of electrical measuring or checking instruments. The specific code is used due to the nature of the product, encompassing high voltage testing capability and electrical resistance measurements commonly used in laboratory and industrial settings.
