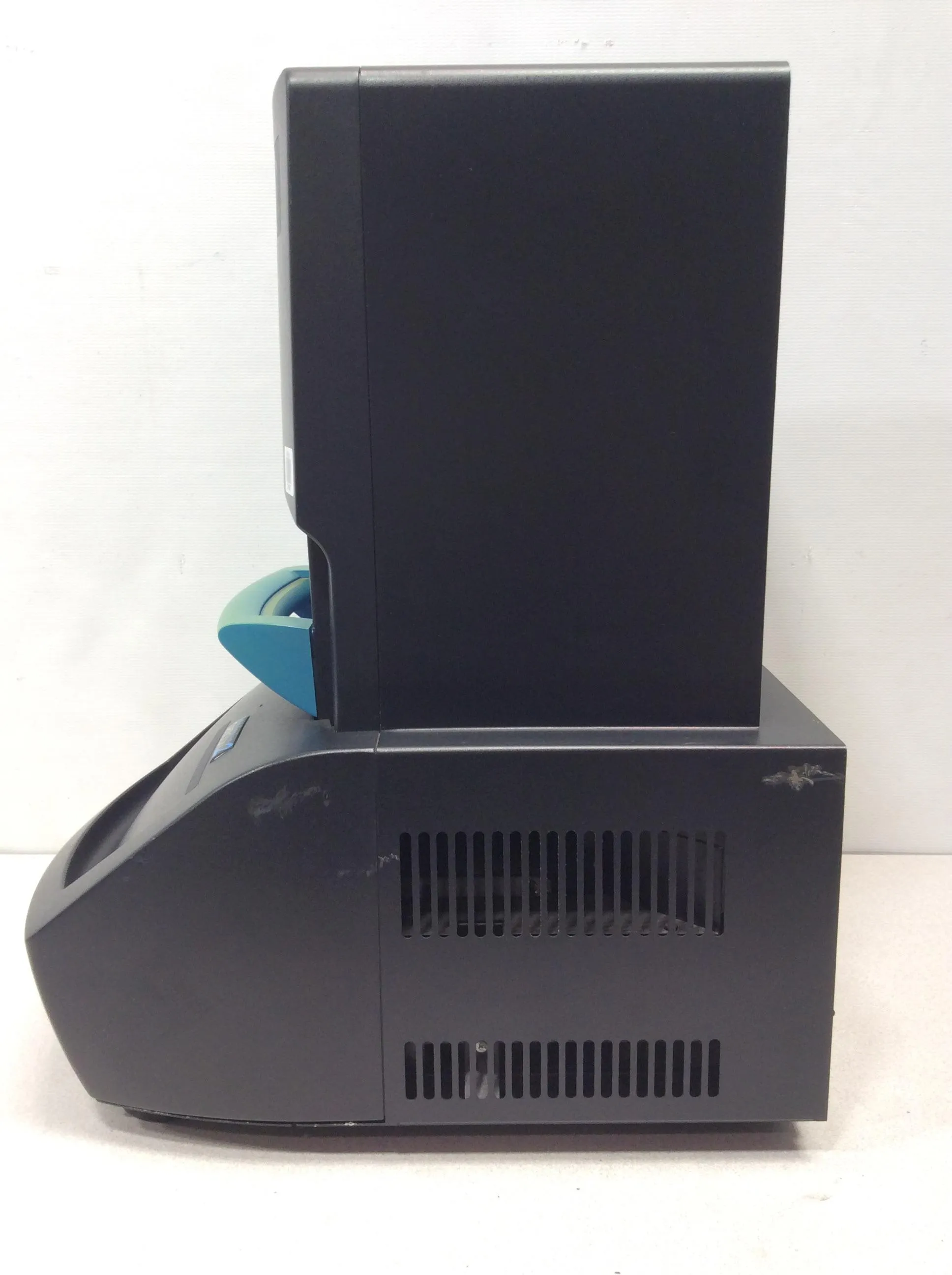

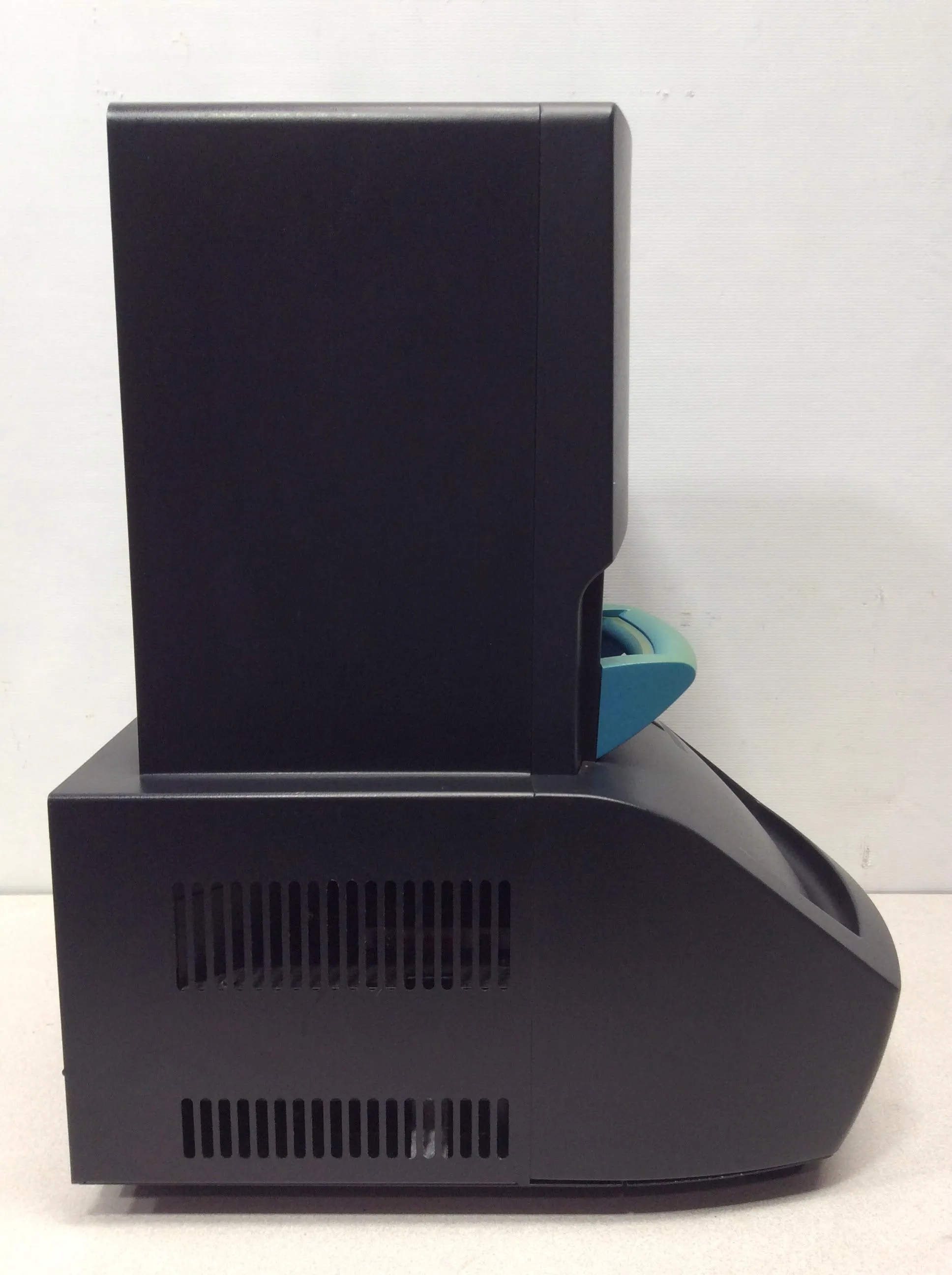

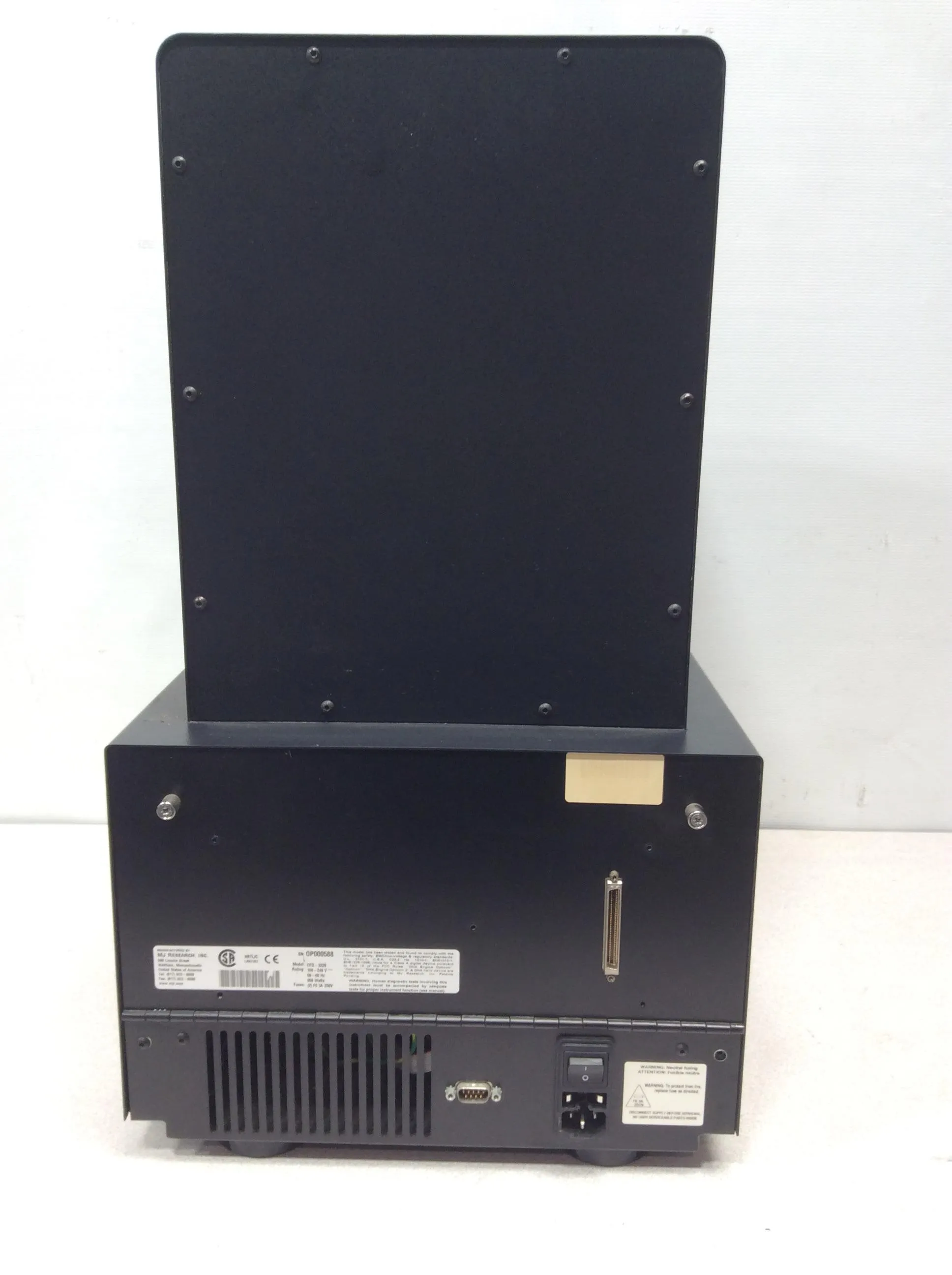

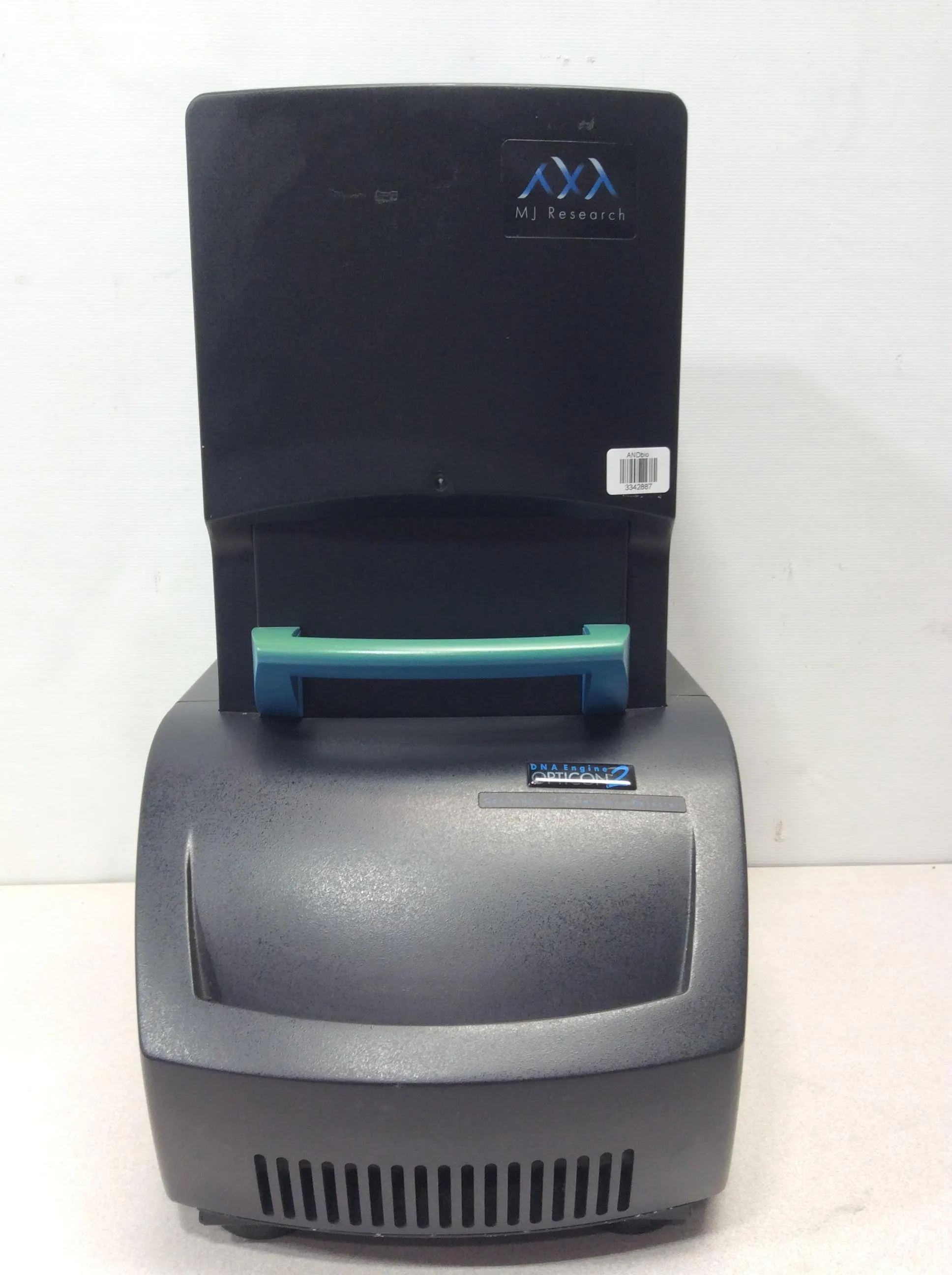

MJ Research DNA Engine Opticon 2 CFD-3220 Continuous Fluorescence Detector

Product Information

MJ Research DNA Engine Opticon 2 CFD-3220 Continuous Fluorescence Detector is a compact real-time PCR detection system designed by a team of molecular biologists and engineers. It offers superior thermal accuracy, well-to-well thermal uniformity, and oil-free cycling with a 96-well sample block. The long-lived LEDs excite fluorescent dyes, and the sensitive optics detect fluorophores with emission spectra in the 470-700 nm range. Intuitive Opticon Monitor software facilitates experimental setup, run initiation, monitoring, and data analysis. The system includes dual modes of temperature control and has a compact footprint making it suitable for any lab bench. The system is available separately or as an upgrade for existing DNA Engine thermal cyclers.

• Superior thermal accuracy and well-to-well thermal uniformity

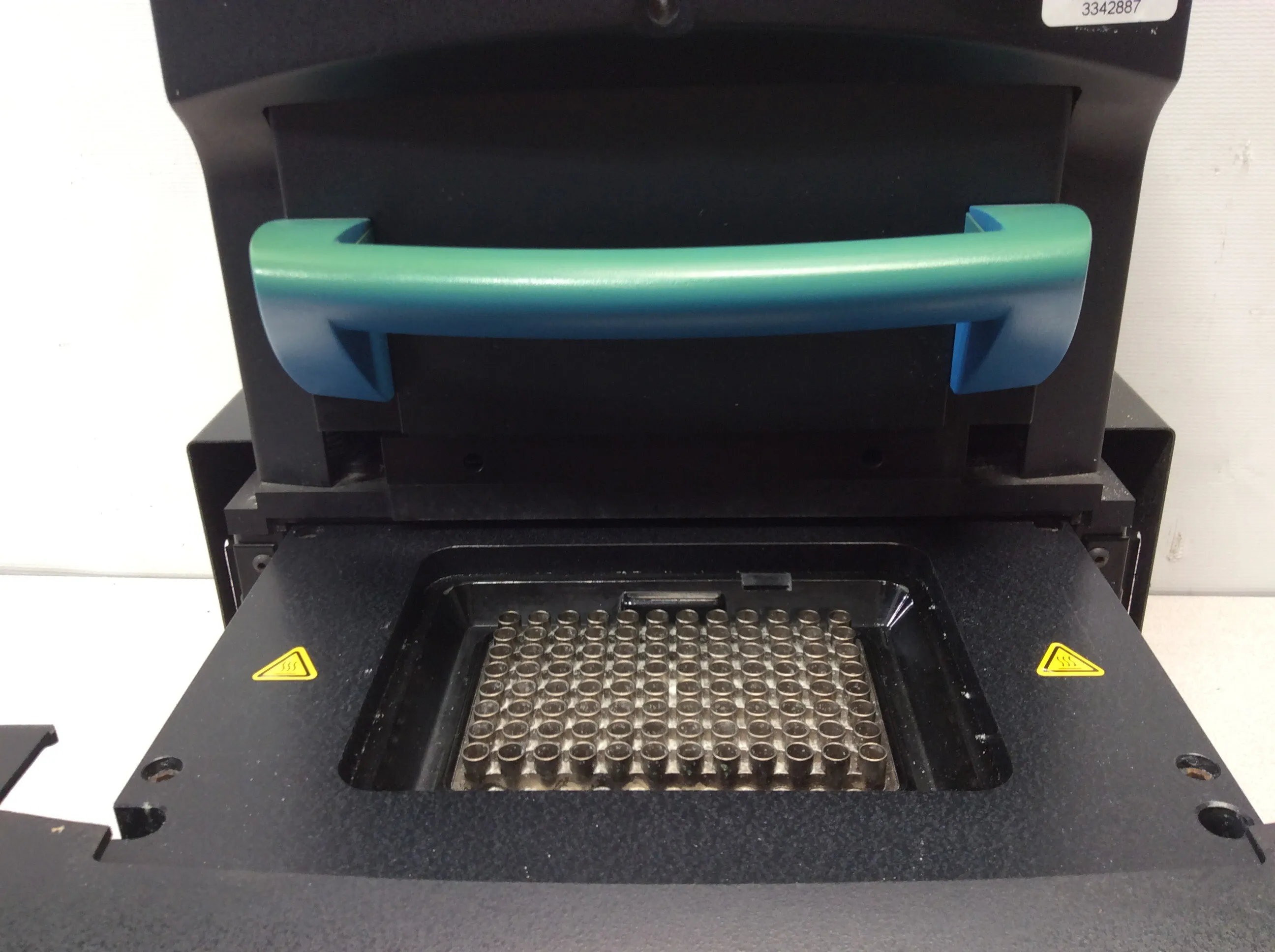

• 96-well sample block
• Oil-free cycling with integrated heated lid
• Long-lived LEDs and sensitive optics for detecting fluorophores
• Intuitive Opticon Monitor software for experimental setup, run initiation, and data analysis
• Dual modes of temperature control - calculated and block control
• Compact footprint suitable for any lab bench
• Available separately or as an upgrade for existing DNA Engine thermal cyclers

• Standard Consumables: Low-profile 96-well microplates and low-profile 0.2 ml strip tubes
• Temperature Control: Dual modes - calculated control for maximum speed and accuracy, or block control for adapting protocols optimized in other cyclers
• Size: 34 cm wide x 47 cm deep x 60 cm high

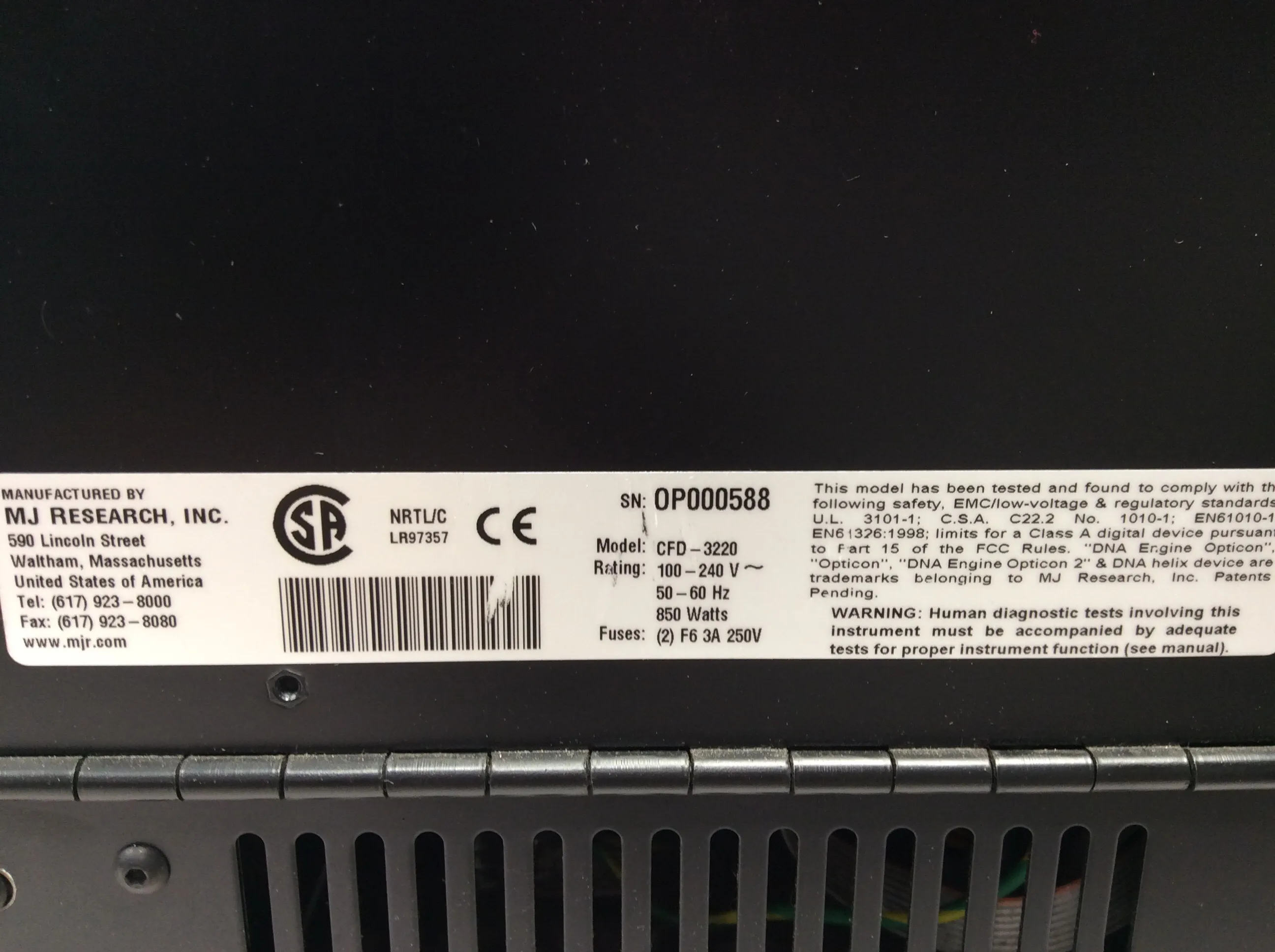

• Voltage: 120V/220V
• Hertz: 50Hz/60Hz
• Warranty: 30-Day Warranty, 100% Parts and Labor
• Weight: 40 kg
• Dimensions: 18.0 cm x 14.0 cm x 24.0 cm
• Harmonized Code: 9027.50.00 - Other instruments and apparatus for physical or chemical analysis

Metric: 40 kg
Imperial: 88.18 lbs

Metric: 18.0 cm x 14.0 cm x 24.0 cm
Imperial: 7.09 in x 5.51 in x 9.45 in

9027.50.00

9027.50.00 - Other instruments and apparatus for physical or chemical analysis. This harmonized code is justified based on the detailed specifications and intended use of the product, aligning with its function as a continuous fluorescence detector for real-time PCR detection in a laboratory setting.
