Thermo Fisher Dionex ICS-Series PDA-1 Detector HPLC / FPLC / GC / CE Class 4 - As-Is
- Make Thermo Fisher
- Hertz 50Hz/60Hz

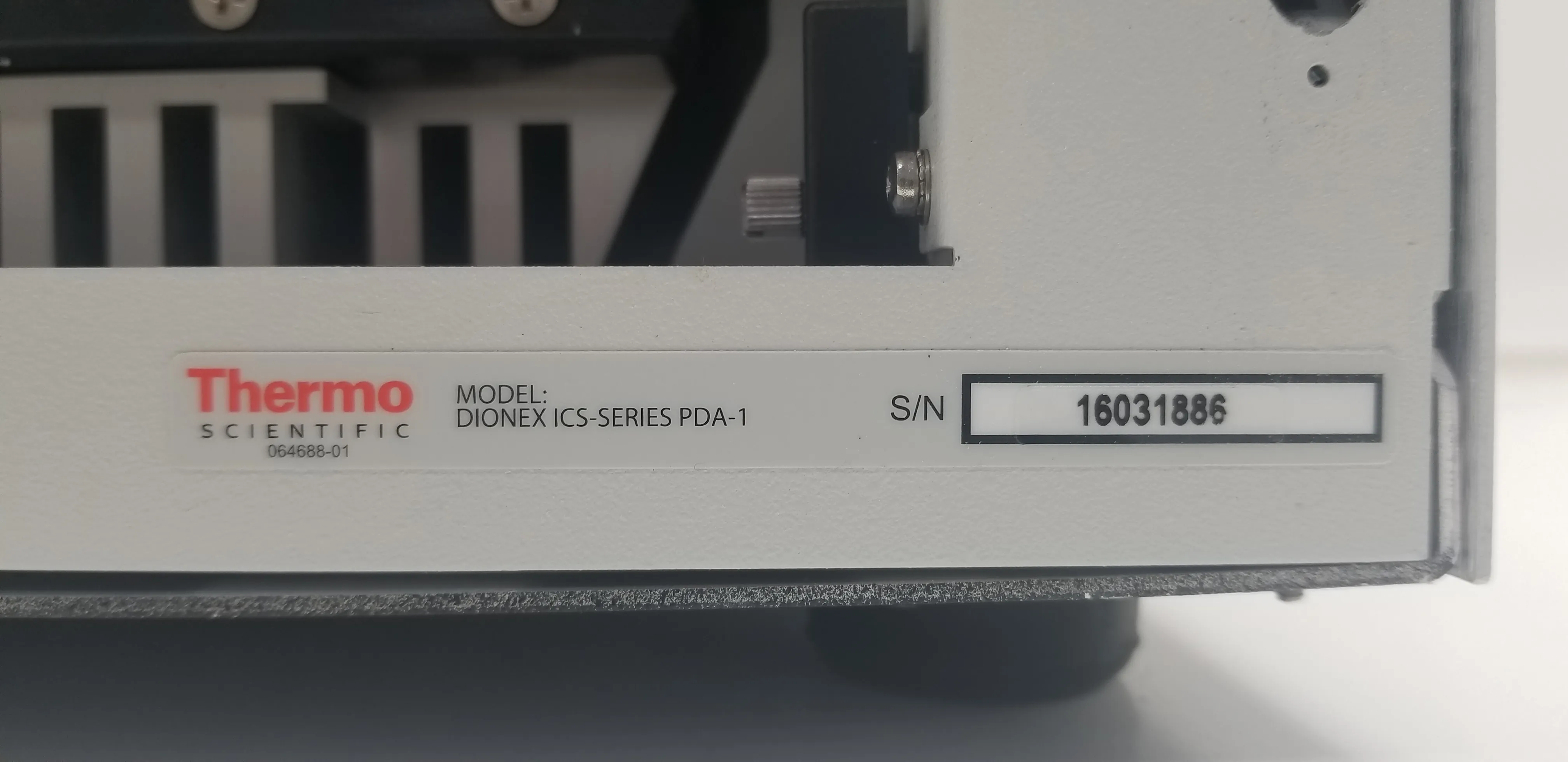

- Model Dionex ICS-Series PDA-1

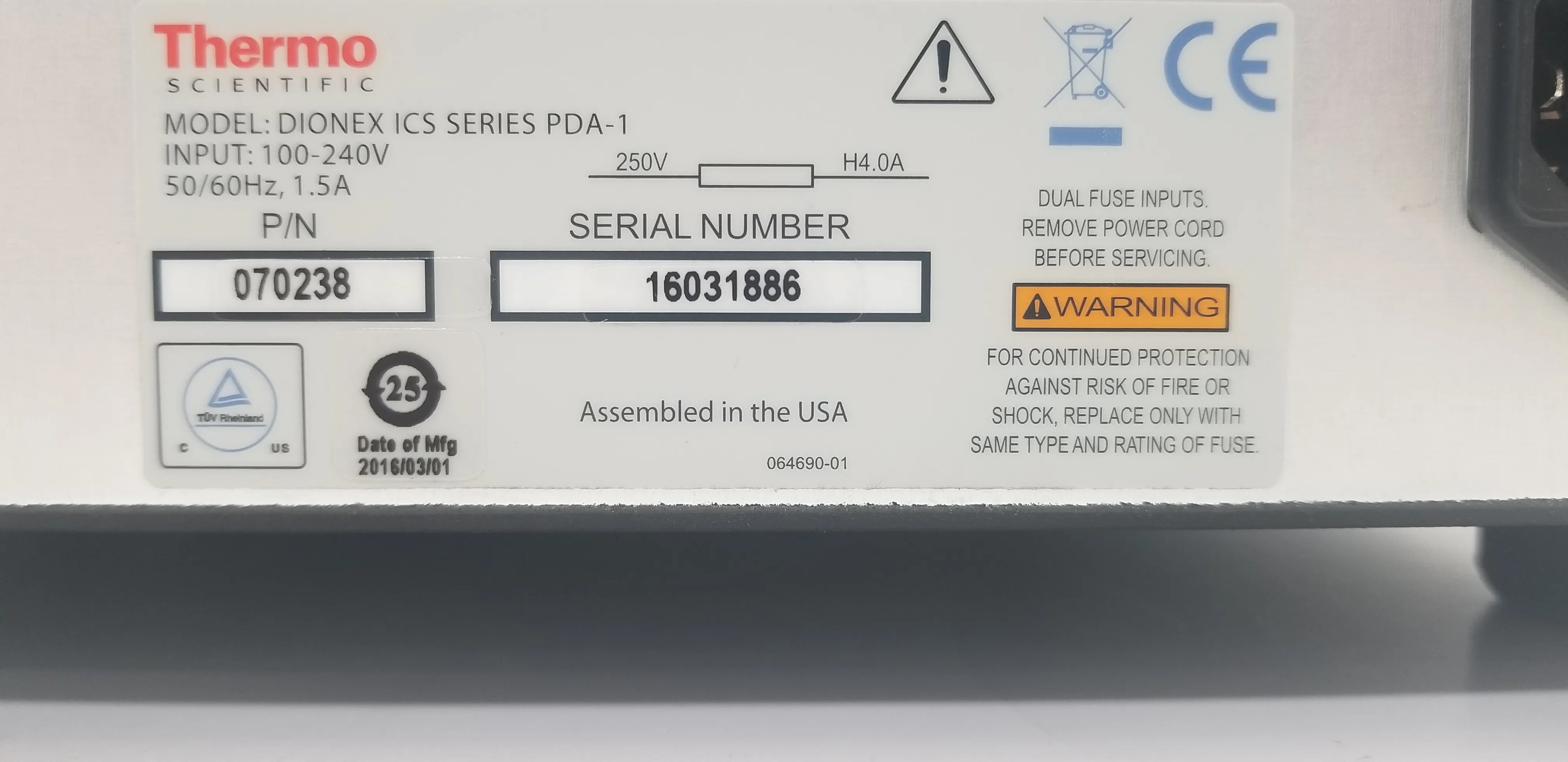

- Serial 16031886
- Weight 40.0 Lb
- Voltage 120V/220V
- Includes Power cord included |
- Warranty AS-IS
- Dimensions 24.0in x 24.0in x 14.0in
- Shipping Type FedEx Ground
- Item Condition AS-IS
- Manufacturing Date Does Not Apply
Product Information

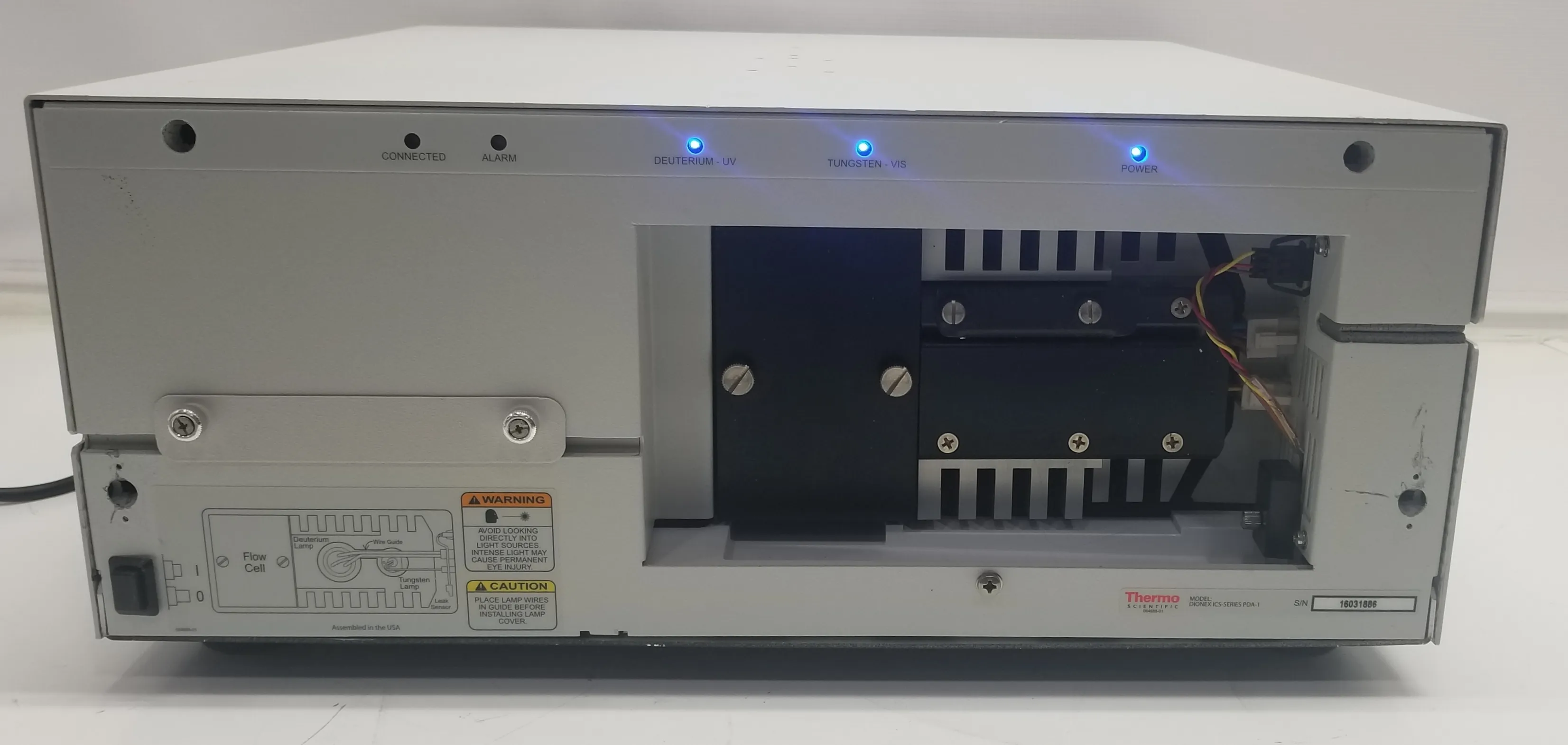

The Thermo Scientific Dionex ICS-Series Photodiode Array Detector maximizes your optical absorbance information by providing full UV-vis spectra in high resolution along with an ultra-quiet optical bench for excellent detection performance. As a quirky scientist, I'd like to note that this system is like the eagle eye of your laboratory; it detects the tiniest optical nuances and translates them into valuable data. This particular model is in need of repair, but it holds immense potential for unlocking the mysteries hidden within various samples. With a reliable flow cell and a more perceptive filter wheel sensor, this detector will be ready to unleash its extraordinary analytical capabilities once more. Now, picture an adventurous lab assistant guiding the detector through complex compounds and unknown solutions to unveil their secrets.
Key Features- Ultra-quiet optical bench
- Reliable flow cell materials including PEEK, fused silica, and SST
- High-resolution UV-vis spectra for detailed optical analysis
- Versatile analog outputs for diverse data interpretation
- Noise: 10 AU at 254 nm, 15 AU at 520 nm (flowing water, 2-s rise time)
- Drift: <500 AU/h
- Wavelength accuracy: 1 nm, self-calibration with deuterium lines, verification with built-in holmium oxide filter
- Resolution: 1 nm
- Linearity: >2 AU
- Photodiode array: 1024
- Pixel resolution: 0.7 nm
- Optical resolution: 1.0 nm
- Lamps: Tungsten and deuterium

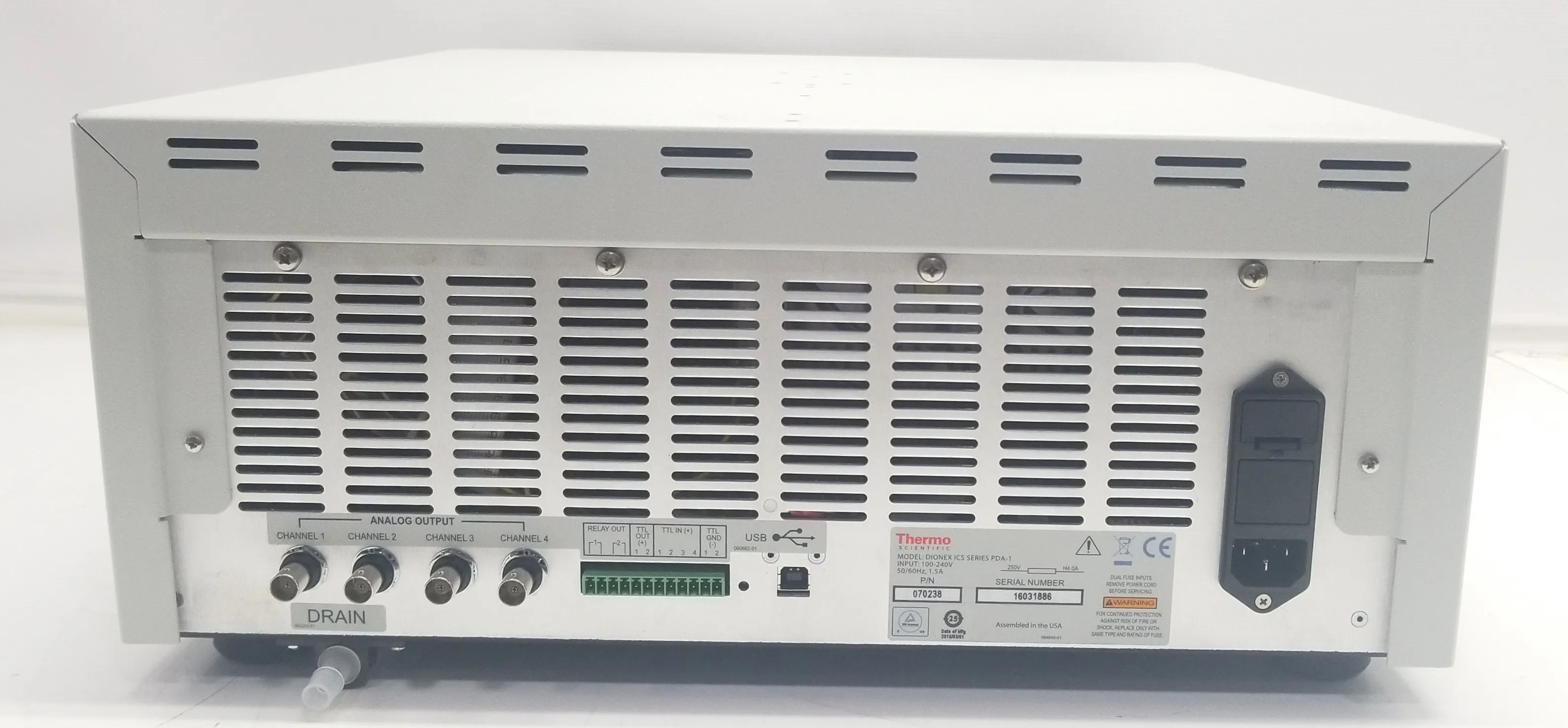

- Analog outputs: Four, 0.3 AU, 1000 mV range
- Flow cell materials: PEEK, fused silica, SST
- Path length: 10 mm
- Cell volume: 13 L
- Flow cell pressure limit: <2 MPa (300 psi) for PEEK, <3 MPa (500 psi) for SST
Metric: 18.14 kg
Imperial: 40 lbs
Metric: 48.26 cm x 48.26 cm x 35.56 cm
Imperial: 19 in x 19 in x 14 in
902730
Harmonized Code DetailsSpectrometers, spectrophotometers and spectrographs using optical radiations (UV, visible, IR). It is justified as the product is a photodiode array detector maximizing optical absorbance information in the UV-vis spectra.
