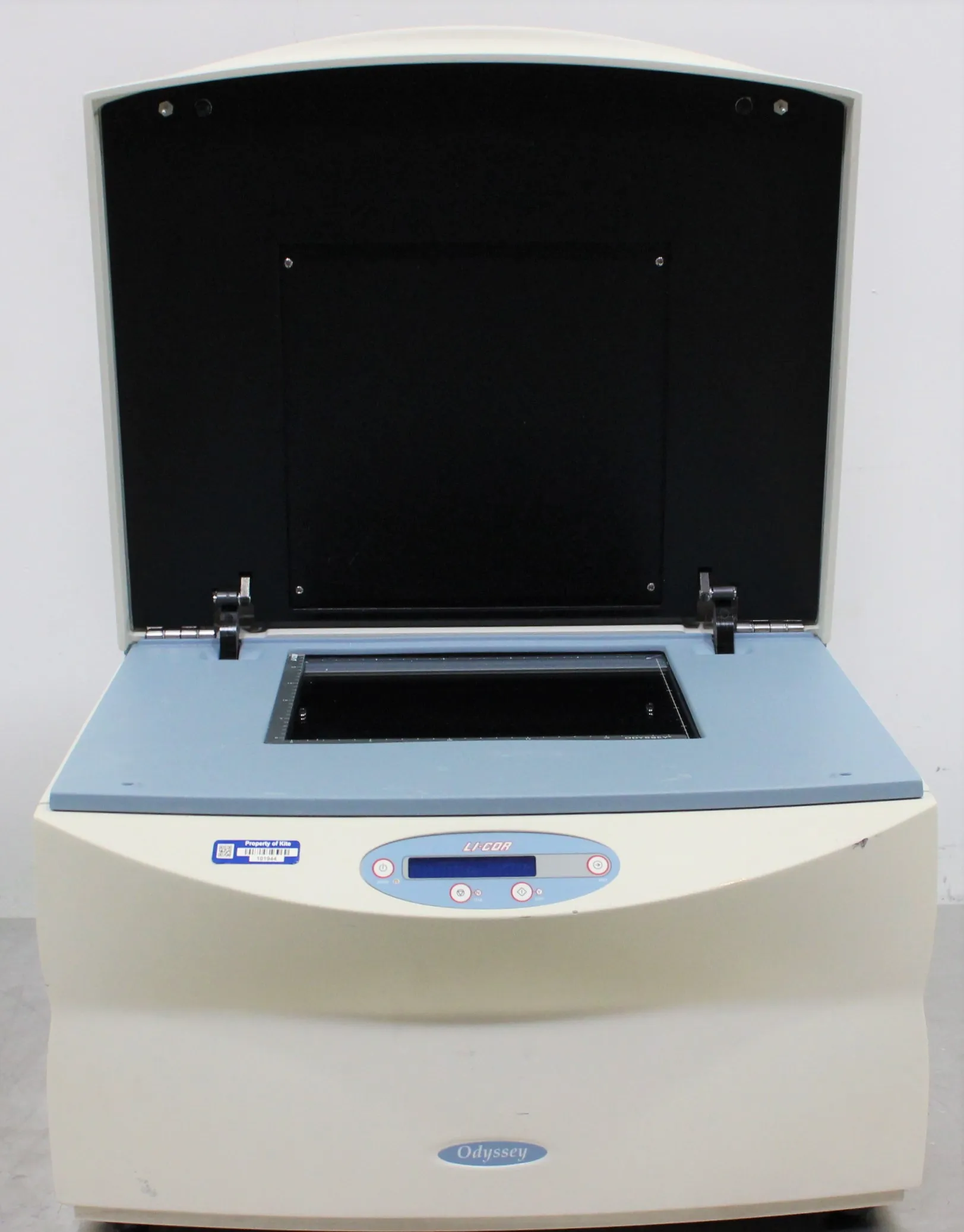

Odyssey 9120 Imaging System by Li-Cor - Class 4 - As-Is - For parts or not working

Product Information

Introducing the Odyssey 9120 Imaging System by Li-Cor, a cutting-edge equipment that delivers clear, sharp digital results without background fluorescence. This advanced imaging system is capable of detecting strong and weak bands on the same blot, saving valuable time in the lab. The direct infrared fluorescence detection mechanism enables precise counting of low plentiful proteins, particularly beneficial for Western Blot applications. The Odyssey 9120 uses two solid state diode lasers for excitation at 685 and 785 nm, combined with collimating lenses, optical bandpass filters, and a focusing lens, all of which contribute to its exceptional performance. The microscope electronics ensure discrimination of IR fluorescence from background fluorescence for accurate results. With a movable scan bed in the Z-dimension, this equipment allows flexible fluorescence detection and alignment to obtain the best signal-to-noise ratio. The innovative features of the Odyssey 9120 Imaging System are poised to revolutionize work in the lab, bringing efficiency and accuracy to the forefront of research and analysis.

• Direct infrared fluorescence detection for Western Blot applications
• Solid state diode lasers for excitation at 685 and 785 nm
• Flexible scan bed with Z-dimension alignment for optimal signal-to-noise ratio

• Laser Source: 700 channel - 685 nm solid state diode, 800 channel - 785 nm solid state diode
• Detector: Silicon avalanche photodiodes
• Scanning Speed: 5-40 cm/s
• Scanning Surface: 25 x 25 cm
• Resolution: 21-337 m
• Focusing: Scan bed is movable in the Z-dimension for optimum signal-to-noise ratio

Metric: 34.47 kg
Imperial: 76.0 lbs

Metric: 38.1 cm x 55.88 cm x 73.66 cm
Imperial: 15 in x 22 in x 29 in

901180

901180 - Other optical microscopes, for photomicrography, cinephotomicrography or microprojection
