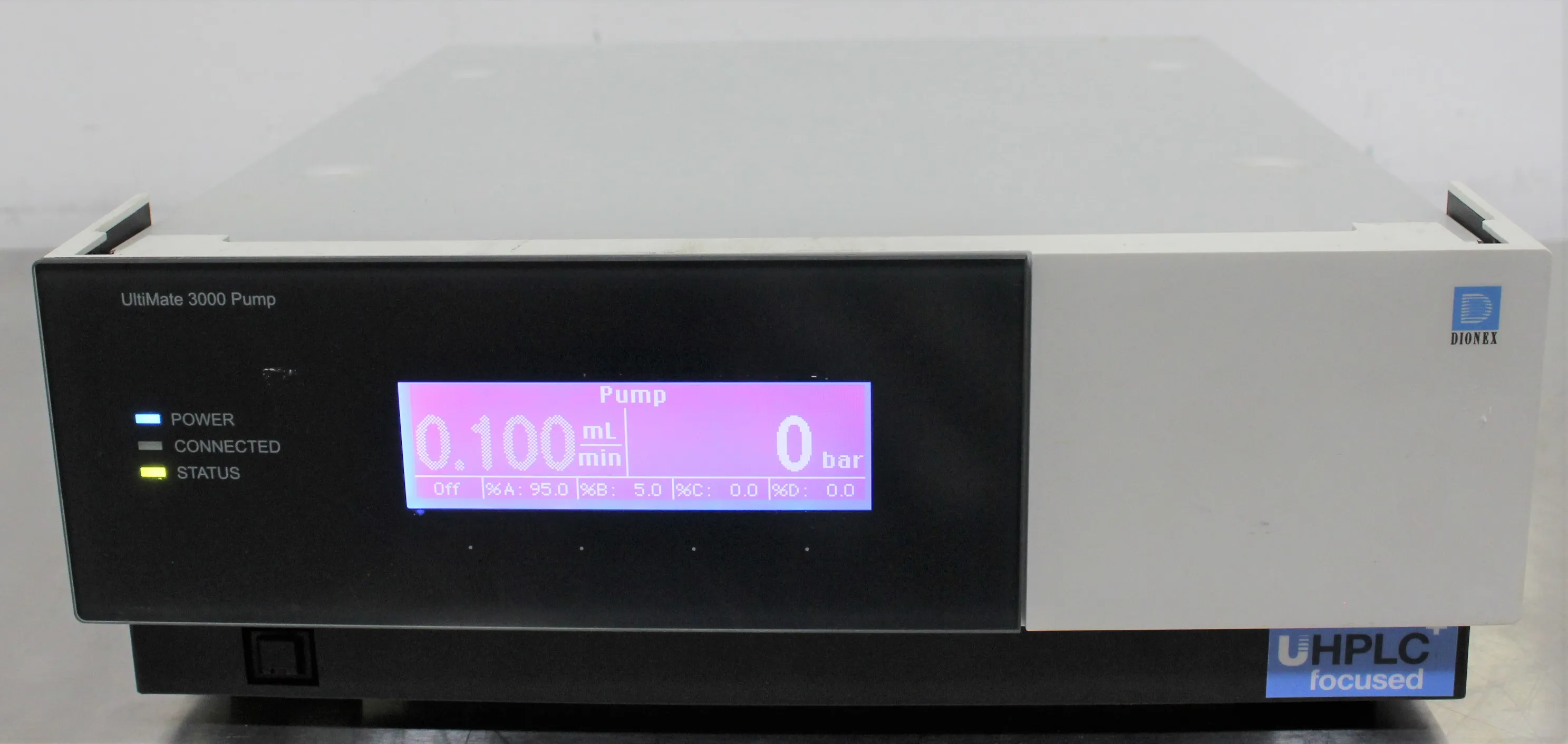

Thermo Fisher HPG-3400SD Standard Binary Pump

Product Information

Introducing the Thermo Fisher Dionex UltiMate HPG-3400SD Standard Binary Pump, a versatile and robust pump designed for high-performance liquid chromatography (HPLC) applications. Manufactured in 2015, this used pump is in Class 1 condition and is still in optimal working order, offering a 30-Day Warranty and 100% Parts and Labor coverage. The UltiMate 3000 SD excels in a wide range of applications, including standard LC and fast UHPLC separations, with the flexibility to handle various mobile phases and support pressures up to 62MPa. This pump is equipped with SmartFlow technology, enabling pulse-free flows and precise retention times. It's a perfect fit for labs looking to increase efficiency and lower solvent consumption while maintaining high-performance standards.

• Supports pressures up to 62MPa for high efficiency
• SmartFlow technology ensures pulse-free flows and precise retention times
• Capable of handling various mobile phases
• Offers full compatibility with fast UHPLC separations
• Excels in standard LC applications
• Backed by a 30-Day Warranty with 100% Parts and Labor coverage

• Flow Accuracy: 0.1%
• GLP Features: Full support of Thermo Scientific Dionex AutoQ instrument qualification, qualification status and system wellness monitoring. All system parameters are logged in the Chromeleon Audit Trail.
• Flow Precision: <0.05% RSD or <0.01 min SD, whichever is greater
• Gradient Delay Volume: 35-1550 L (Depending on the SpinFlow mixer configuration) Default: 400 L
• Gradient Formation: High-pressure proportioning
• Pressure Range: 62 MPa
• I/O Interfaces: 2 digital inputs, 2 relay outputs
• No. of Eluent Lines: 2
• Proportioning Accuracy: 0.2% (full scale)
• Proportioning Precision: <0.15% SD
• Version with Solvent Selector Valve: HPG-3400 SD
• PC Connection: USB for PC connection, USB hub with 3 sockets integrated
• Pressure Ripple: Typically: <0.2 MPa or <1% whichever is greater
• Description: HPG-3400 SD Binary Standard Pump
• For Use With: 15-Pin D-Sub Connector for Solvent Rack/Degasser Connection
• Emission Sound Pressure Level: <70 dB(A) in 1-m-distance
• Max. Flow Rate: 10.0 mL/min.
• Min. Flow Rate: 0.001 mL/min (Recommended: 0.05 mL/min)
• Type: Binary Solvent Mixing (High Pressure Gradient Mixing)
• Operating Principle: Serial dual-piston

Metric: 20.4117 kg
Imperial: 45 lbs

Metric: 20.32 cm x 17.78 cm x 7.62 cm
Imperial: 8 in x 7 in x 3 in

90272000

90272000 - Instruments and apparatus for physical or chemical analysis
