Used HP 3325A Synthesizer/Function Generator with 30-Day Warranty

Product Information

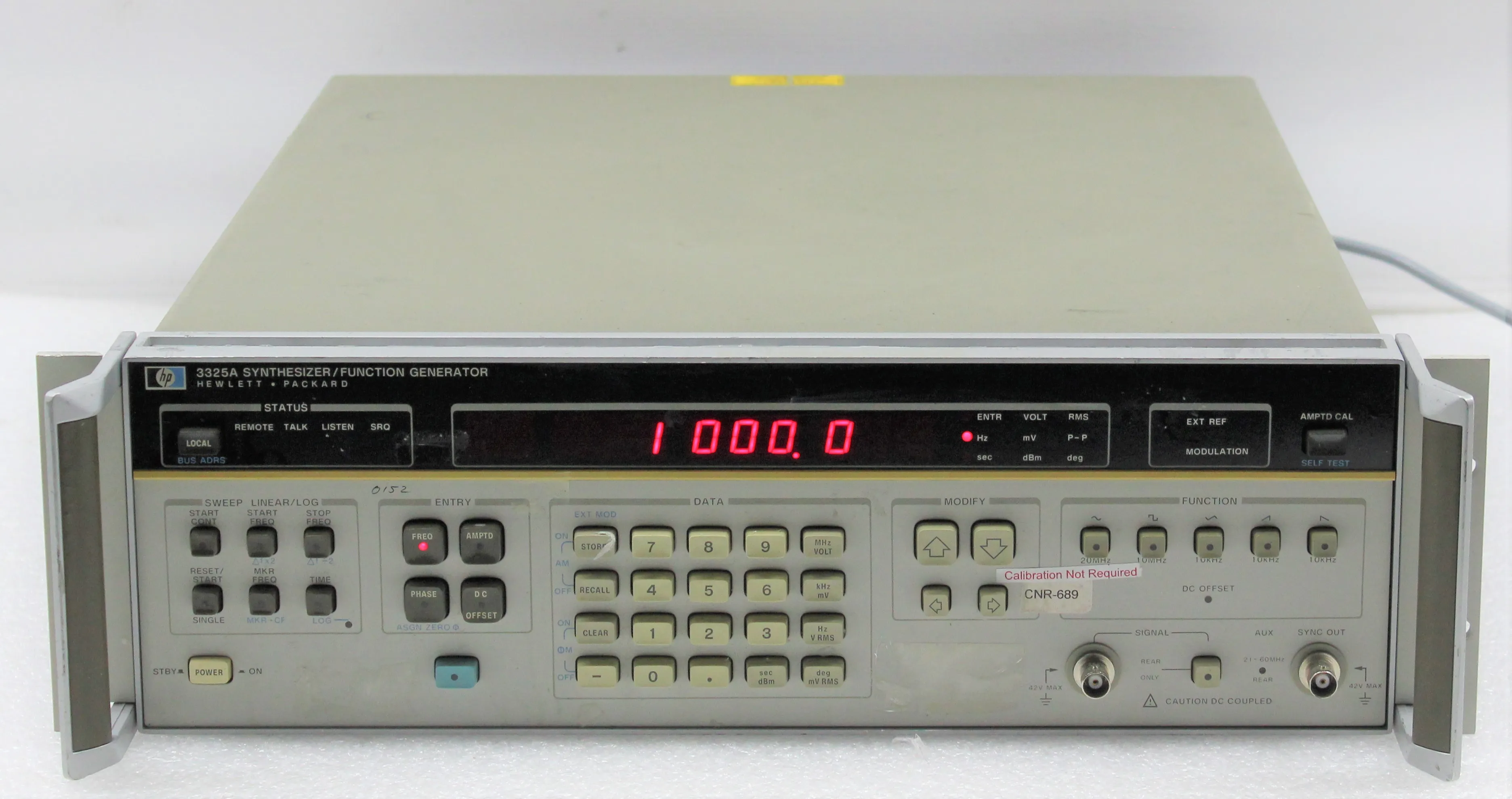

Welcome fellow scientists! Today we're thrilled to present the HP 3325A Synthesizer/Function Generator, a versatile piece of equipment that offers precision waveforms and a wideband sweeper. As an uncompromising, high performance synthesizer, it provides frequencies from 1 Hz to 21 MHz (sine), 11MHz (square), and 11kHz (triangle, ramps). An excellent choice for ATE Systems, it comes with a log/linear sweep function, featuring variable sweep time and marker out External AM and phase modulation. The output is rated at 1 mV to 10 V p-p into 50-ohms. This unit has a frequency stability aging rate of 5x10E-06/year. Whether for maintaining aging test systems or advanced lab research, this synthesizer has applications across various fields.

• High performance synthesizer with precision waveforms
• Wideband sweeper
• Fully HPIB programmable system instrument
• Log/linear sweep function with variable sweep time and marker out External AM and phase modulation

• Versatile frequencies from 1 Hz to 21 MHz (sine), 11MHz (square), and 11kHz (triangle, ramps)
• Frequency resolution to 1 Hz below 100 kHz and 1 MHz above 100 kHz provided by the 11-digit display
• Output rated at 1 mV to 10 V p-p into 50-ohms
• Frequency stability aging rate of 5x10E-06/year

Metric: 15.875 kg
Imperial: 35 lbs

Metric: 22 cm x 19 cm x 6 cm
Imperial: 8.66 in x 7.48 in x 2.36 in
