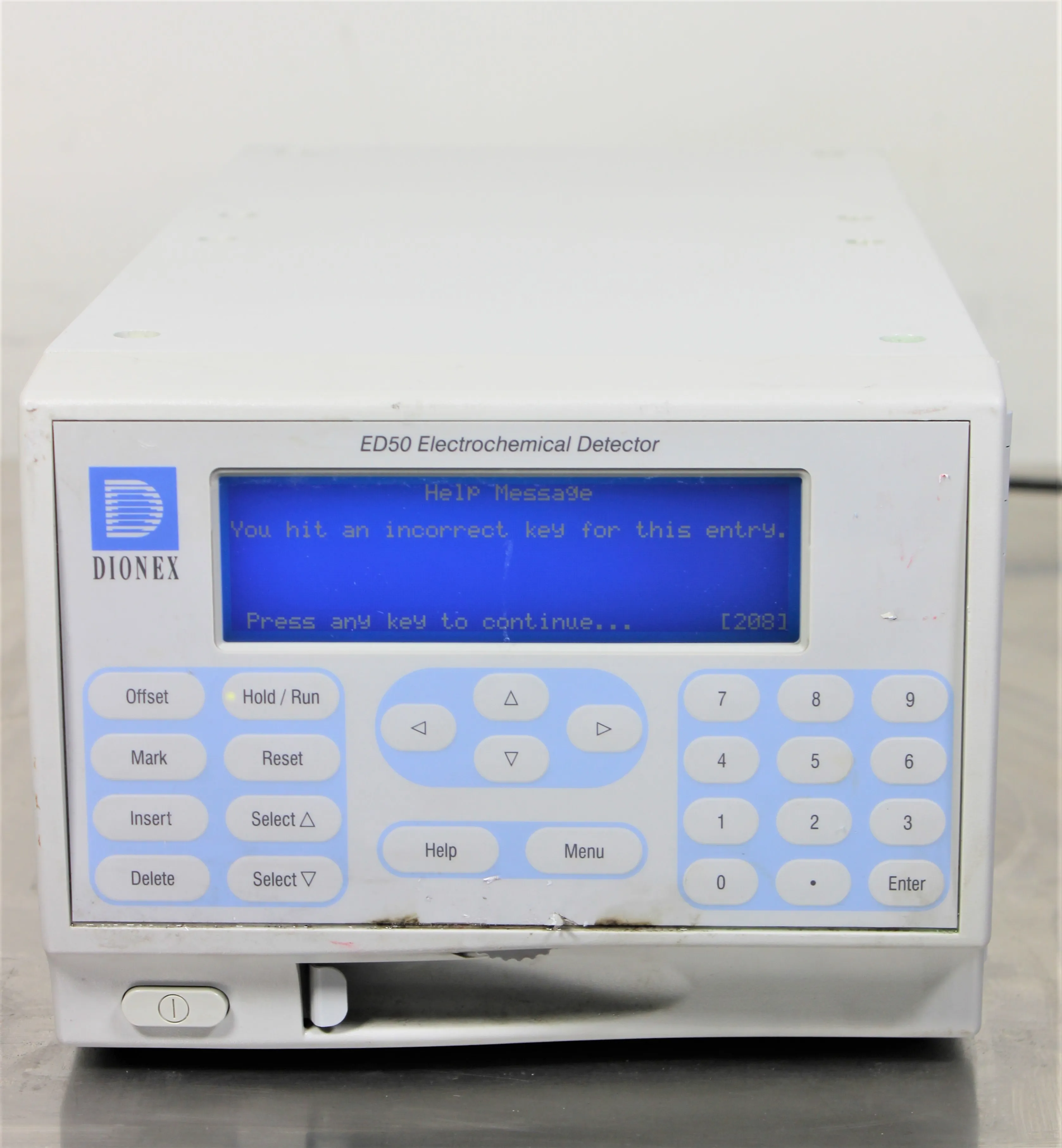

Dionex ED50-1 Electrochemical Detector

Product Information

The Dionex ED50-1 Electrochemical Detector measures current resulting from the application of potential (voltage) across electrodes in flow-through cells. It provides the 3 major forms of electrochemical detection: conductivity, DC amperometry, and integrated amperometry. Crafted by Dionex and manufactured for the specific range of 4C to 40C, this detector, its high-quality components, and robust design have ensured years of field operation. Used and recommended for applications in analytical chemistry, biochemistry, and pharmaceutical labs. Explore the possibilities of electrochemical detection methods with this advanced device that guarantees precise results and eliminates the risk of equipment malfunctioning during its operation. Did you know? The conductivity cell is equipped with electrodes made of 316 stainless steel, ensuring accurate and reliable measurement even in harsh chemical environments. The amperometry cell includes gold, silver, platinum, and glassy carbon working electrodes, providing versatility in various applications.

• Conductivity, DC amperometry, and integrated amperometry detection modes
• Temperature compensation for conductivity measurements
• Variable 8 kHz square wave cell drive for conductivity

• Decibel Level: 50 db (A WEIGHING setting)
• Operating Temperature: 4C to 40C (40F to 104F)
• Operating Humidity: 5 to 95% relative humidity, noncondensing
• Conductivity Cell - Cell Body: PEEK, Active Volume: 1.0L, Maximum Pressure: 2.0 MPa (300 psi), Electrodes: 316 stainless steel
• Amperometry Cell - Cell Body: Titanium (counterelectrode), Active volume: ~ 0.2L, Maximum Pressure: 0.7 mPa (100 psi), Working Electrodes: Gold, Silver, Platinum, Glassy Carbon, Reference Electrode: Combination pHAg/AgCl

Metric: 12.7 kg
Imperial: 28 lbs

Metric: 25 cm x 17 cm x 15 cm
Imperial: 9.8 in x 6.7 in x 5.9 in

9027300000

9027 - Instruments and apparatus for physical or chemical analysis, electrochemical instruments and apparatus, other than meters of heading 9010; instruments and apparatus for measuring or checking voltage, current, resistance or power, without a recording device
