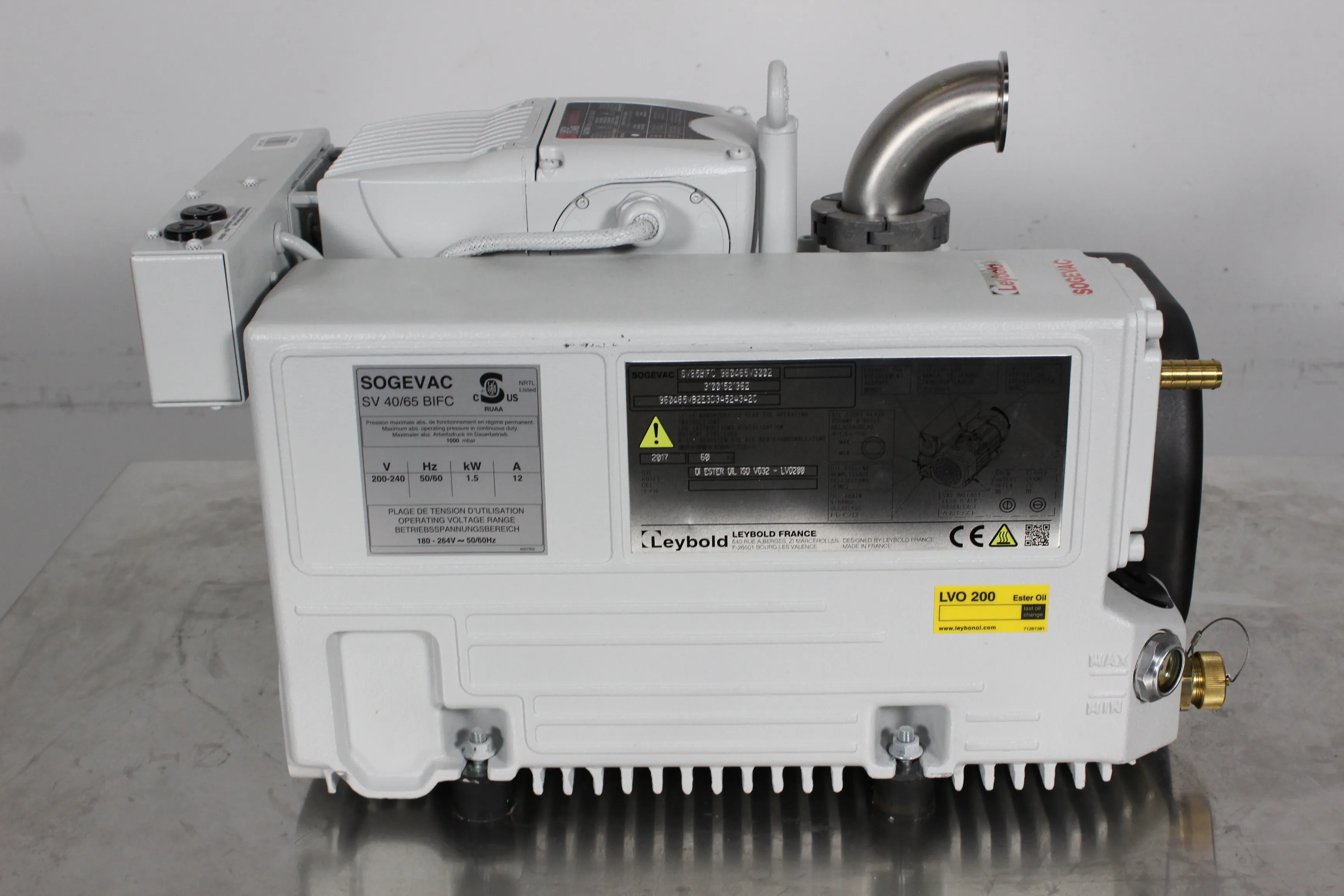

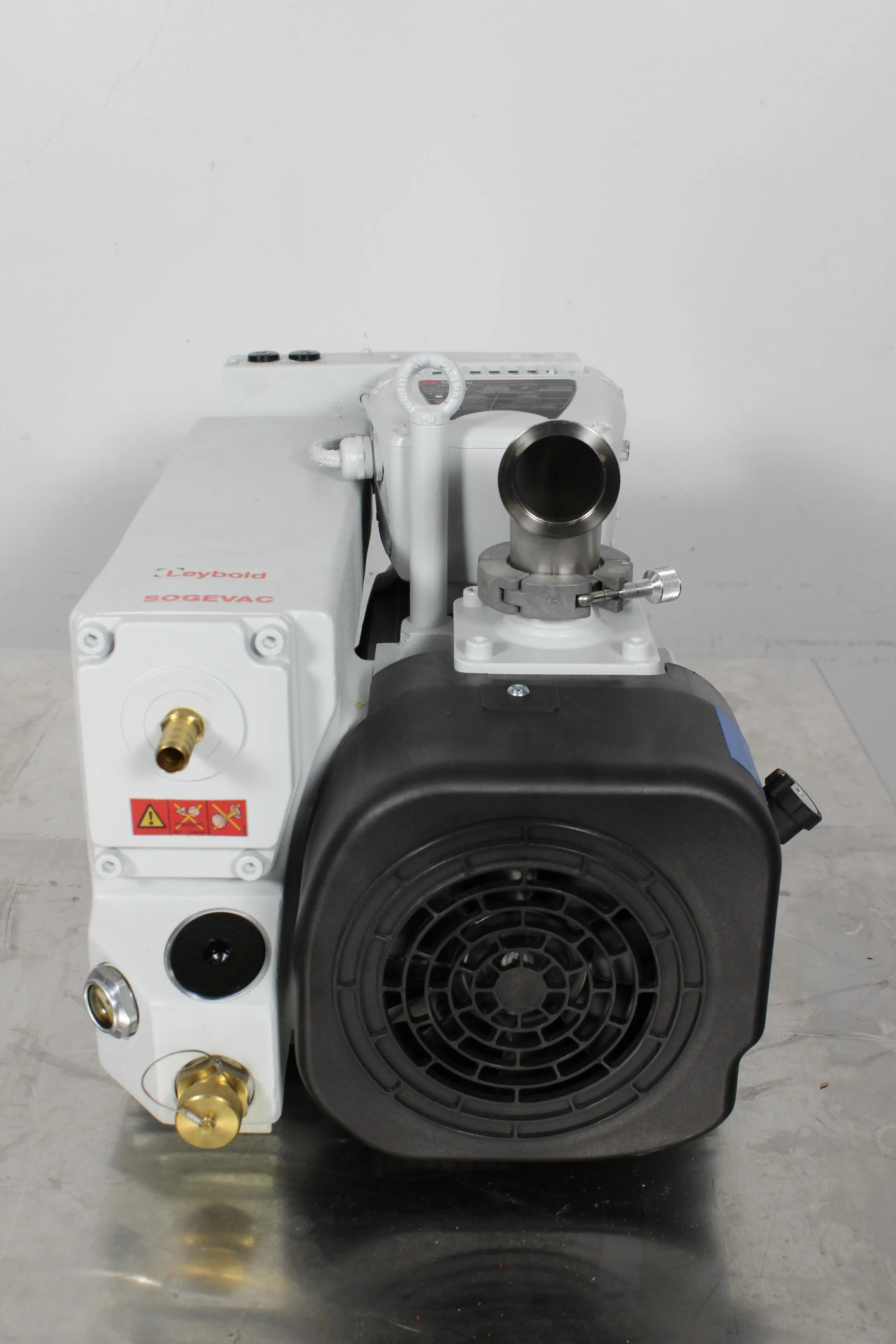

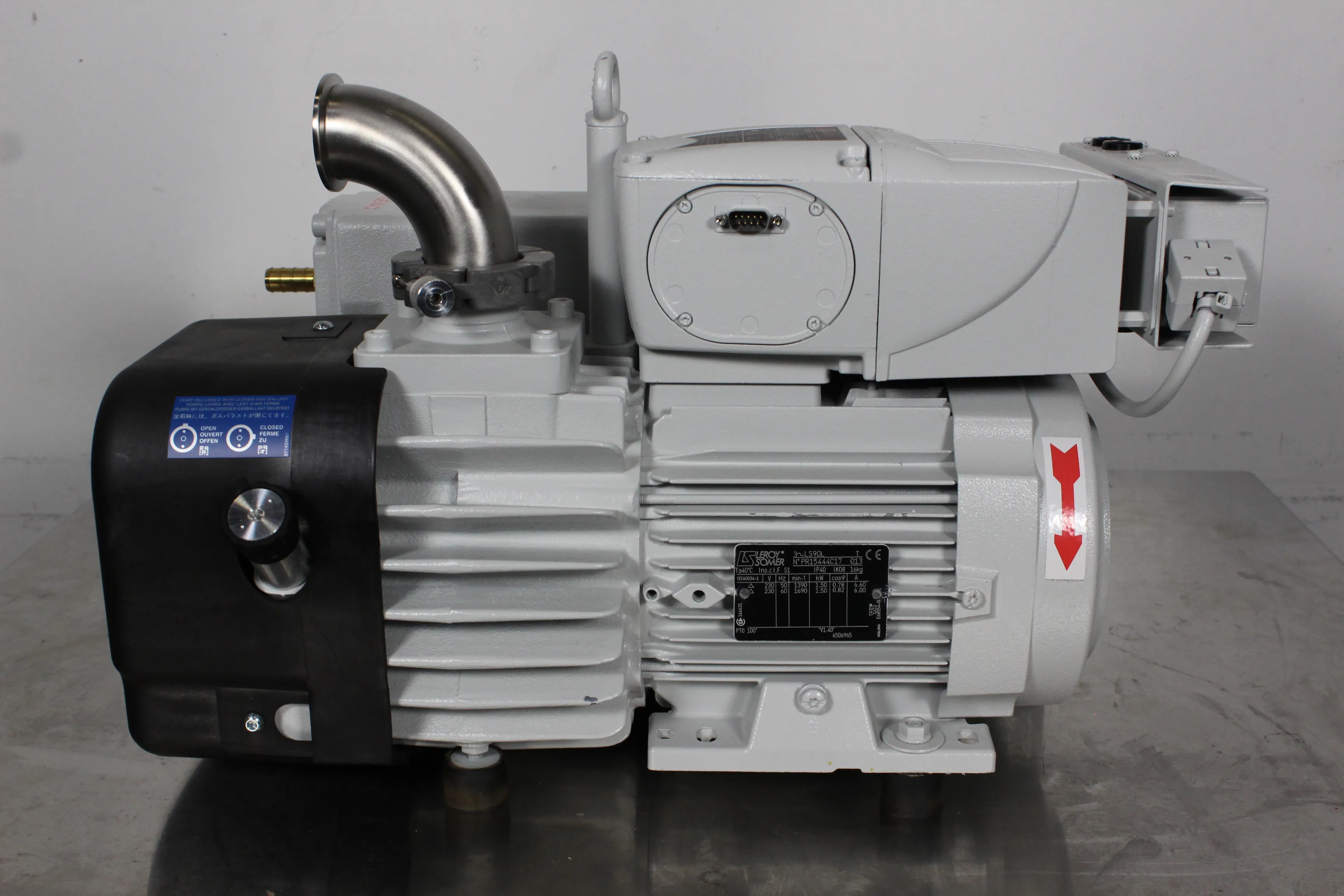

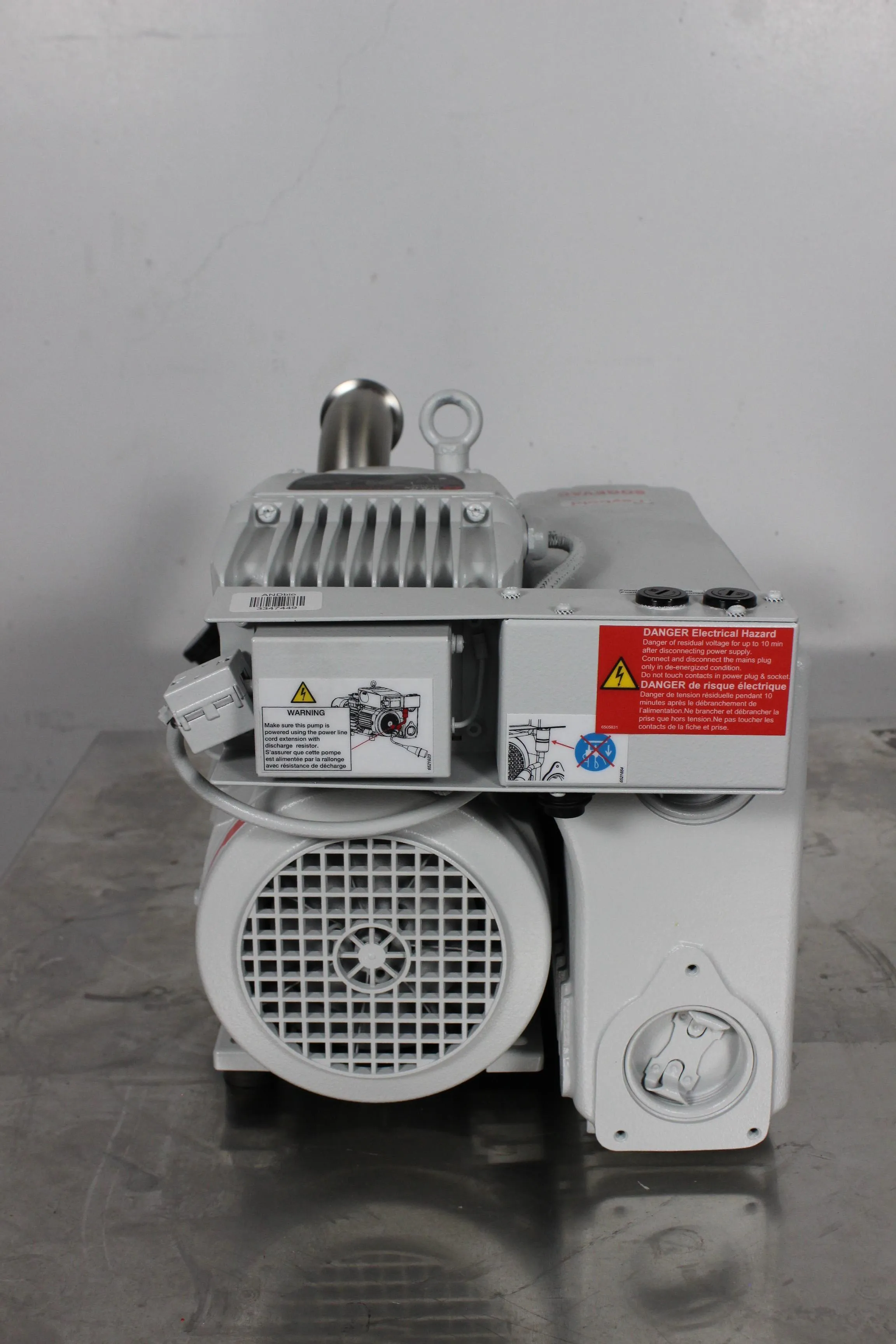

Sogevac SV65 BI FC Vacuum Pump 220V 50-60Hz

Product Information

The SOGEVAC SV65B pump is a powerful and versatile solution for vacuum processing, with a pumping speed of up to 41.8 cfm and an ultimate pressure of less than 0.5 mbar. This pump boasts continuous operation from atmospheric pressure to ultimate pressure and is suitable for a wide range of applications including vacuum packaging, drying, freeze-drying, leak testing, and laser systems. The improved lubrication circuits and integrated exhaust filter ensure low noise levels and efficient, reliable performance. The compact design allows for easy installation and a space-saving footprint, making it a valuable asset in any laboratory or processing facility. Remember, due to shipping regulations, all vacuum pumps will be shipped without pump oil, and oiled vacuum pumps SHOULD NOT be run without oil.

• Pumping speed (50/60 Hz): 34.7 / 41.8 cfm
• Ultimate pressure: < 0.5 mbar

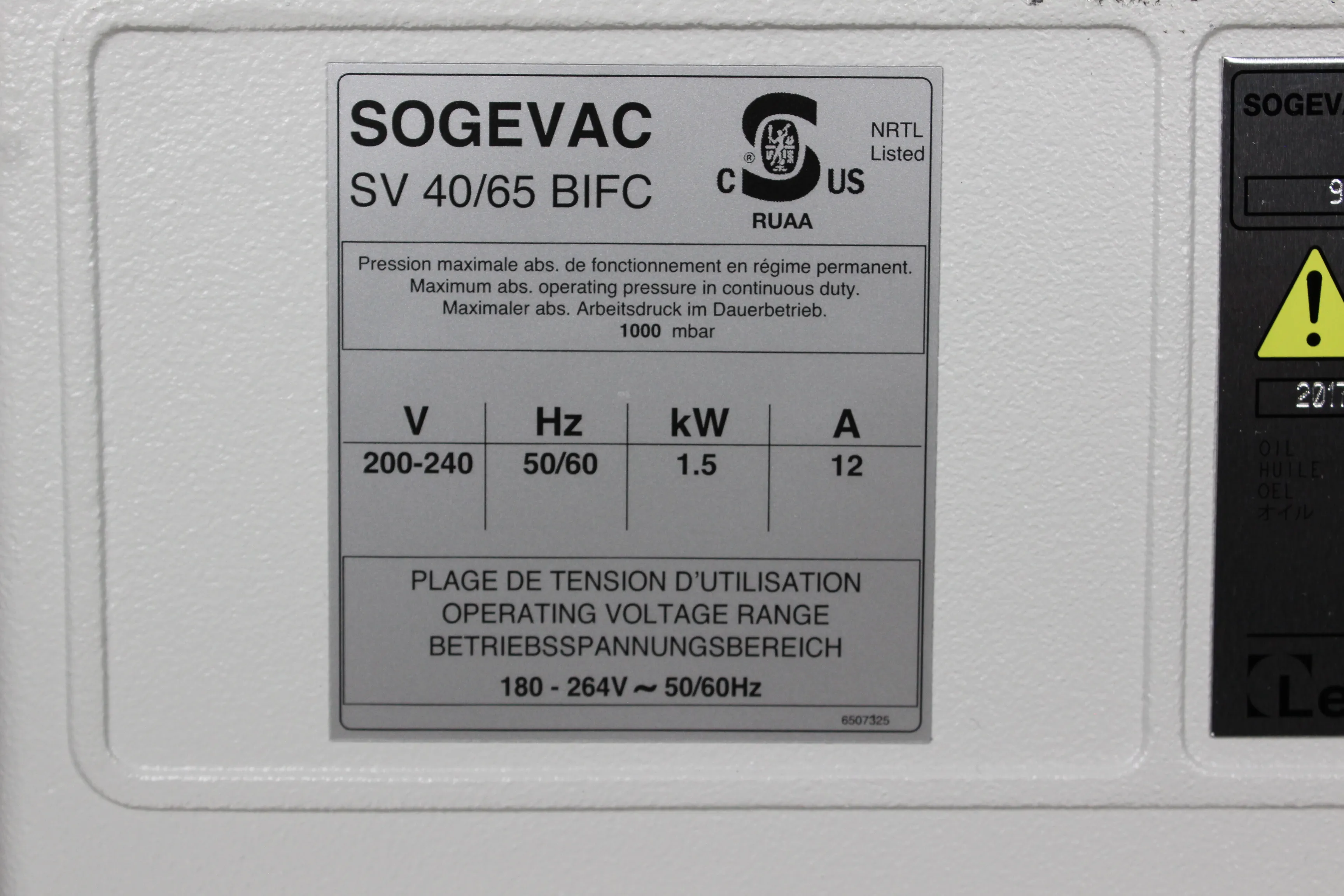

• Mains connection: 200-240V, 1-ph, 12A, 50/60 Hz
• Inlet connection: KF-40
• Low noise level and vibrations
• Integrated exhaust filter, better than 99.9% efficient
• Efficient air cooling (standard)
• Compact design with low space requirement
• Rugged and maintenance-friendly

• Pumping speed (50/60 Hz): 34.7 / 41.8 cfm
• Ultimate pressure: < 0.5 mbar
• Mains connection: 200-240V, 1-ph, 12A, 50/60 Hz
• Inlet connection: KF-40
• Continuous operation from atmospheric pressure to ultimate pressure
• High water vapor tolerance
• Maintenance-friendly design
• Low noise level and vibrations
• Integrated exhaust filter, better than 99.9% efficient
• No oil loss owing to the integrated oil return line
• Exhaust gas free of oil mists
• Efficient air cooling (standard)
• Wide range of accessories available for adaptation to differing problems

Metric: 74.84 kg
Imperial: 165.0 lbs

Metric: 22.0 cm x 14.0 cm x 14.0 cm
Imperial: 8.66 in x 5.51 in x 5.51 in

8414108090

Vacuum pumps, including vacuum generators and parts suitable for use solely or principally with vacuum pumps
