Used Powervar ABCDEF6000-22 Power Supply - UPS

Product Information

The Powervar ABCDEF6000-22 is a top-notch UPS designed to handle modern computer loads with high crest factors and peripherals, ensuring no issues with oversizing and saving on power protection equipment investment. It offers custom solutions to meet diverse electrical requirements, with the ability to customize the output receptacle panel and input line cord. This UPS is an essential addition to any modern laboratory, providing the reliable power supply needed for critical equipment and systems. The Security Plus Series is built to handle modern computer loads and systems with high crest factors and high current inrush peripherals, ensuring no issues with oversizing and saving money on power protection equipment investments.

• True On-Line, Double-Conversion, IGBT Design, Internal Isolation Transformer

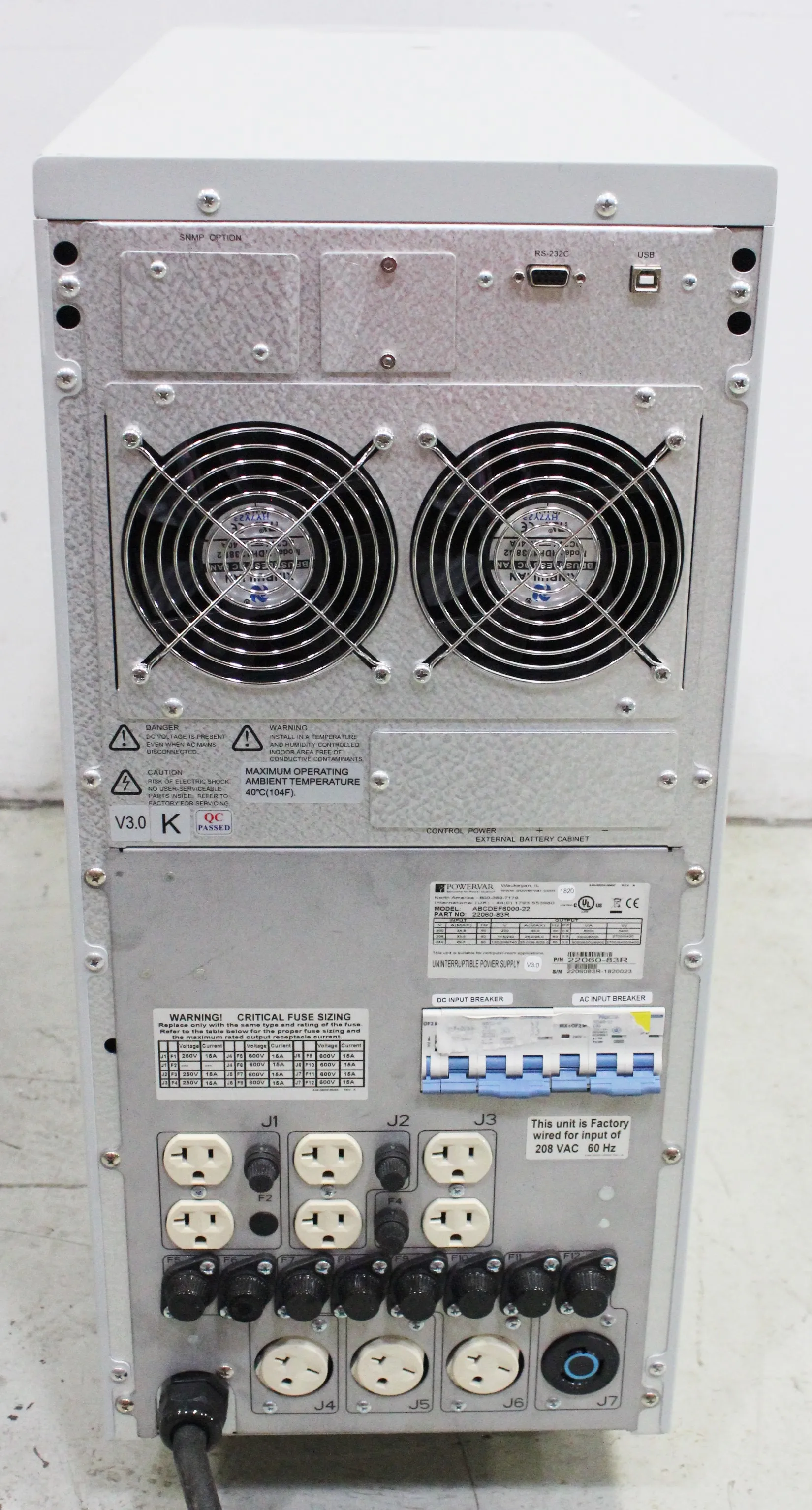

• Customizable output receptacle panel and input line cord
• High load capacity (6000VA/ 5400W)
• Efficient frequency and voltage regulation
• Robust built-in battery system

• Topology: True On-Line, Double-Conversion, IGBT Design, Internal Isolation Transformer
• Voltage (VAC): 200, 208, 220, 230, 240
• Voltage Range (VAC): 140-230, 146-239, 220-240
• Voltage Tolerance: +15% to -30% before switching to batteries
• Frequency (Hz): 50/60
• Frequency Tolerance: 42 Hz to 69 Hz before switching to batteries
• Input PF: > 0.95
• Input Current THD: < 5.0%
• Input Capacity: 6480 VA
• Output Capacity: 6000VA/ 5400W
• Output Voltage THD: < 3.0%
• Power Factor: 0.9
• Efficiency: AC-AC >85.0%, DC-AC >78.0%
• Temperature: 0 to 40°C (operating), -20 to 60°C (transit)
• Humidity: 5.0% to 90.0% non-condensing
• Audible: 50-55 dBA @ 1m from front of unit
• Unit Weight: 348 lbs. / 157 kg.

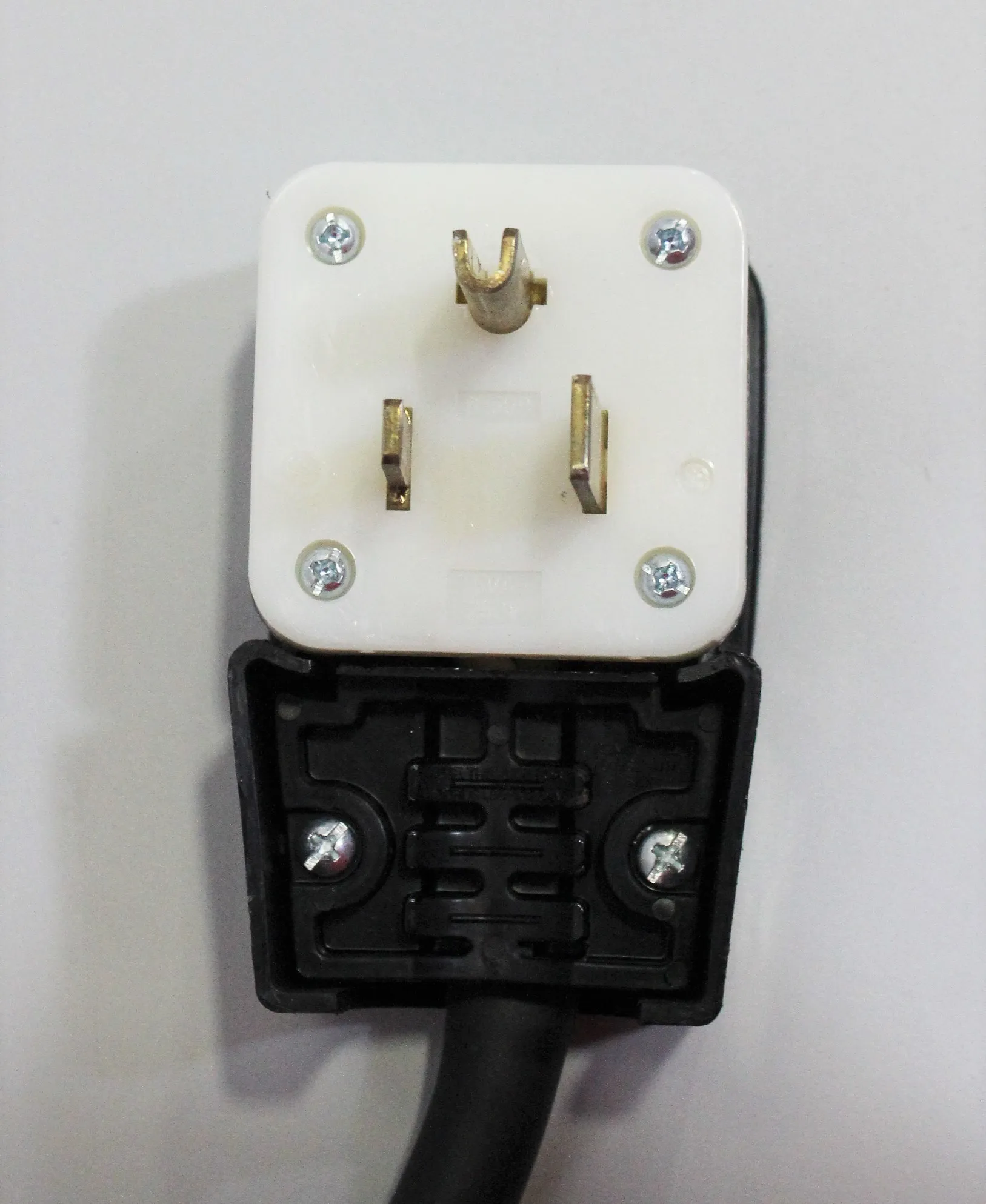

• Plug & Receptacle: Hardwired unit is standard. Plug & Receptacle is optional.

Metric: 157 kg
Imperial: 348 lbs

Metric: 32 cm x 12 cm x 29 cm
Imperial: 12.6 in x 4.7 in x 11.4 in

850440

This code is for Electrical transformers, static converters (for example, rectifiers) and inductors. The specific UPS model falls under this category due to its function in power conversion and regulation.
