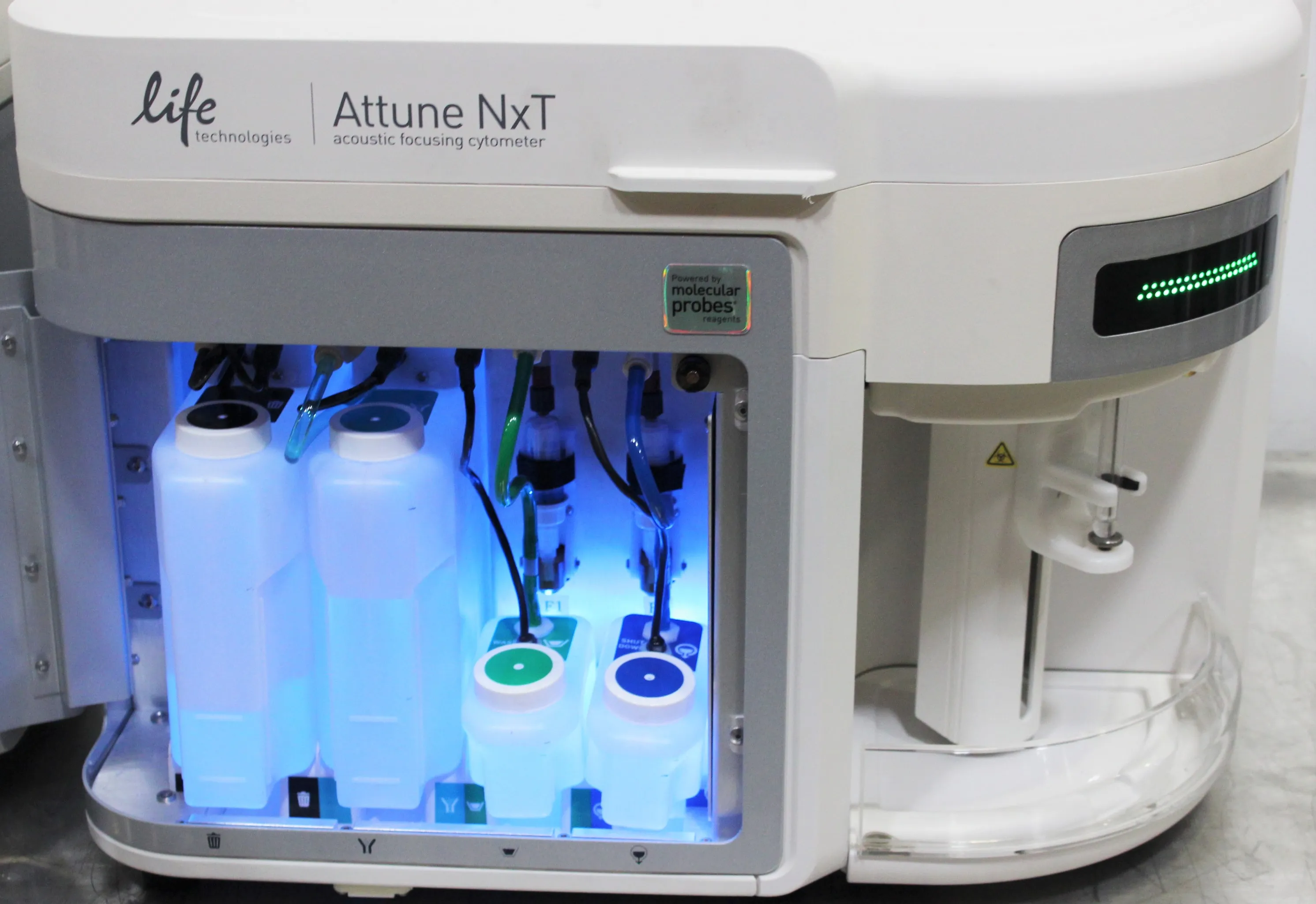

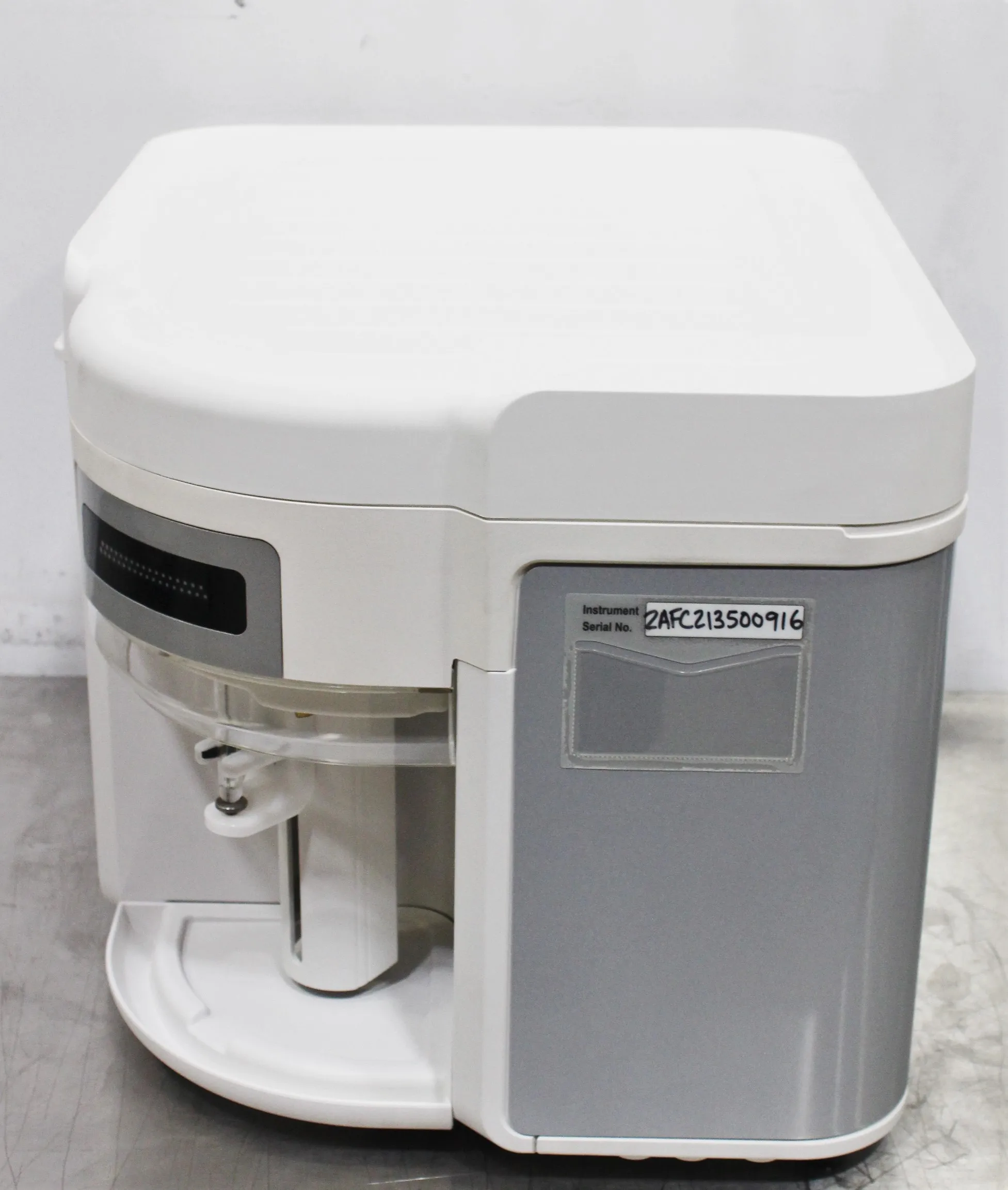

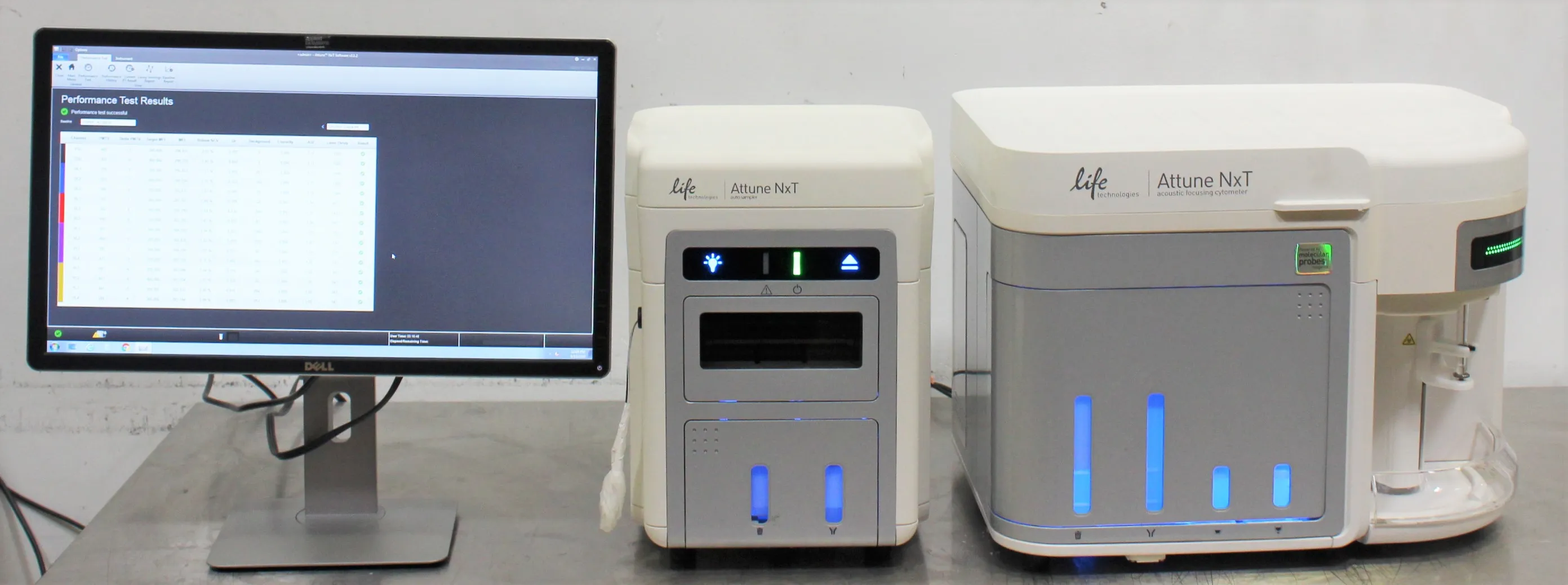

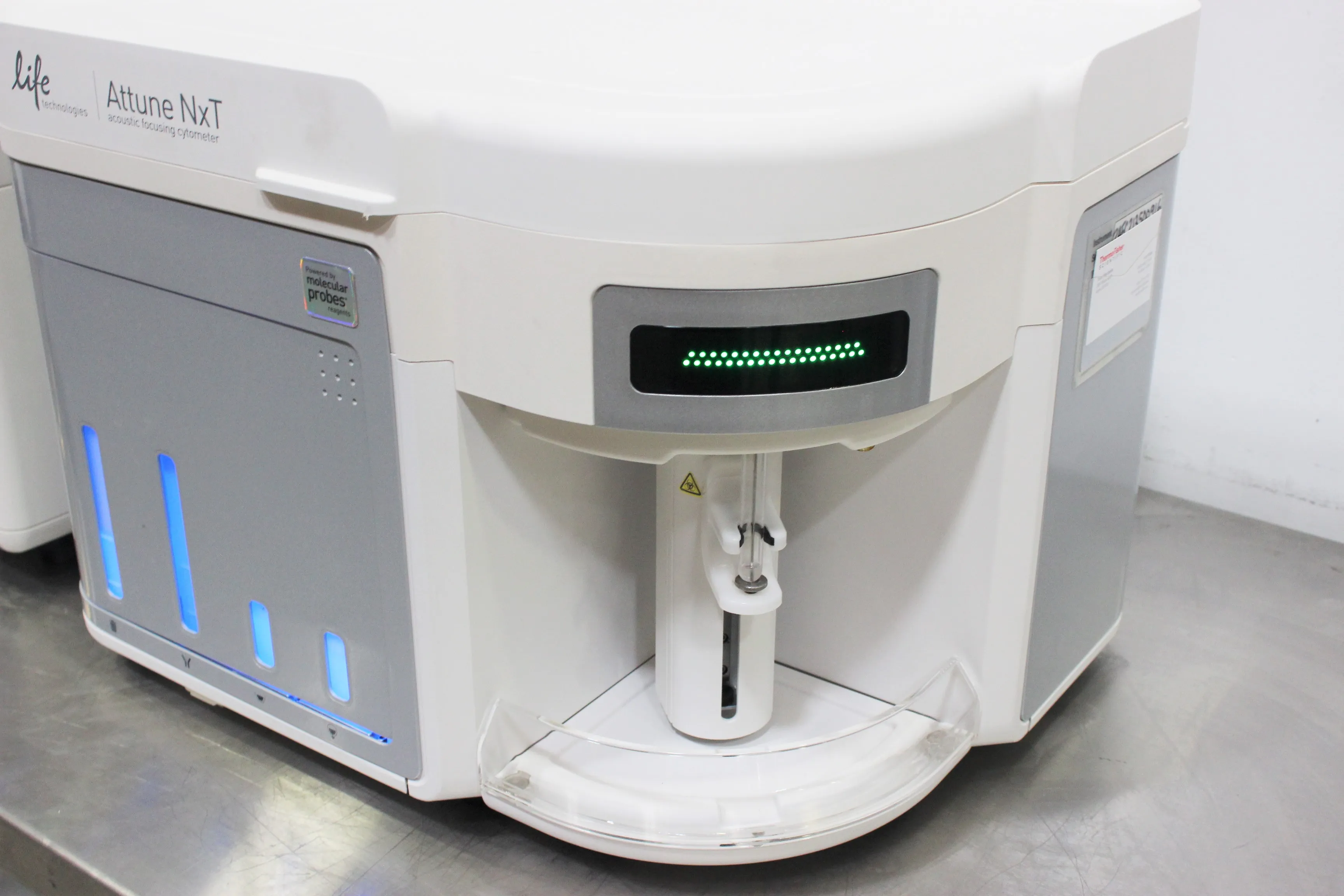

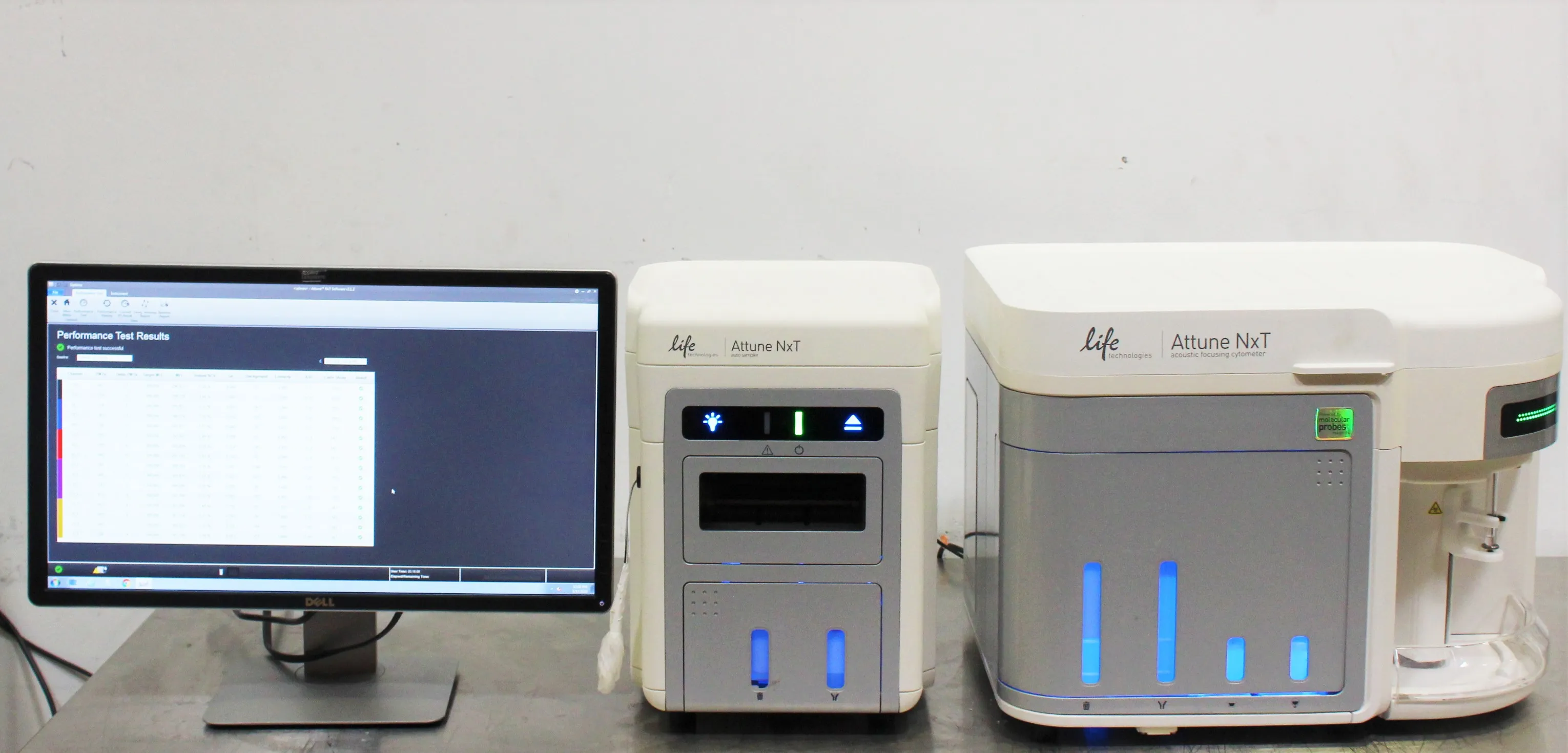

Applied Biosystems NxT Acoustic Focusing Cytometer for Flow Cytometry

Product Information

"The Attune NxT Acoustic Focusing Cytometer has expanded functionalities to drive your research forward. Designed and developed to remove common barriers associated with flow cytometry, the evolutionary capabilities of the Attune NxT flow cytometer offer adaptable optical configuration options (only what is listed is included in this listing) so you can get the most out of your multicolor analysis. The unit features adaptable optical configuration options that provide expandable functionalities. It is designed to drive your research forward by removing common barriers associated with flow cytometry. The Attune NxT flow cytometer provides evolutionary capabilities to get the most out of multicolor analysis." The Attune NxT Acoustic Focusing Cytometer is a state-of-the-art instrument with advanced functionalities to enhance cell analysis, molecular biology research, and immunology studies.

• Expanded functionalities for advanced cell analysis
• Adaptable optical configuration options
• Evolutionary capabilities for multicolor analysis
• Optimized to remove common barriers associated with flow cytometry

• Laser profile: 10 x 50 m flat-top laser providing robust alignment

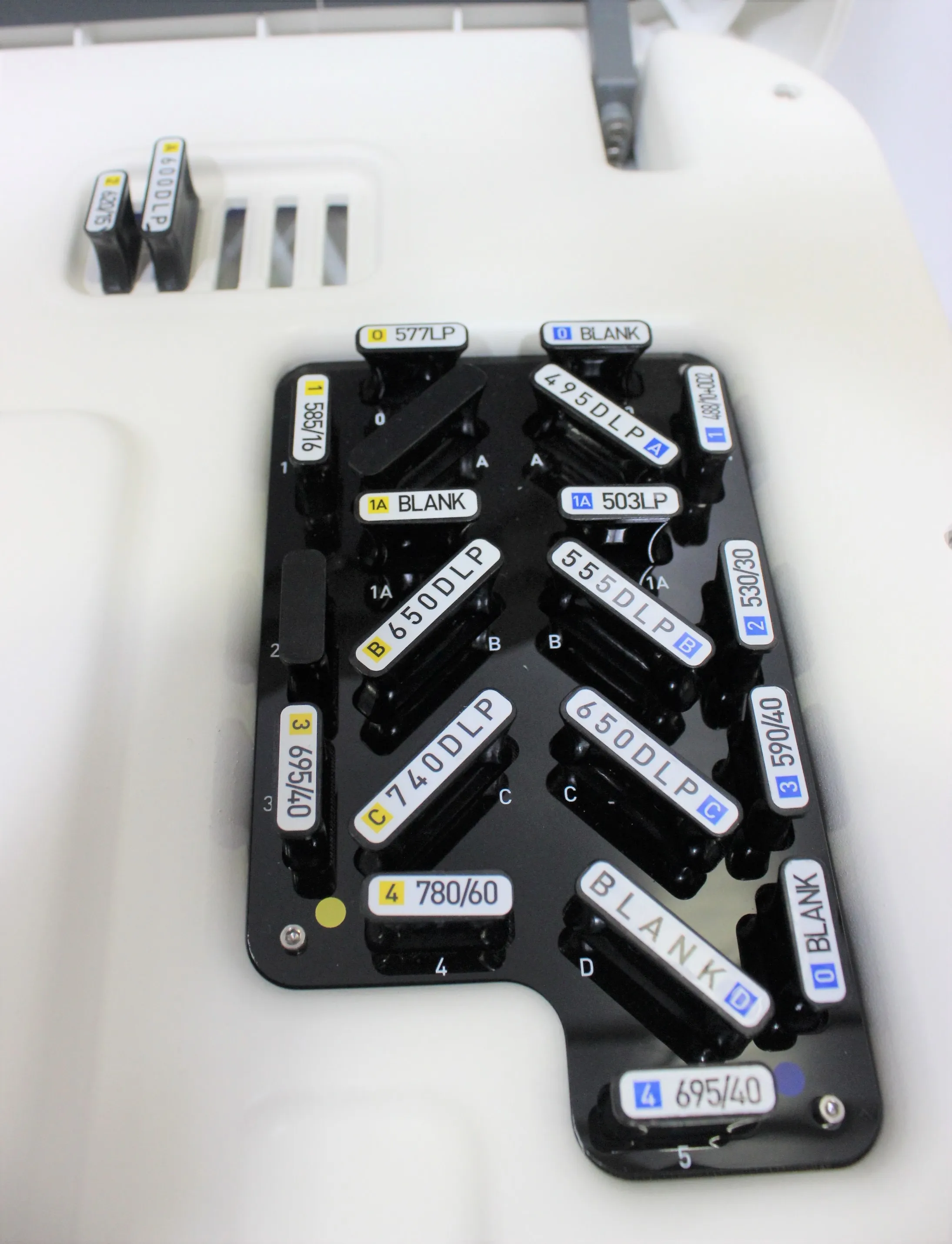

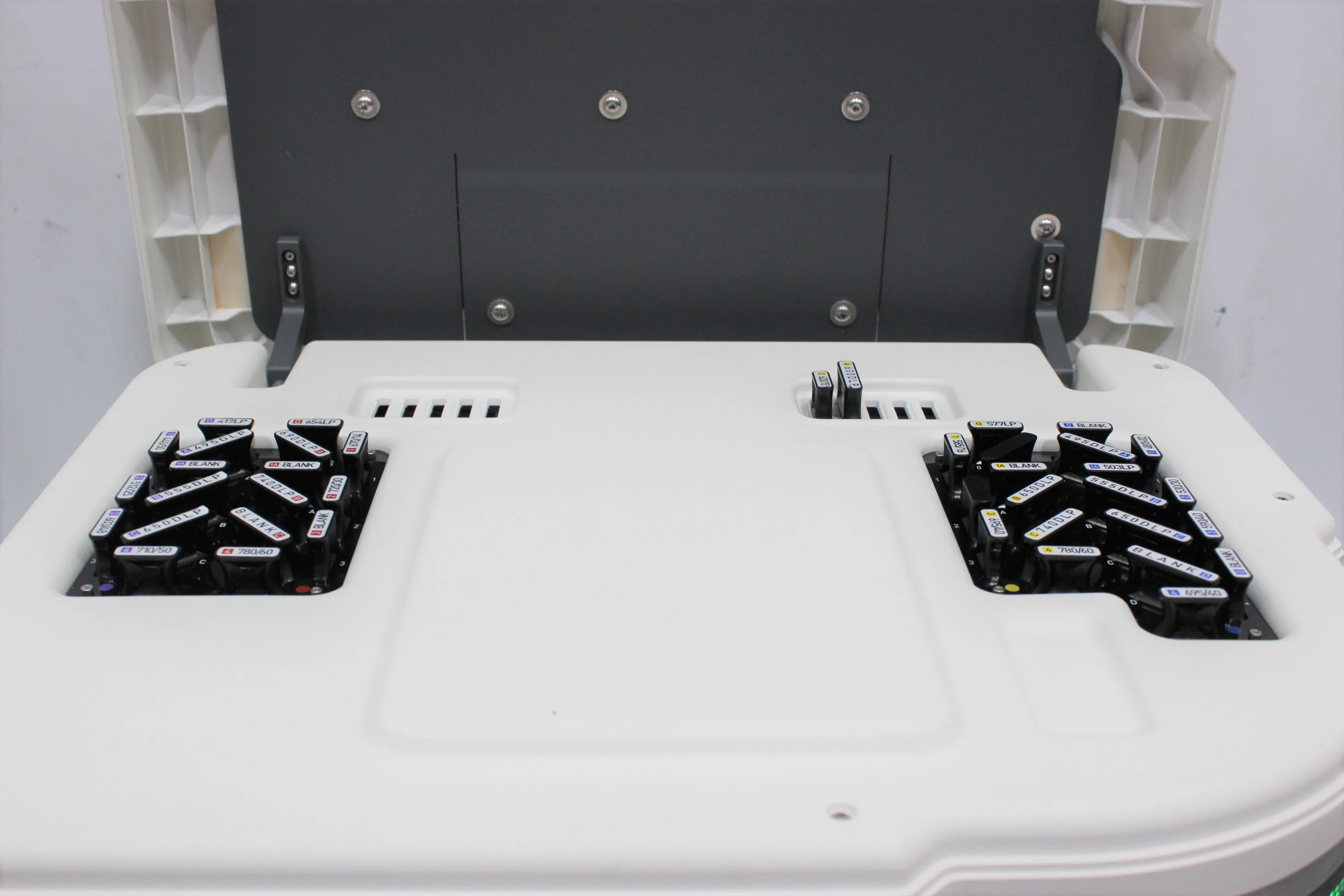

• Emission filters: Up to 14 color channels with wavelength-tuned photomultiplier tubes (PMTs); userchangeable, keyed filters
• Laser separation: 150 m
• Optical alignment: Fixed alignment with prealigned welded fiber; no user maintenance required
• Onboard thermoelectric cooler: No warm-up delay; fiber isnt affected by on/off
• Simmer mode: Instant on/off reduces usage and/or aging by 10x; only keep it on when acquiring samples; reports hours of usage
• Fluidics flow cell: Quartz cuvette gel coupled to 1.2 numerical aperture (NA) collection lens, 200 x 200 m
• Sample analysis volume: 20 L to 4 mL
• Custom sample flow rates: 12.51,000 L/min
• Sample delivery: Positive-displacement syringe pump for volumetric analysis

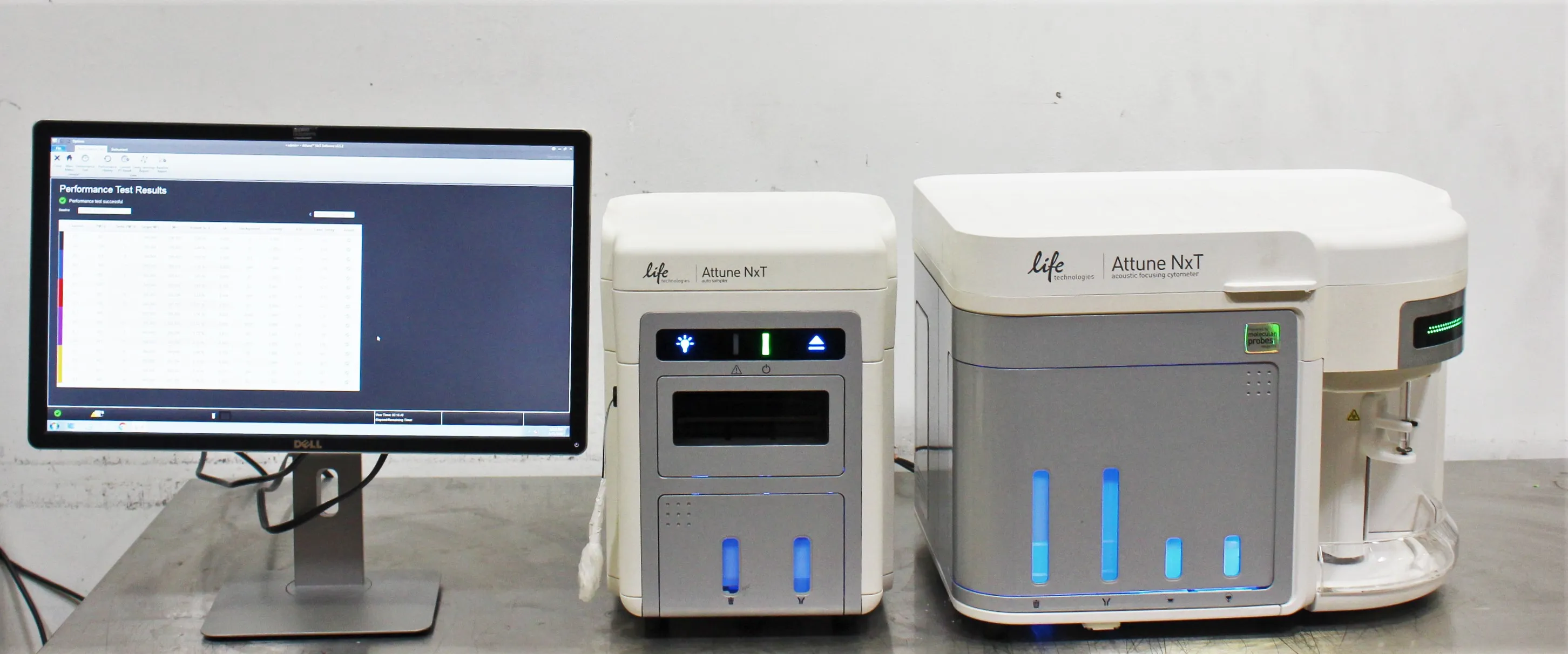

• Attune Autosampler: High-throughput mode acquisition time: <42 min for 96-well plate, <180 min for 384-well plate (using one rinse and one mix, and full analysis of a 40 L sample)

Metric: 68.04 kg
Imperial: 150 lbs

Metric: 61 cm x 32 cm x 28 cm
Imperial: 24 in x 12.6 in x 11 in

901819
