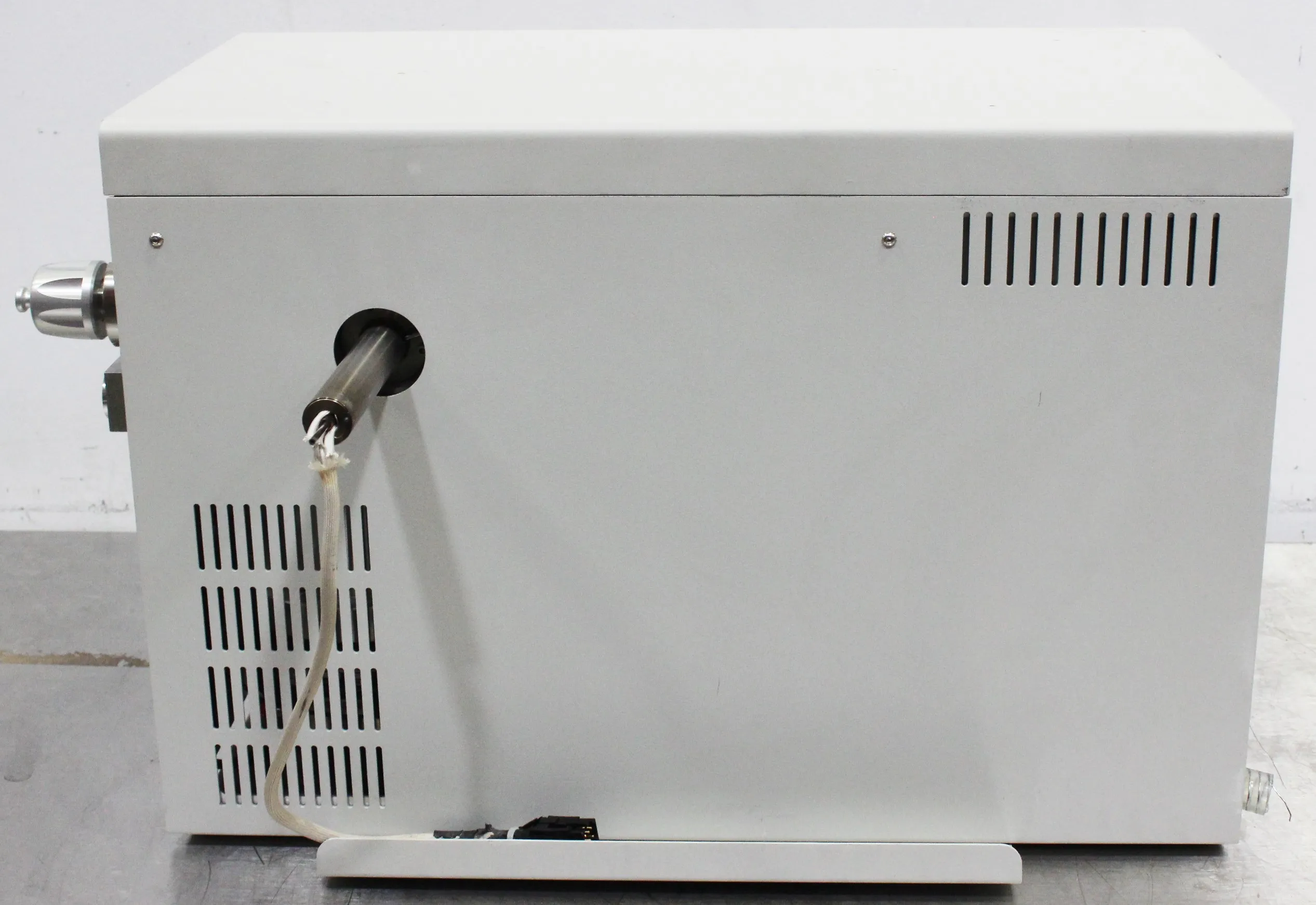

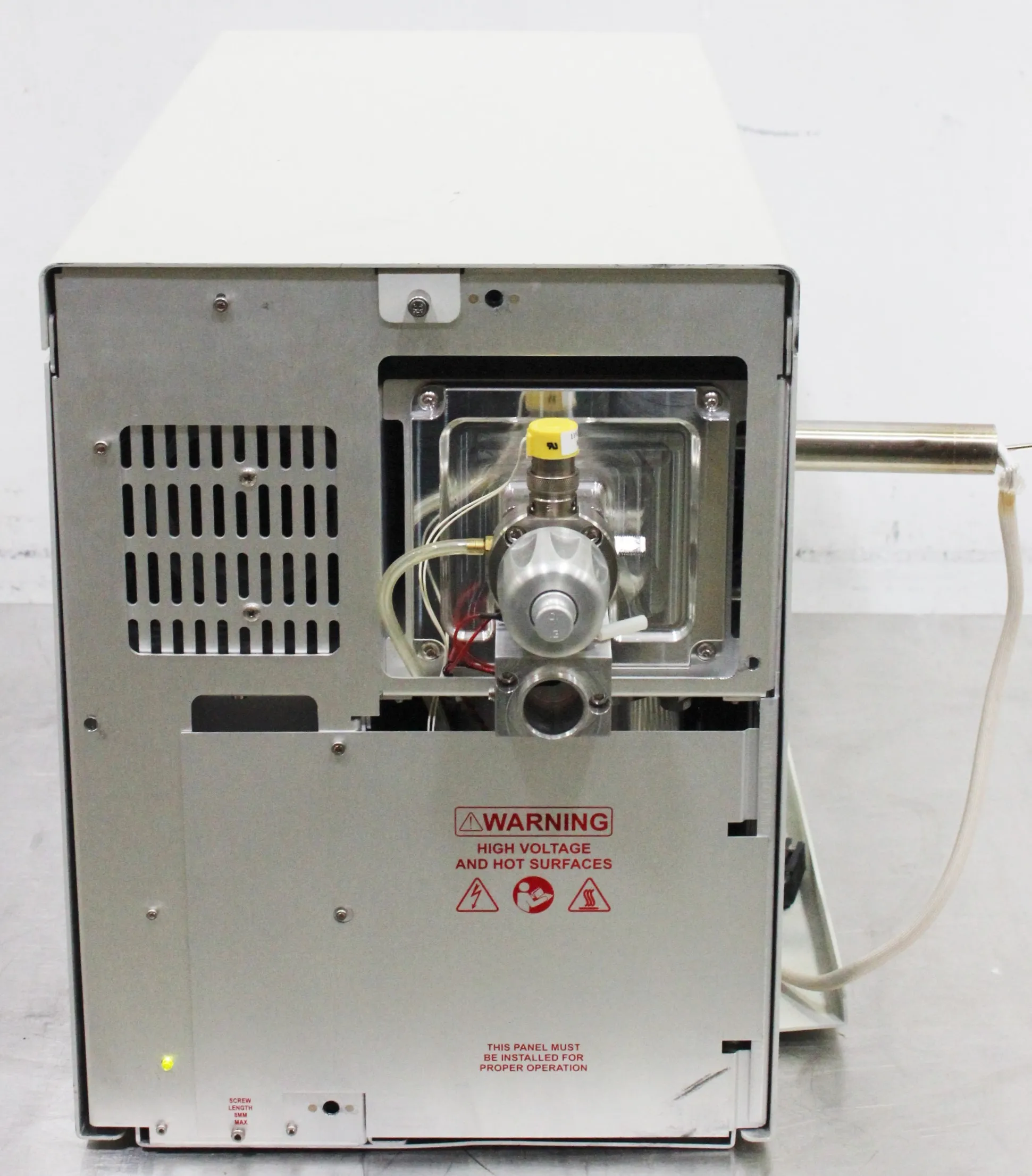

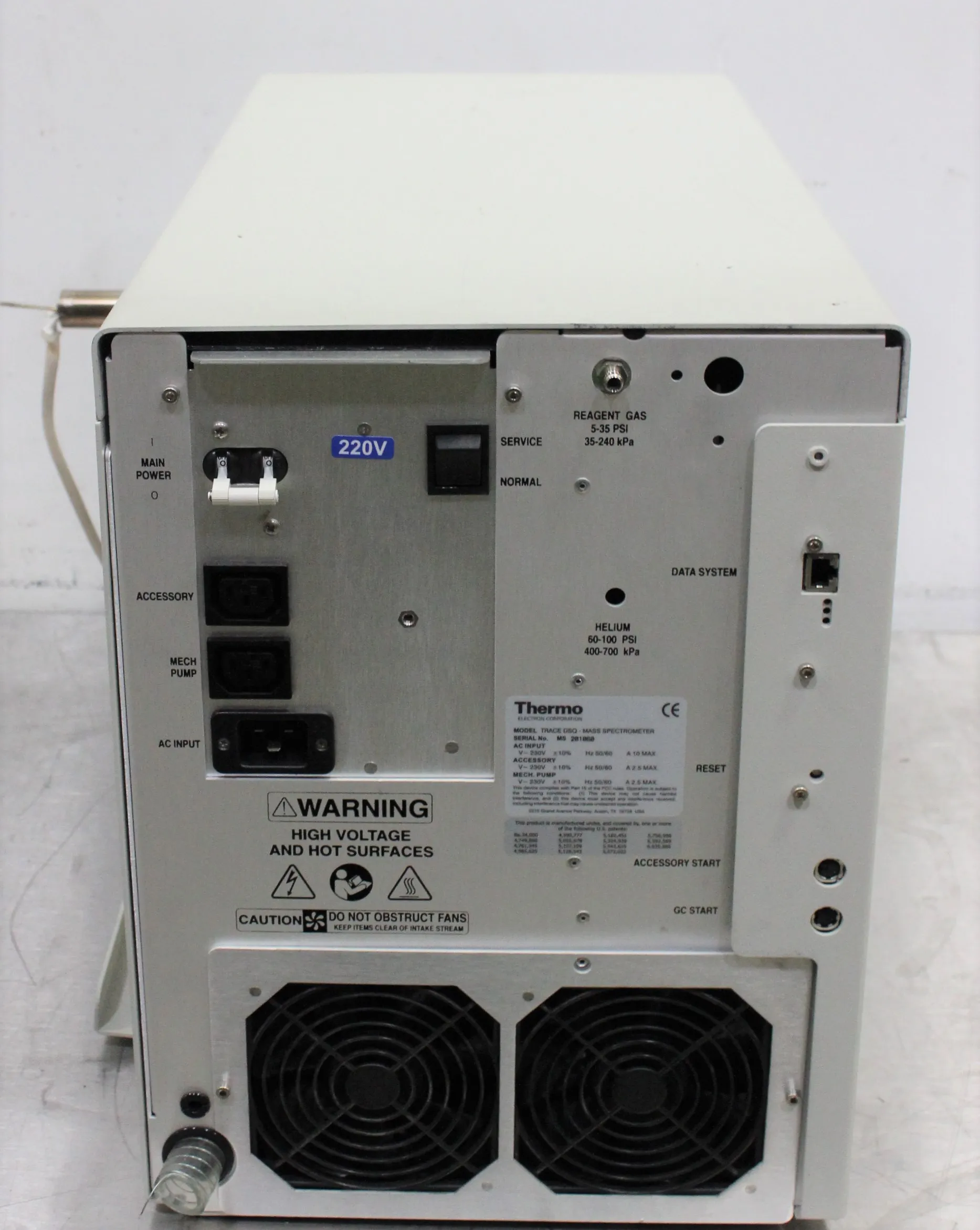

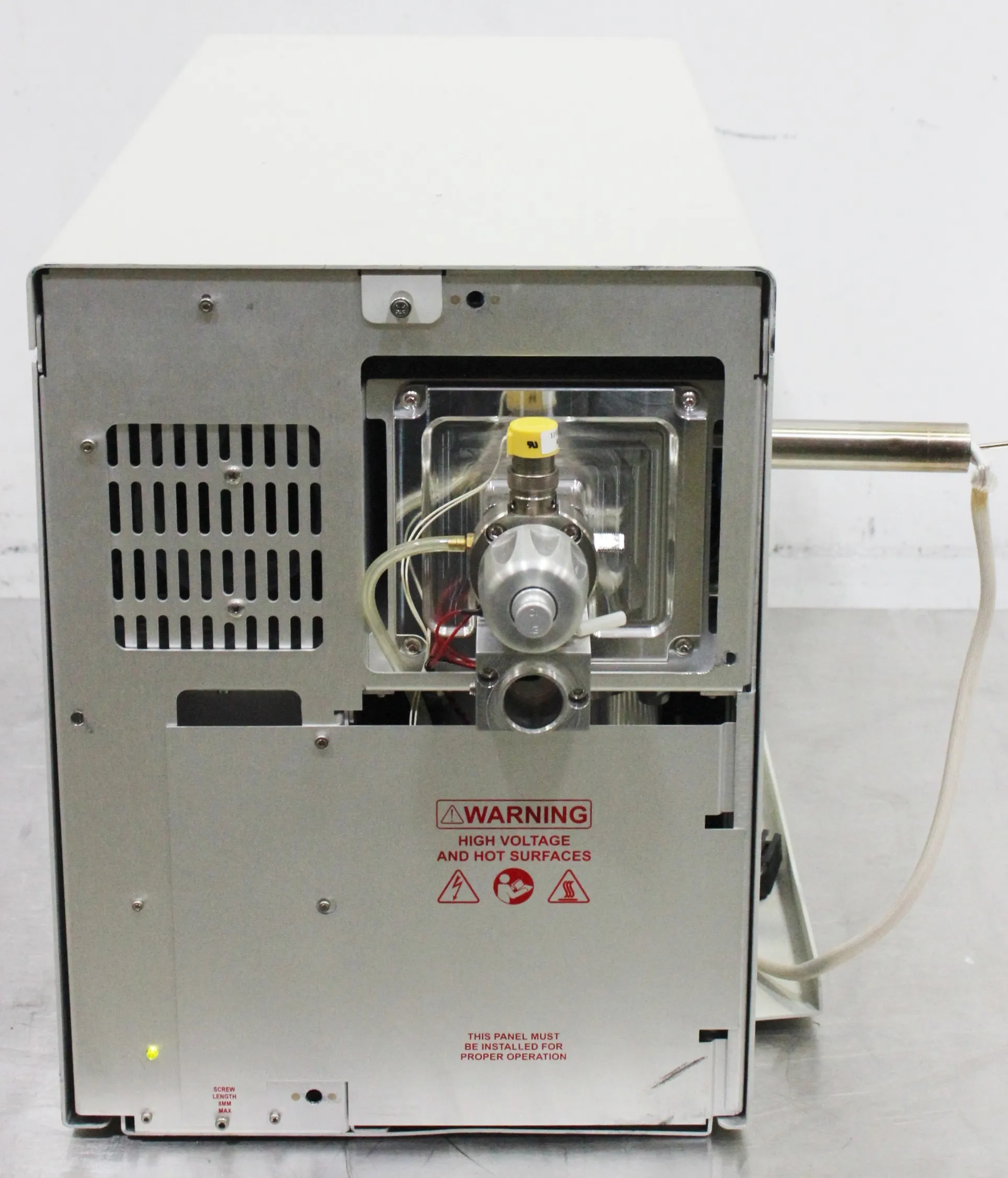

Thermo Scientific Trace DSQ Mass Spectrometer

Product Information

Introducing the Thermo Scientific Trace DSQ Mass Spectrometer, a revolutionary benchtop system that takes trace level analysis to the future with a curved optics design and new Ion Bright source, offering a fundamental improvement in analytical results. This system is capable of achieving sub-ppb level performance, and despite the missing front cover, it ensures exceptional analytical precision and accuracy. With a mass range of 1-1050 amu, scan speeds up to 10,000 amu/sec, and a wide spectral/quantitative dynamic range, this mass spectrometer is ideal for applications such as environmental testing, pharmaceutical research, and chemical analysis. The curved pre-filter for noise reduction and 10 kV conversion dynode provide better performance, and the combination ion volume allows for automated EI/CI operation. This system is a testament to Thermo Electron's commitment to innovative technology and reliable performance.

• Revolutionary curved optics design
• New Ion Bright source
• Mass range of 1-1050 amu
• Scan speeds up to 10,000 amu/sec
• Wide spectral/quantitative dynamic range
• Curved pre-filter for noise reduction
• 10 kV conversion dynode
• Automated combination ion volume for EI/CI operation

• Mass range: 1-1050 amu
• Scan speeds: Up to 10,000 amu/sec
• Noise reduction: Curved pre-filter design for noise reduction
• Conversion dynode: 10 kV for better performance
• Dynamic range: Wide spectral/quantitative dynamic range
• Ion volumes: Removable ion volumes for EI and CI, combination ion volume for automated EI/CI operation
• Voltage: 220V
• Hertz: 50Hz/60Hz
• Current condition: Used, Class 3 - Service
• Manufacturing date: Not specified
• Warranty: AS-IS
• Dimensions: Not specified
• Weight: Not specified

Metric: 39.46 kg
Imperial: 87 lbs

Metric: 38 cm x 26 cm x 26 cm
Imperial: 14.96 in x 10.24 in x 10.24 in

902720

902720 - Mass spectrometers, featuring a mass analyzing power of better than 10^-5 daltons
