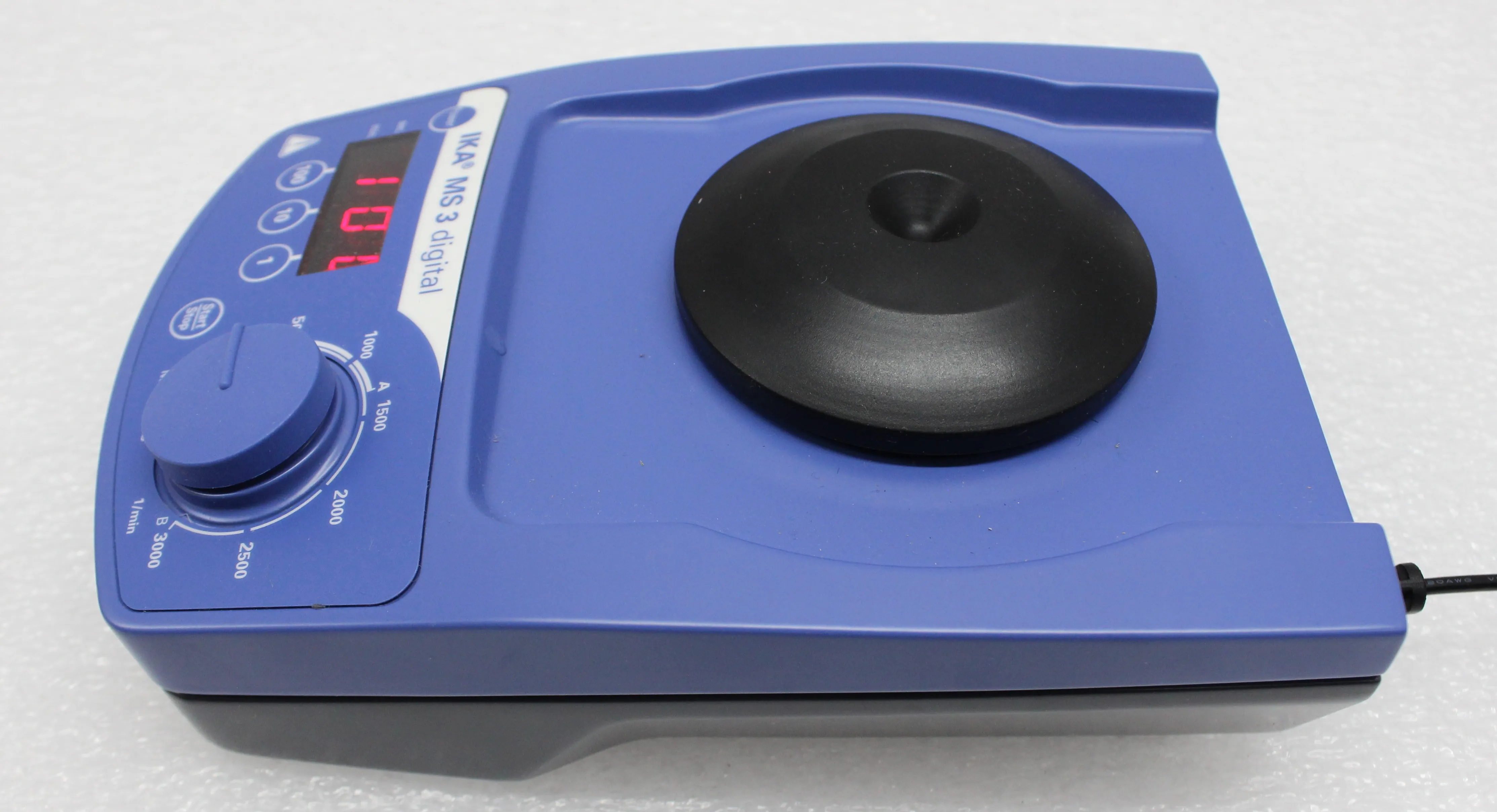

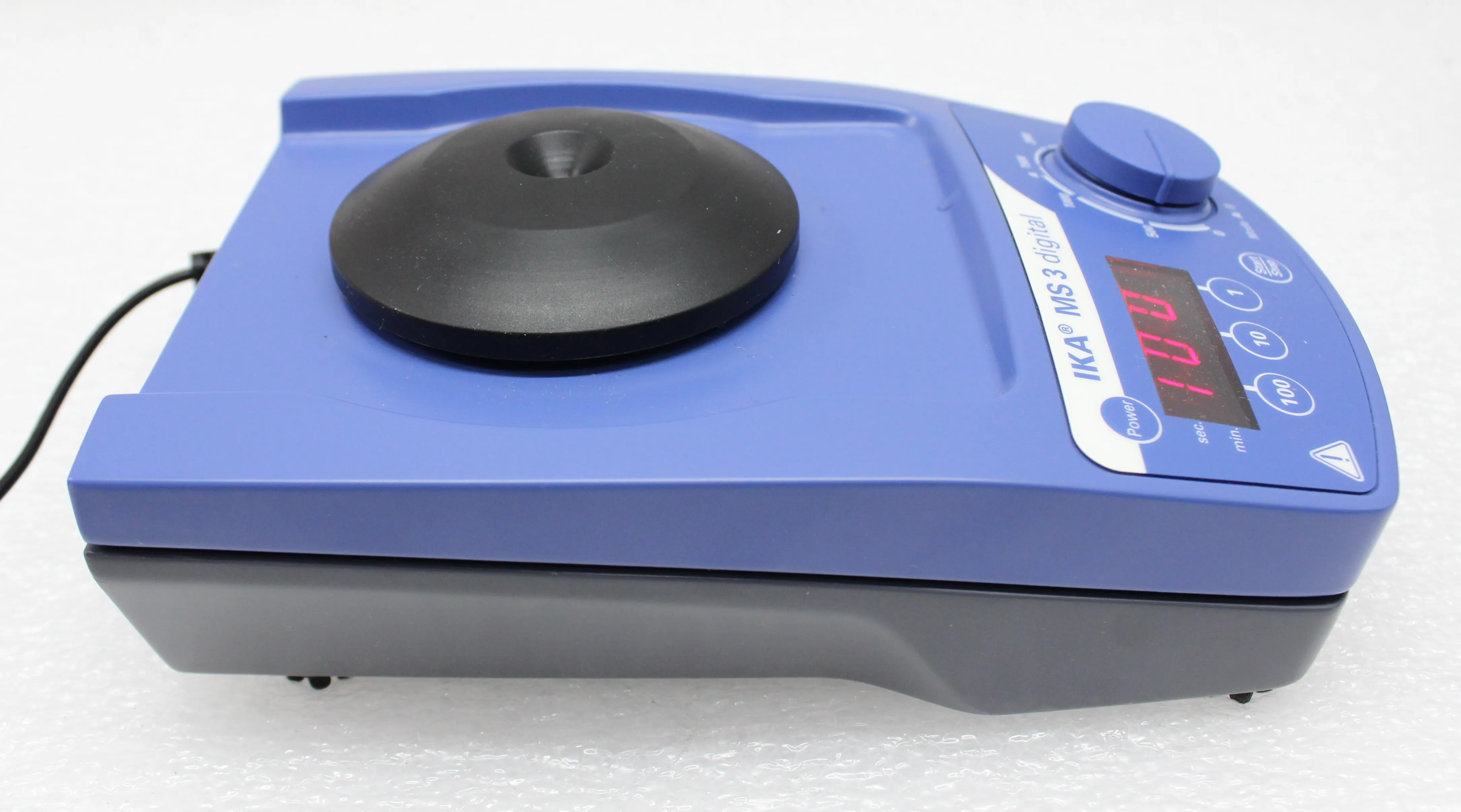

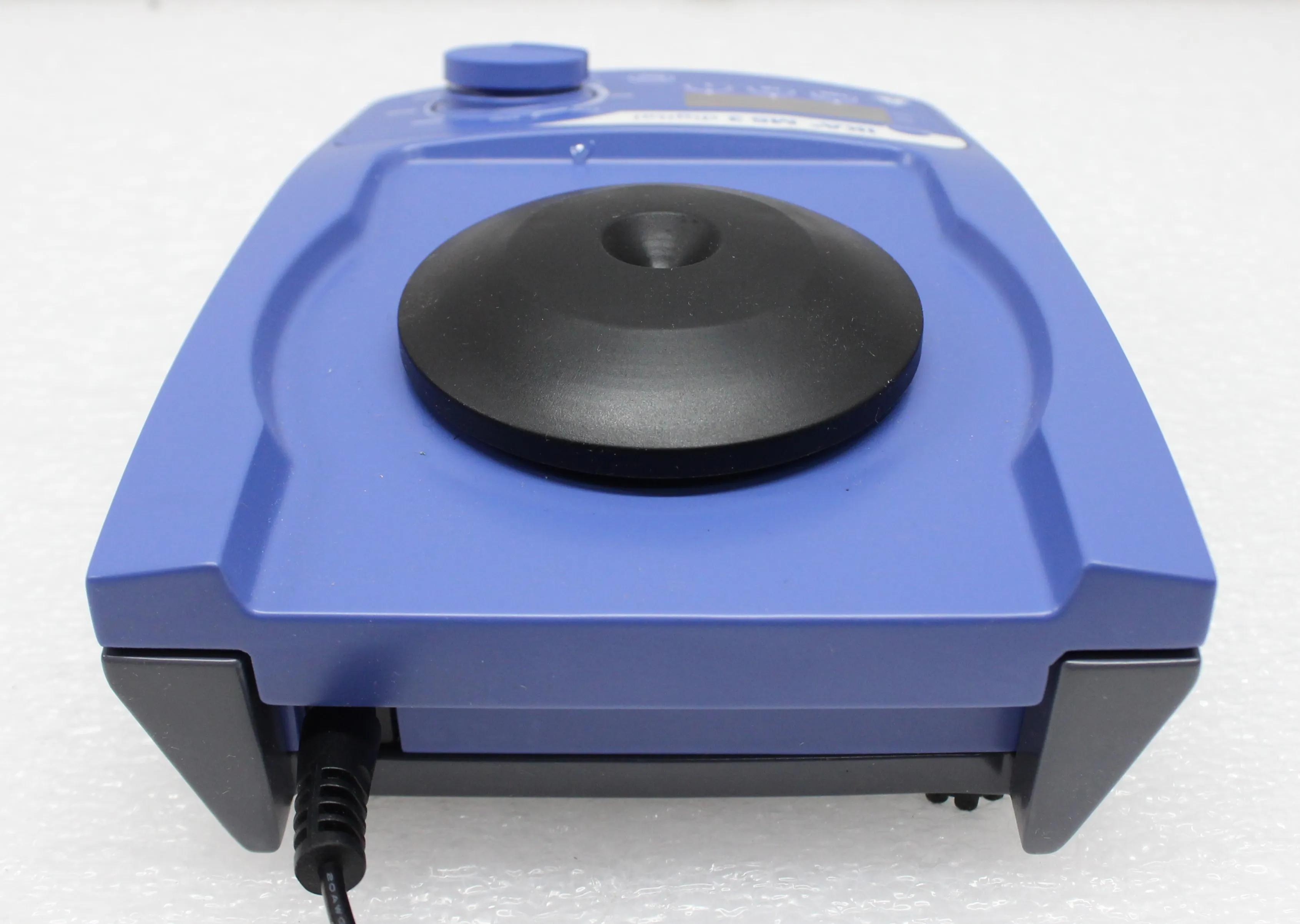

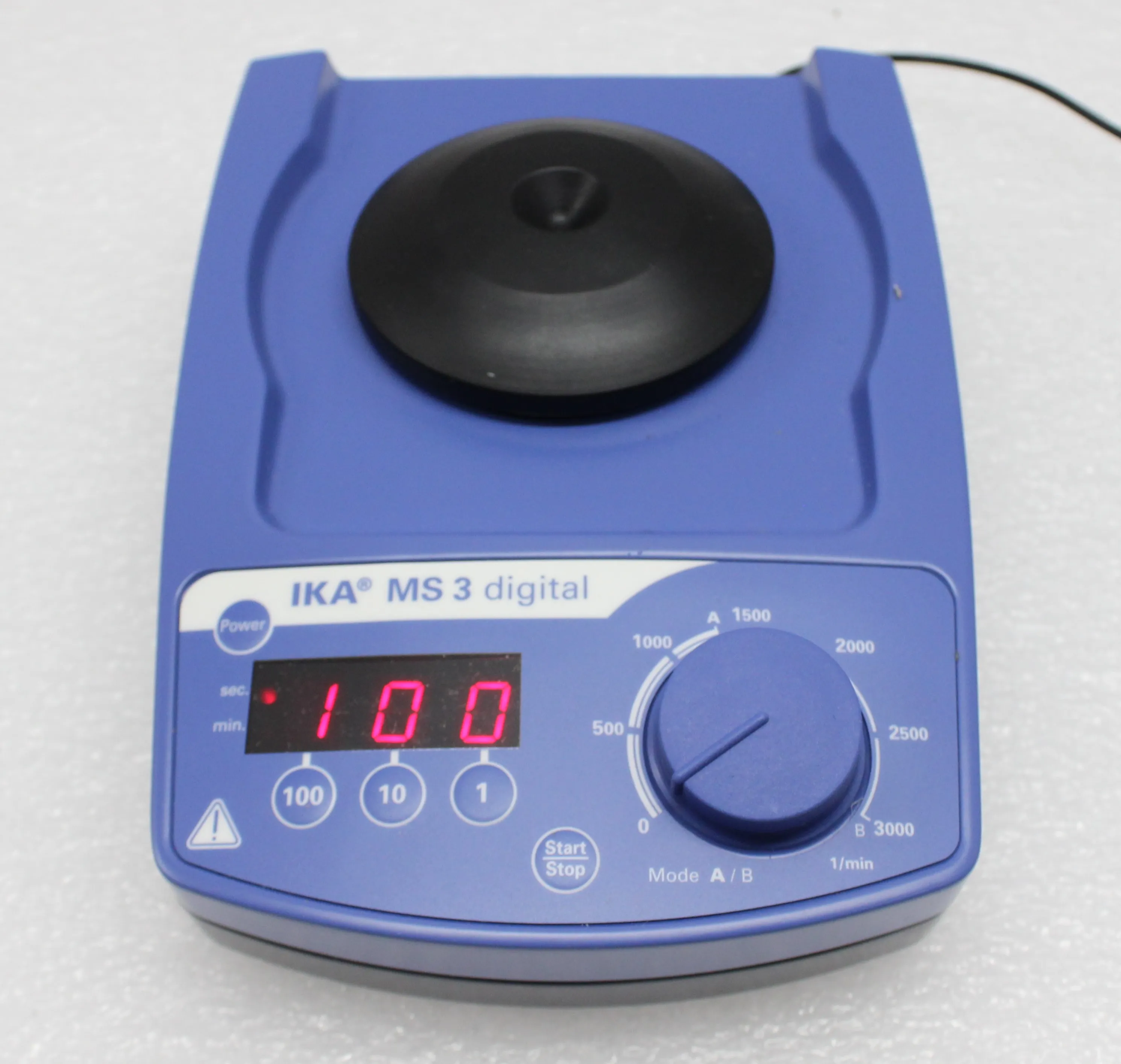

IKA MS 3 D Vortexer Rotator Shaker Lab Equipment

Product Information

Introducing the IKA MS 3 D, a compact, universal small shaker suitable for shaking tasks with all small vessels and microliter plates. With a wide range of attachments, attachment detection, timer with countdown function, continuous or touch operation (with standard attachment), this small shaker is a versatile addition to any laboratory. The manufacturer specifications outline a range of features, including two operating modes, speed display, touch function, working with microtiter plates, and permissible environmental conditions. The IKA MS 3 D is stable in all speed ranges, housed in a sturdy zinc die-cast casing, and its orbital movement can accommodate even the most delicate shaking tasks.

• Wide range of attachments
• Attachment detection
• Timer with countdown function
• Continuous or touch operation
• Two operating modes
• Stable in all speed ranges
• Sturdy zinc die-cast casing
• Orbital movement

• Type of movement: orbital
• Shaker diameter [mm]: 4.5
• Permissible shaking weight (incl. attachment) [kg]: 0.5
• Motor rating input [W]: 10
• Motor rating output [W]: 8
• Permissible ON time [%]: 100
• Speed min (adjustable) [rpm]: 200
• Speed range [rpm]: 0 - 3000
• Speed display: scale
• Timer: yes
• Timer display: 7 segment LED
• Time setting range [min]: 1/60 - 999
• Operating mode: timer and continuous operation
• Touch function: yes
• Working with microtiter plates: yes
• Number of microtiter plates: 1
• Permissible ambient temperature [C]: 5 - 40
• Permissible relative humidity [%]: 80
• Protection class according to DIN EN 60529: IP 21
• Voltage [V]: 100 - 240
• Frequency [Hz]: 50/60
• Power input [W]: 20
• DC Voltage [V=]: 24
• Current consumption [mA]: 800

Metric: 7 kg
Imperial: 15.43236 lbs

Metric: 8 cm x 6 cm x 2 cm
Imperial: 3.14961 in x 2.3622 in x 0.787402 in

902780

The harmonized code 902780 is used for laboratory equipment, indicating that the IKA MS 3 D Vortexer Rotator Shaker falls under this category due to its use in laboratory research, experimentation, and analysis.
