Amray 1920ECO Scanning Electron Microscope

Product Information

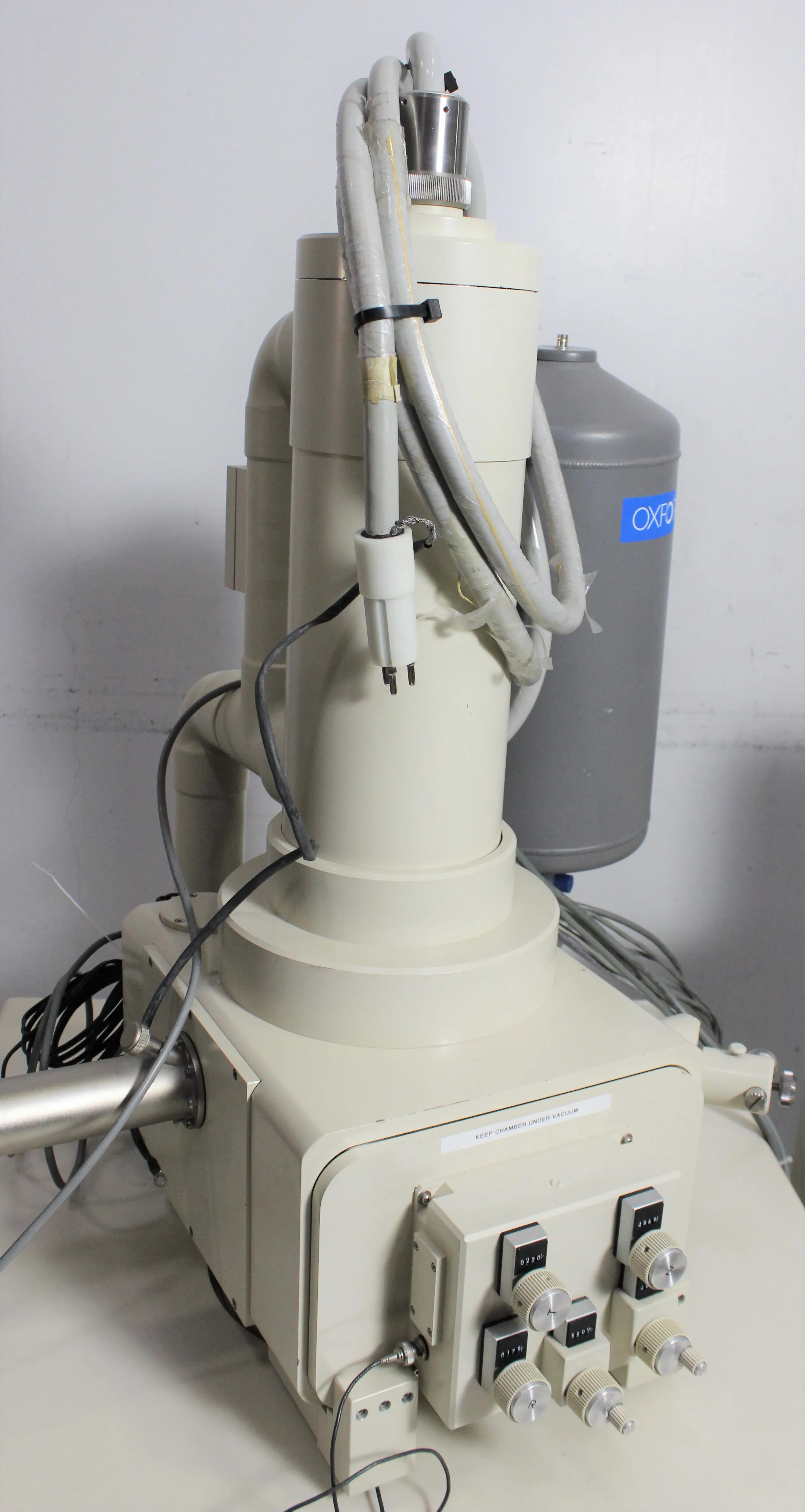

The Amray 1920ECO Scanning Electron Microscope operates at 530kV energy, with a resolution of ~ 5-10 nm under ideal conditions. It is controlled by the SEMView Hardware platform and Win10(TM) compatible software, producing images up to 8k x 8k pixel density. This SEM allows for imaging of thick specimens, thin wafers, metals, ceramics, polymers, and machined materials. It permits filament change and electron column alignment, as well as elemental X-ray analysis with optional EDS system. The SEM is in need of repairs, and part of the unit does not power on. Its capabilities include a resolution of ~ 5-10 nm, 100kx magnification under optimal conditions, and its specimen chamber has a drawer-like design for loading specimens.

• Resolution of ~ 5-10 nm and a magnification of 100kx under optimum conditions

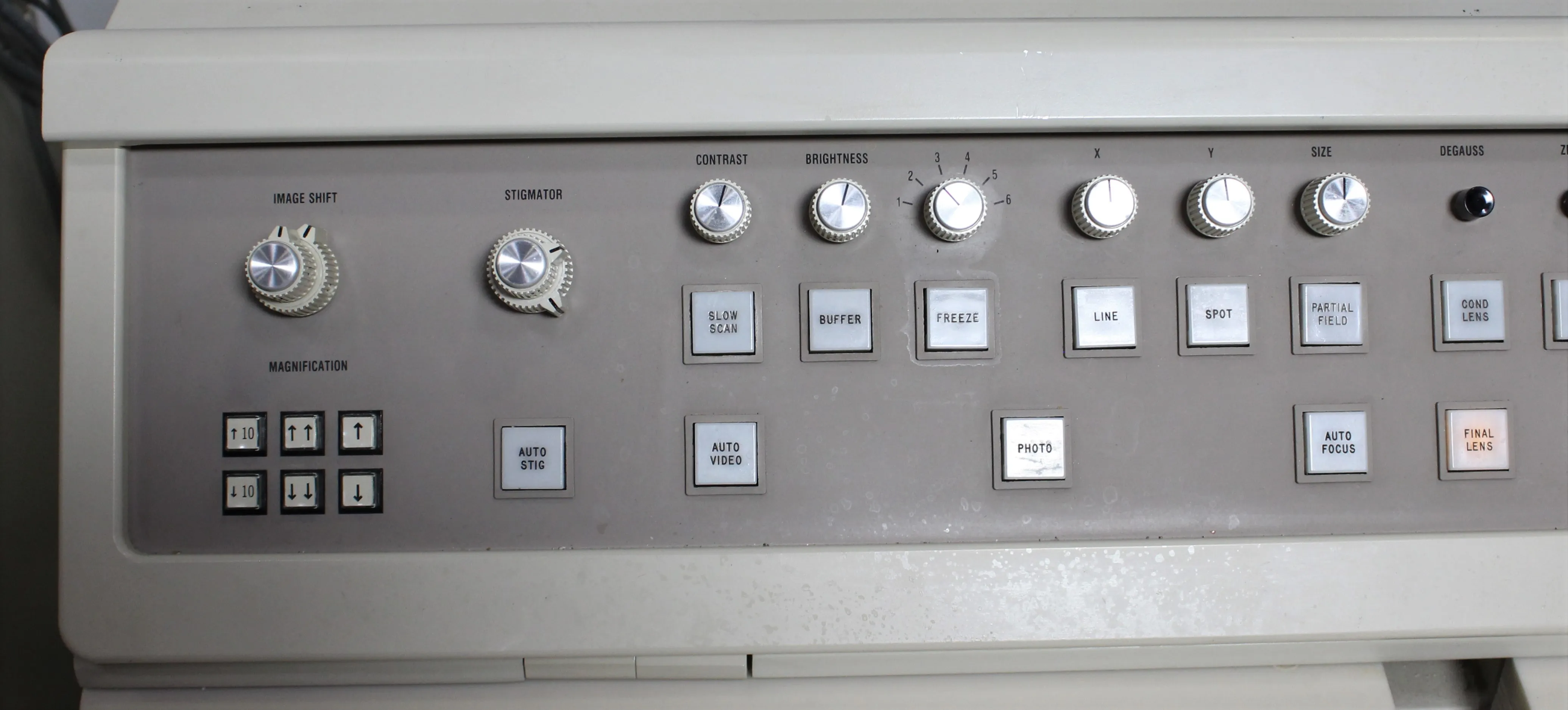

• Mouse-driven SEM controls by the SEMView Hardware platform
• Capable of capturing images up to 8k x 8k pixel density
• Thick specimen and thin wafer imaging
• Elemental X-ray analysis with optional EDS system

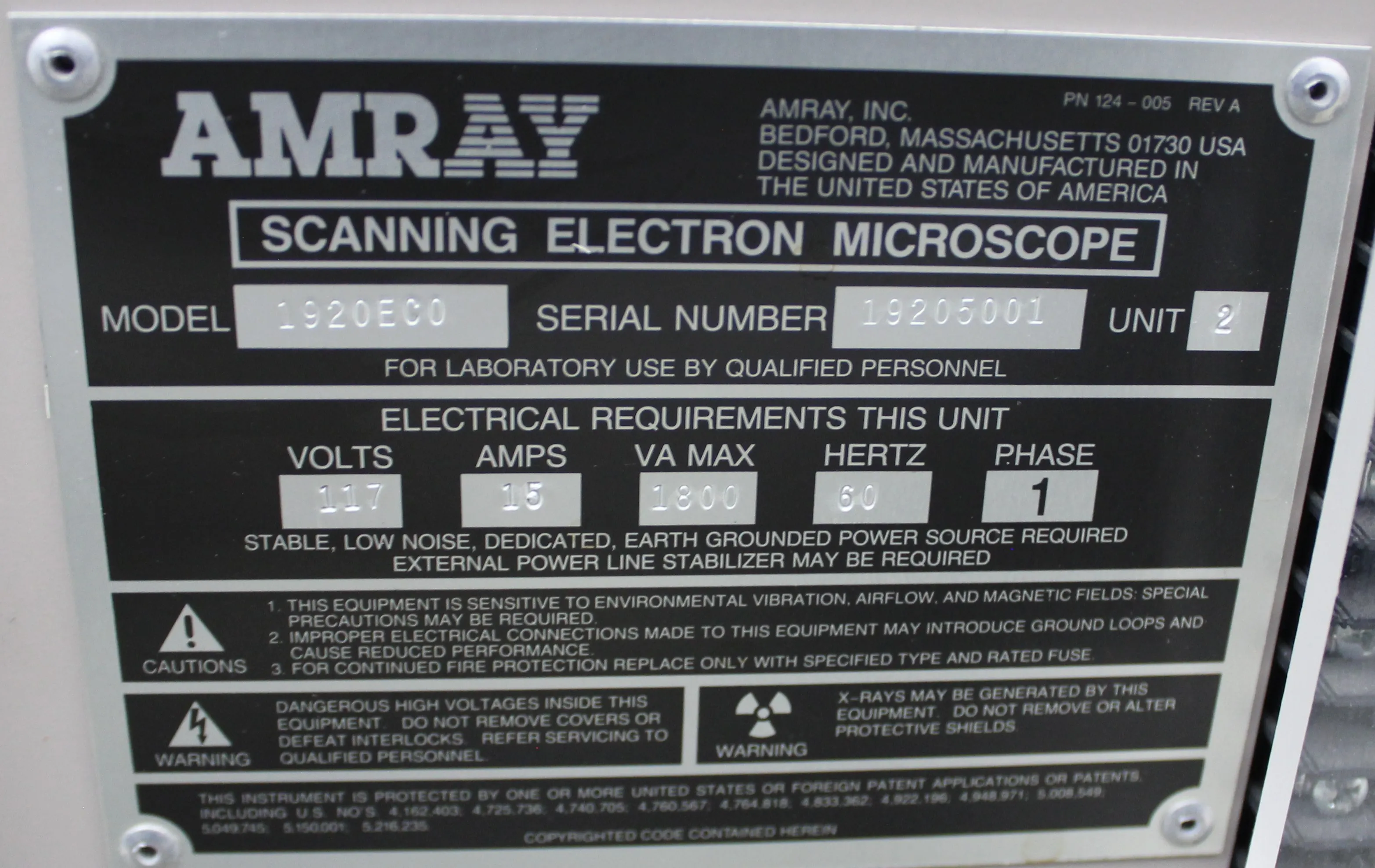

• Operational Voltage: 120V 60Hz US
• Current Condition: Needs repairs
• Weight: 460 kg (1014.13 lbs)
• External Dimensions: 48cm x 113cm x 80cm (18.90in x 44.49in x 31.50in)

Metric: 460 kg
Imperial: 1014.13 lbs

Metric: 48 cm x 113 cm x 80 cm
Imperial: 18.9 in x 44.49 in x 31.5 in
