CUNO 16ZPB2 - Used Laboratory Filtration equipment

Product Information

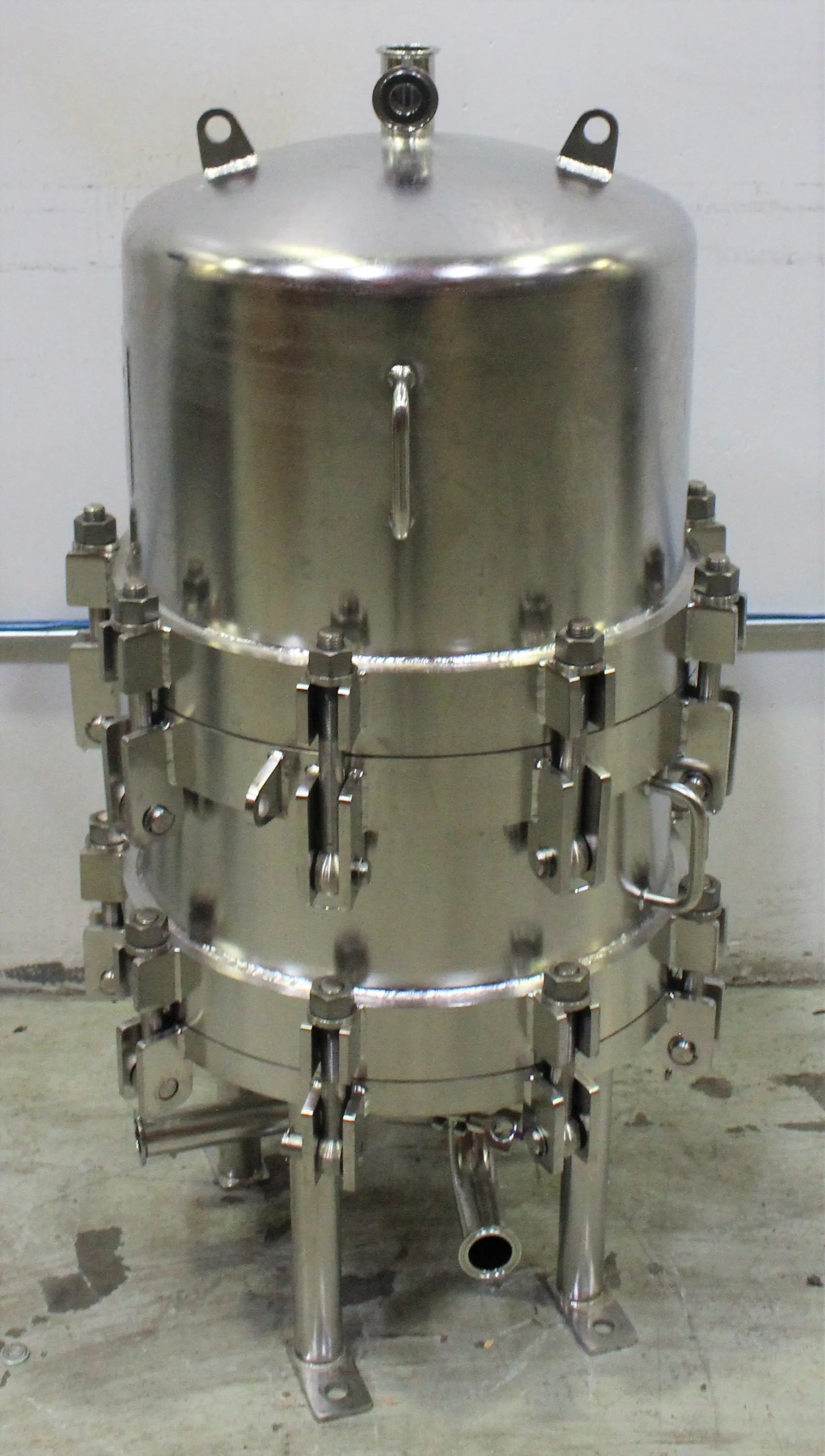

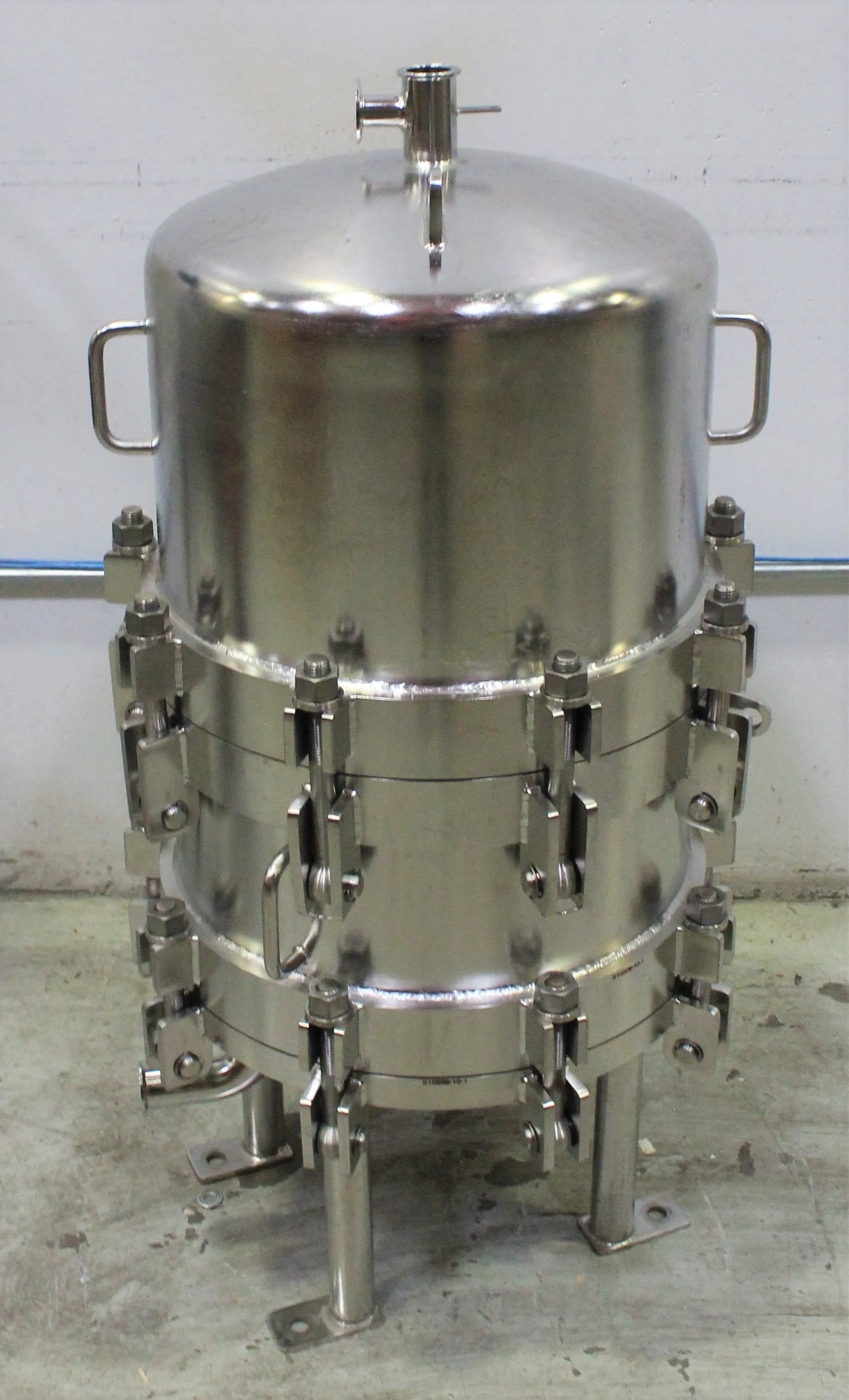

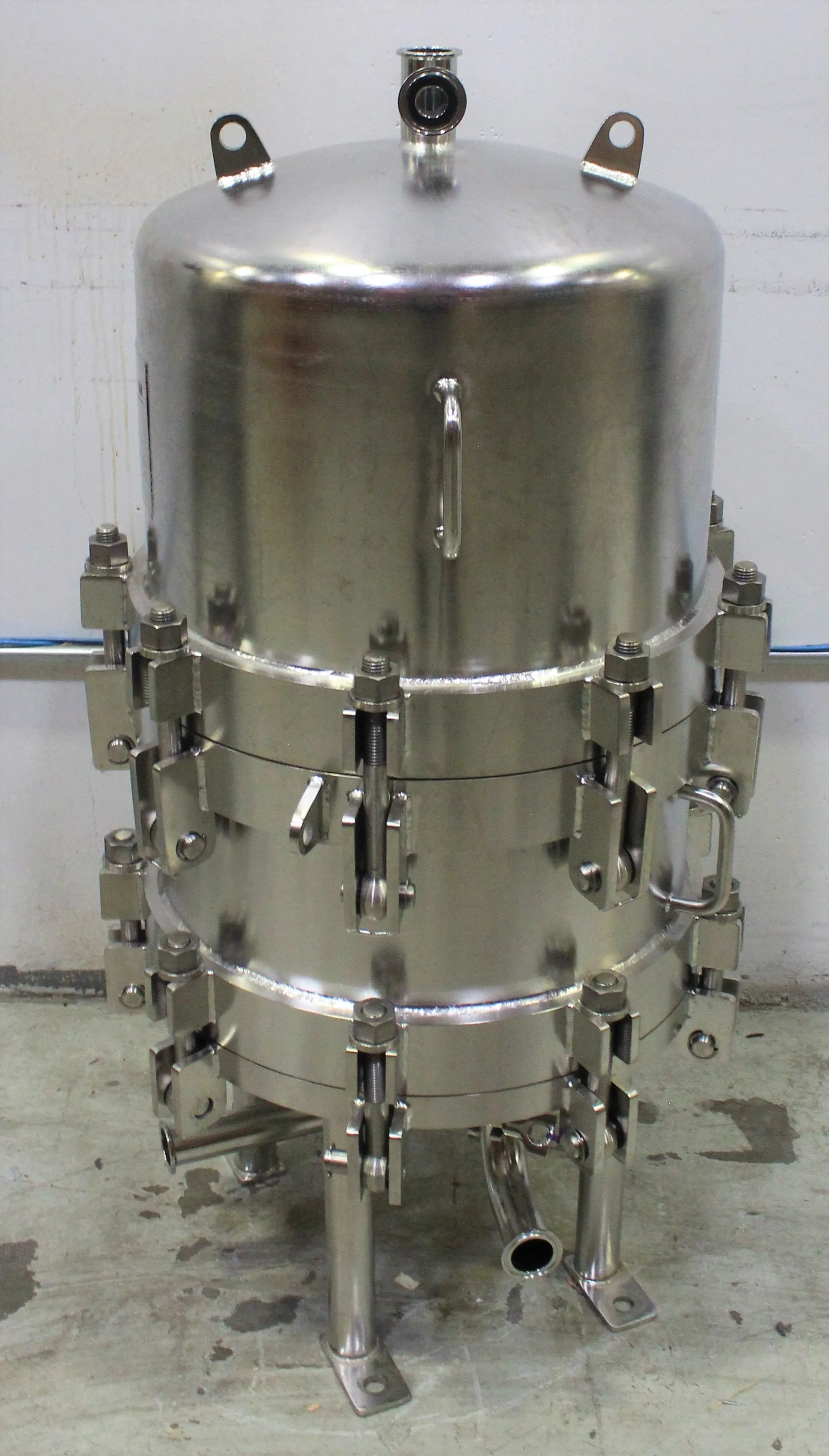

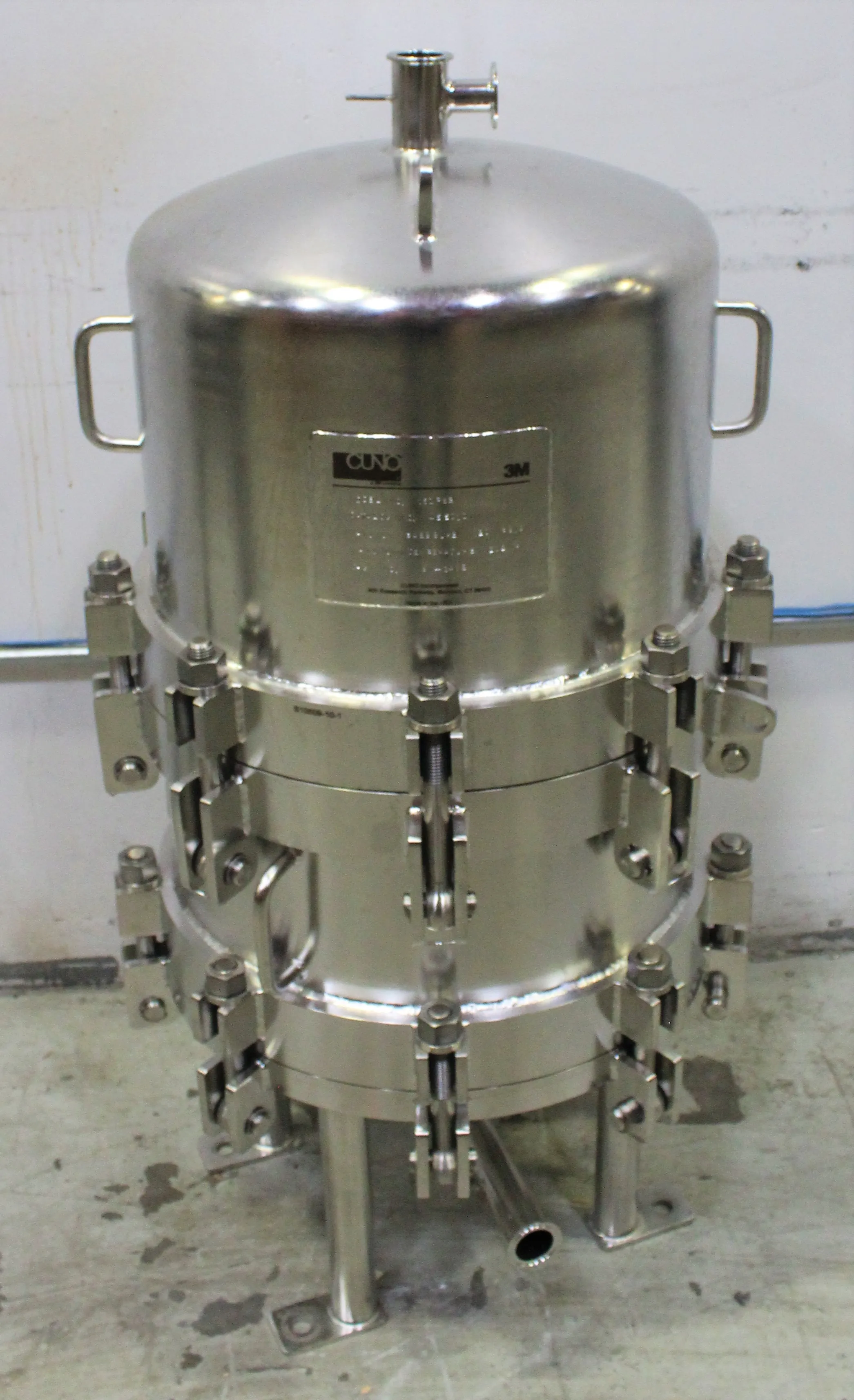

The CUNO 16ZPB2 is a used laboratory filtration system constructed from 316 L stainless steel. It's designed and built in accordance with AD Merkbltter 95, with a pressure rating design of 8 bar g and the capability to withstand temperatures up to 150°C. This ensures compatibility with most process applications. The system has a polished and crevice-free interior and exterior surface, meeting industry requirements for surface finish. It has a design code of AD Merkbltter 95, bolted closure, 16-inch diameter, and uses standard gasket material silicone. The system can accommodate 1 to 4 high cartridges and has different connection sizes and vent connections. It operates at a maximum pressure of 120 PSIG and a temperature of 212 F, with ATEX 94/9/CE certification. Used for a variety of laboratory filtration applications.

• Pressure rating of 8 bar g
• 416 L stainless steel construction
• Temperature resistance up to 150°C
• Bolted closure design
• ATEX 94/9/CE certification

• Design Code - AD Merkbltter 95
• Housing Material (in contact) - 316L (1.4404) Stainless Steel
• Finish - Mechanical Polish < 0.8 micron Ra
• Closure - Bolted
• Diameter - 16 inch
• Standard Gasket Material - Silicone (others on request)
• Number of Cartridges - 1, 2, 3 and 4 high

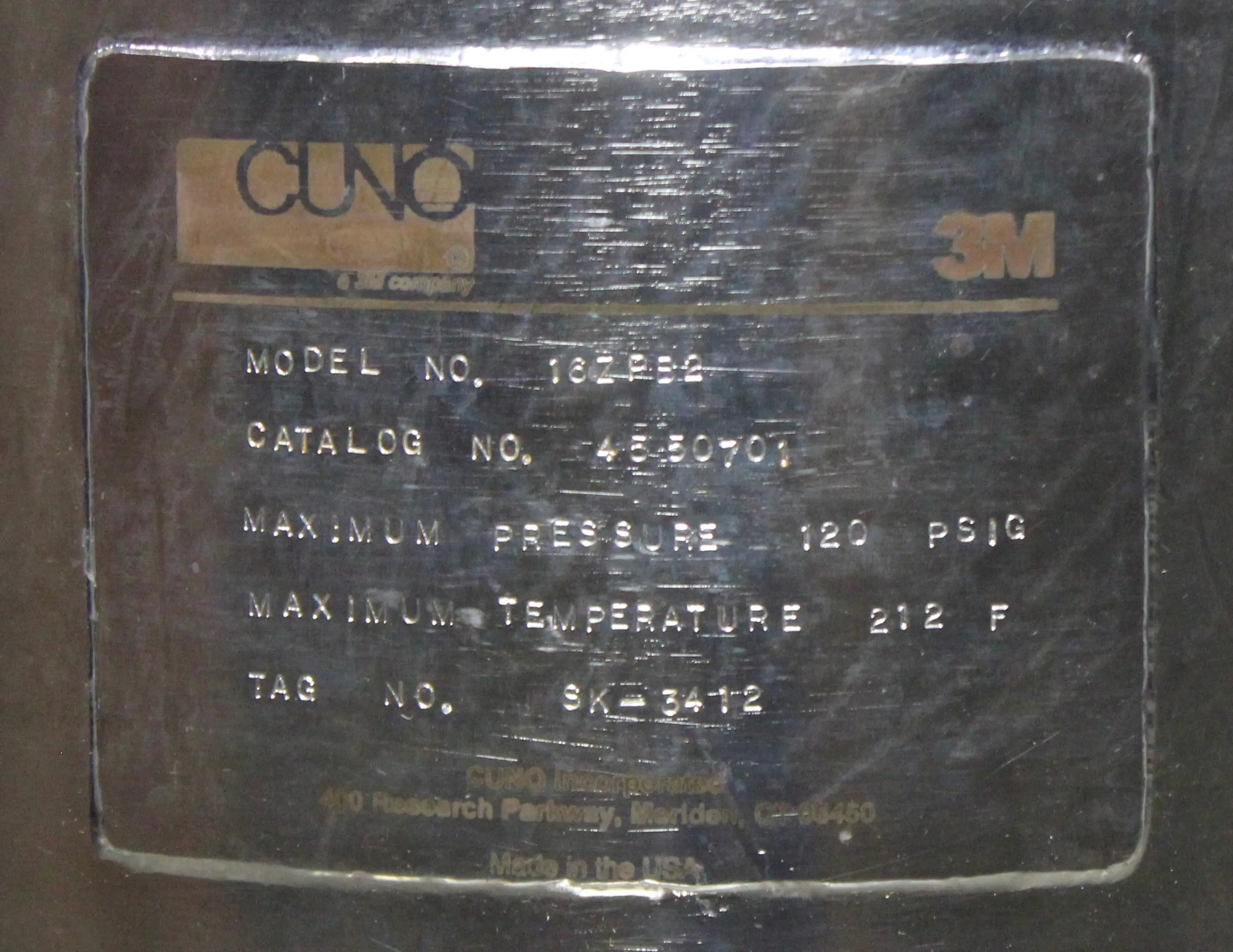

• Max. Operating Pressure - 120 PSIG
• Max. Operating Temperature - 212 F
• ATEX 94/9/CE - II-2-G/D-T5

Metric: 285.76 kg
Imperial: 629 lbs

Metric: 88.9 cm x 58.42 cm x 157.48 cm
Imperial: 35 in x 23 in x 62 in

84212900

This code corresponds to filtering and purifying machinery and apparatus for liquids, classified under HS Code 8421. It's applicable to industrial or laboratory filtration equipment such as the CUNO 16ZPB2.
