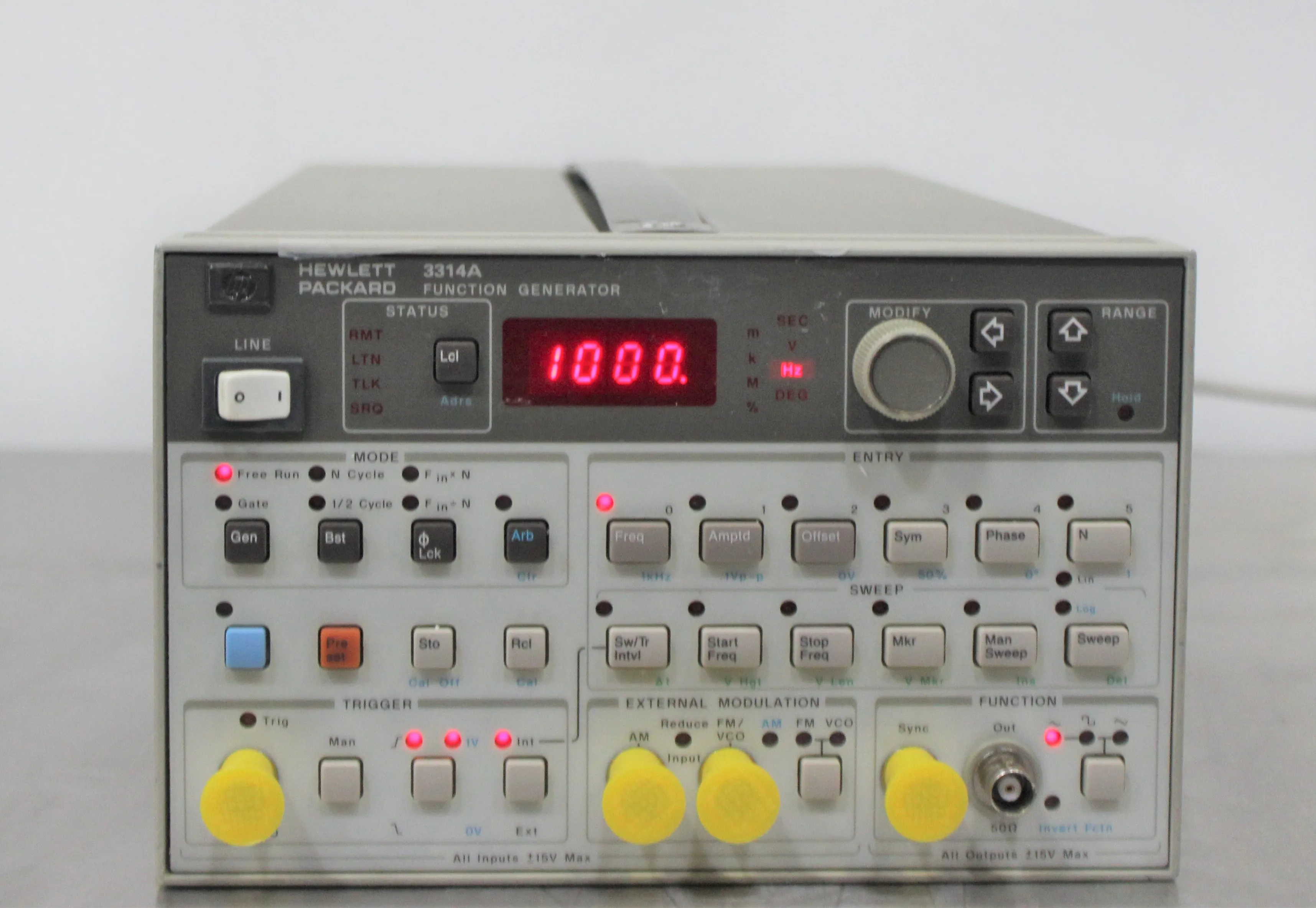

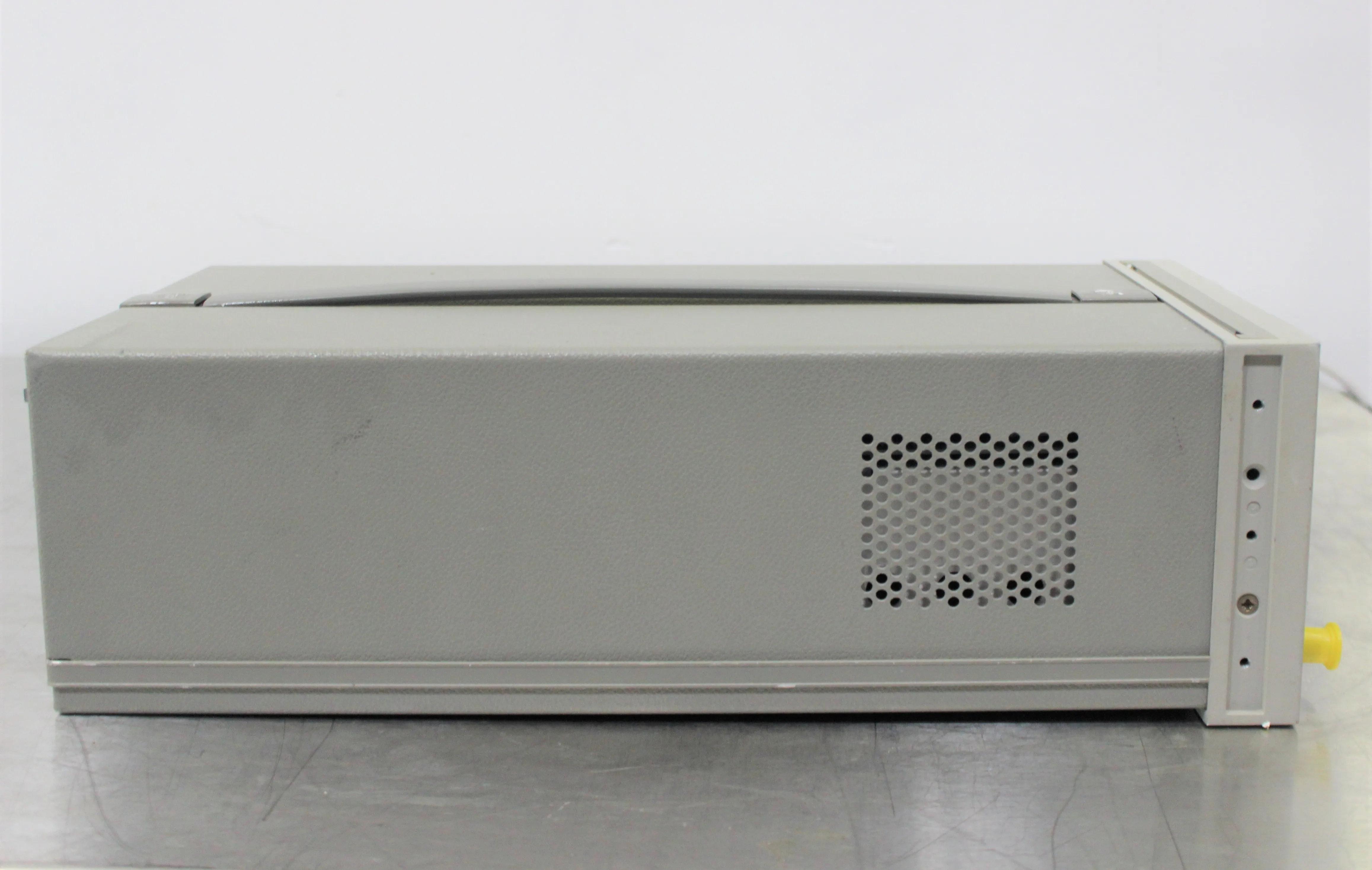

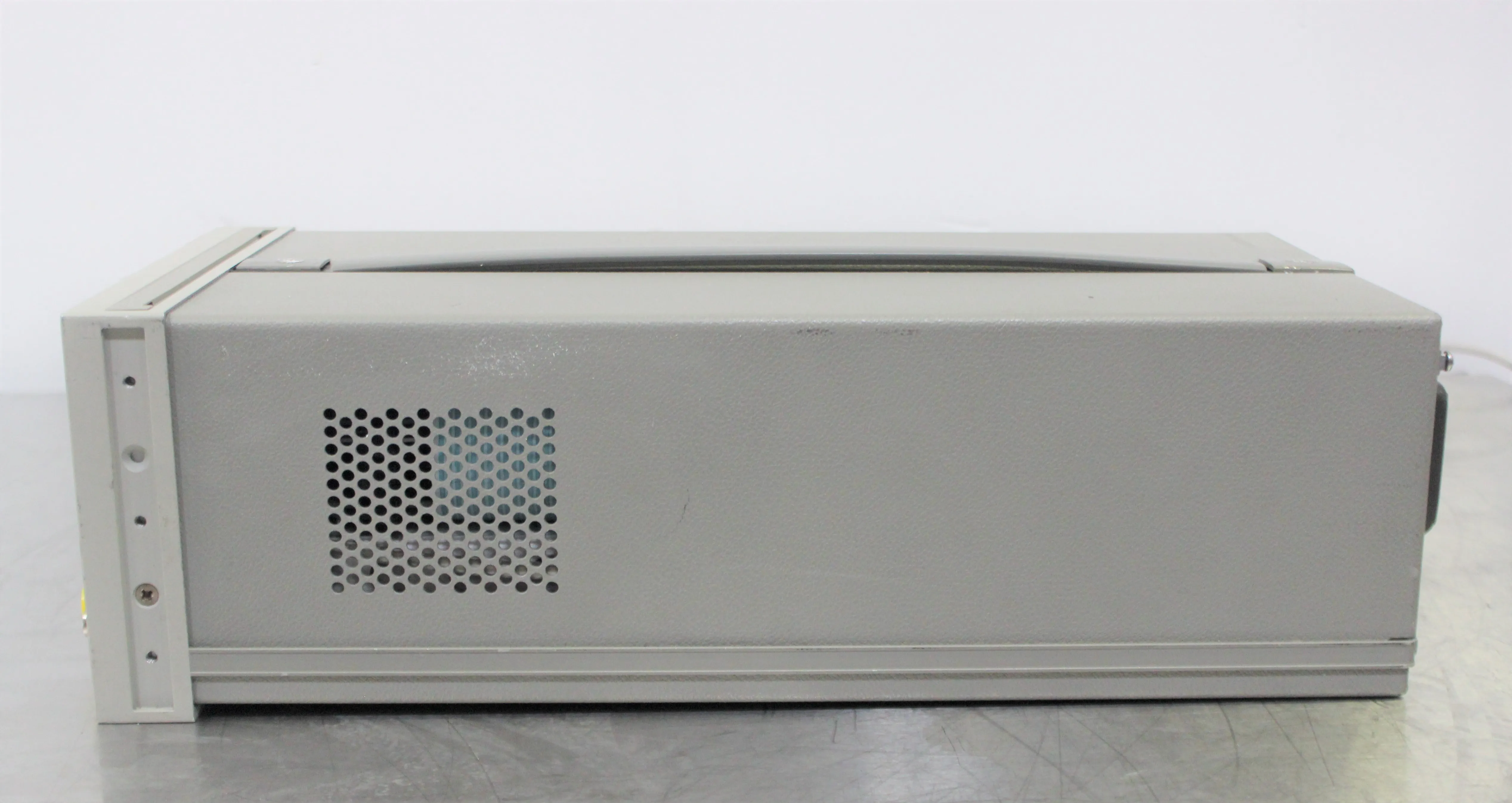

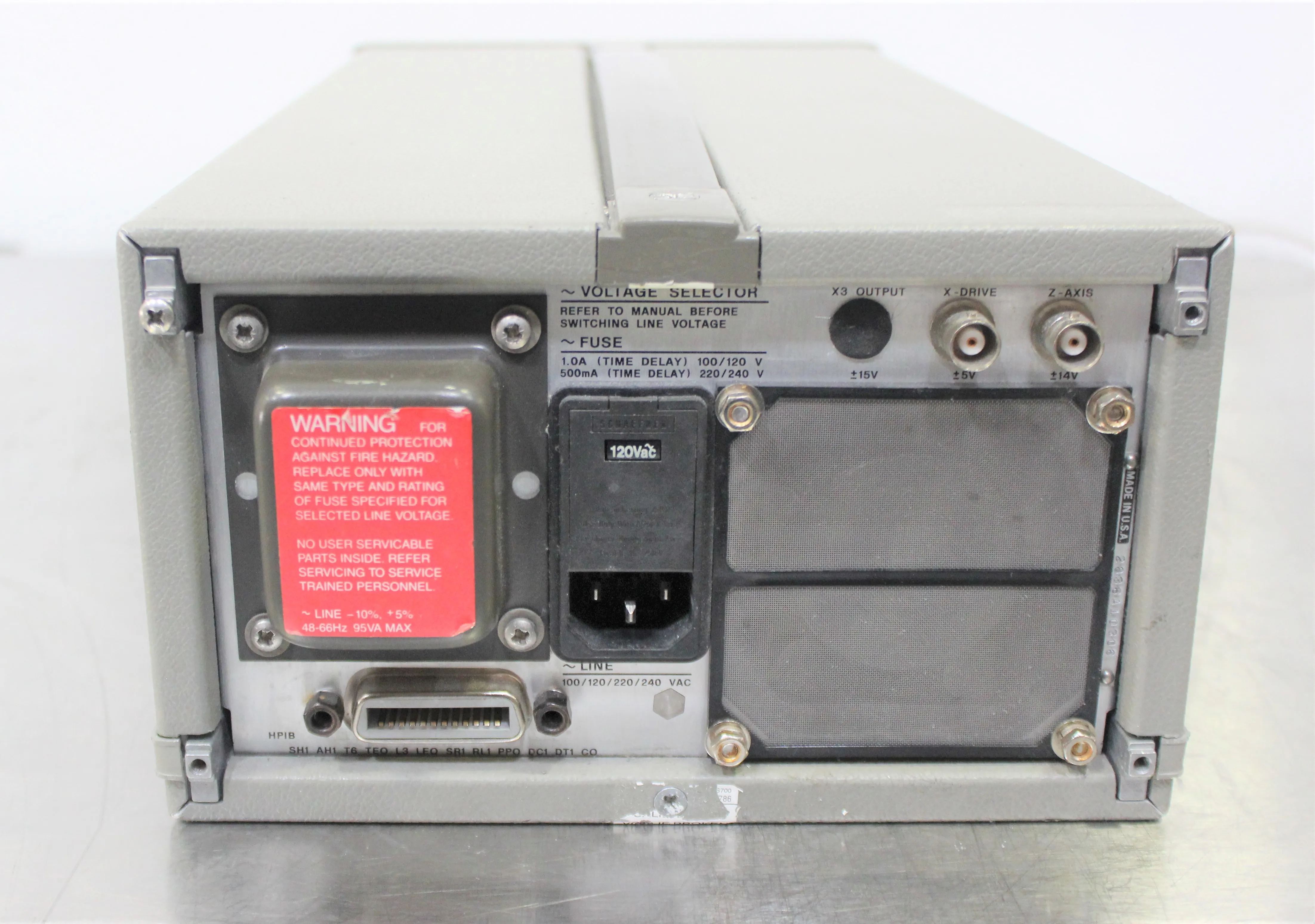

Hewlett Packard 3314A Function/Waveform Generator

Product Information

The Hewlett Packard 3314A is a versatile and precise Function/Waveform Generator with the ability to produce a wide range of waveforms. Offering the capacity to generate accurate sine, square, and triangle waves, along with variable symmetry for ramps and pulses, the 3314A is a remarkable piece of equipment for laboratory use. The device comes equipped with counted bursts, gate, lin/log sweeps, AM, FM/VCO, dc offset, and phase lock features, enhancing its functionality. This device provides complete programmability through the HP-IB interface, catering to both ATE systems and bench applications. Furthermore, independent 5 V can be added to any AC signal. Moreover, this generator includes an Arbitrary waveform mode that allows the creation of an infinite number of user-defined waveforms. The Agilent 3314A offers highly accurate sine, square, and triangle waves within a frequency range of 0.001 Hz to 19.99 MHz, along with a voltage range of 0.01 mV to 10 V p-p (50 ohms). It further extends its capabilities to include ramps and pulses up to 2 MHz, using variable symmetry within the 5 to 95% range.

• Accurate sine, square, and triangle waves
• Variable symmetry for ramps and pulses
• Complete programmability via HP-IB interface
• Ability to add independent 5 V to any AC signal
• Arbitrary waveform mode for user-defined waveforms
• Wide frequency and voltage ranges for diverse functionality

• Frequency Range: 0.001 Hz to 19.99 MHz
• Voltage Range: 0.01 mV to 10 V p-p (50 ohms)
• Ramp and Pulse Frequency: Up to 2 MHz
• Symmetry Range: 5 to 95%
• Programmable Features: Counted bursts, gate, lin/log sweeps, AM, FM/VCO, DC offset, phase lock
• Additional Feature: Independent 5 V can be added to any AC signal
• Compatibility: ATE systems and bench applications
• Control Interface: HP-IB
• Warranty: 30-Day Warranty, 100% Parts and Labor

Metric: 10.5 kg
Imperial: 23 lbs

Metric: 25 cm x 16 cm x 14 cm
Imperial: 9.84 in x 6.3 in x 5.51 in
