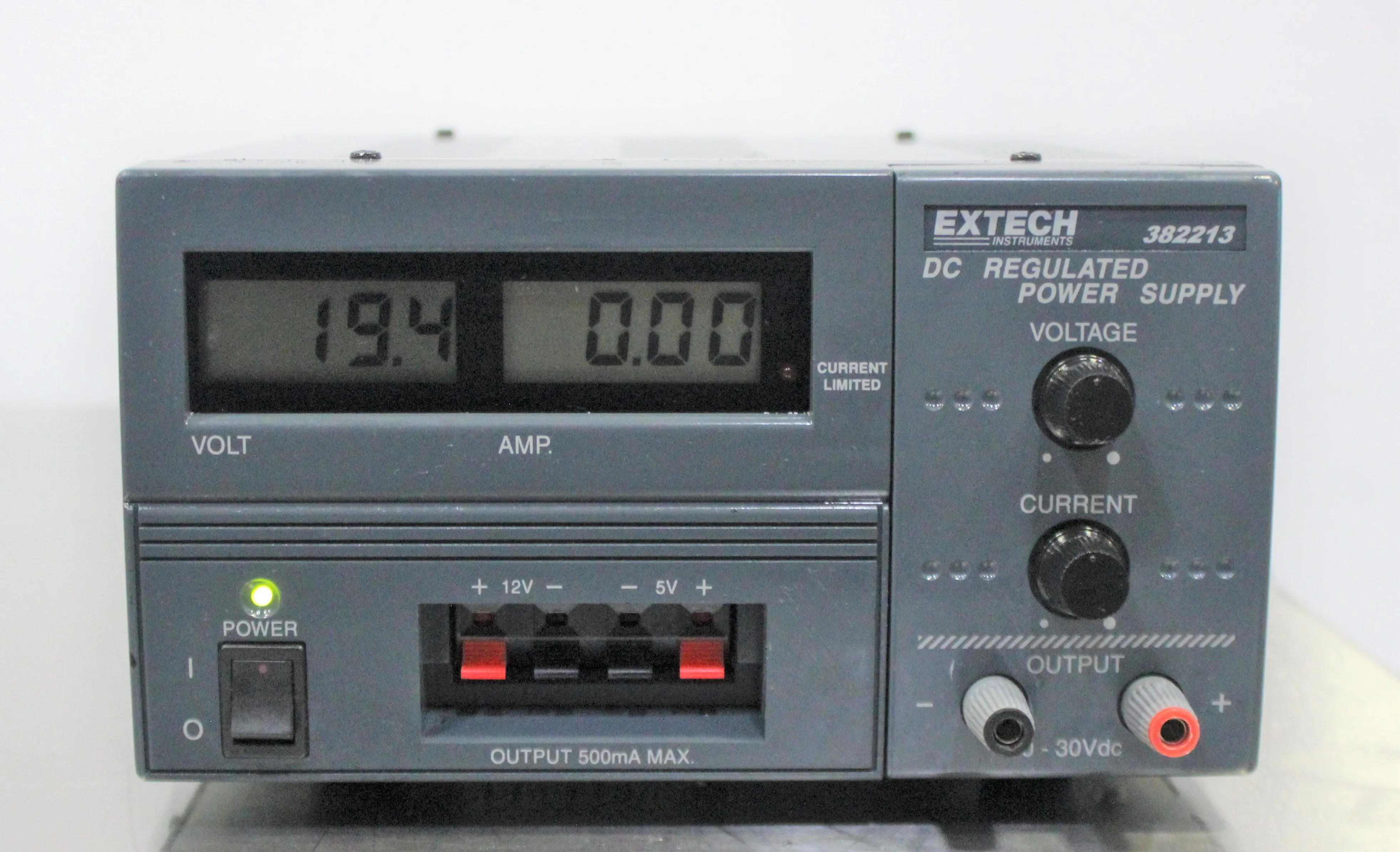

Extech 382213 Digital DC Power Supply 30V 3A Adjustable Output

Product Information

Introducing the Extech 382213, a versatile DC power supply suitable for various applications such as bench testing, field service, hobby, and telecommunication equipment. This solid-state, compact power supply delivers clean, reliable power while safeguarding both itself and any device under test (DUT) from potential damage. The main output is adjustable from 0 to 30V and 0 to 3A, and it offers options for constant voltage or current. Easily switch to fixed 5V/0.5A or 12V/1A outputs using snap terminals. The Extech 382213 is designed to provide current limiting indicators, overload and short circuit protection, and features binding post terminals for the main output, making it a reliable and essential tool for any laboratory. With a 30-Day Warranty, 100% Parts and Labor, this power supply ensures peace of mind and productivity in the lab environment.

• Adjustable 0 to 30V, 0 to 3A main output
• Constant Voltage or Current on main output
• Fixed 5V/0.5A and 12V/1A outputs with snap terminals
• Current limiting indicator, overload, and short circuit protection
• Binding post terminals for the main output

• Main Output: Adjustable 0 to 30V, 0 to 3A
• Additional Outputs: Fixed 5V/0.5A and 12V/1A with snap terminals
• Safety Features: Current limiting indicator, overload, and short circuit protection
• Warranty: 30-Day Warranty, 100% Parts and Labor

Metric: 9.98 kg
Imperial: 11 lbs

Metric: 23.32 cm x 20.32 cm x 30.48 cm
Imperial: 9.17 in x 8 in x 12 in

903039

903039 - Other instruments and apparatus, specifically designed for telecommunications (for example, cross-talk meters, gain measuring instruments, distortion factor meters, spectrum analyzers). The Extech 382213 digital DC power supply falls under this category due to its suitability for telecommunication equipment testing and maintenance.
