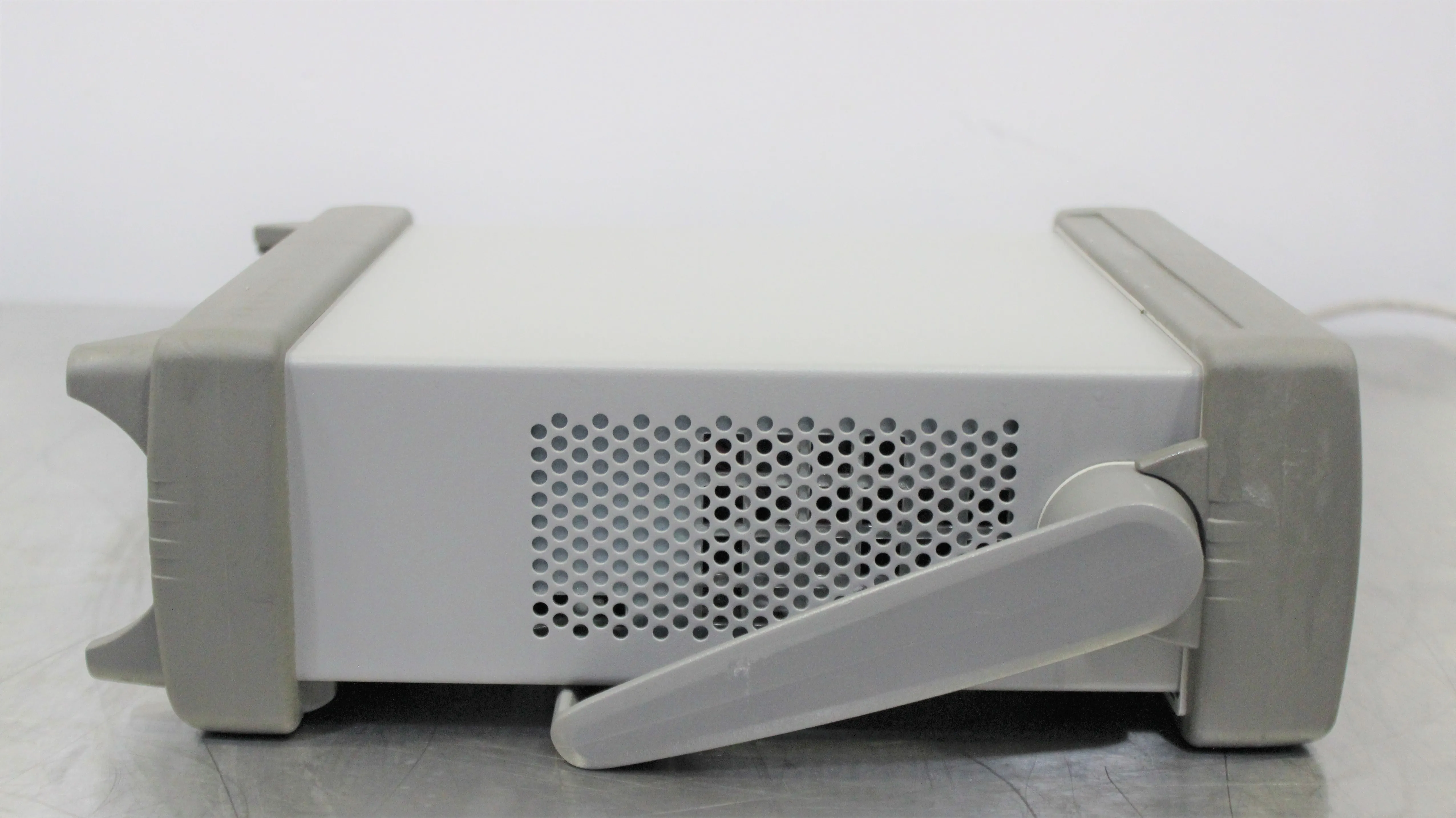

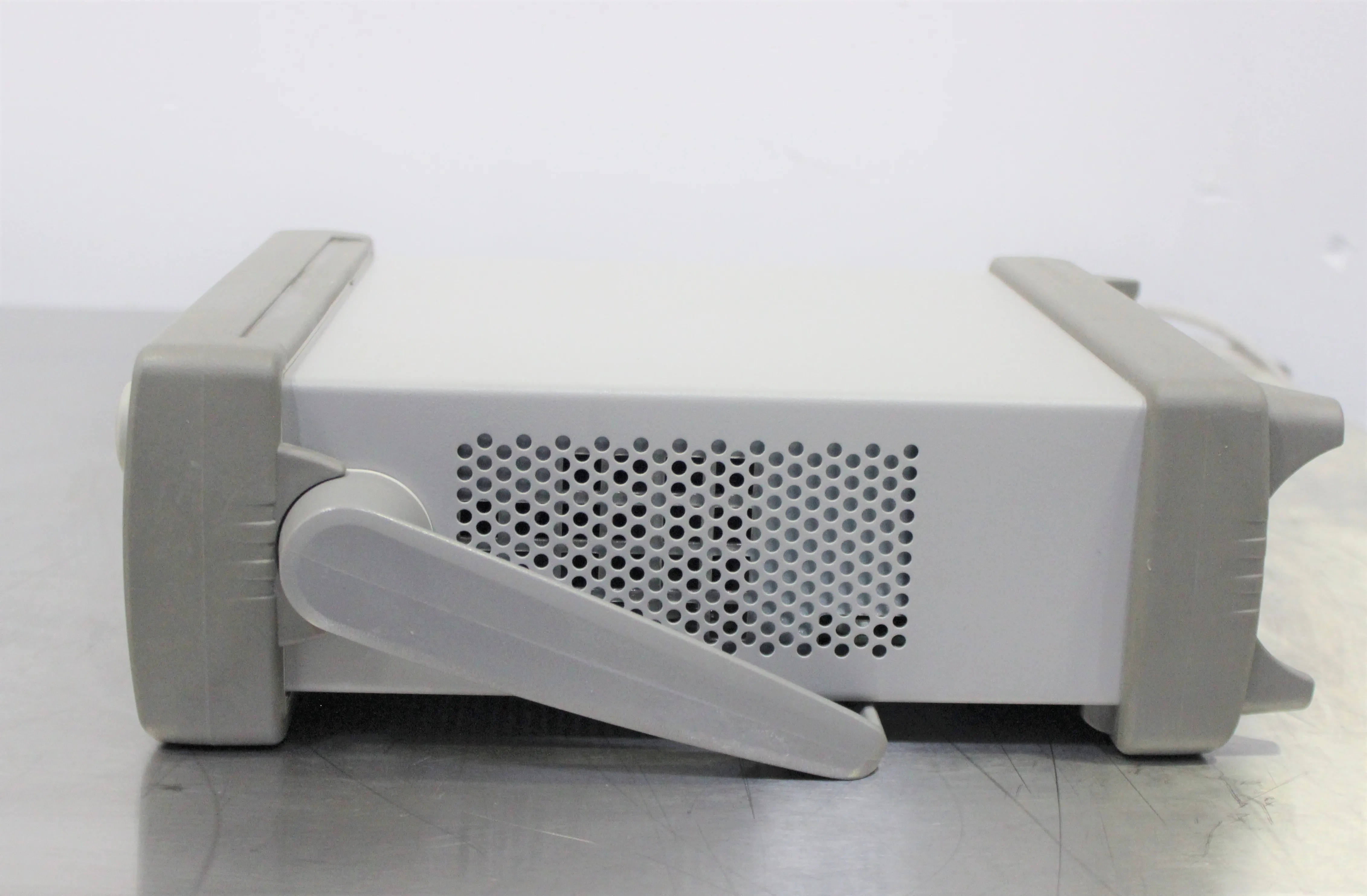

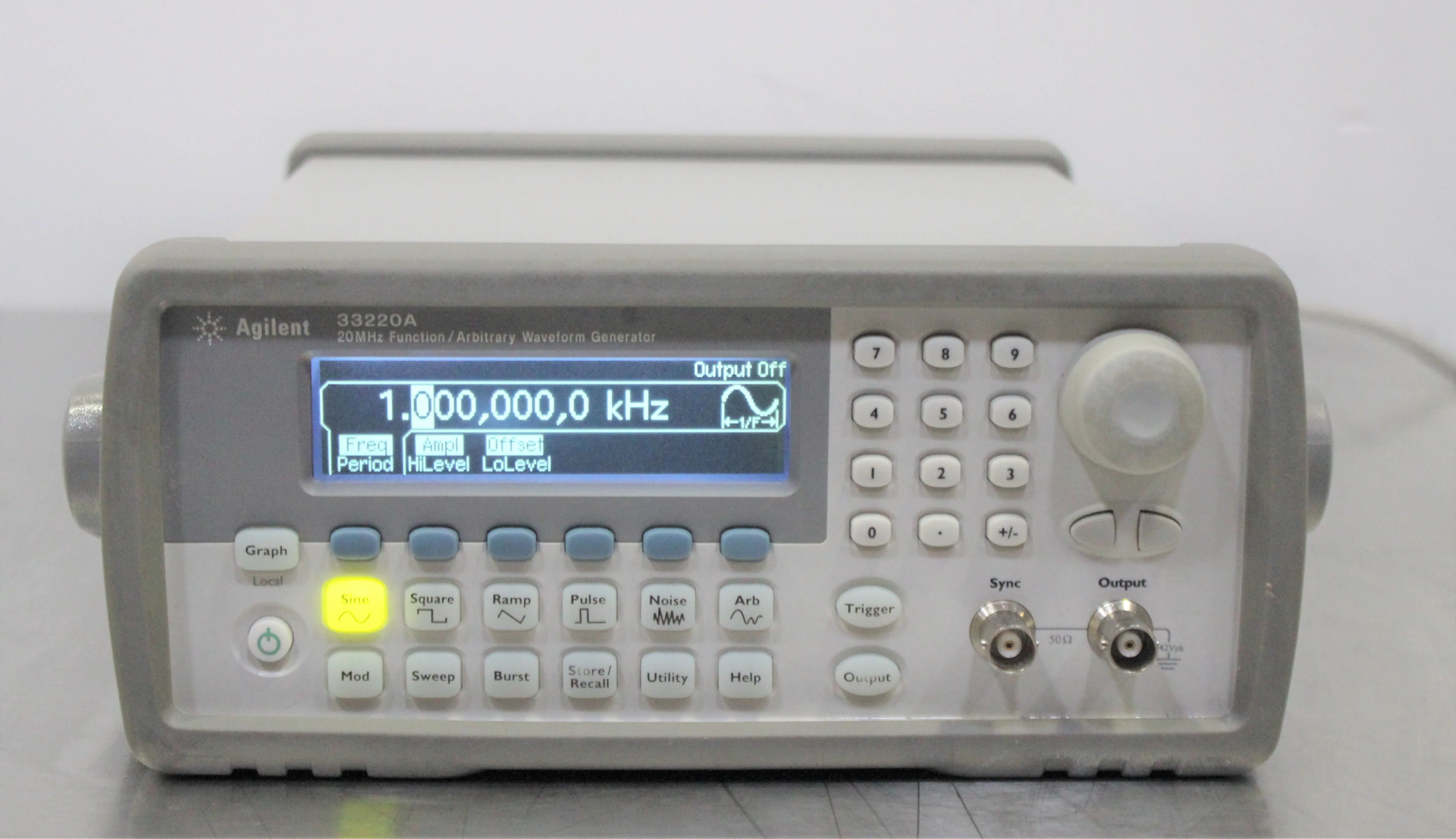

Agilent 33220A Function/Arbitrary Waveform Generator

Product Information

Are you ready to step up your waveform game? Meet the Agilent 33220A Function/Arbitrary Waveform Generator. This trusty workhorse unleashes direct digital synthesis (DDS) techniques for a stable, accurate output signal with minimal distortion. Whether you need precise sine waves, rapid square waves reaching up to 20 MHz, or smooth linear ramp waves up to 200 kHz, this generator delivers. Bring your experiments to life using 20 MHz Sine and Square waveforms, Pulse, Ramp, Triangle, Noise, and DC waveforms, and 14-bit, 50 MSa/s, 64 K-point Arbitrary waveforms. Modulate with AM, FM, PM, FSK, and PWM types, while enjoying linear & logarithmic sweeps and burst operation. With an amplitude range from 10 mVpp to 10 Vpp, and multiple connectivity options including USB, GPIB, and LAN, this beauty redefines waveform creation. It's not just lab equipment, it's a companion for innovation.

• Direct Digital Synthesis (DDS) for stable output signals
• 20 MHz Sine and Square waveforms for a wide range of applications
• Multiple connectivity options including USB, GPIB, and LAN

• 20 MHz Sine and Square waveforms
• Pulse, Ramp, Triangle, Noise, and DC waveforms
• 14-bit, 50 MSa/s, 64 K-point Arbitrary waveforms
• AM, FM, PM, FSK, and PWM modulation types
• Linear & logarithmic sweeps and burst operation
• 10 mVpp to 10 Vpp amplitude range

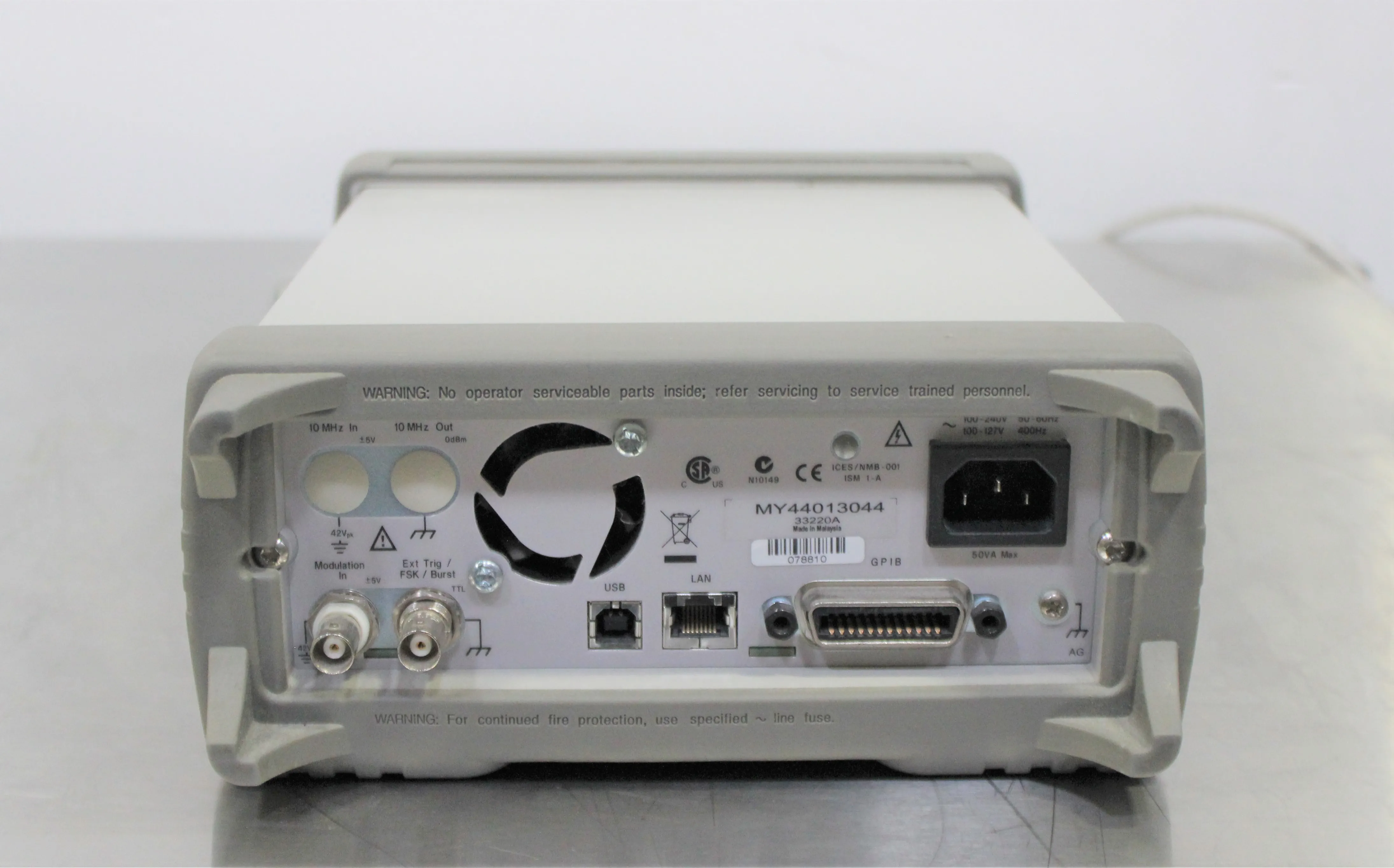

• Connectivity: USB, GPIB and LAN

Metric: 7.25 kg
Imperial: 16 lbs

Metric: 30.48 cm x 25.4 cm x 10.16 cm
Imperial: 12 in x 10 in x 4 in

9030390011

The Agilent 33220A Function/Arbitrary Waveform Generator fits under the category of Oscilloscopes, spectrum analyzers and other instruments for measuring or checking electrical quantities, with a range of 65 to 470 MHz.
