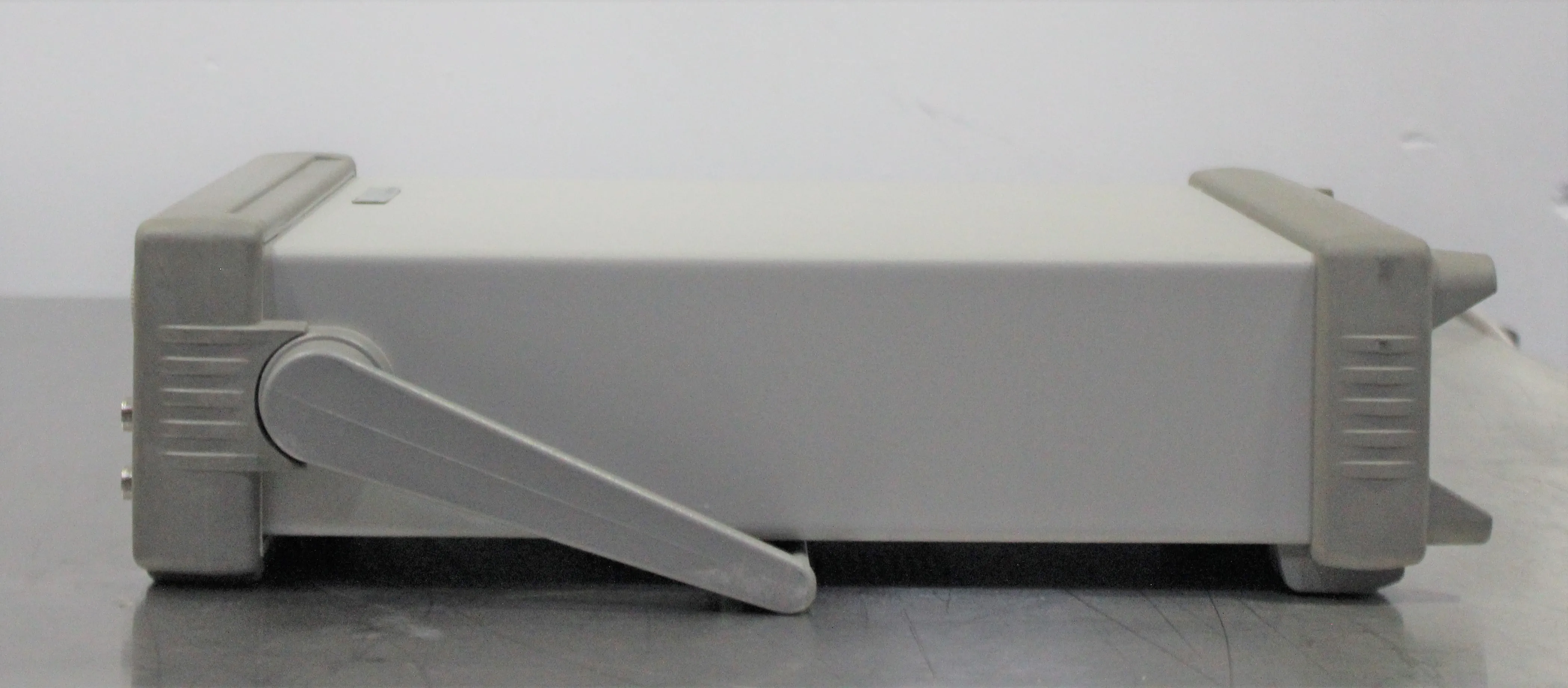

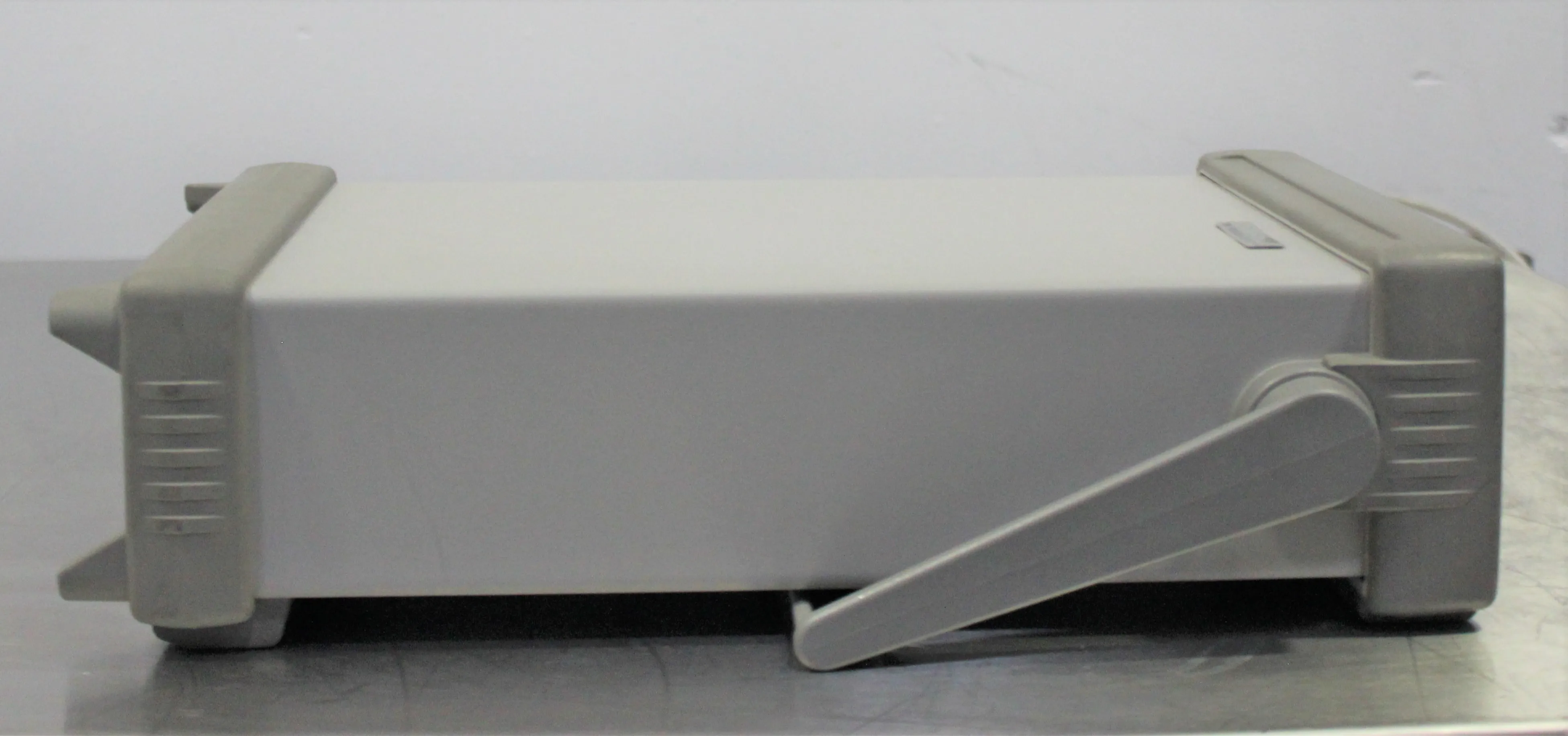

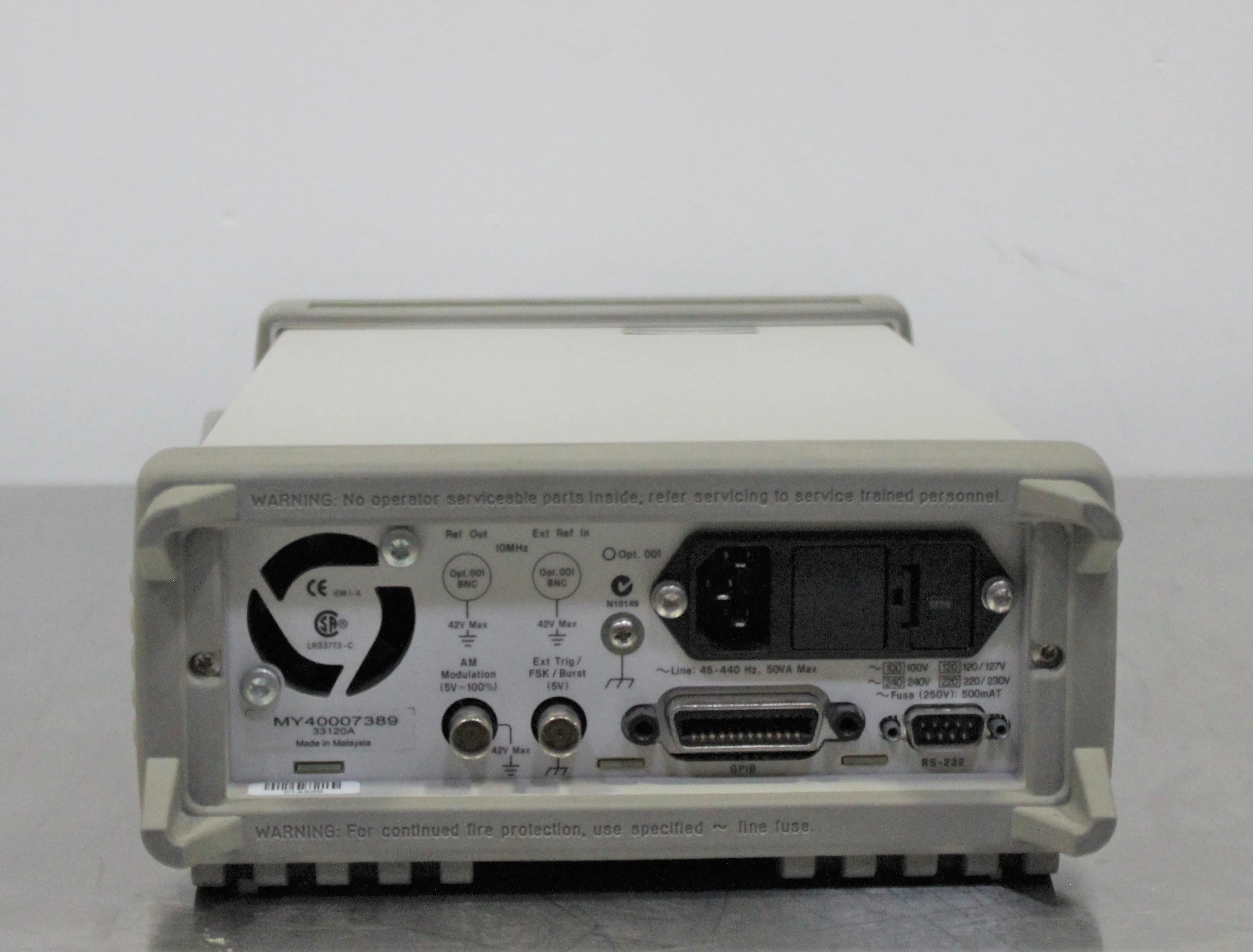

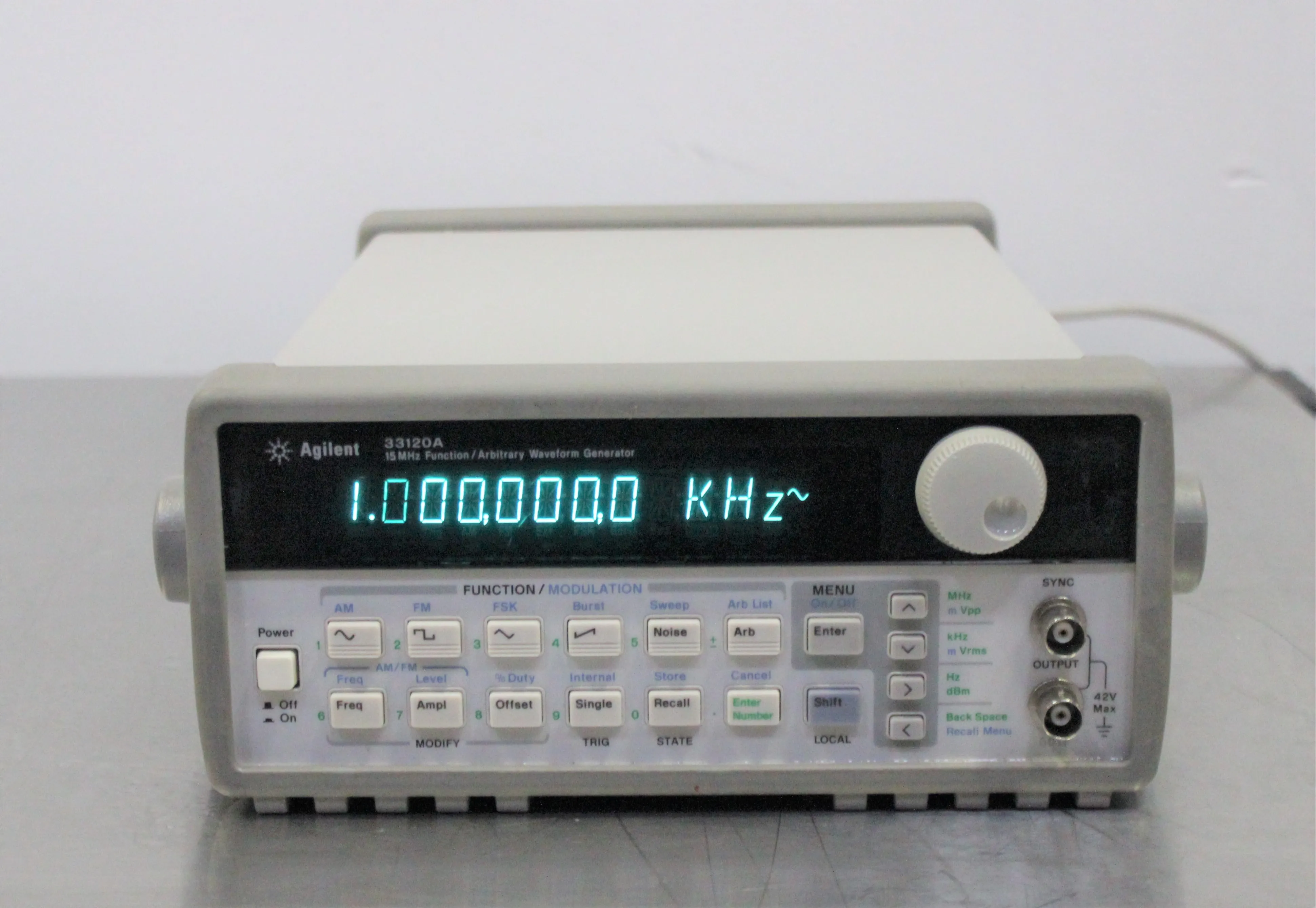

Agilent 33120A 20 MHz Function/Arbitrary Waveform Generator

Product Information

The Agilent 33120A 20 MHz Function/Arbitrary Waveform Generator uses direct digital synthesis (DDS) techniques to create a stable, accurate output signal for clean, low distortion sine waves. It also gives you square waves with fast rise and fall times up to 20 MHz and linear ramp waves up to 200 kHz. It's like having a versatile musician in your lab, capable of producing a wide variety of waveforms to suit your experimental needs. Whether you need a steady sine wave for analog circuit testing, a square wave with fast transitions for digital signals, or a linear ramp for timing and triggering applications, the Agilent 33120A has got you covered. This generator is perfect for signal testing, circuit design, sensor calibration, and more. Plus, you can connect via USB, GPIB, and LAN for seamless integration into your existing lab setup.

• 20 MHz Sine and Square waveforms
• Pulse, Ramp, Triangle, Noise, and DC waveforms
• AM, FM, PM, FSK, and PWM modulation types
• Linear & logarithmic sweeps and burst operation
• 10 mVpp to 10 Vpp amplitude range
• Graph mode for visual verification of signal settings
• Connect via USB, GPIB, and LAN

• 20 MHz Sine and Square waveforms
• Pulse, Ramp, Triangle, Noise, and DC waveforms
• 14-bit, 50 MSa/s, 64 k-point arbitrary waveforms
• AM, FM, PM, FSK, and PWM modulation types
• Linear & logarithmic sweeps and burst operation
• 10 mVpp to 10 Vpp amplitude range
• Graph mode for visual verification of signal settings
• Connect via USB, GPIB and LAN

Metric: 7 kg
Imperial: 15 lbs

Metric: 23 cm x 17 cm x 12 cm
Imperial: 9.06 in x 6.69 in x 4.72 in

9030820000

This code covers the electronic instruments specified by their function. In this case, it pertains to signal generators. The Agilent 33120A 20 MHz Function/Arbitrary Waveform Generator falls under this category due to its use in laboratory and industrial settings for signal testing, circuit design, and sensor calibration.
