Product Information

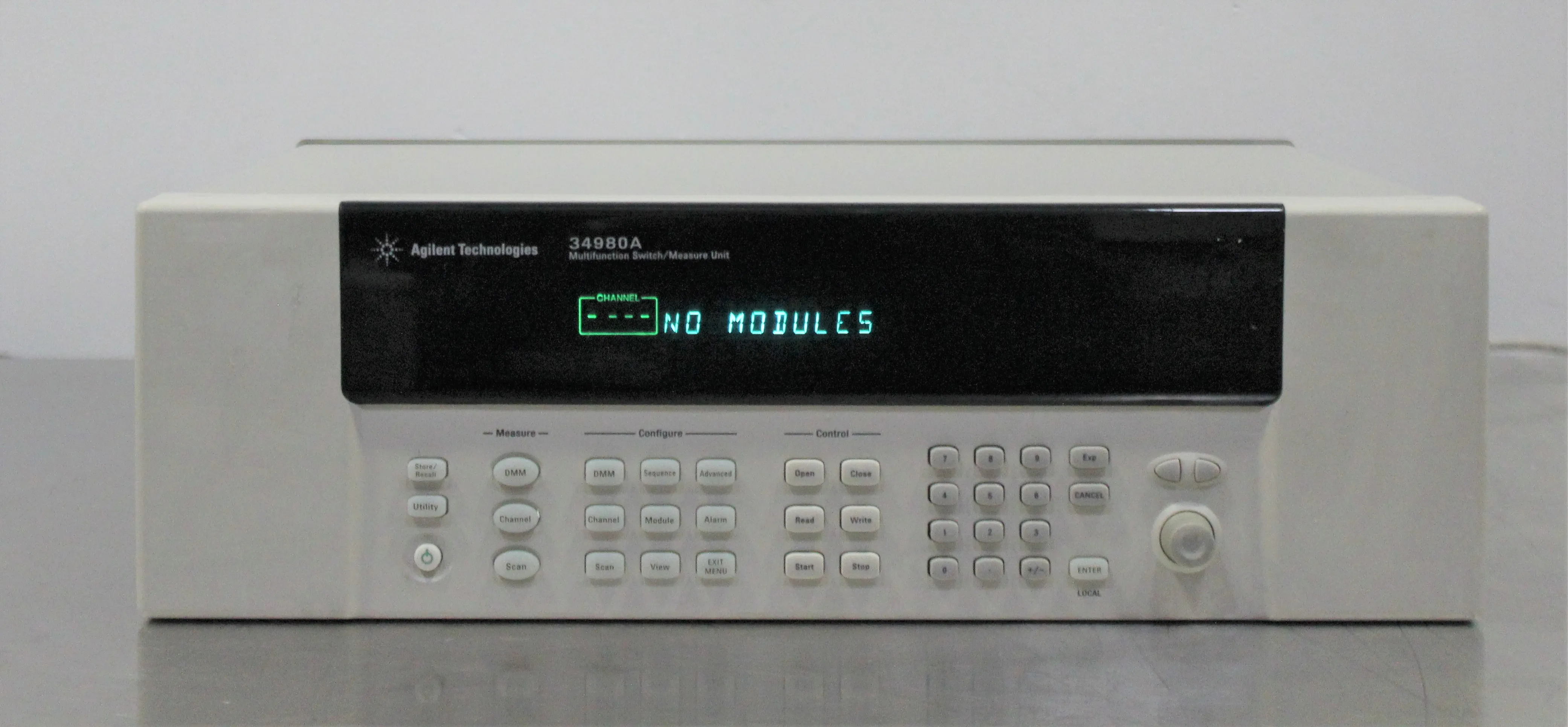

The Agilent 34980A is an eight-slot mainframe that includes an optional built-in 6 1/2 digit DMM. Choose from 21 optional plug-in modules that offer a broad range of functionality that includes DC to 26.5 GHz switching, counter/totalizer, digital I/O with pattern capabilities, and D/A converters - in one compact, high-performance modular platform. This versatile piece of equipment is well-suited for applications in research laboratories, electronics testing, and manufacturing quality assurance. It allows for precise monitoring and control of electrical signals, data acquisition, and device testing. With its LXI Class C Compliance and compatibility with various driver systems, such as NI LabVIEW, this equipment provides a seamless user experience in the lab. It's perfect for scientists and technicians who require a reliable, high-performing device with multifunctional modules, advanced connectivity, and remote access capabilities.

• Eight-slot mainframe with 6 1/2 digit DMM
• 21 optional plug-in modules for broad functionality
• Scan rates up to 1,000 channels/sec
• Standard LAN, USB, GPIB connectivity
• LXI Class C Compliance and SCPI language compatible with 34970A
• Remote access and troubleshooting capabilities

• 8-Slot mainframe with integrated 6.5 digit DMM
• 21 Plug-in modules - DC to 20 GHz switching, Digital I/O, D/A Converter, Counter/Totalizer
• 560 2-wire mux or 1024 2-wire matrix cross-points in one mainframe
• Scan rates up to 1,000 channels/sec
• Standard LAN, USB, GPIB connectivity
• Now LXI Class C Compliant
• SCPI language compatible with 34970A
• IVI-COM, IVI-C, NI LabVIEW drivers included
• Front panel or graphical web interface for remote access and troubleshooting
• Priced up to 40% less than VXI or PXI systems

Metric: 12.7 kg
Imperial: 28.0 lbs

Metric: 25.4 cm x 22.86 cm x 35.56 cm
Imperial: 10 in x 9 in x 14 in
