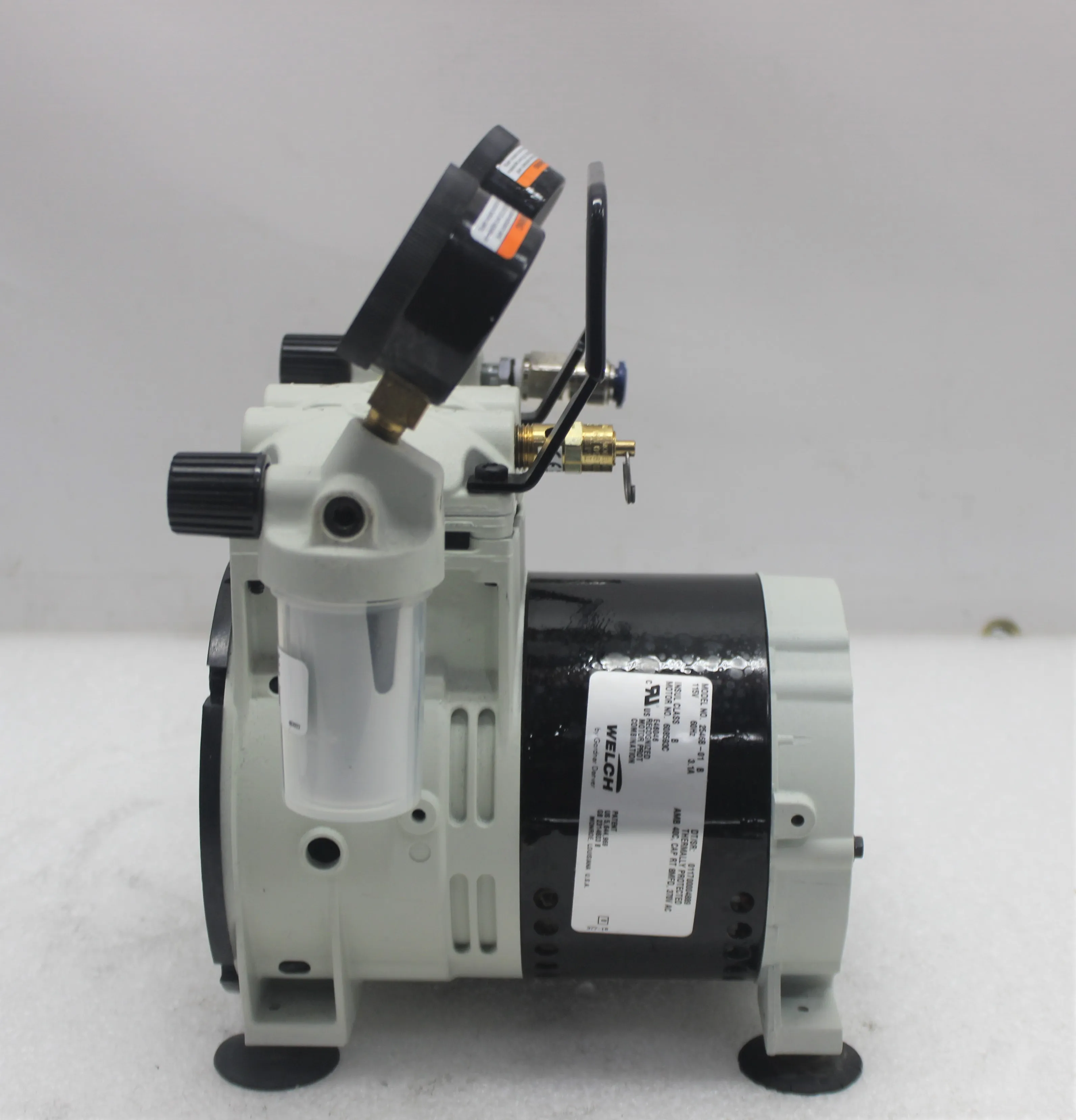

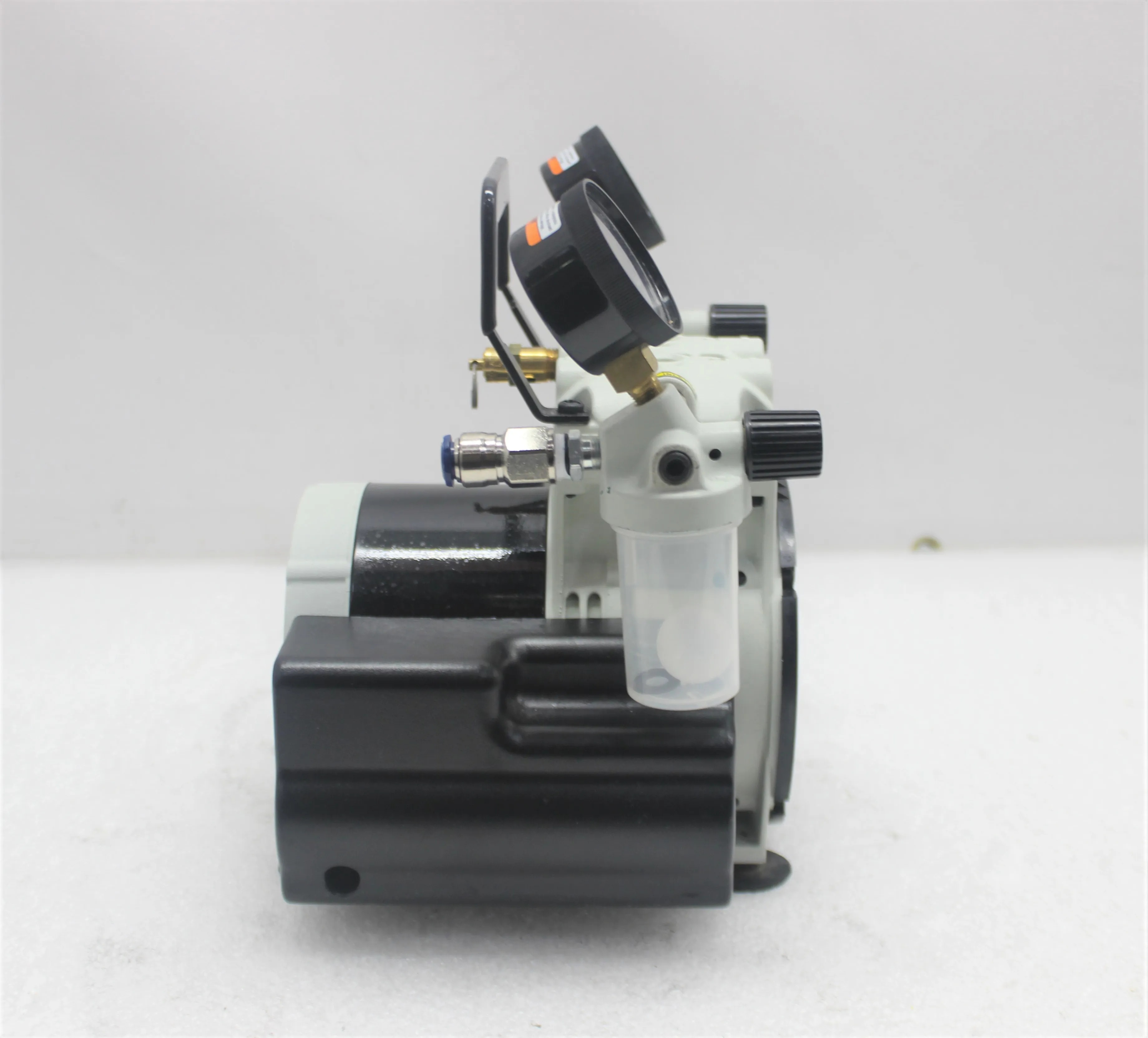

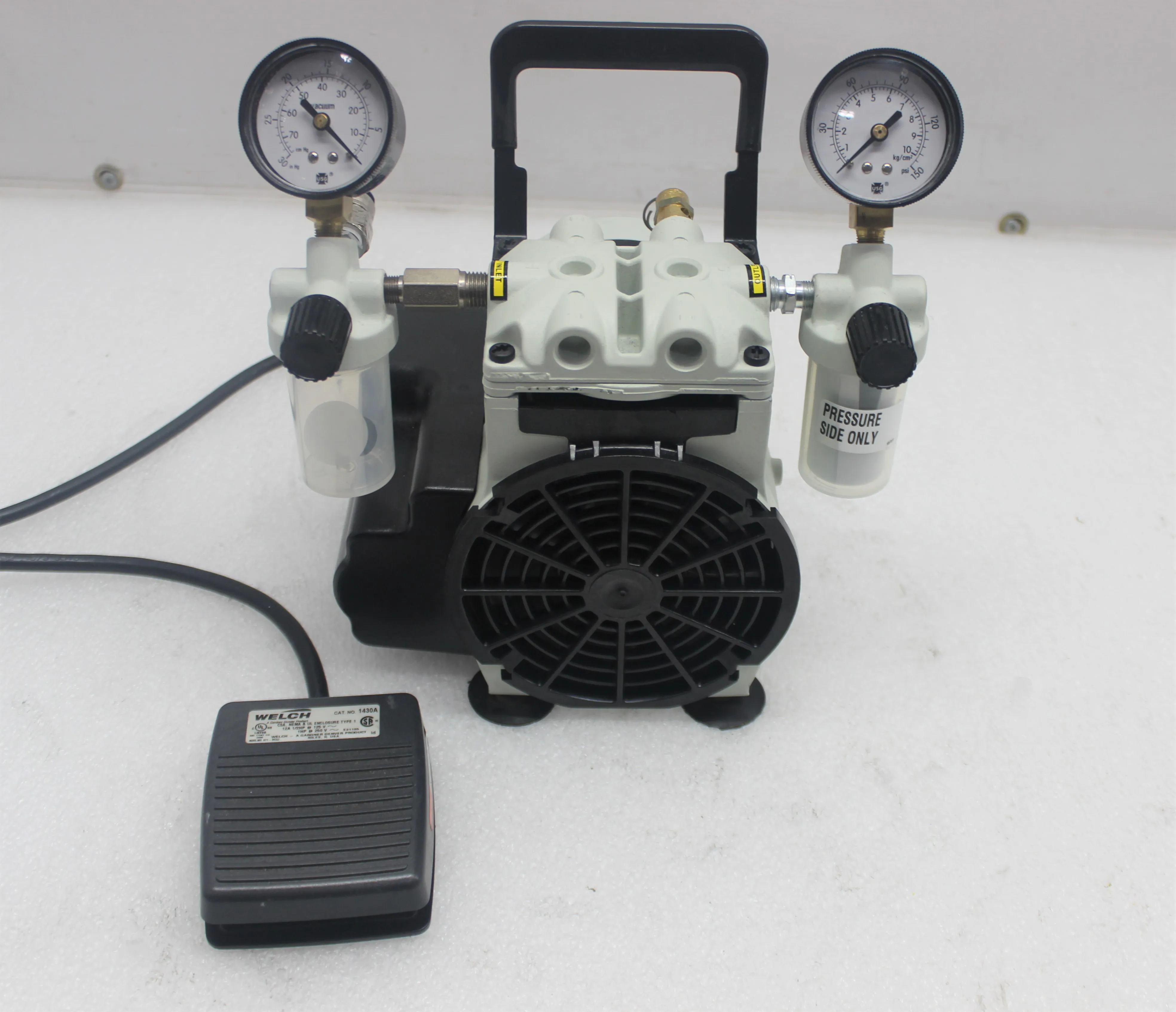

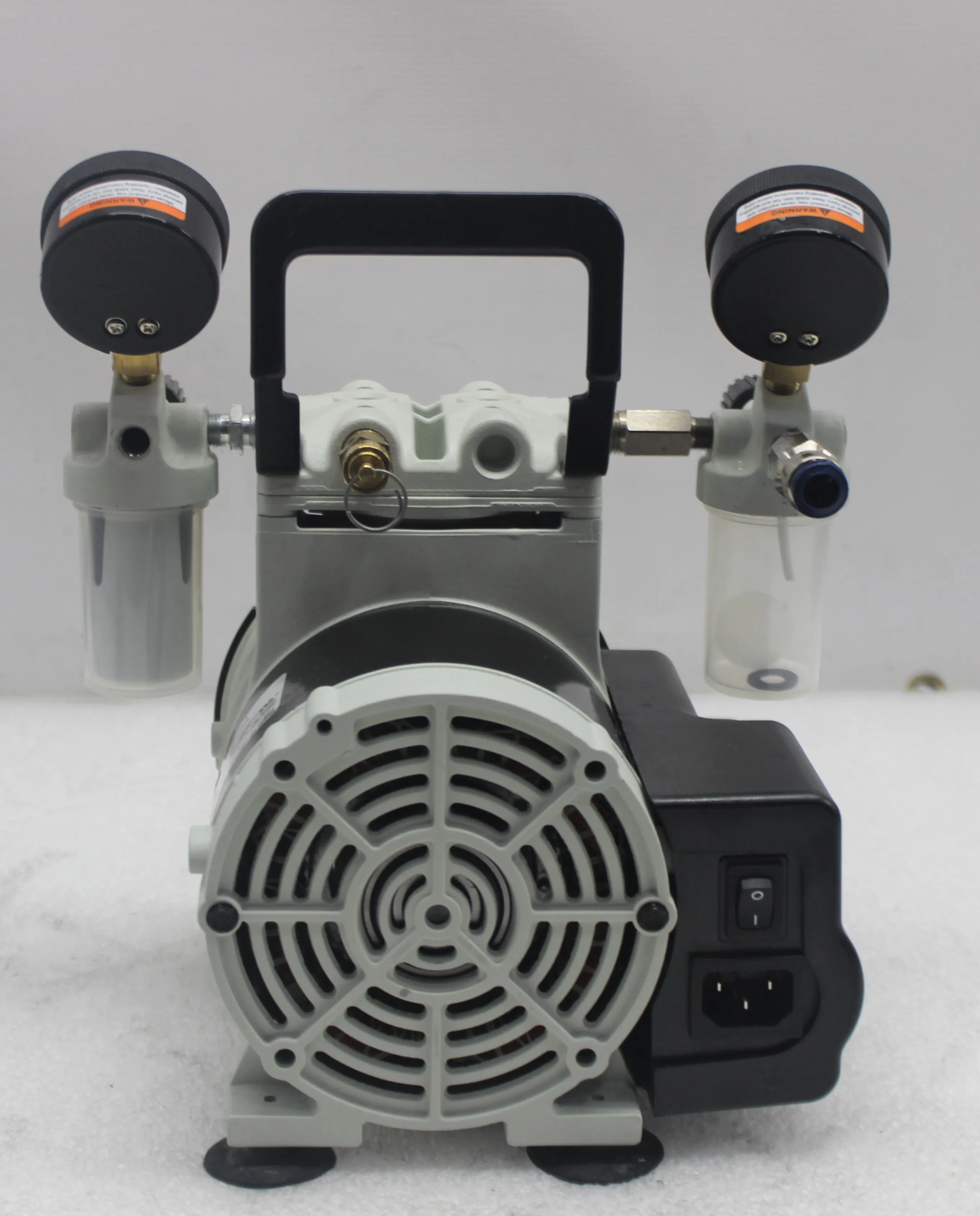

Used Welch 2546B-01 Piston Vacuum Pump 120V 60Hz US
- Make Welch
- Hertz 60Hz US
- Model 2546B-01
- Serial 011700004889
- Weight 40.0 Lb
- Voltage 120V
- Includes Power cord included |
- Warranty 30-Day Warranty, 100% Parts and Labor
- Dimensions 20.0in x 17.0in x 20.0in
- Shipping Type FedEx Ground
- Item Condition Excellent
- Manufacturing Date Does Not Apply
Product Information
As a vibrant and insightful scientist deeply entrenched in the world of laboratory equipment, it brings me great pleasure to present to you the used Welch 2546B-01 piston vacuum pump. This versatile piece of machinery boasts a rugged flexible piston cup and shaded-pole motor with automatic thermal protection and high-torque start windings. It is equipped with a corrosion-resistant sandwich valve that prevents foreign particles from lodging on valve seats. The pump features aluminum cylinders, cylinder heads, and pistons, ensuring durability and reliability. The tankless design further enhances its appeal. Manufacture specifications indicate that the pump has a 1/4 HP, operates on a 120V single-phase power supply, and has a full-load amp rating of 1.7. The inlet and outlet size are both 1/4" hose, with a maximum PSI continuous/interrupt of 100. This pump delivers a free air CFM of 1.6 at 0 PSI and 1.55 at 10 in Hg. The vacuum pump also boasts a maximum vacuum of 27.6" Hg, making it suitable for various laboratory applications such as vacuum filtration, rotary evaporation, and vacuum ovens. It is oil-less and equipped with thermal protection, ensuring safe and efficient operation. Embrace the power and reliability of this Welch vacuum pump, backed by a 30-day warranty offering 100% coverage for parts and labor.
Key Features- Rugged flexible piston cup design
- Shaded-pole motor with automatic thermal protection and high-torque start windings
- Corrosion-resistant sandwich valve to prevent foreign particles from lodging on valve seats
- Aluminum cylinders, cylinder heads, and pistons for durability
- Tankless design for convenience
- Item: Piston Vacuum Pump
- HP: 1/4
- Phase: 1
- Full Load Amps: 1.7
- Inlet Size: 1/4" Hose
- Outlet Size: 1/4" Hose
- Max. PSI Cont./Int.: 100
- Free Air CFM @ 0 PSI: 1.6
- Max. Vacuum: 27.6" Hg
- Free Air CFM @ 0 In. Hg: 1.6
- Free Air CFM @ 10 In. Hg: 1.55
- Number of Cylinders: 1
- Design: Piston
- Lubrication Type: Oil-Less
- Thermal Protection: Yes
- Power Cord: Yes
- Application: Laboratory Vacuum Pump
Metric: 18.144 kg
Imperial: 40.0 lbs
Metric: 50.8 cm x 43.18 cm x 50.8 cm
Imperial: 20.0 in x 17.0 in x 20.0 in
8414200000
Harmonized Code Details8414200000: Vacuum pumps; liquid ring type
