Expo Technologies Mini Purge Laboratory System

Product Information

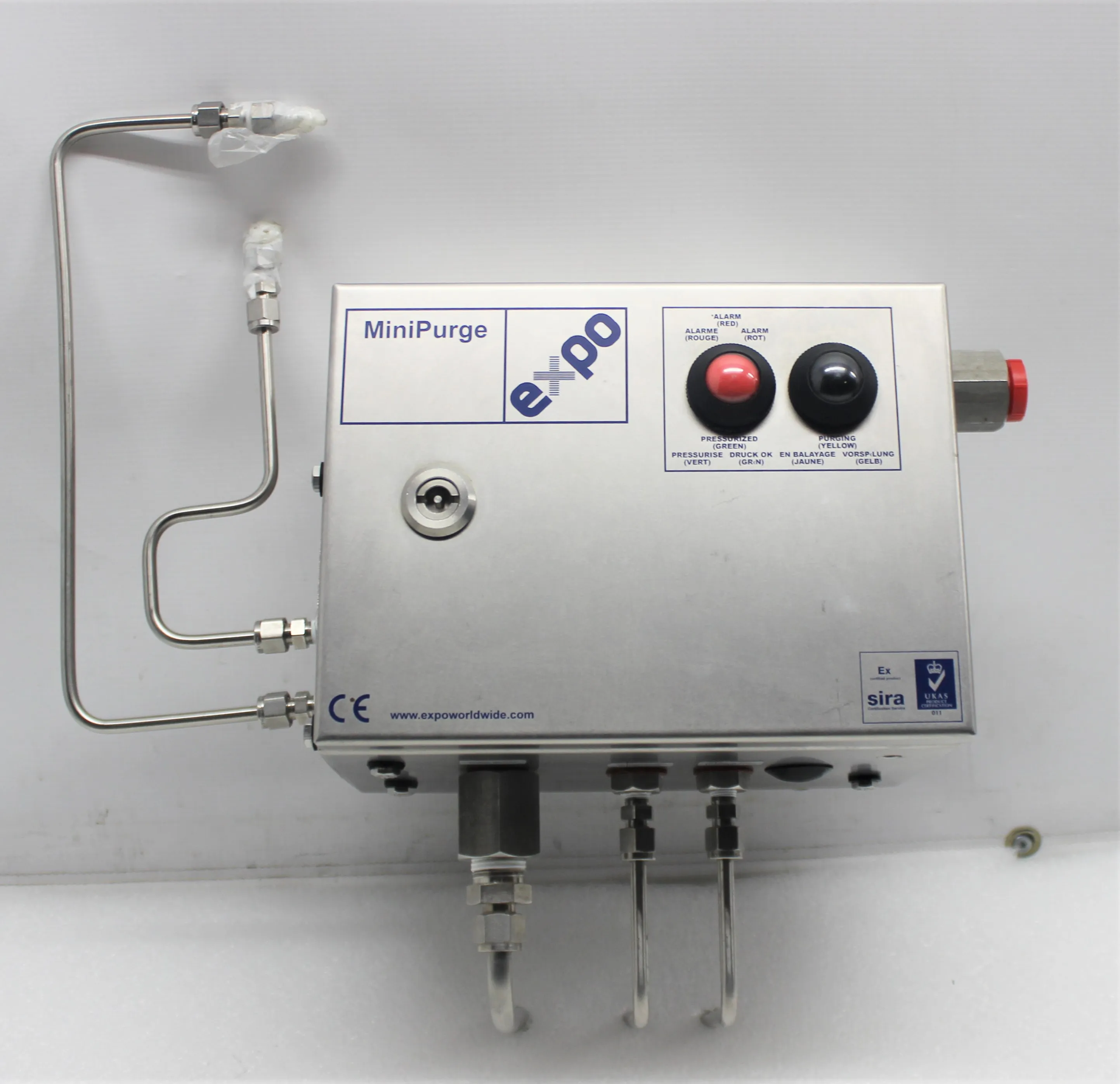

Introducing the Expo Technologies Mini Purge system - a cutting-edge solution offering full purge and pressurization capabilities for hazardous areas. This system, designed for Class 1 Division1, Zone 1 or zone 2 applications, enables the safe operation of regular electrical equipment in hazardous locations. With an initial release of protective gas, typically compressed air, this system ensures optimal safety. Its applications include use in laboratories, industrial facilities, and research institutions. The Mini Purge system boasts a large purge flow rate of approximately 225 l/min or 8cfm, with a maximum leakage compensation of 90 l/min @ 4 bar or 3scfm @ 60 psi. This equipment comes with a 30-Day Warranty, covering 100% Parts and Labor, making it a reliable and efficient solution for your laboratory needs.

• Full purge and pressurization system
• Safe operation in hazardous areas
• Large purge flow rate of 225 l/min or 8cfm
• 30-Day Warranty for 100% Parts and Labor

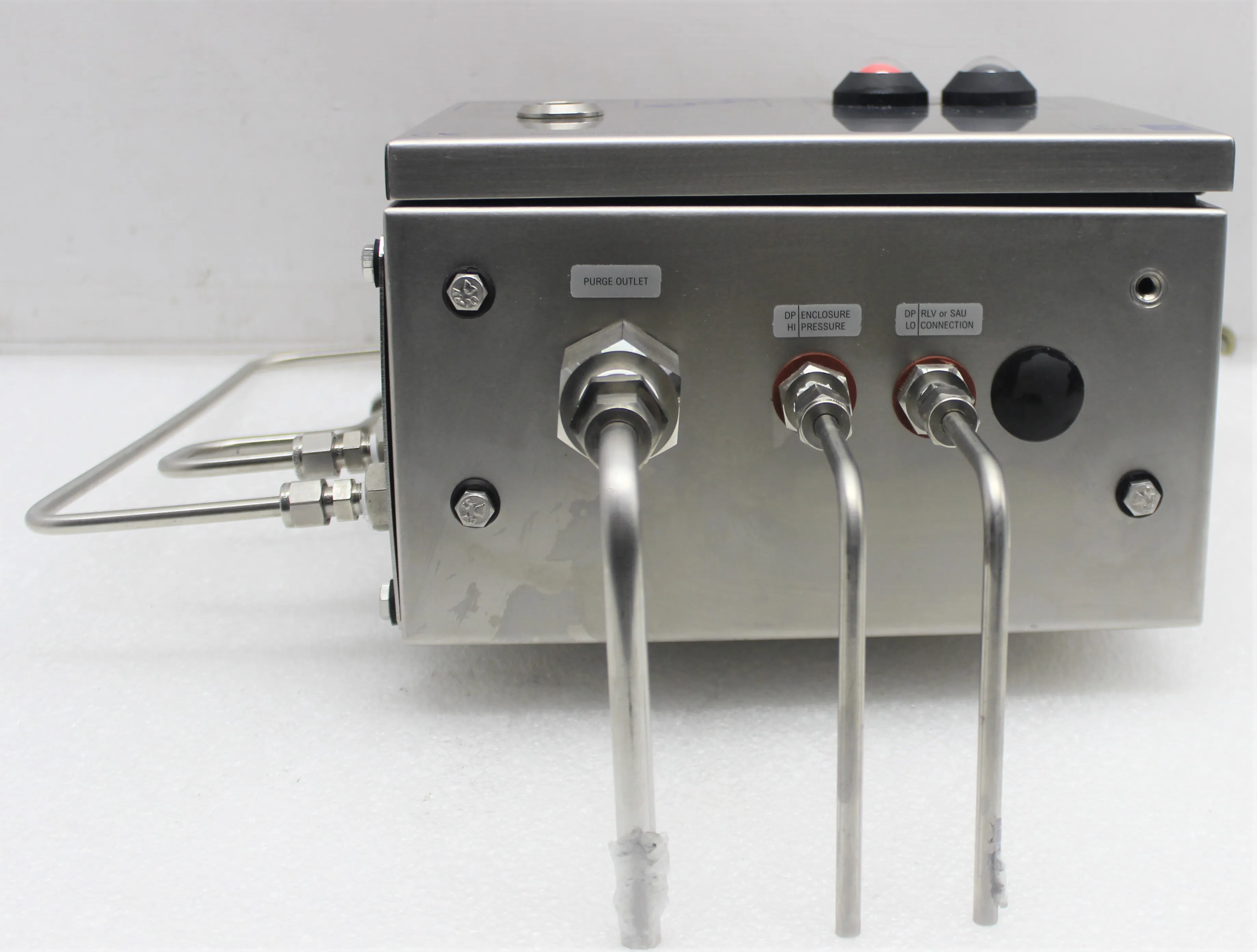

• Fitting: 1/2" NPT F33mm1.3", T Box PA only b102mm4.0", Relief valve X133mm5.3", Relief valve Y62mm2.5", Relief valve Z33mm1.3"
• Purge flow rate: 225 l/min (8cfm)
• Max. leakage compensation: 90 l/min @4 bar (3scfm @60psi)

Metric: 7.7 kg
Imperial: 17 lbs

Metric: 20 cm x 21 cm x 18 cm
Imperial: 7.9 in x 8.3 in x 7.1 in

841490

Air compressors and hoods with mechanical parts for laboratories: This code categorizes equipment designed for the pressurization and safety of laboratory environments, aligning with the Mini Purge system's functionality.
