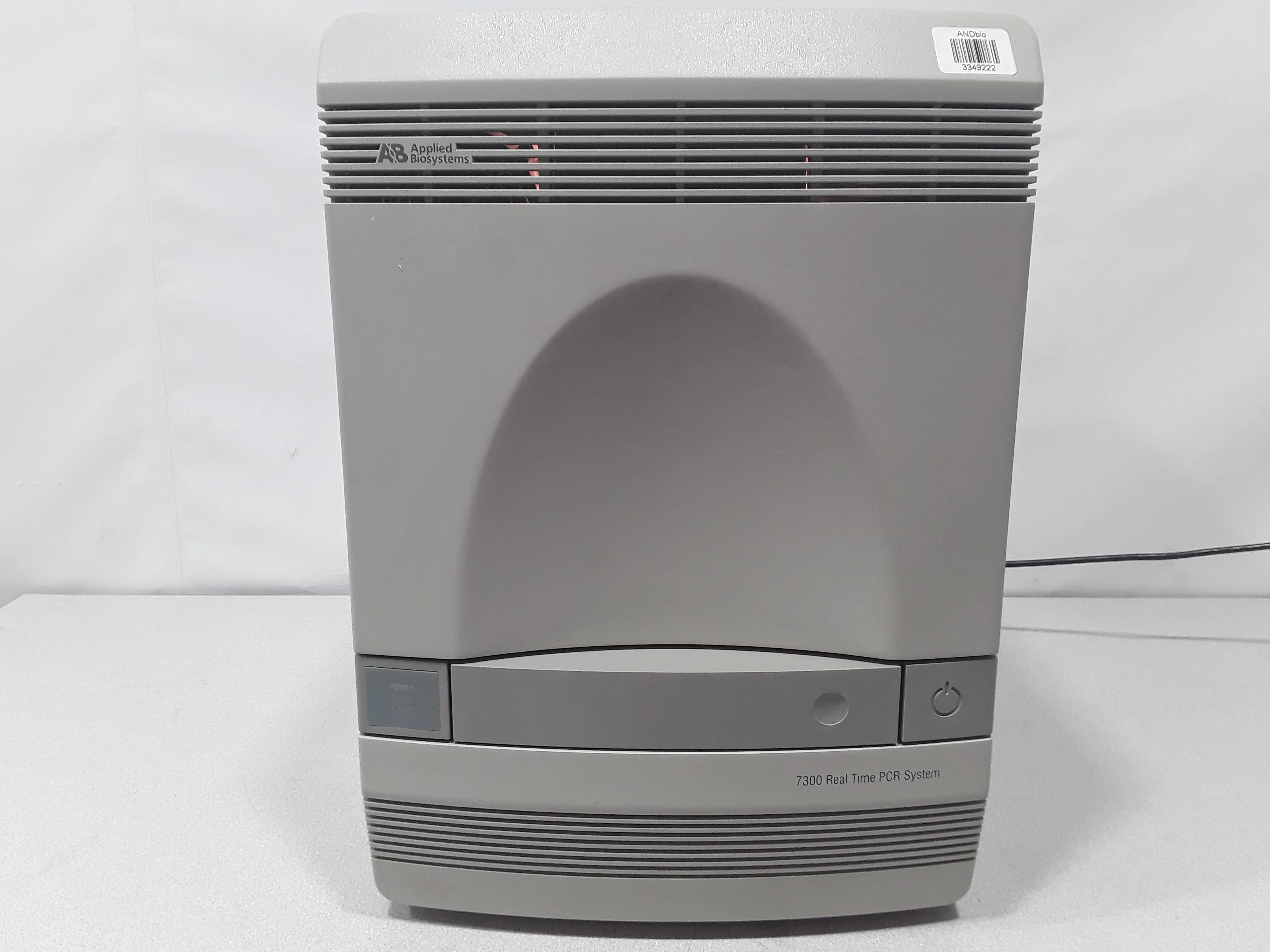

Applied Biosystems 7300 Real-Time PCR System

Product Information

This system is a sophisticated platform for users who require extended capabilities and maximum versatility. The 3rd generation platform features an innovative optical system that enhances sensitivity and lets you access a broader range of fluorophores. Powerful, five-color platform is calibrated for the broadest range of dyes available, and the specialized optical system enables easy and accurate calibration to new dyes without requiring the addition of new filter sets. The user-friendly software includes plate set-up wizards, multi-plate data viewing capabilities, and advanced analysis tools to make data processing simple and straightforward. It is used for applications such as genotyping and genomic profiling, real-time PCR (qPCR), and real-time PCR-based gene expression profiling. The throughput is 4 to 5 96-well plates per 8-hour day, and the precision is 99.7% confidence (5000 and 10000 copies). A power limit of 950W ensures efficient performance.

• Innovative optical system enhancing sensitivity and broad fluorophore access
• Calibrated for a wide range of dyes with easy and accurate calibration to new dyes
• User-friendly software with advanced plate set-up and data processing tools
• Application in genotyping, genomic profiling, and real-time PCR-based gene expression profiling
• Efficient throughput of 4 to 5 96-well plates per 8-hour day with 99.7% precision

• Thermal Block Formats: 96-well plate
• Max. Heating Rate (Thermal Block): 2.5°C/sec.
• Temperature Accuracy (Thermal Block): 0.25°C (35 to 95°C after 3 min.)
• Detection: 5 emission filters, 5 excitation filters, CCD camera, tungsten-halogen lamp
• Multiplex: Multiplexing
• Sensitivity: 1 Copy of RNase P gene (human genomic DNA)
• Depth: 45cm
• For Use With (Application): Genotyping and genomic profiling, real-time PCR (qPCR), real-time PCR-based gene expression profiling
• Voltage: 120V
• Includes: Notebook Computer
• Volume (Metric) Thermal Block Sample: 20 to 100L
• Temperature Range (Thermal Block): 4 to 100°C
• Temperature Uniformity (Thermal Block): 0.50°C (after 30 sec.)
• Pre-Calibrated Dyes: Cy3, Cy5, FAM, JOE, NED, ROX, SYBR Green I, TAMRA, Texas Red, VIC
• Dynamic Range: 9 logs
• Software Analysis Modes: 1.1°C/sec.
• Height: 49cm
• Weight: 34kg
• Item Description: Throughput of 4 to 5 96-well plates per 8-hour day; Precision of 99.7% confidence (5000 and 10000 copies); Power limit of 950W

Metric: 34 kg
Imperial: 75 lbs

Metric: 30 cm x 20 cm x 49 cm
Imperial: 11.81 in x 7.87 in x 19.29 in

9027.80.11

9027 Instruments and apparatus for physical or chemical analysis - Other instruments and apparatus using optical radiations (UV, visible, IR)
