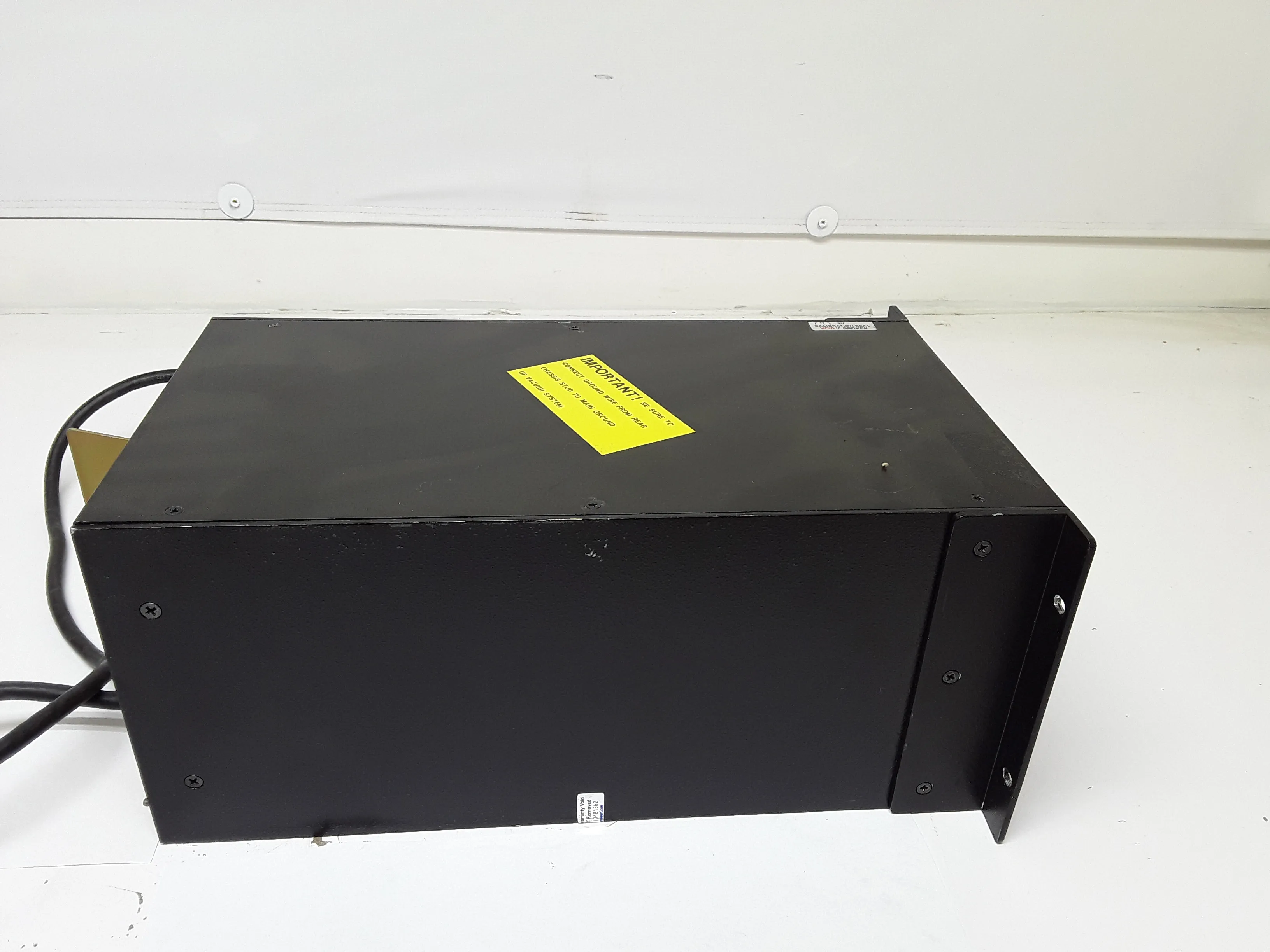

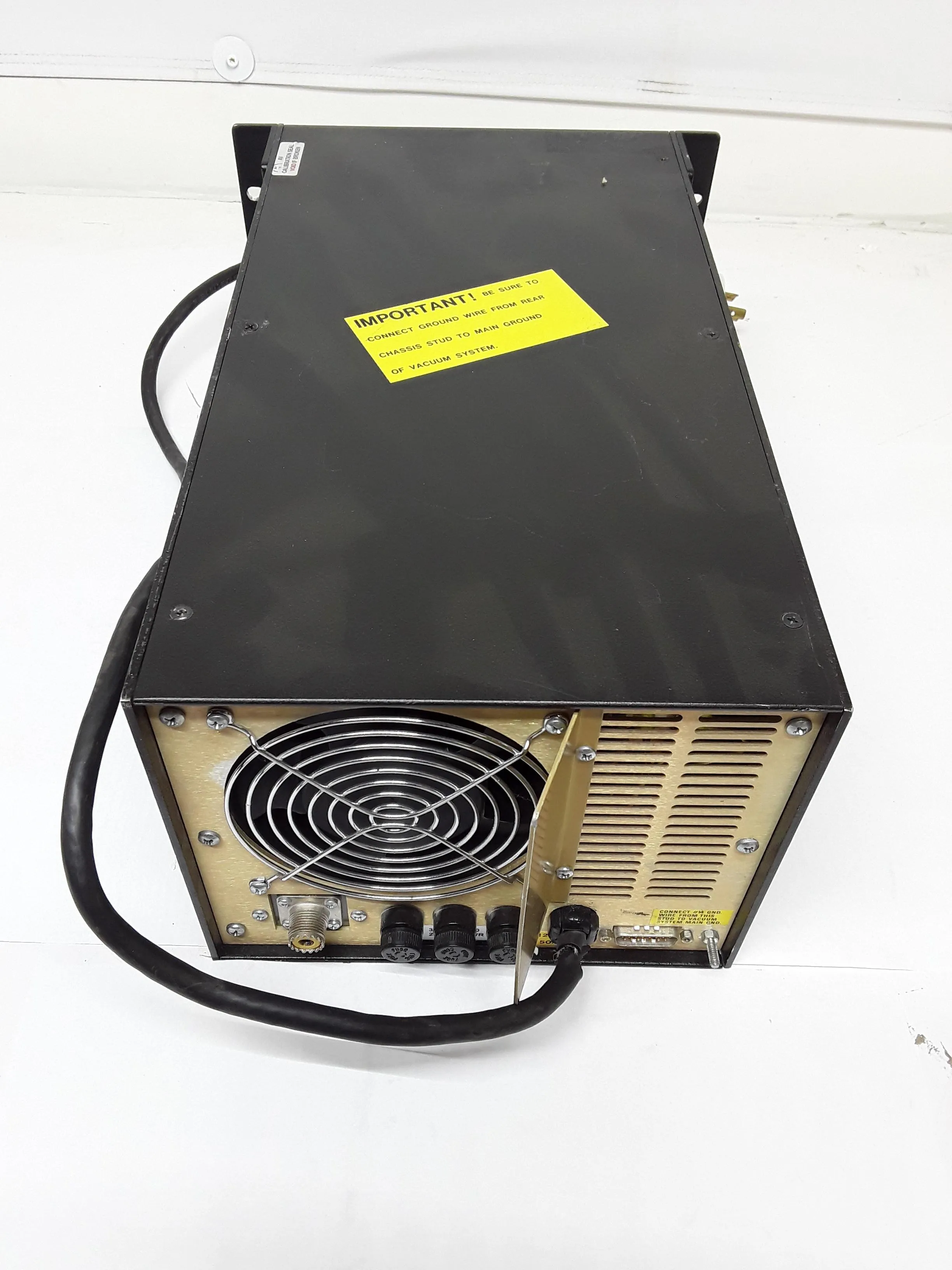

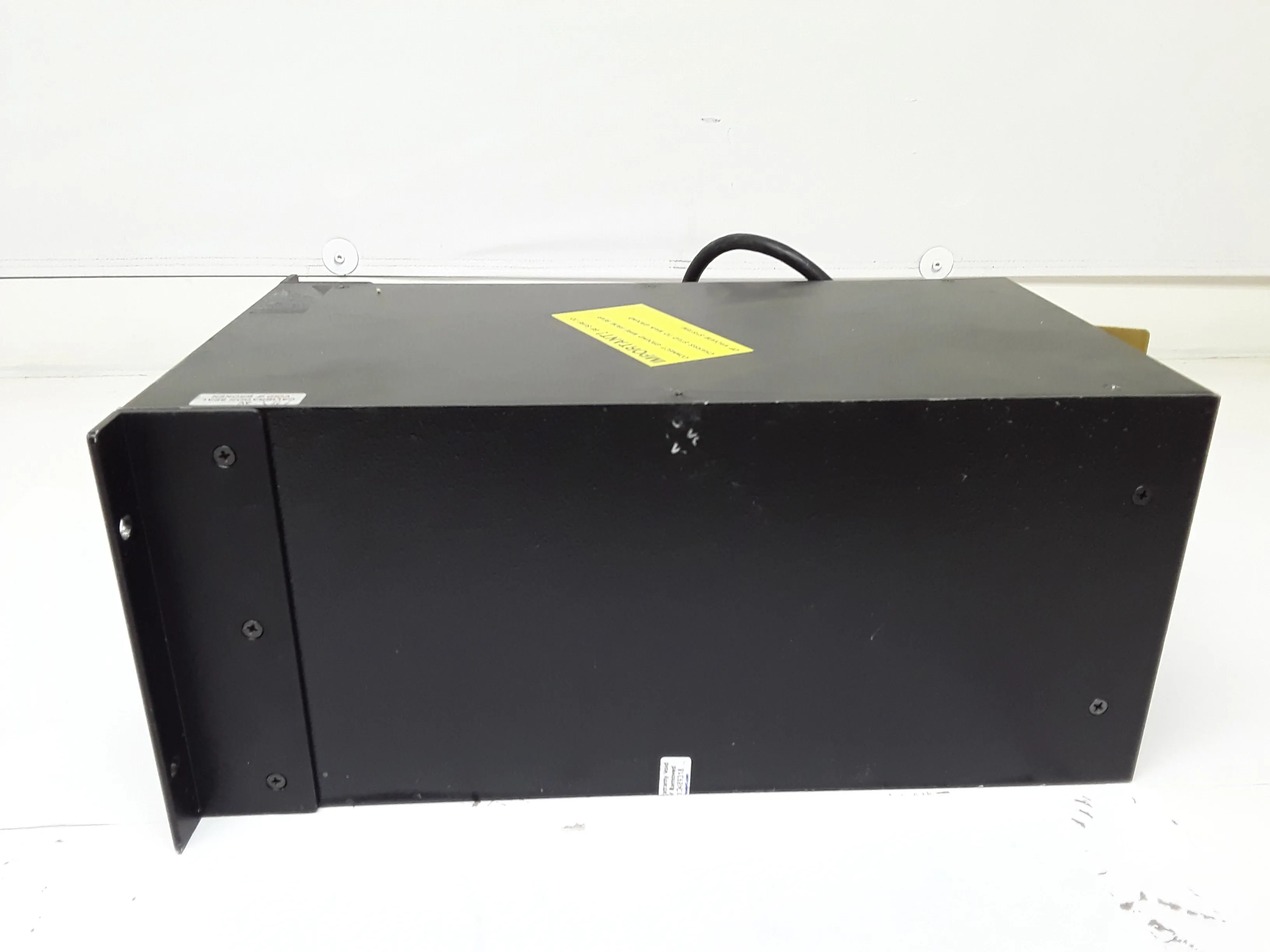

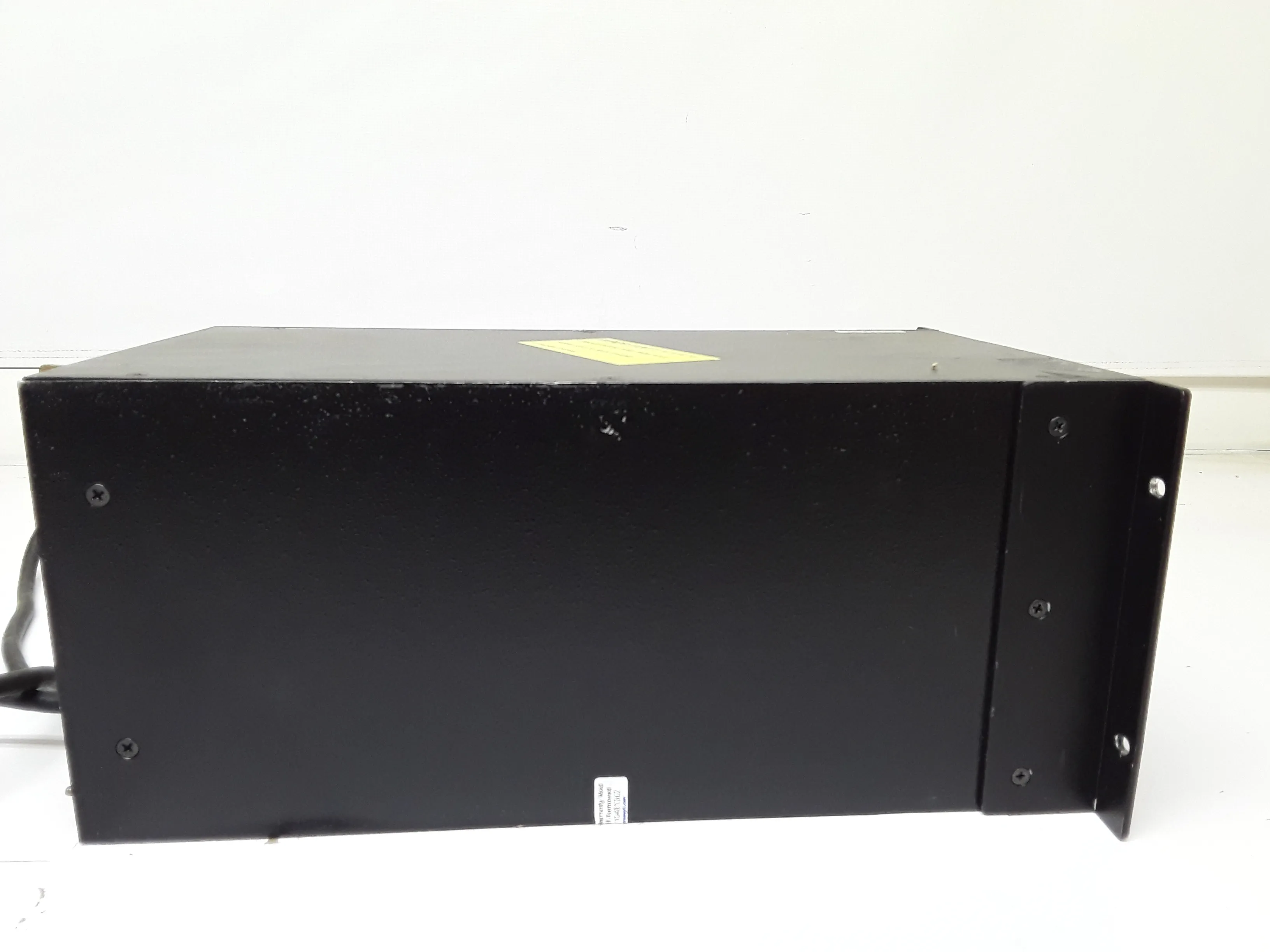

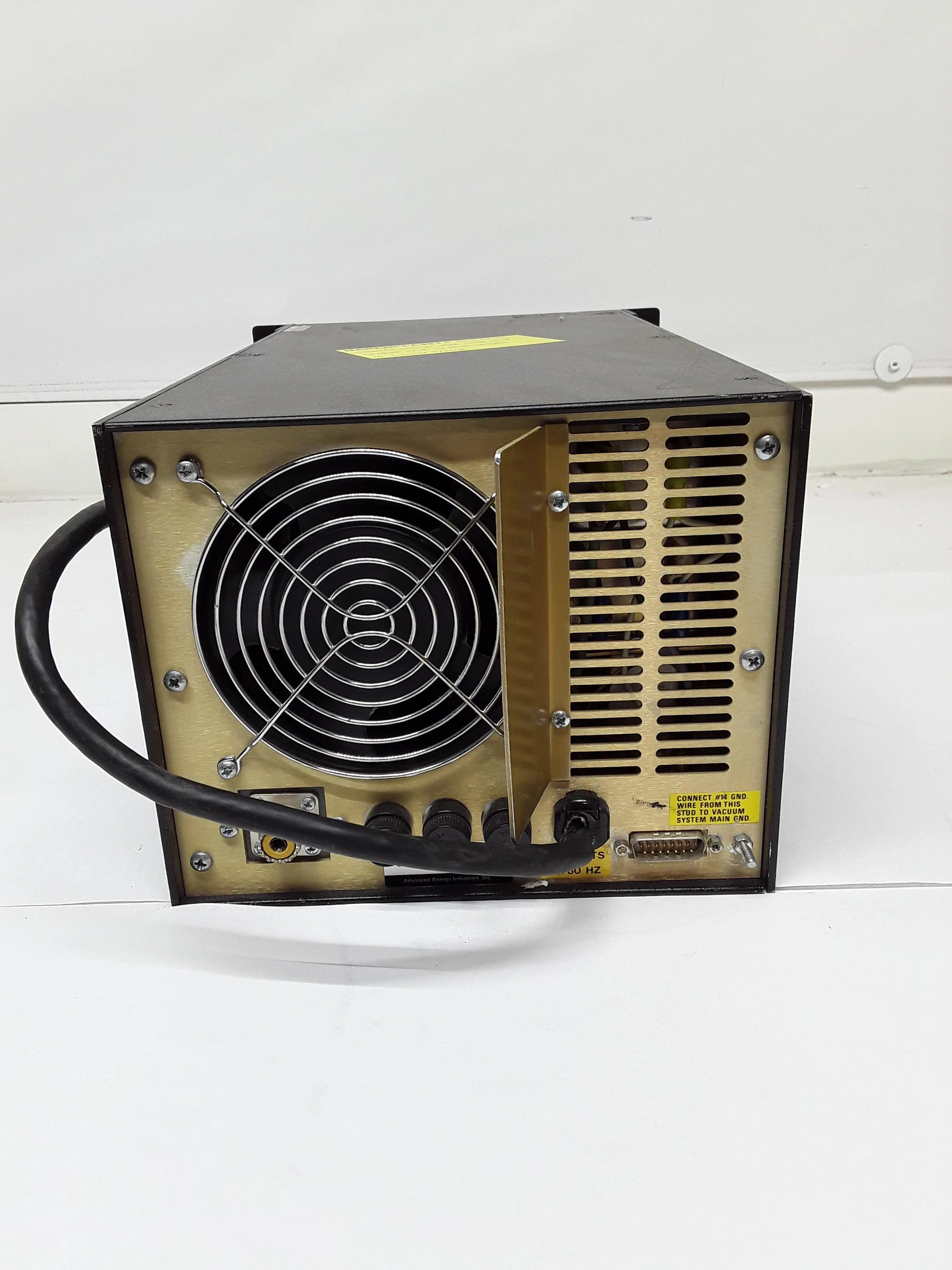

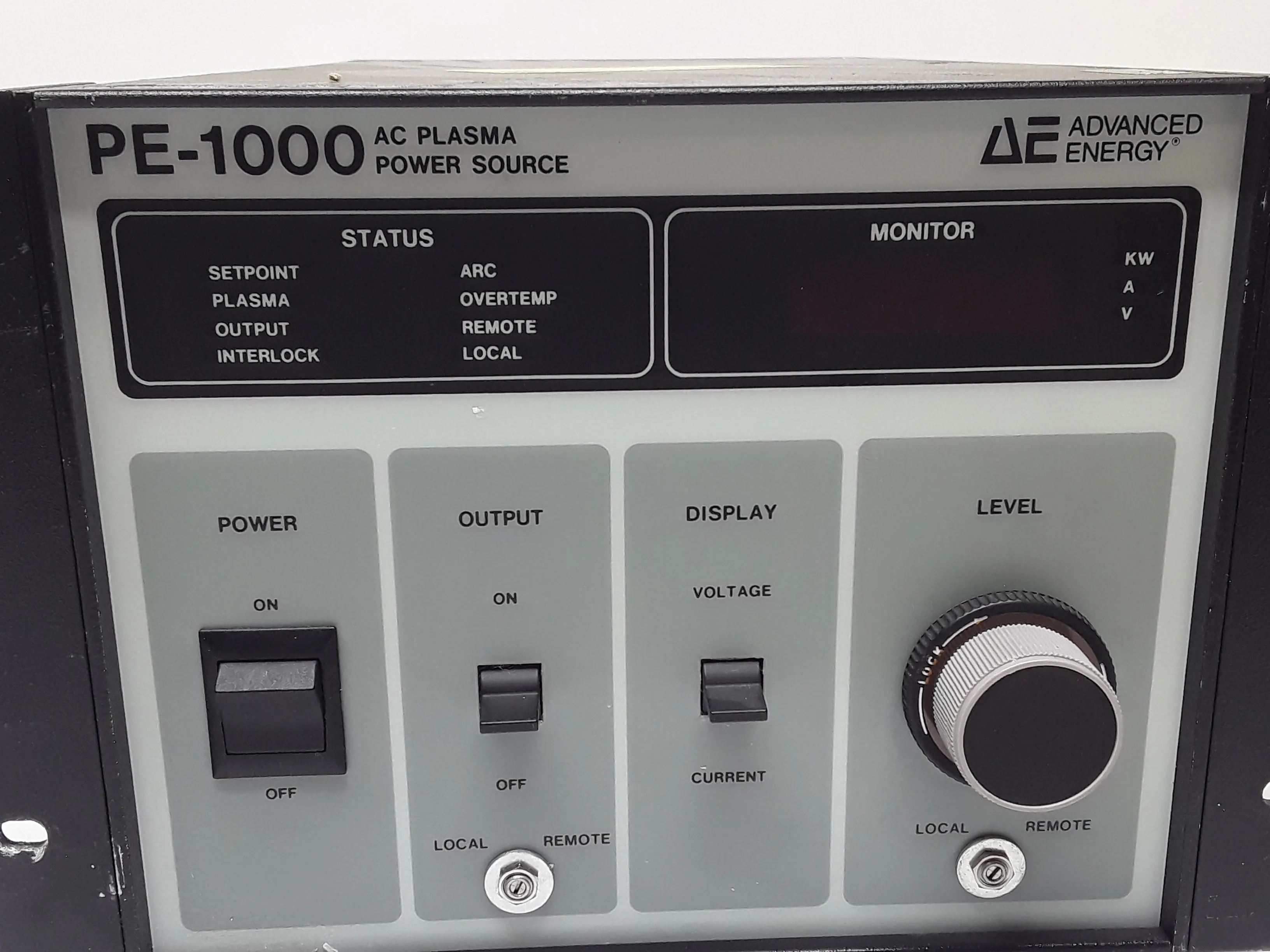

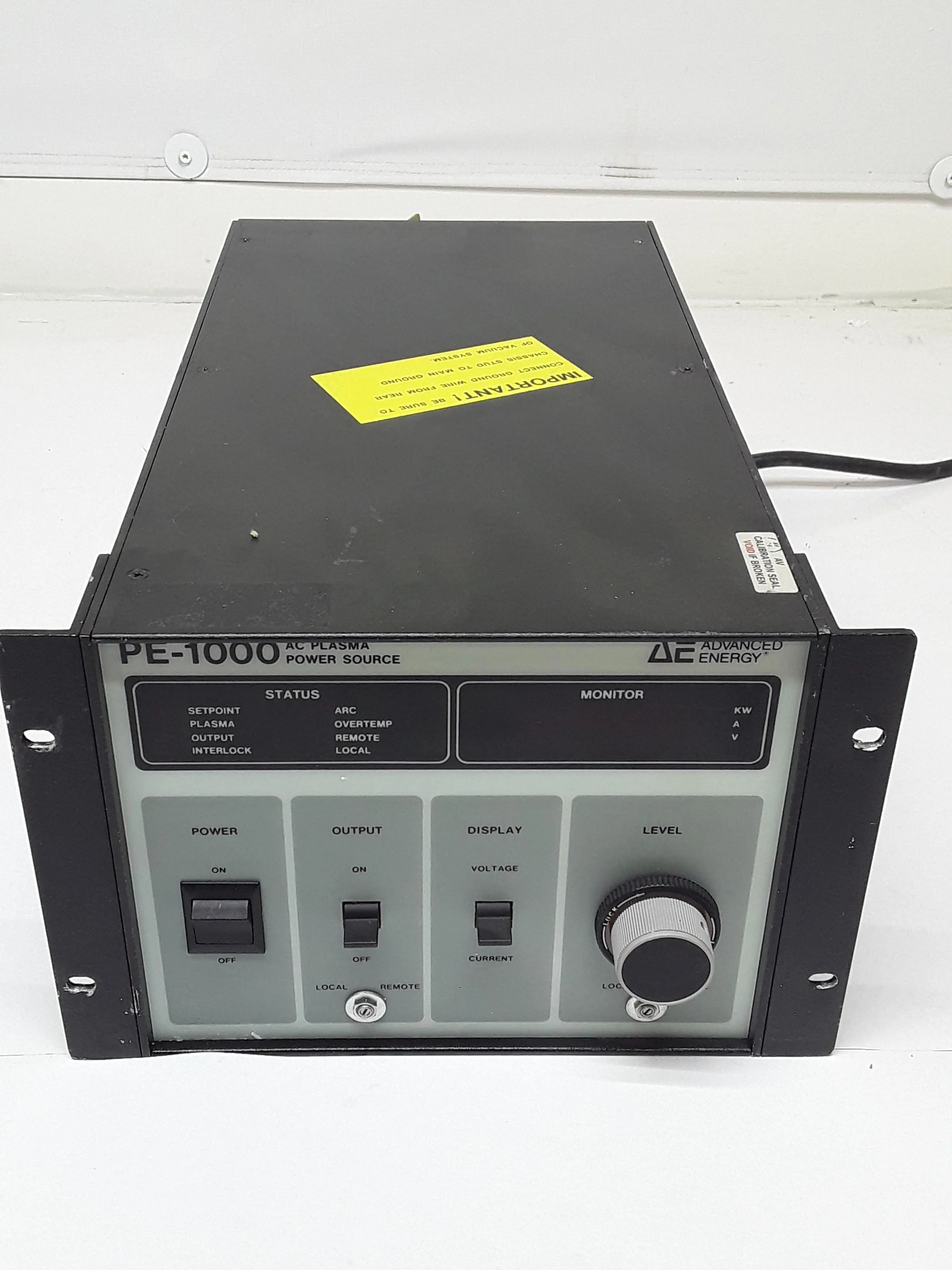

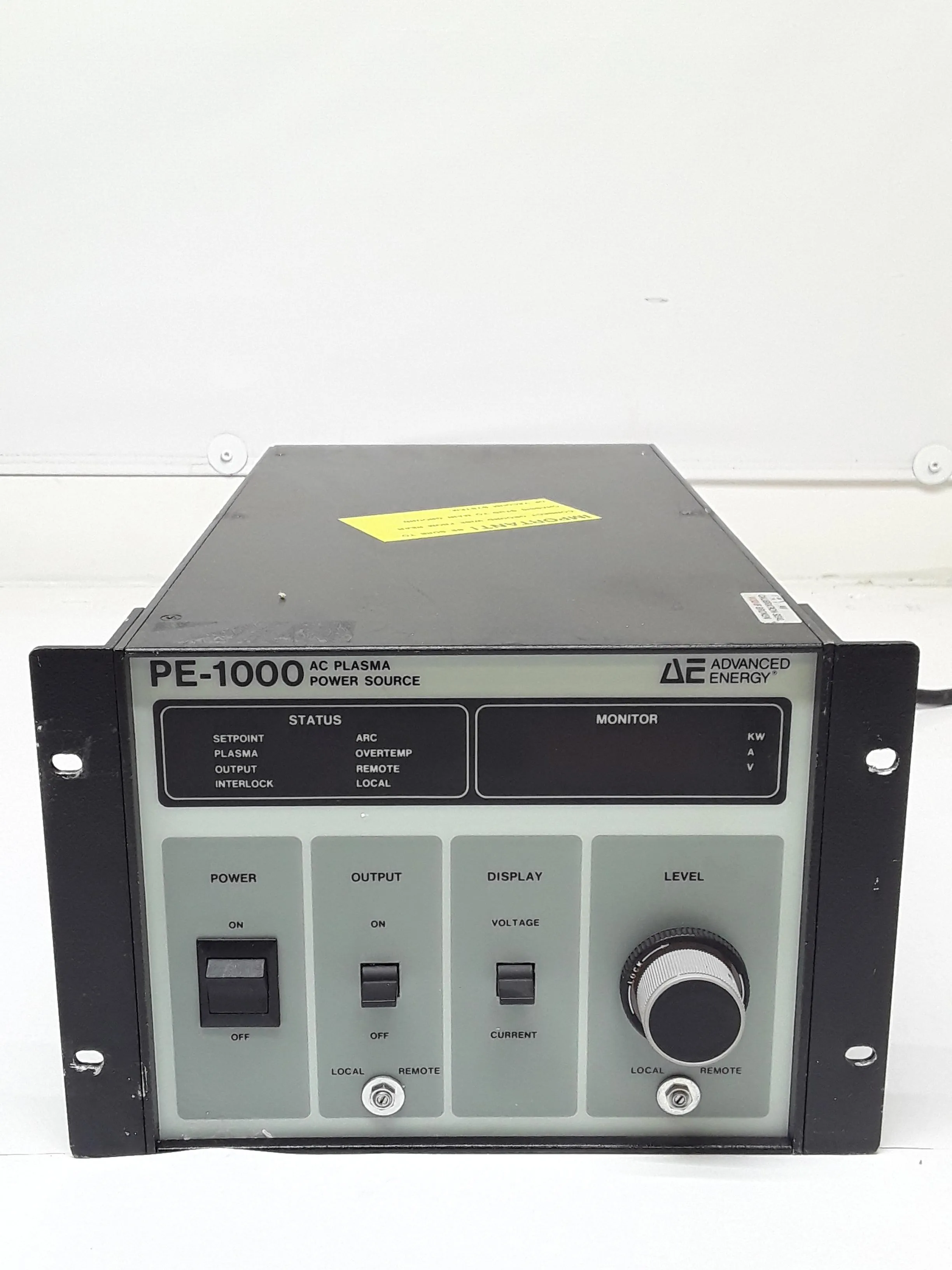

Advanced Energy AE PE 1000 RF Power Supply

Product Information

The Advanced Energy AE PE 1000 RF Power Supply is a versatile and reliable power pack configured with slaves for additional power. The PE Power Supply is designed to deliver precise power output that can be controlled locally or remotely, allowing for flexibility in usage. Its robust construction and advanced features make it suitable for various applications, including semiconductor processing and material science research. The unit provides consistent performance and reliability, enabling researchers to conduct experiments with confidence. With a 30-Day Warranty, 100% Parts and Labor, this used power supply offers excellent value for laboratories and research facilities. Its application areas in laboratory settings include semiconductor processing, material science research, and advanced energy systems.

• Low frequency output controlled in the constant power mode
• Built-in interlock supervision for enhanced safety
• LED status indicators for easy monitoring
• Wide input voltage and frequency range for compatibility with various setups

• Input Voltage: 115 VAC ± 10% 50/60 Hz single phase
• Input Current: 13 A nominal (full power, each box) 0.70 power factor
• Output Power: 1,250 kW at 550 V nominal output
• Output Frequency: 50 kHz ± 100 Hz
• Cooling: 0°C to 45°C ambient; 9 inches of clearance to rear of unit required; 1-inch clearance on sides and top of unit
• Humidity: 0-92%, non-condensing

Metric: 10.43 kg
Imperial: 23.0 lbs

Metric: 24 cm x 16 cm x 13 cm
Imperial: 9.45 in x 6.3 in x 5.12 in

850440

The chosen harmonized code 850440 refers to Other Static Converters, with a brief description of 'Having a power handling capacity not exceeding 10 kVA'. This code is selected based on the power capacity and function of the Advanced Energy AE PE 1000 RF Power Supply.
