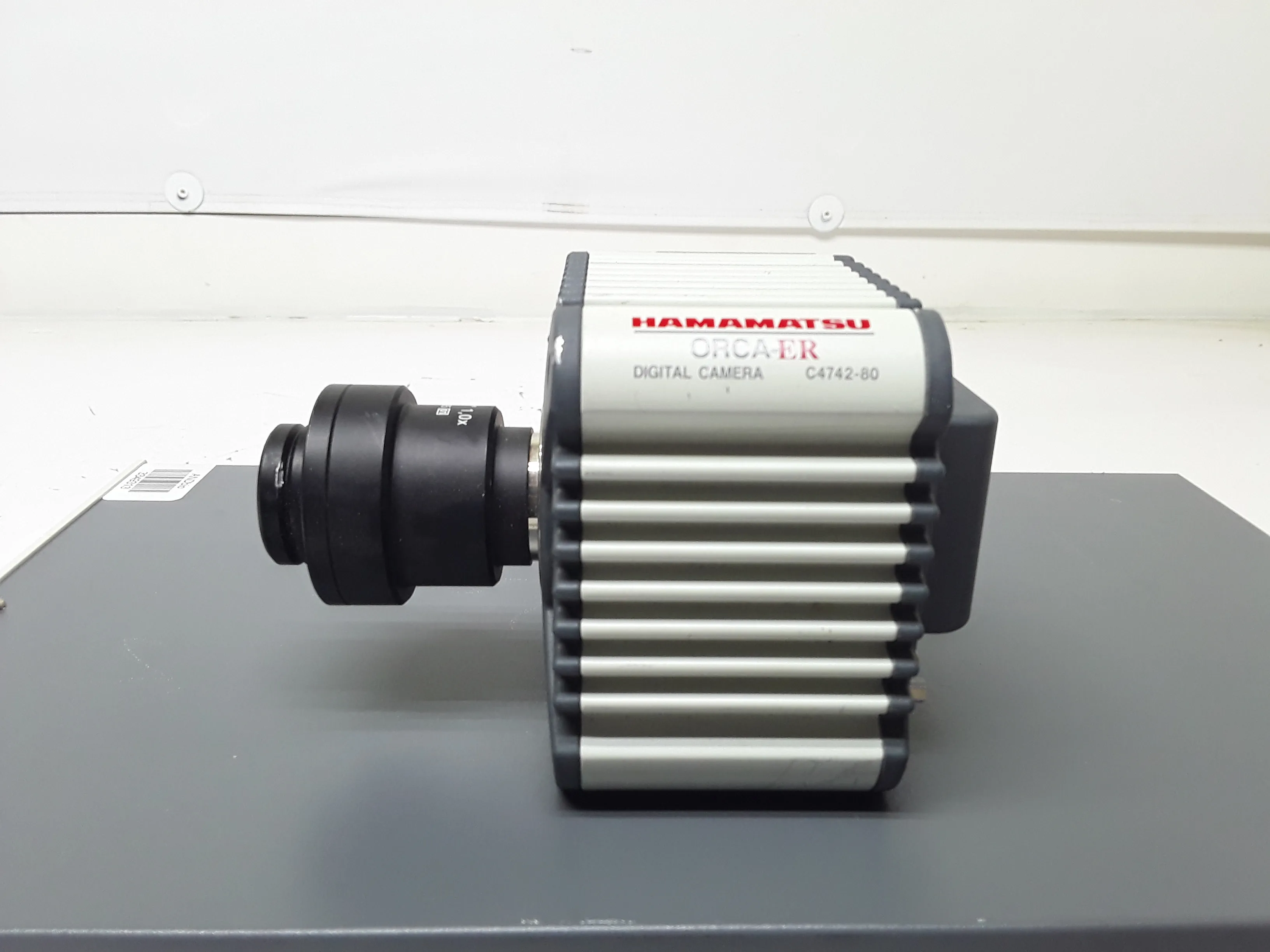

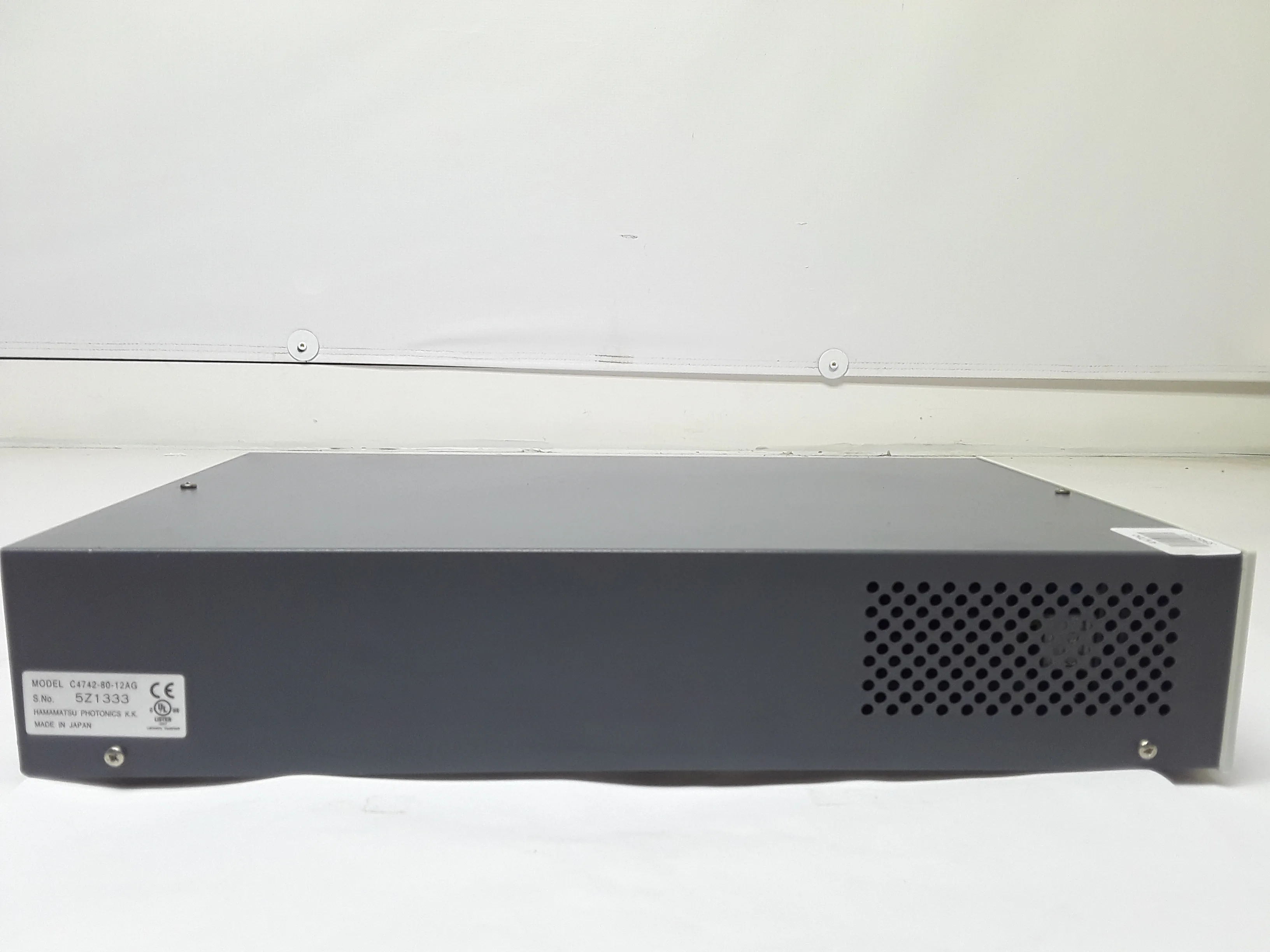

Hamamastu ORCA-ER C4742-80 B/W CCD Digital Camera with Cooled Vacuum-Sealed Head

Product Information

Greetings, laboratory wizards! Presenting the cutting-edge Hamamastu ORCA-ER C4742-80, a sophisticated B/W CCD digital camera designed for peak performance in scientific and industrial applications. This marvel of technology features a progressive scan interline CCD chip with high sensitivity in the VIS-NIR region, delivering exceptional noise characteristics at high frame rates. The Peltier cooled hermetic vacuum-sealed head maintains a chilly -20C, curbing dark noise and thermal drift. With its fast electronic shuttering, high resolution of 1.37 million pixels, and extensive imaging techniques, this camera is perfect for both high and low level imaging applications.

• Progressive scan interline CCD chip for high sensitivity in the VIS-NIR region

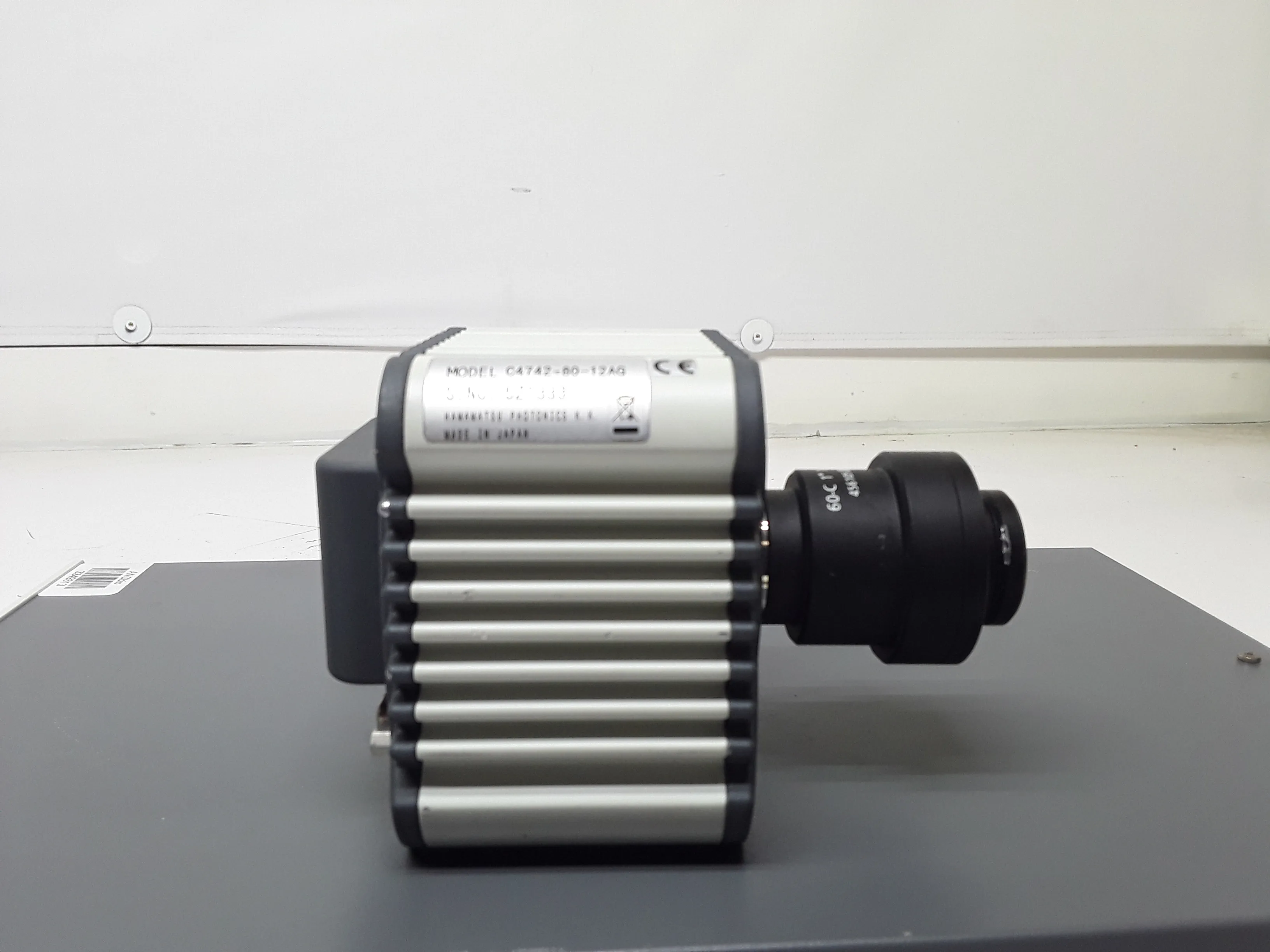

• Peltier cooled hermetic vacuum-sealed head with -20C cooling capability
• High resolution of 1.37 million pixels and fast electronic shuttering
• Compatible with a variety of frame grabber boards and C-mount lenses

• Imaging Device: Progressive scan interline CCD with micro-lens
• Effective No.of Pixels: 1344 (H) 1024 (V)
• Cell Size: 6.45 m x 6.45 m (square format)
• Effective Area: 8.67 mm x 6.60mm (2/3-inch format)
• Pixel Clock Rate: 14.75M Hz/pixel
• Frame Rate: 8.8 frame/sec; 2 x 2 binning: 16 frame/sec; 4 x 4 binning: 27 frame/sec; 8 x 8 binning: 41 frame/sec
• Readout Noise (r.m.s.): 8 electrons
• Full Well Capacity: 18,000 electrons
• Dynamic Range*: 2,250 : 1
• Cooling Method: Forced air Peltier cooling, with hermetic vacuum sealing
• Cooling Temperature: -30C at 20C ambient temperature
• Dark Current: 0.03 electron/pixel/sec
• A/D Converter: 12 bit
• Exposure Time: 10 sec to 4,200 sec
• Sub Array: Yes
• Contrast Enhancement: Analog Gain (10times max.) and Offset function
• External Trigger: Yes

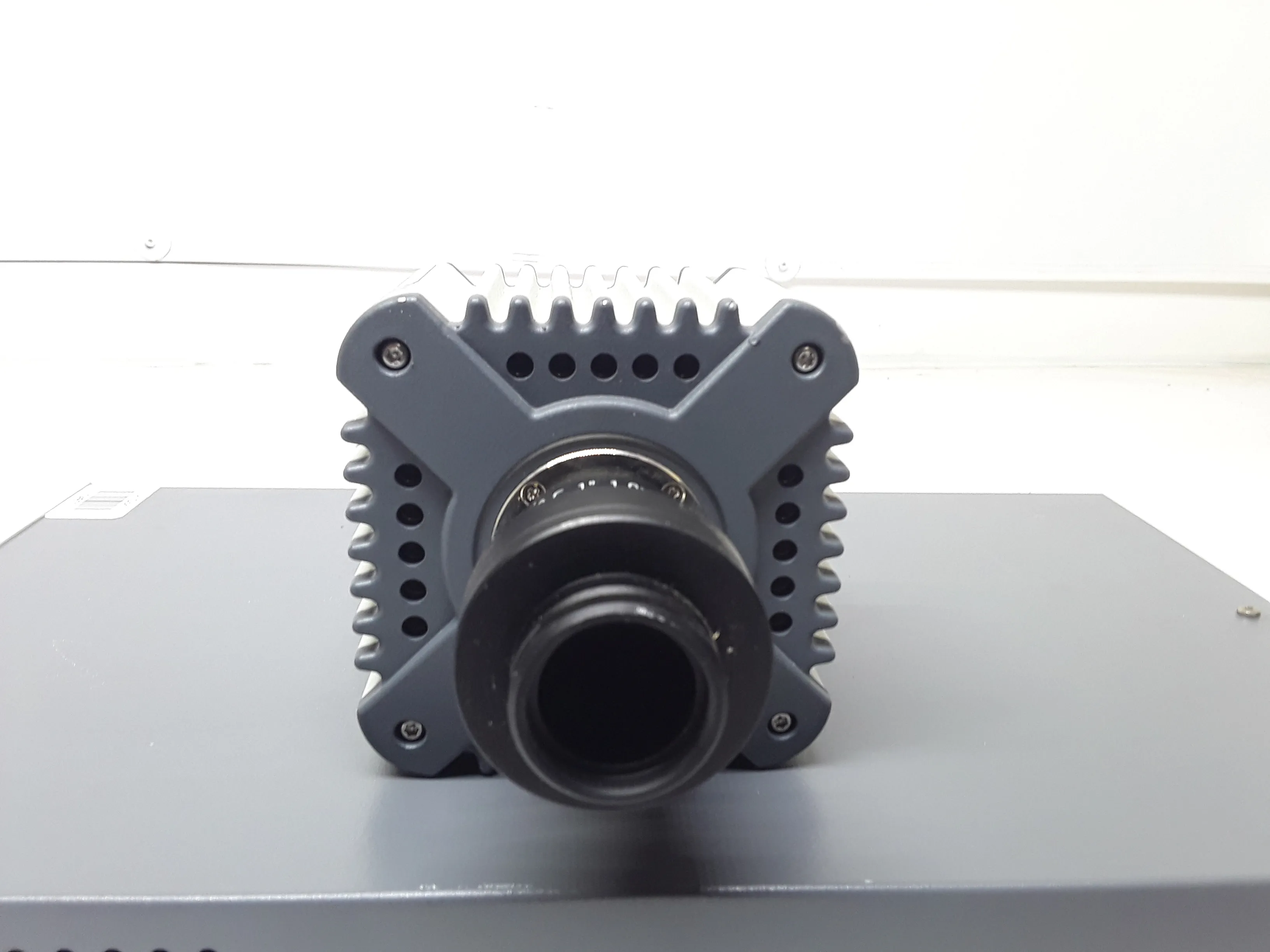

• Lens Mount: C-mount

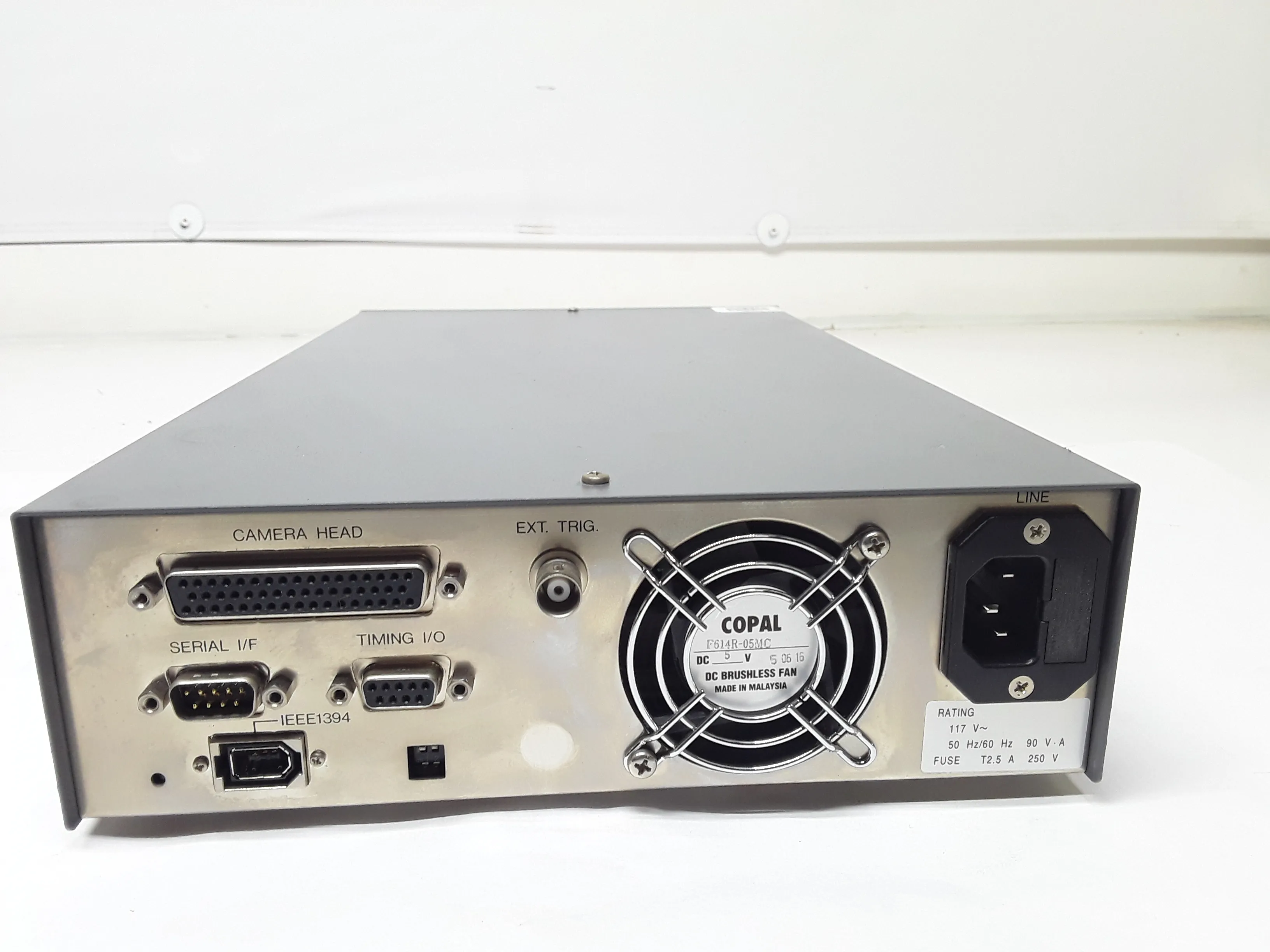

• Interface: IEEE1394-1995
• External Control: 1394-Based Digital Camera Specification Ver.1.30
• Line Voltage: 100V/117V/220V/240V AC, 50/60Hz
• Power Consumption: Approx. 90VA
• Ambient Storage Temperature: -10C to +50C
• Ambient Operating Temperature: 0C to +40C
• Ambient Storage/Operating Humidity: 70% max. (no condensation)

Metric: 7.7 kg
Imperial: 17 lbs

Metric: 40.64 cm x 40.64 cm x 25.4 cm
Imperial: 16 in x 16 in x 10 in

8525803000

This code corresponds to the category of digital cameras and video camera recorders, suitable for specialized scientific and industrial use, perfectly aligning with the intended purpose of the Hamamastu ORCA-ER C4742-80.
